Giới thiệu Bảng mạch cân bằng pin lithium BMS 13S 48V 50A 18650

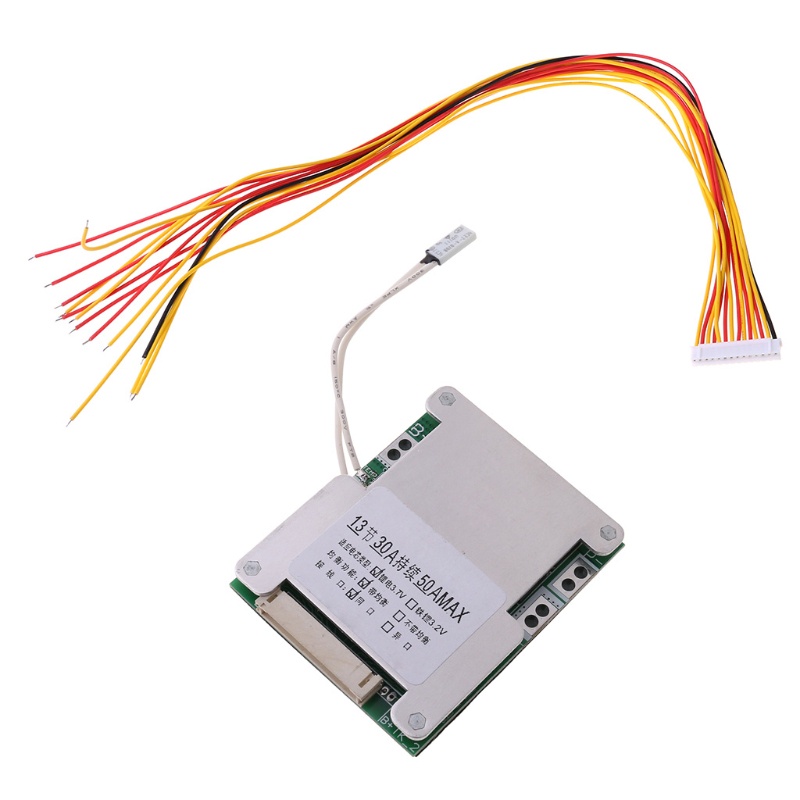

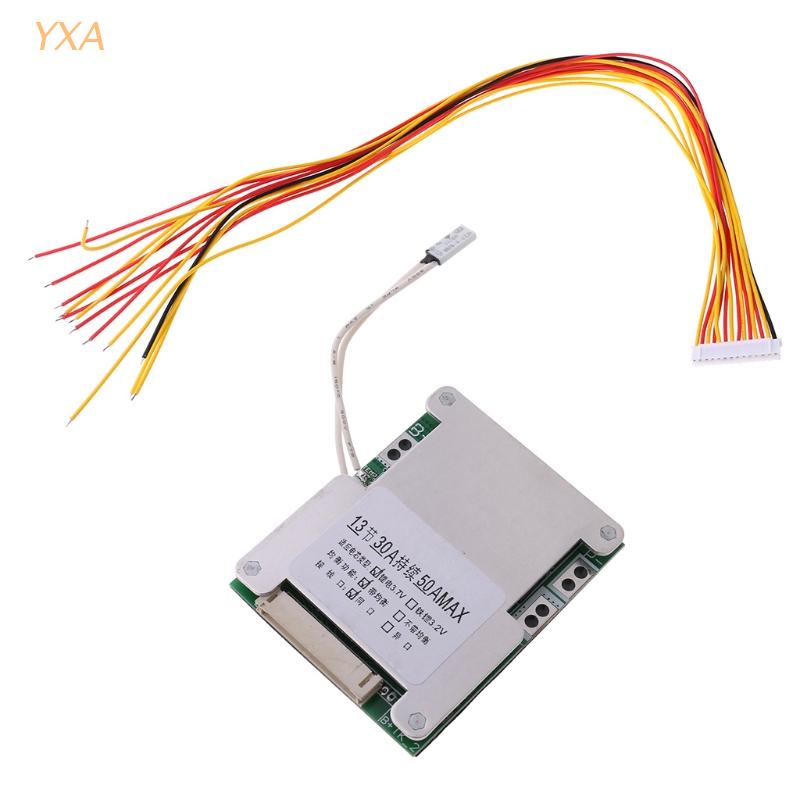

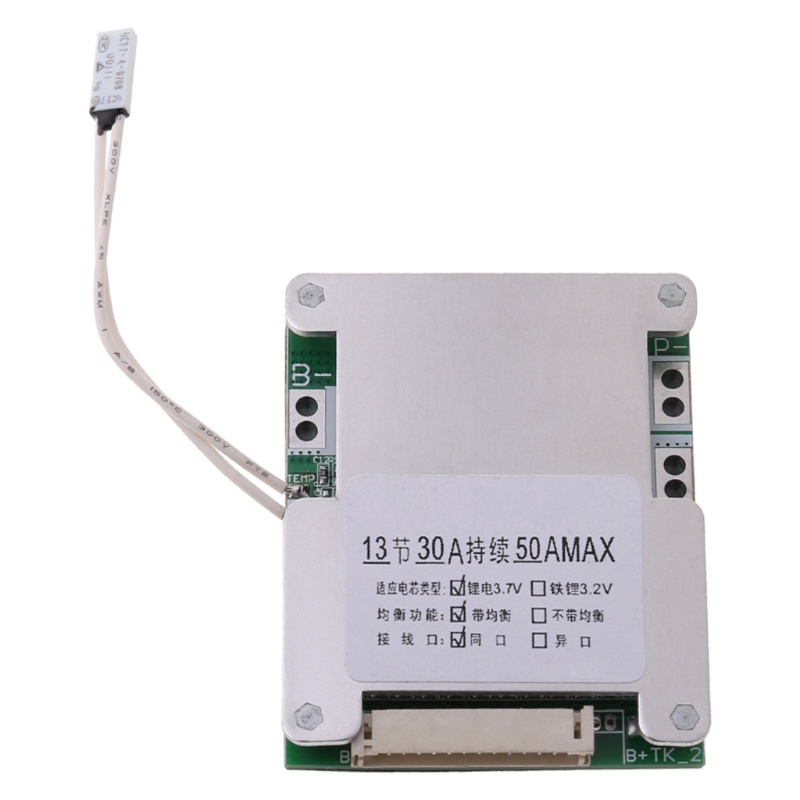

BMS 13S 48V 50A 18650 Li-ion Lithium Battery Pack Protection Equalizer Board PCBBMS 13S 48V 50A 18650 Li-ion Lithium Battery Pack Protection Equalizer Board PCB Balance Circuit Board for Electric Vehicles
100% brand new and high quality.
Application: electric car, twist car, electrician bicycle, scooter, inverter and so on
Size: 70mm/2.76"×56mm/2.20"
1: For 3.7V ternary, lithium cobaltate, lithium manganese oxide battery
2: Suitable power and voltage: 48V, less than 2500W
3: Over charge protection
4: Over discharge protection
5: Over current protection
6: Output short circuit protection
7: Over temperature protection (discharge max temperature 75 degree ,charge min temperature -7 degree)
8: Working current: 50A (max)
9: Continuous working current: 40A (max)
10: Over-discharge protect voltage: 2.6V
11: Over-charge protect voltage: 4.25V
12: Charge current: 40A
13: Balance charge voltage: 4.2V
Note:
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Includes:
1 × Li-ion Lithium Battery Charge Board
