Giới thiệu Bảo Vệ Pin Cân Bằng PCB 5S BMS LiPo 15A Li-ion 4.2V 21V 18650
Description:Single section since the power consumption: 30uA.
Single section between the power consumption: 3uA.
Single section over charge detection voltage: 4.18- /4.22V.
Single section over discharge detection voltage: 2.75-2.85V.
Short / over / over current protection recovery. Short circuit/over discharge/over current protection after removal of load auto recovery.
Specification:
Charging current: 56A
Charging voltage: 21V
Charge MOS pressure value: 35V
Discharge MOS pressure value: 35 V
Continuous discharge current: 15A
Over current protection: 50/55/60A
Over discharge detection delay: 0.5-2.0S
Over charge recovery voltage 4.05- 4.15V
Over charge detection delay: 0.5/1.0/2.0S
Over current protection delay: 20/25/30mS
Over discharge recovery voltage: 2.90-3.20V
Short circuit protection delay 200/500/600uS
The normal working state of B- to P- resistance: 5mΩ
Continuous 15A current maximum temperature rise: 25℃
Working environment (humidity) relative humidity: ≥98% (long-term stability under the humidity)
Working environment (temperature) -30 ~ 80℃(in the lower temperature range of long-term stability)
Size Chart:
Size: (LxW) Approx. 60x23mm / 2.36x0.90inch
Package Includes:

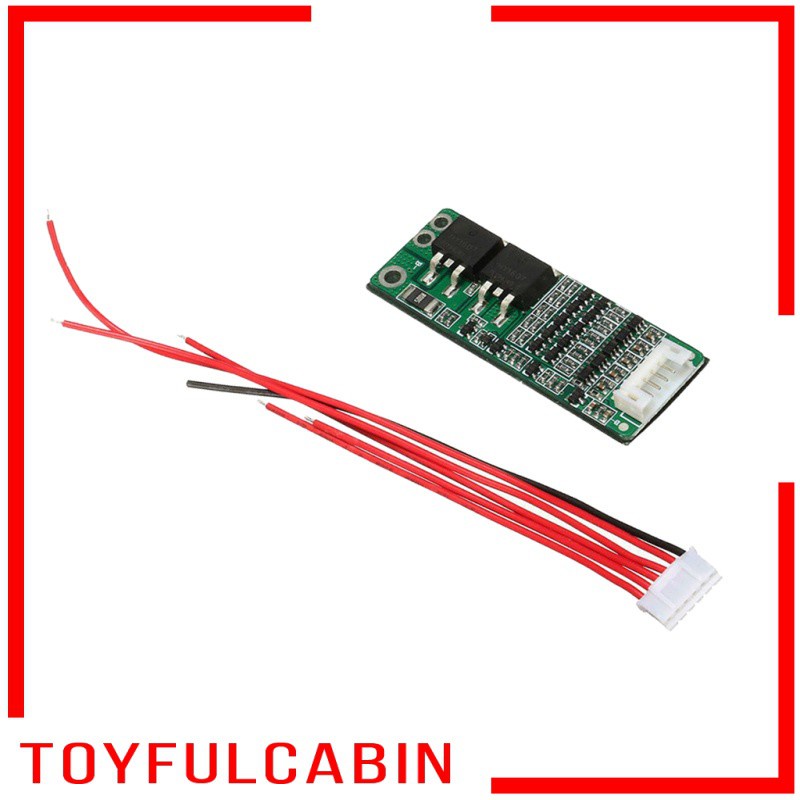

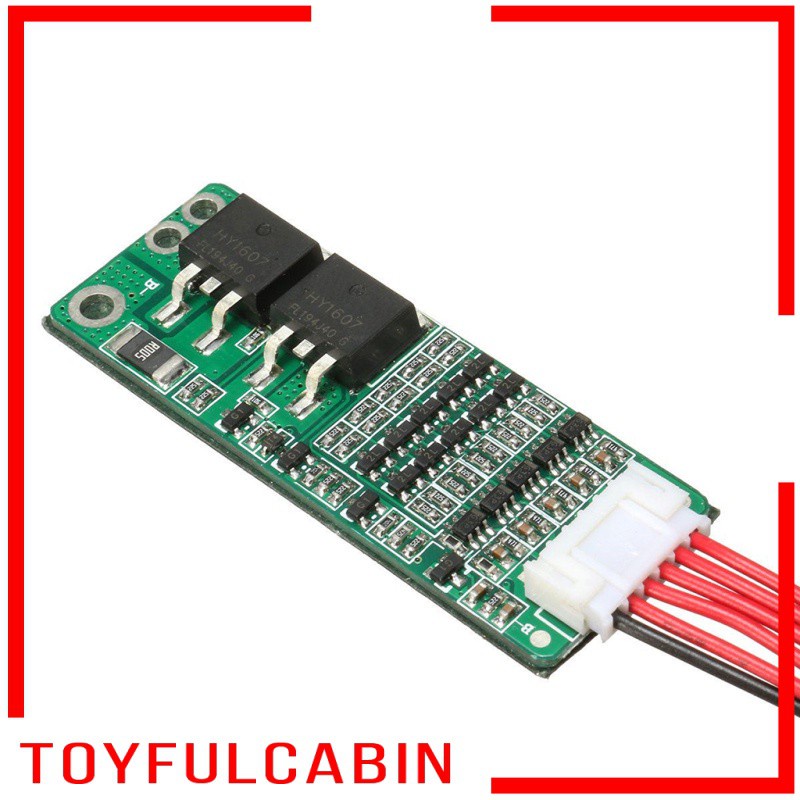

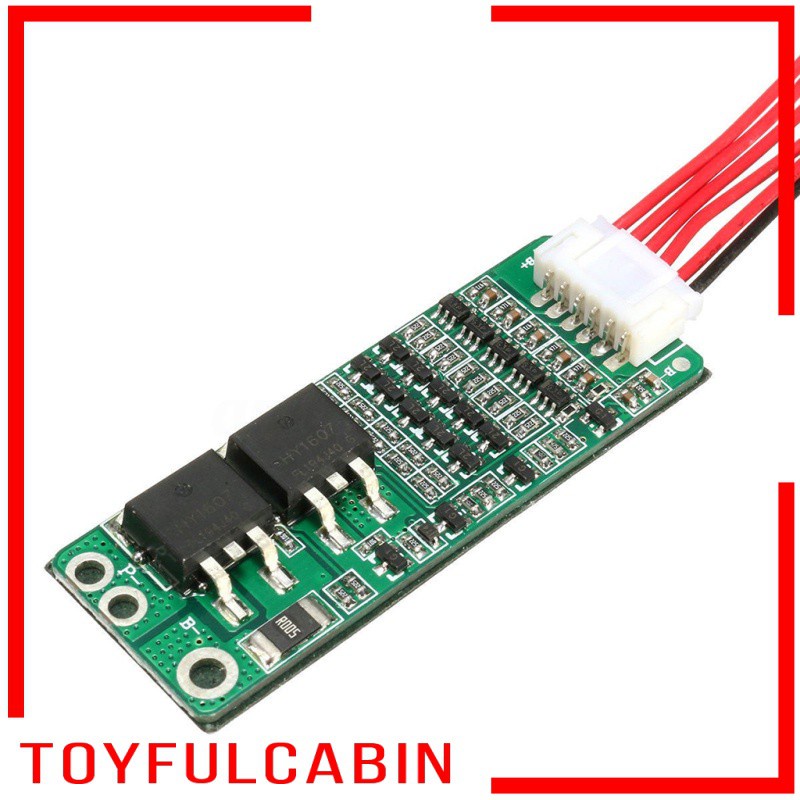

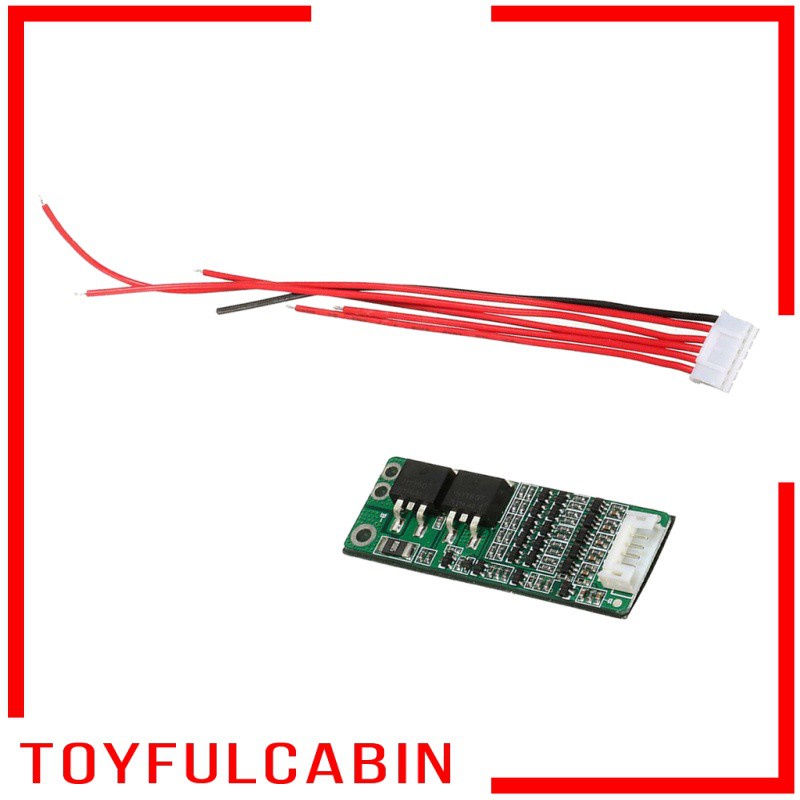

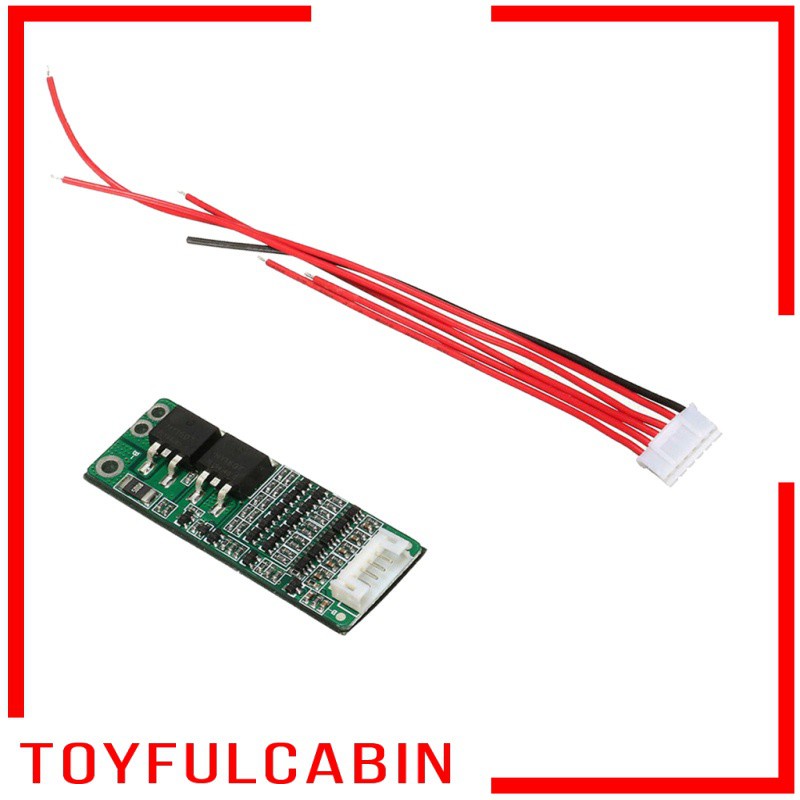

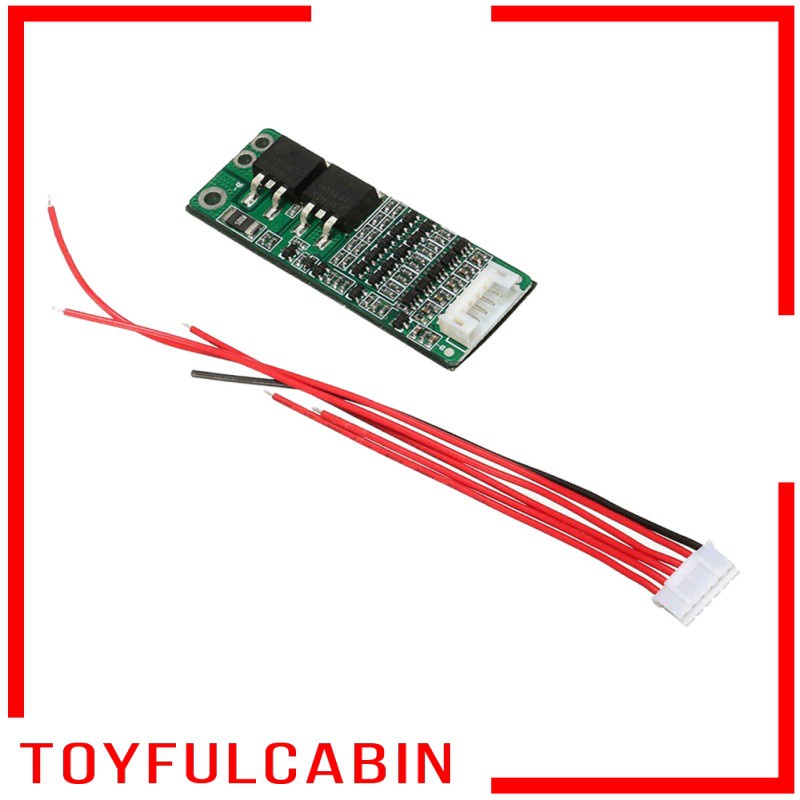

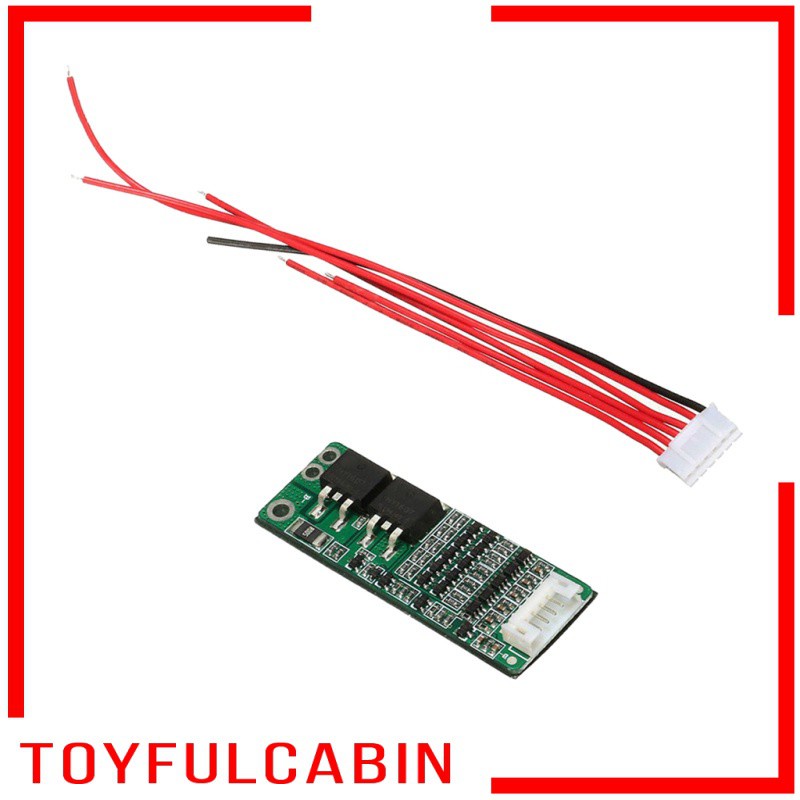

1 Piece 5S 15A PCB Protection Board
