Bảng Mạch Chuyển Đổi Iic I2C Twi Spi 1602 2004 Lcd Lcd1602 Pcf8574

Giới thiệu Bảng Mạch Chuyển Đổi Iic I2C Twi Spi 1602 2004 Lcd Lcd1602 Pcf8574

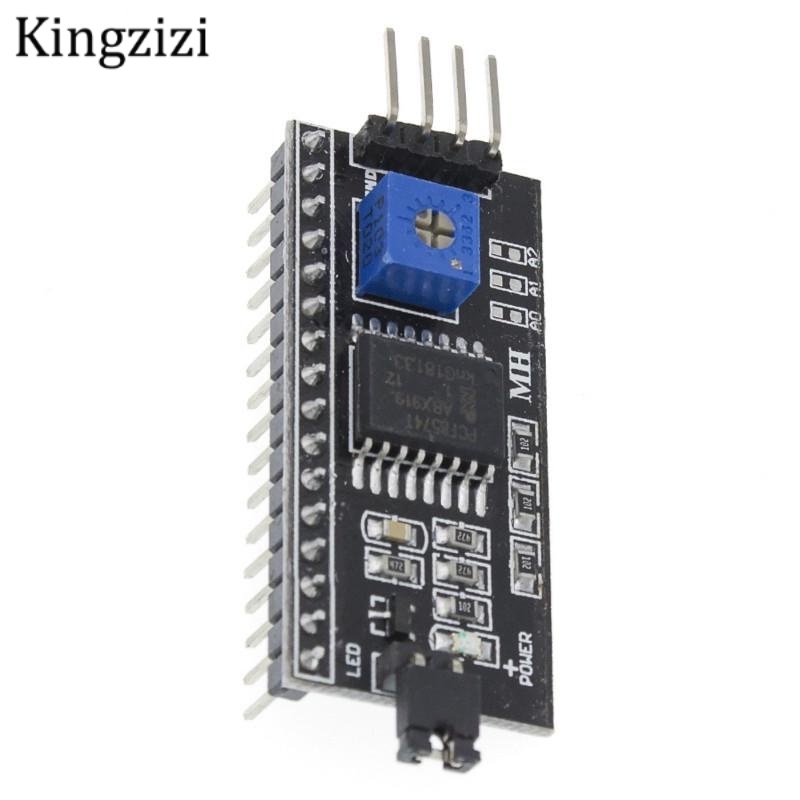

IIC I2C TWI SPI Serial Interface Board Port 1602 2004 LCD LCD1602 Adapter Plate LCD Adapter Converter Module PCF8574

The Product parameters:

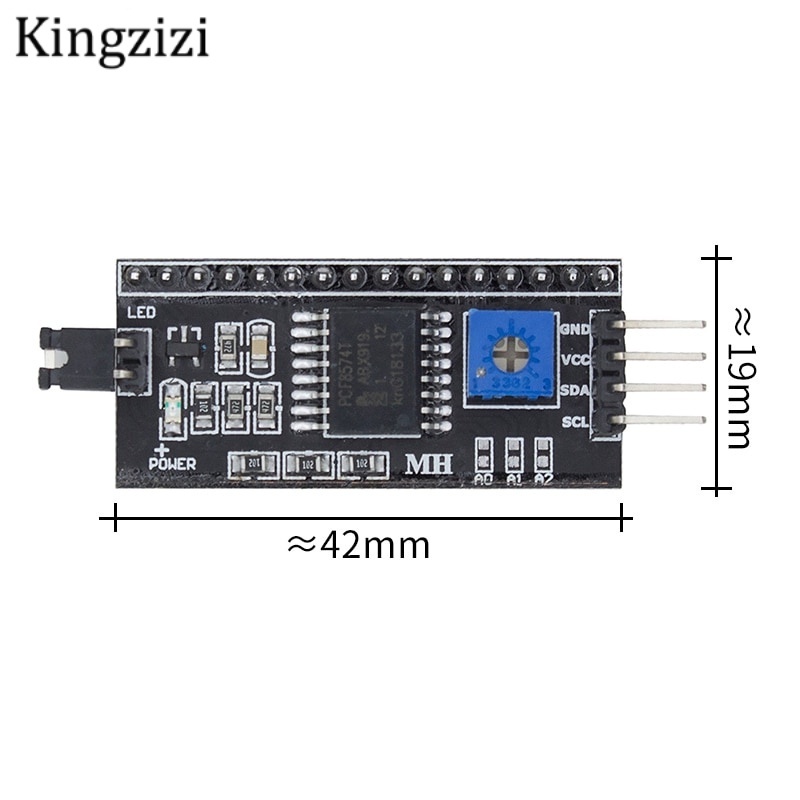

1. Dimensions: 41.5 mm (length) * 19 mm (W) * 15.3 mm (height)
2. Weight: 5 g
3. PCB Color: Black
4. Supply Voltage: 2.5-6 v
5. supports the I2C protocol
6. with backlight power control, can be connected via jumper Settings are backlight power. The plug-in the jumper to connect the backlight off, unplug the jumper to disconnect the backlight power
7. Contrast can be adjusted by turning the blue potentiometer clockwise happens, counterclockwise weakened. The potentiometer design on the front, enabling customers to freely adjust anytime
8. Eight modules can be cascaded to cascade up to eight. By short short-circuiting A0 / A1 / A2 modify the device address. The default address is 0 x27

Shipping list:
1pcs * IIC I2C TWI SPI Serial Interface Board Port LCD1602 LCD2004
