Giới thiệu Bảng Mạch Hạ Áp Dc 4.5v-48v Lm2596Hvs Chuyên Dụng

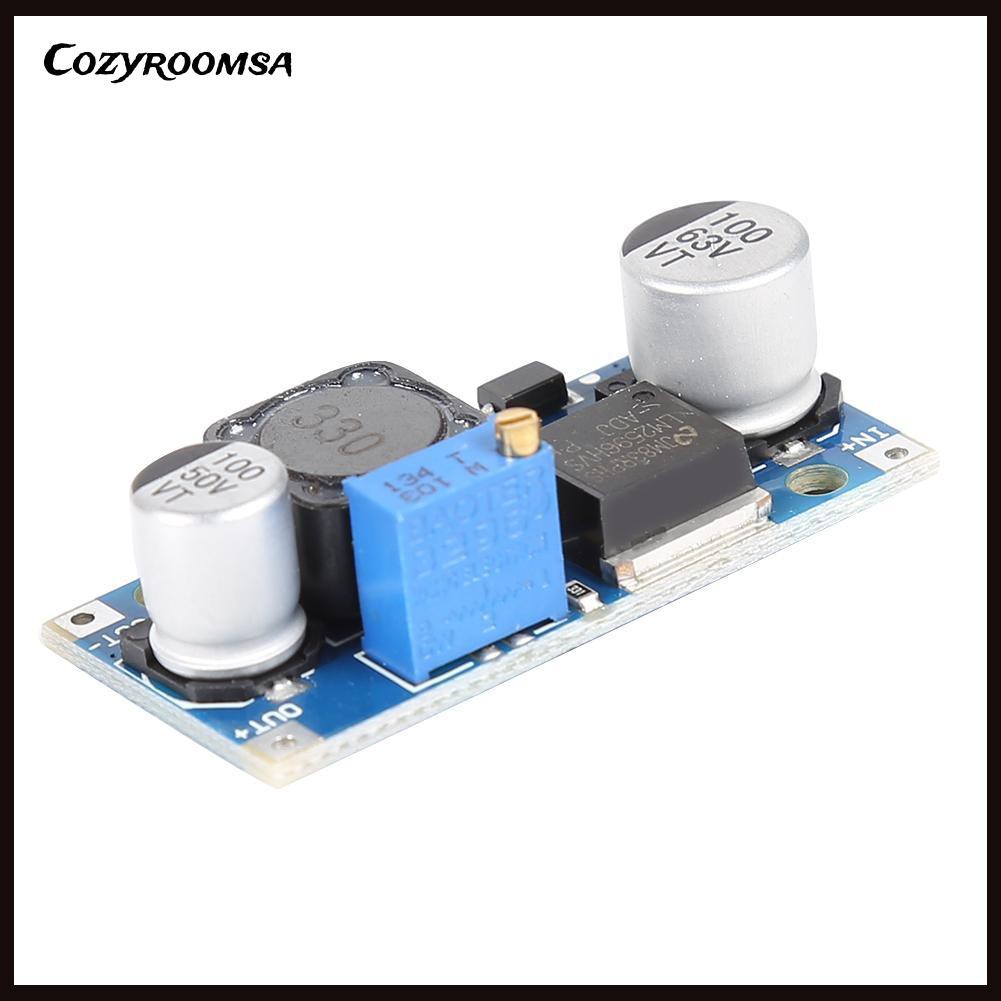

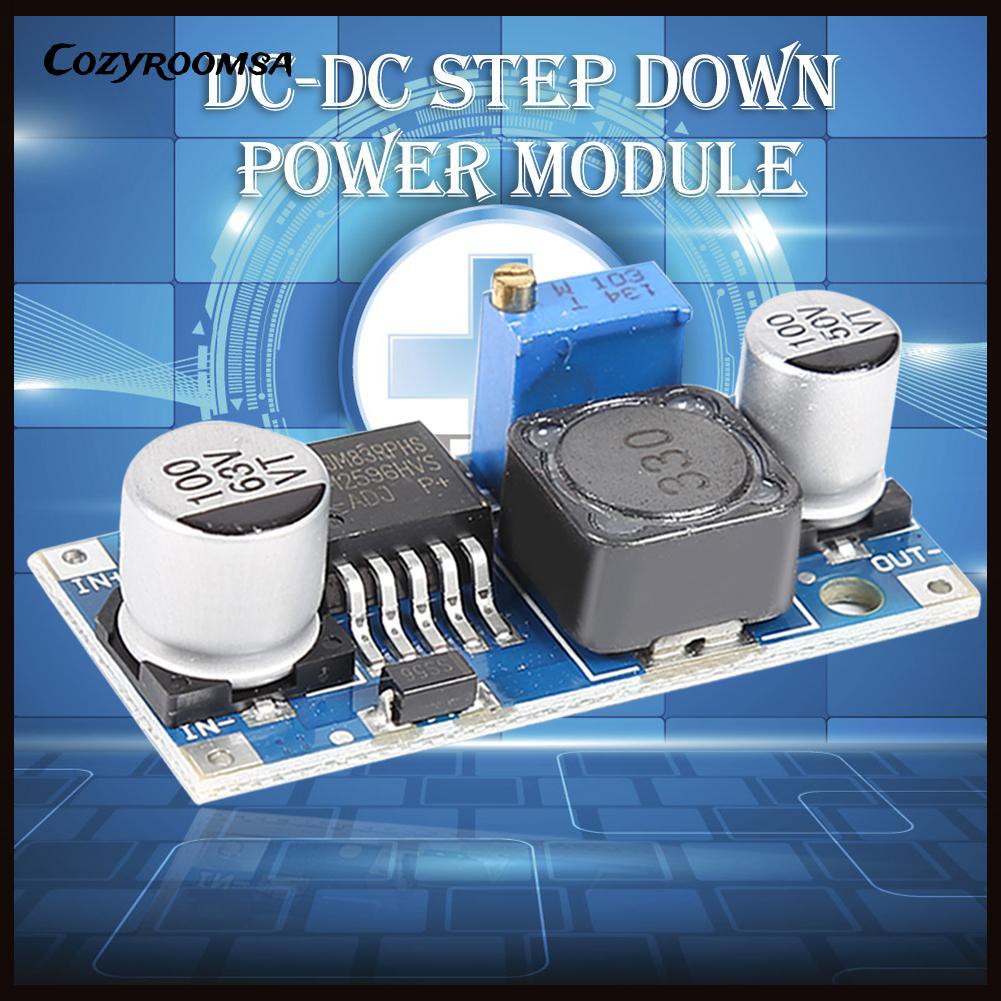

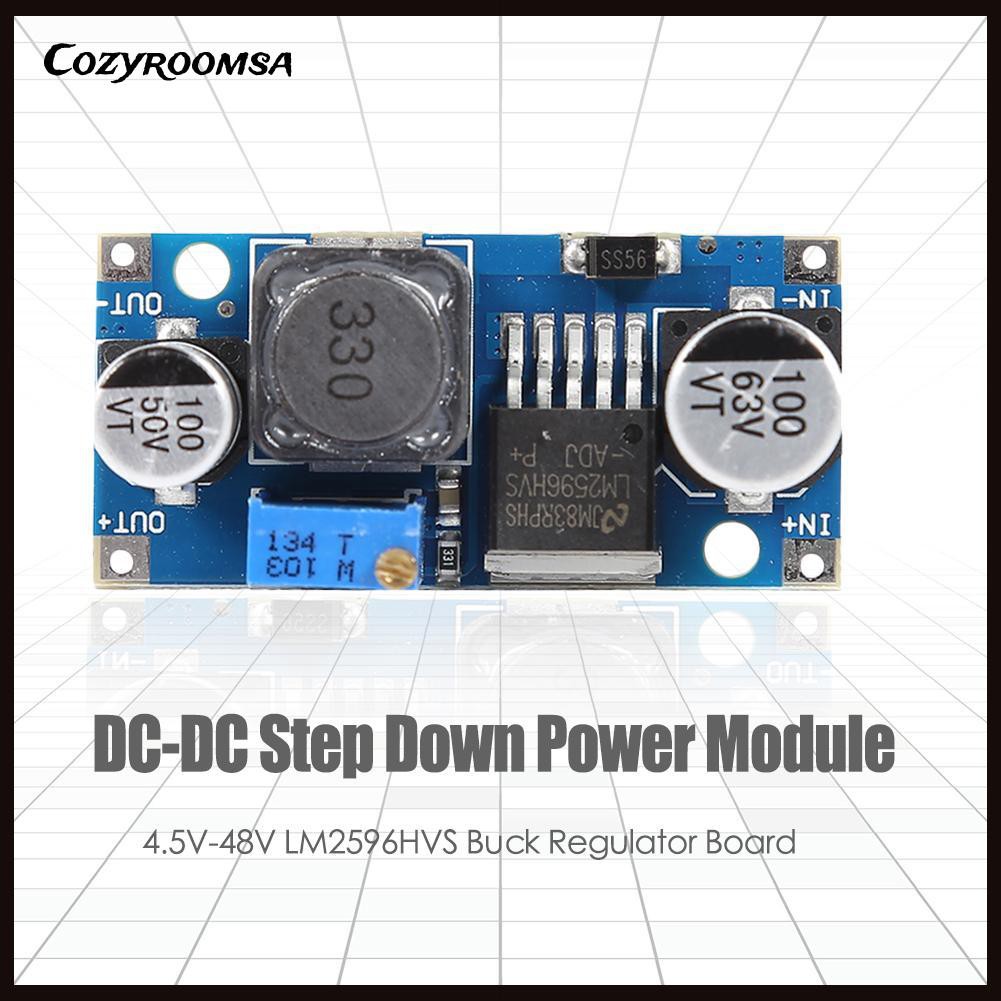

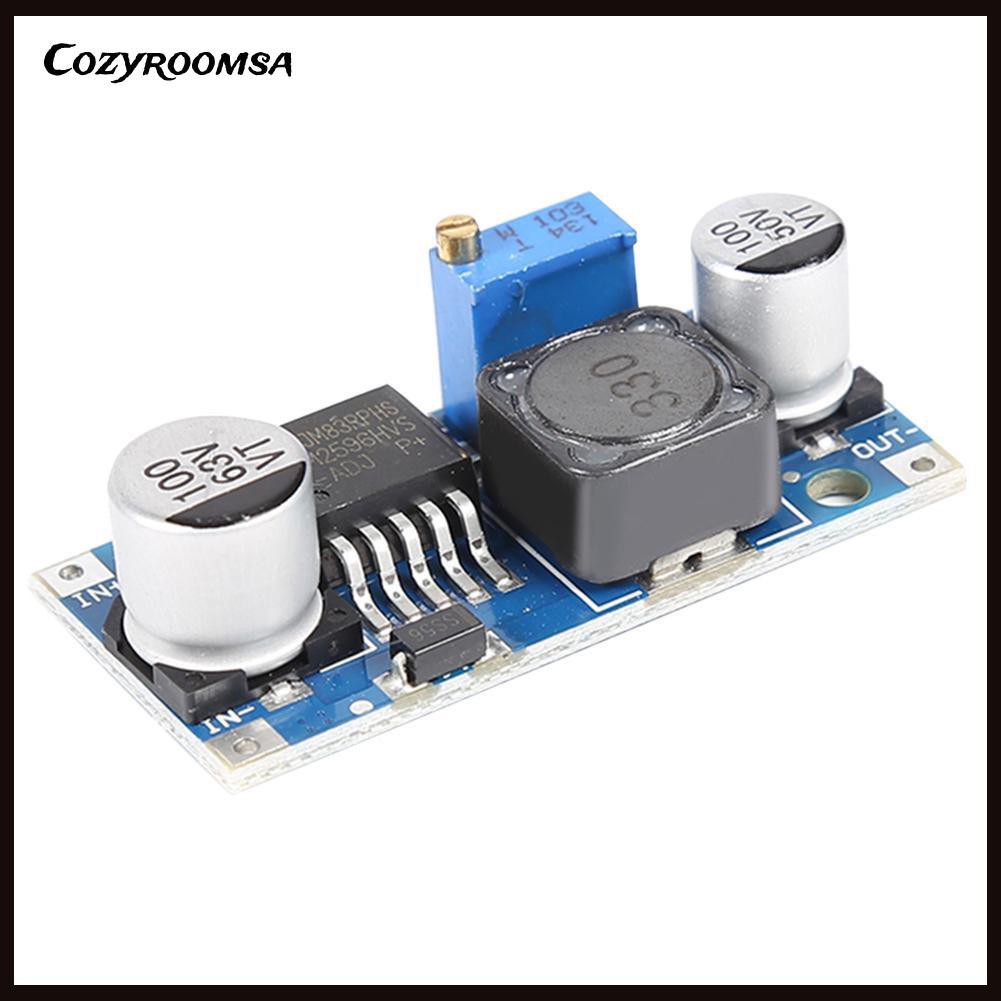

LM2596HVS DC-DC Step Down Power Module DC 4.5V-48V Buck Voltage Adjustable Regulator Converter BoardDescription:
1. Input voltage: 4-48V, pay attention to the limit value of 48V, absolutely must not exceed.
2. As the input voltage increases, the output power of the LM2596HVS IC becomes smaller and the operational stability deteriorates. Stable operation between 36V-40V.
3. Adjustment Method: First correctly connect the input power (between 4-48V) and then monitor the output voltage with a multimeter and adjust the potentiometer.

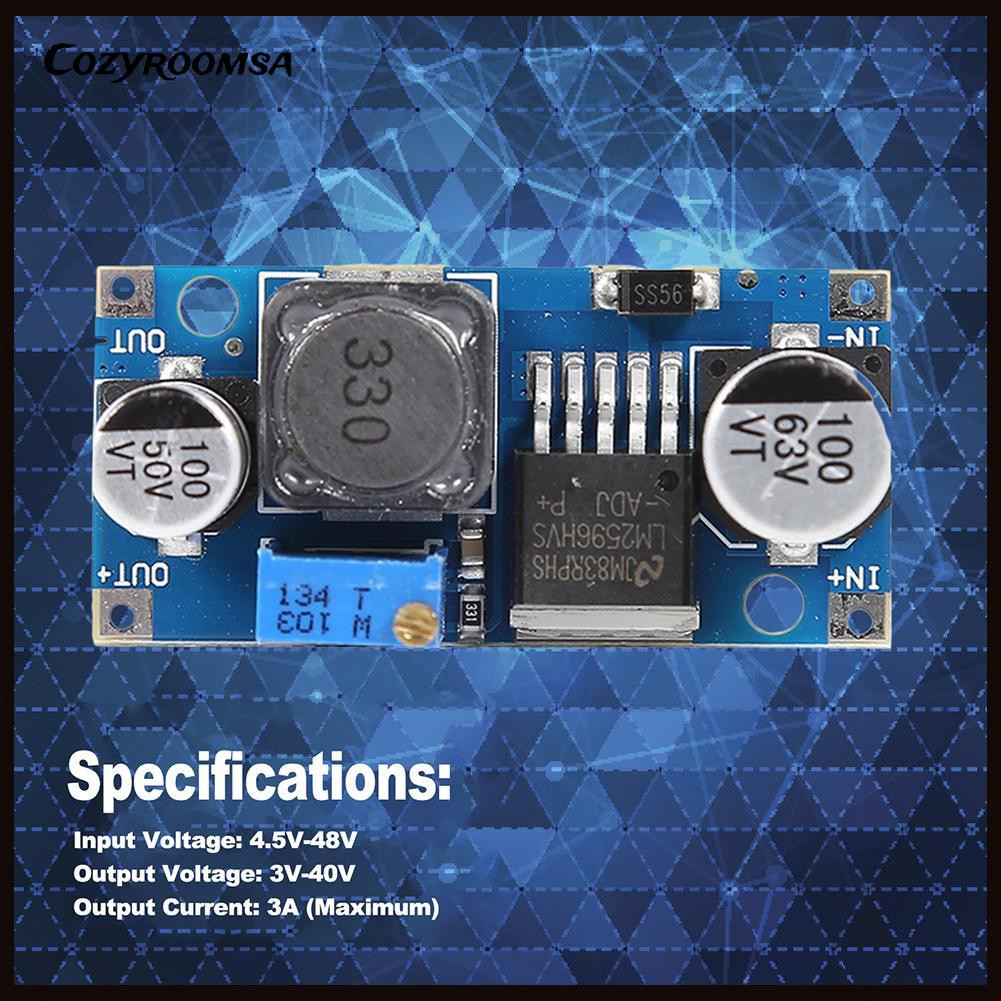

Specifications:

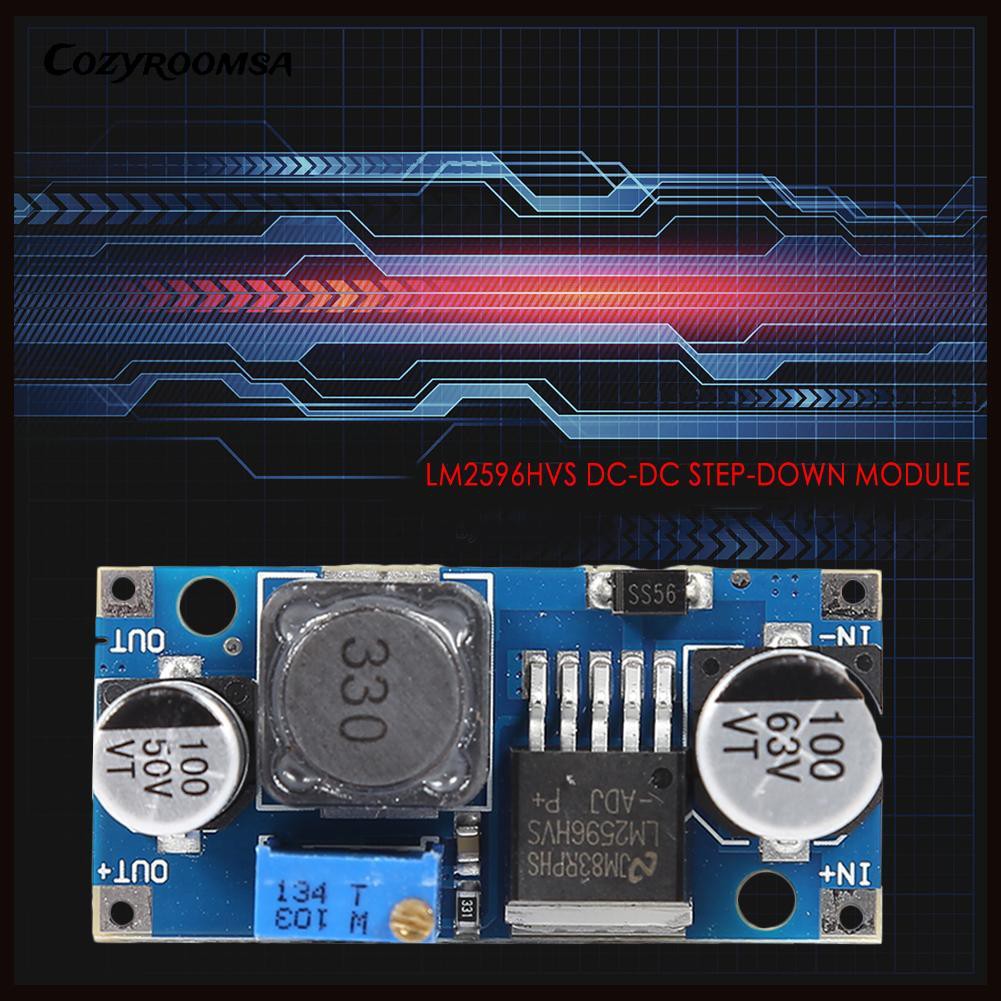

Type/Name: LM2596HVS DC-DC Step-Down Module
Input Voltage: 4.5V-48V
Output Voltage: 3V-40V
Output Current: 3A (Maximum)
Conversion Efficiency: 92% (The Highest)
Output Ripple: <30mV
Switching Frequency: 150KHz
Operating Temperature:-45°C-85°C

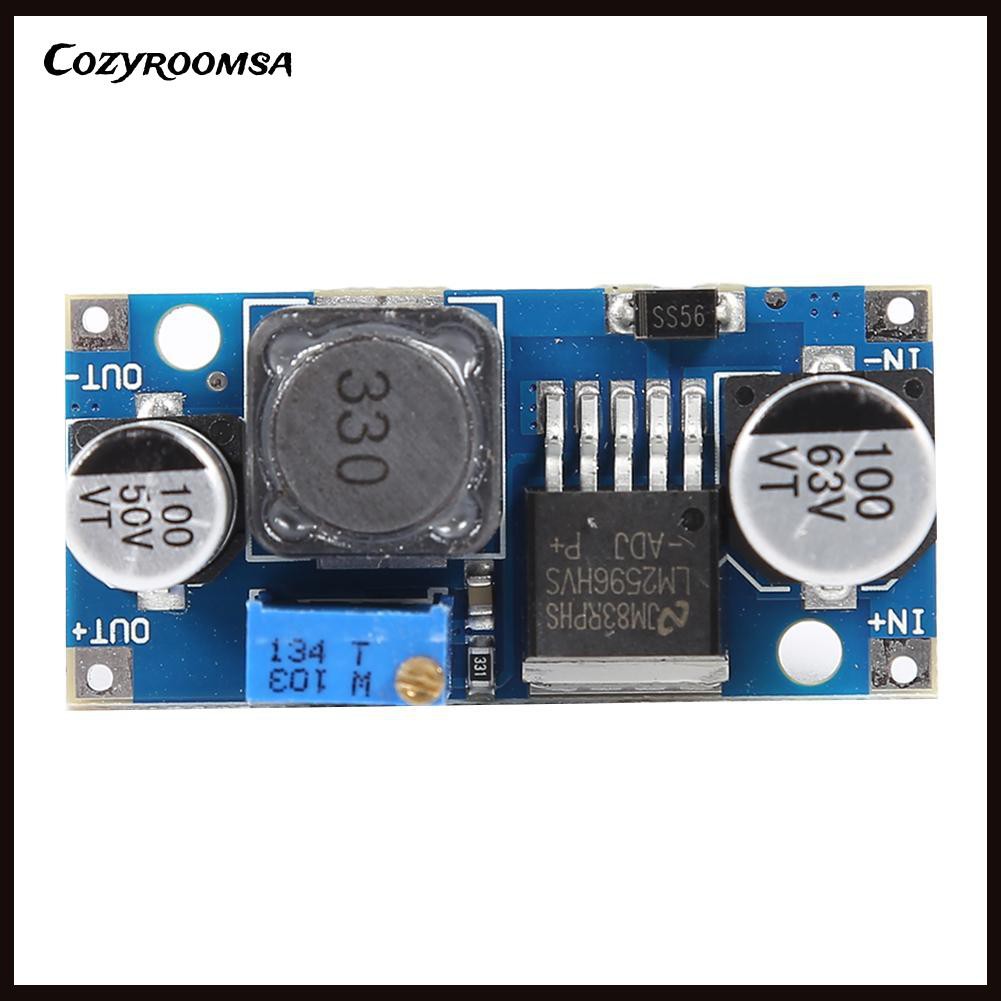

IN + Input Positive, IN-Input Negative!
OUT + Output Positive, OUT- Output Negative
Input Voltage Range: DC4.5V-48V (Input voltage must be greater than the output voltage to 1.5V or higher. Could not boost)
Output Voltage Range: DC 3V-40V voltage is continuously adjustable, high efficiency(up to 92%)the maximum outputcurrent of 3A.
Size: 43 X 21 X 14mm/1.69 X 0.83 X 0.55"
Package Weight: 13g
Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3mm measuring deviation due to manual measurement.
Included:
1 X DC-DC Step Down Power Module
