Bảng mạch khuếch đại âm thanh bluetooth 5.0 100W+100W 3.5mm AUX 2.1 kênh Class D 5V-24V WIN XY-T100L

Giới thiệu Bảng mạch khuếch đại âm thanh bluetooth 5.0 100W+100W 3.5mm AUX 2.1 kênh Class D 5V-24V WIN XY-T100L

#XY-T100L #Bluetooth-compatible #5.0 #Stereo #Digital #Power #Amplifier #Board #100W+100W #3.5mm #AUX #2.1 #Channel #Class #D
XY-T100L Bluetooth-compatible 5.0 Stereo Digital Power Amplifier Board 100W+100W 3.5mm AUX 2.1 Channel Class D 5V-24V
Features: Our Bluetooth-compatible board for amplifier audio comes with AUX and Bluetooth-compatible two audio input methods, which means the transmission efficiency is high and the transmission path is wide.
The Bluetooth-compatible 5.0 audio/speaker board for amplifier uses a high-performance audio filter that can output high-quality sound. Adapted speakers: 20W-200W,4/8Ω, adapted power (recommend): 5V-24V 10A

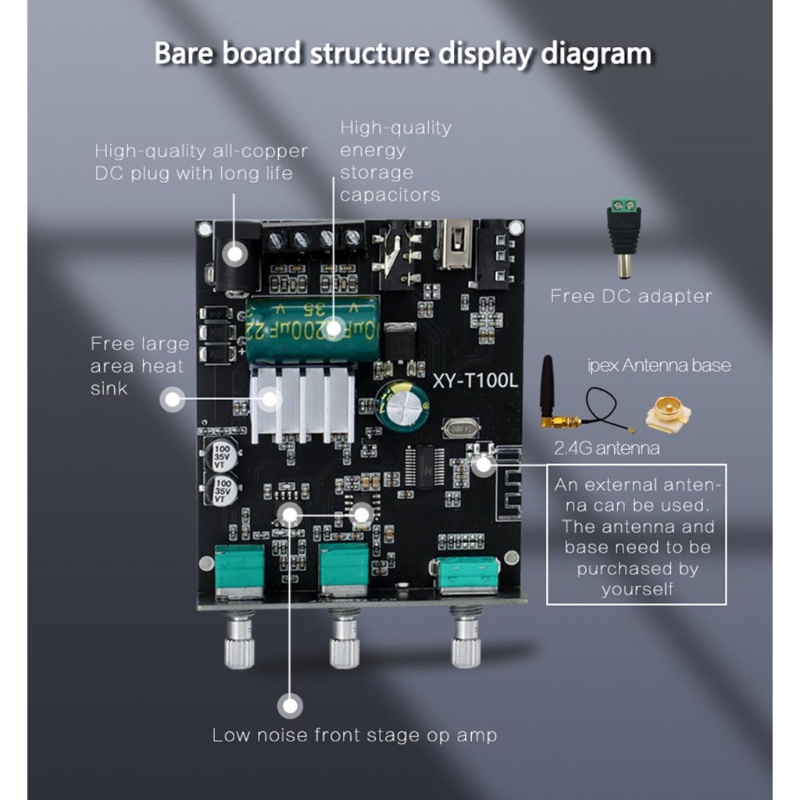

Adopting copper DC connector and fence type terminal, this Bluetooth-compatible board module for amplifier can withstand large currents, no heat, no damage to the wire.
With static protection, overheat protection, over current protection, short circuit protection, support Sinilink-App control.
Support 3.5mm wired input and Bluetooth-compatible 5.0 input, easy installation, mini size, perfect Bluetooth-compatible speaker.

Specification: Product Name: Bluetooth-compatible Amplifier
AMP Chip: Professional Chip
Max Output Power: 100W+100W
Power Supply: DC5-24V 10A
Channels: 2.1
Working Type: Class D
Audio Input: AUX / Bluetooth-compatible 5.0
Model:XY-T100L
colour:Black
Material:ABS

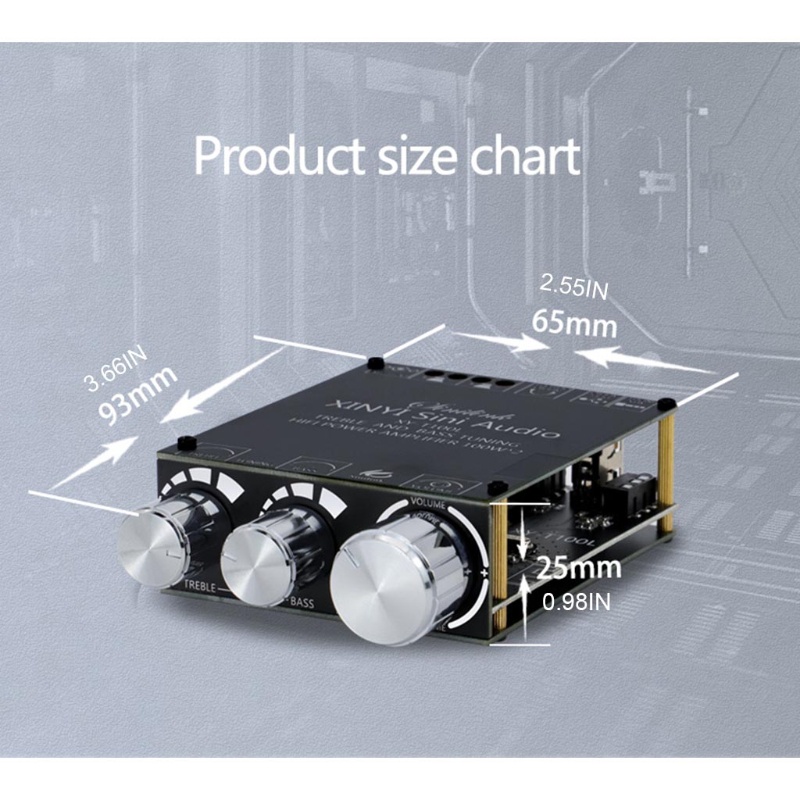

size:approx 93 x 65 x 25mm/3.66X2.56X0.98in

Package Includes: 1 x Amplifier Board

note: Only the above package content, other products are not included.
Due to the problems of lighting effects and shooting angles, there will be certain tolerances in the product, please understand.
Please allow 0-1cm error due to the manual measurment.
