Bảng mạch khuếch đại âm thanh kỹ thuật số 2x15W Bluetooth 5.0 mini hai kênh AUX

Giới thiệu Bảng mạch khuếch đại âm thanh kỹ thuật số 2x15W Bluetooth 5.0 mini hai kênh AUX

2x15W Bluetooth-compatible 5.0 Digital Power Amplifier Board Module Two-channel Stereo Mini Digital Amplifier Support AUX Bluetooth-compatible Input
100% brand new and high quality
Features:
High-performance power amplifier board, dual-channel output, high efficiency and stability.
With overvoltage, undervoltage, overheating, DC detection, and short circuit protection functions.
Only when the voice frequency input is sufficient and the power supply voltage/current is sufficient, will there be sufficient output power. The higher the power supply voltage, the higher the relative power, and speakers with different impedances will have different output powers. In the case of sufficient voltage and current, the larger the horn ohms, the smaller the relative sound power.

Specifications:
Product name: 2x15W Bluetooth-compatible 5.0 power amplifier module
Chip: Domestic Chip
Sound source input: Bluetooth+AUX input
Adaptive power supply: 9-24V (A heat sink is required for power amplifier chips above 20V)
Adapted speaker resistance: 4-16Ω
Adapted speaker power: 5-30W
Number of channels: 2.0 dual channels (stereo)
Bluetooth-compatible version: 5.0 (>15 meters, unobstructed)
Output power: 16Wx2 @12V 4Ω
10Wx2 @12V 8Ω
15Wx2 @16V 8Ω
20Wx2 @20V 8Ω (The power amplifier chip needs a heat sink)
Material: ABS
Size: app.55x34x14mm/2.17x1.34x0.55in
Color: As pictures shown
Quantity: 1pc

Note:
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x Digital Power Amplifier Board (other accessories demo in the picture is not included.)

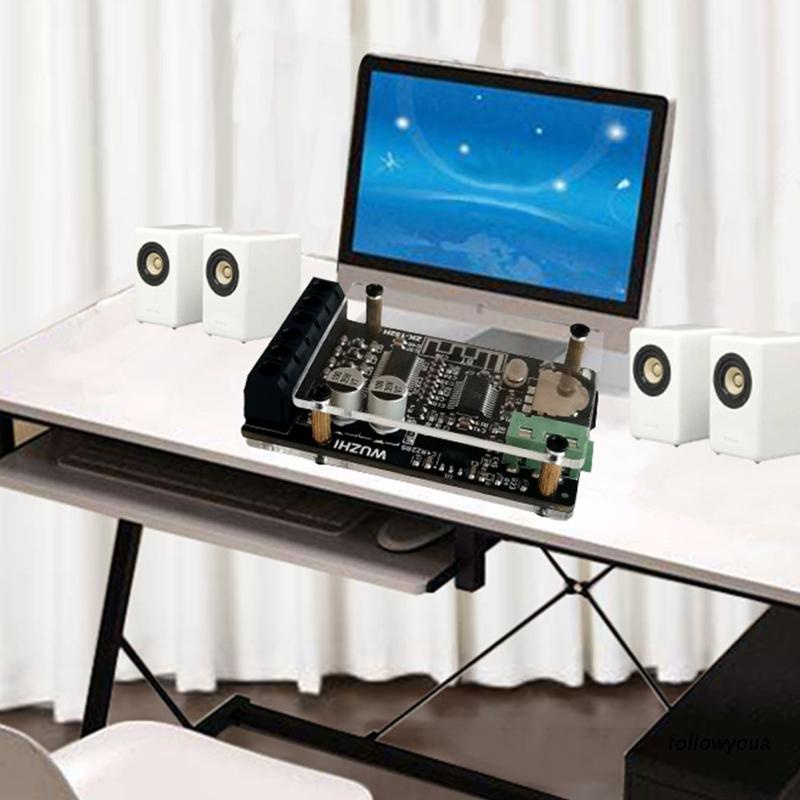

Hình ảnh sản phẩm
