Bảng Mạch Khuếch Đại Âm Thanh Kỹ Thuật Số Tpa3110 Class D 2x15w

Giới thiệu Bảng Mạch Khuếch Đại Âm Thanh Kỹ Thuật Số Tpa3110 Class D 2x15w

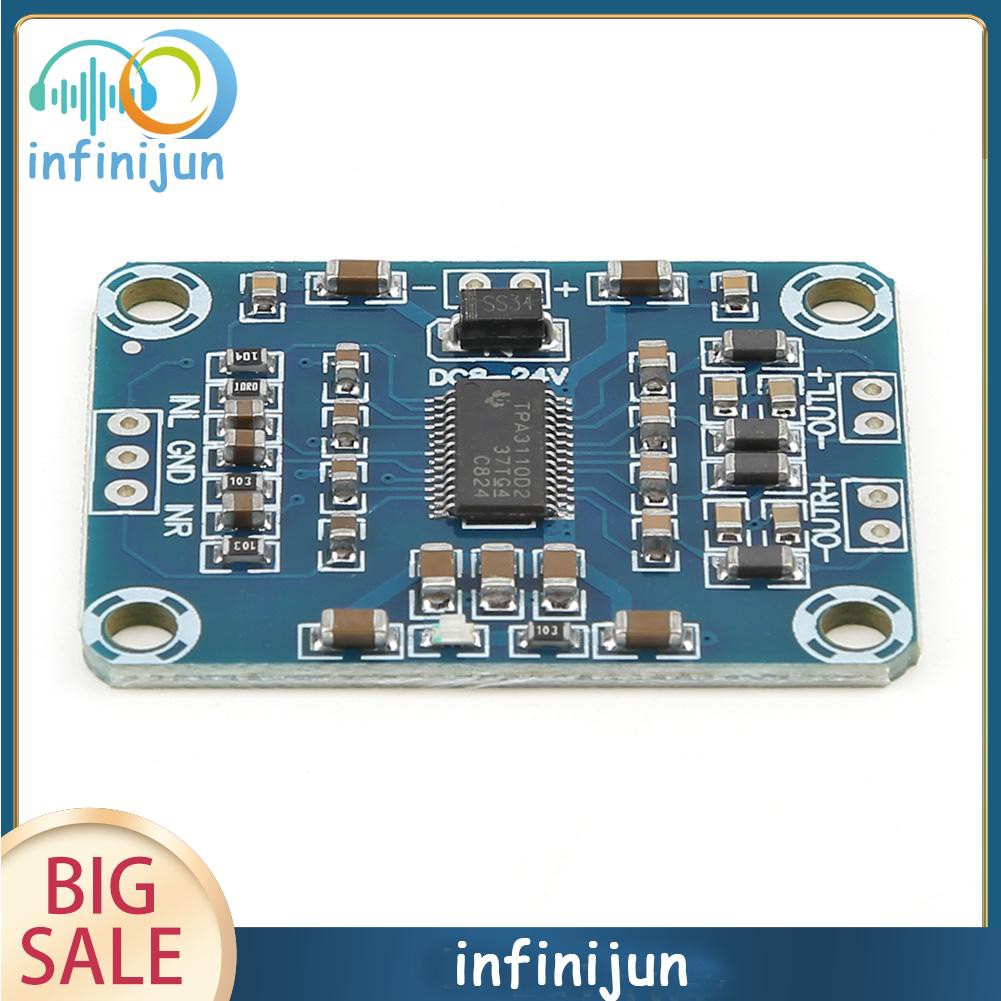

2X15W Digital Audio Stereo Amplifier Module Board TPA3110 12V Class D Power AMP Board
Feature:
1. The 2.0 channel 2*15W high power mini digital power amplifier board adopts TPA3110 power amplifier chip.
2. The chip does not need heat sink, but also has the function of overcurrent and overheating.
3. This power amplifier board is designed by the improvement of the official standard circuit.
4. It increases the power supply protection against reverse protection and 2 new design low pass filtering, and the bass thrust is stronger.
5. This product has no interference and no need for shielding treatment.

Specification:
Power amplifier chip: TPA3110
Output power: 15W*2
Working voltage: DC DC12V-24V
Working current: static: 8MA; maximum: 3A
Efficiency: ≥90%
Signal to noise ratio: 100dB
Frequency range: 20Hz-20KHz
Trumpet: 4-8ohm
Product use: audio power amplification
Product size: 35mm*25mm*3mm/1.37*0.98*0.11''
Product weight: 5g
Package size: 77mm*60mm*3mm/3.03*2.36*0.11''
Packing weight: 6g

Note:
Please allow slight size differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understand.

Quality assurance, providing excellent after-sales service
