Bảng Mạch Khuếch Đại Âm Thanh mm Tpa3118 2x30w 8-26v Dc

Giới thiệu Bảng Mạch Khuếch Đại Âm Thanh mm Tpa3118 2x30w 8-26v Dc

#TPA3118 #2x30W #8-26V #DC #Stereo #Bluetooth #Digital #Amplifier #Board
TPA3118 2x30W 8-26V DC Stereo Bluetooth Digital Amplifier Board
Description:
This is an audio power amplifier board that strengthens low-power, inaudible electronic audio signals such as the signal from radio receiver or electric guitar pickup to a level that is strong enough for driving loudspeakers or headphones. Power amplifiers make the signal audible to listeners. It is the final electronic stage in a typical audio playback chain before the signal is sent to the loudspeakers and speaker enclosures.

Features:
Digital amplifier has a higher overload capacity than analog amplifier, and it won't cause crossover distortion, transient inter modulation distortion and you don't have to worry about the loudspeaker internal resistance.
It supports Bluetooth audio input and 3.5mm audio jack auxiliary input.
Dual channel of 30W+30W power output and a wide input voltage range from 8V to 26V DC.
Sound quality is very good by using this audio power amplifier module.
Applicable speaker impedance are 4, 6, 8ohm, great for turning normal speaker into Bluetooth speaker.
Automatically enter Bluetooth pairing mode when power on, the device name is "Xpecial Audio".

Specifications:
Audio Input: Bluetooth
Output Power: 2x30W
Suitable Speaker Impedance: 4ohm, 6ohm, 8ohm
Input Voltage: 8V~26V DC
Auxiliary Input: 3.5mm jack

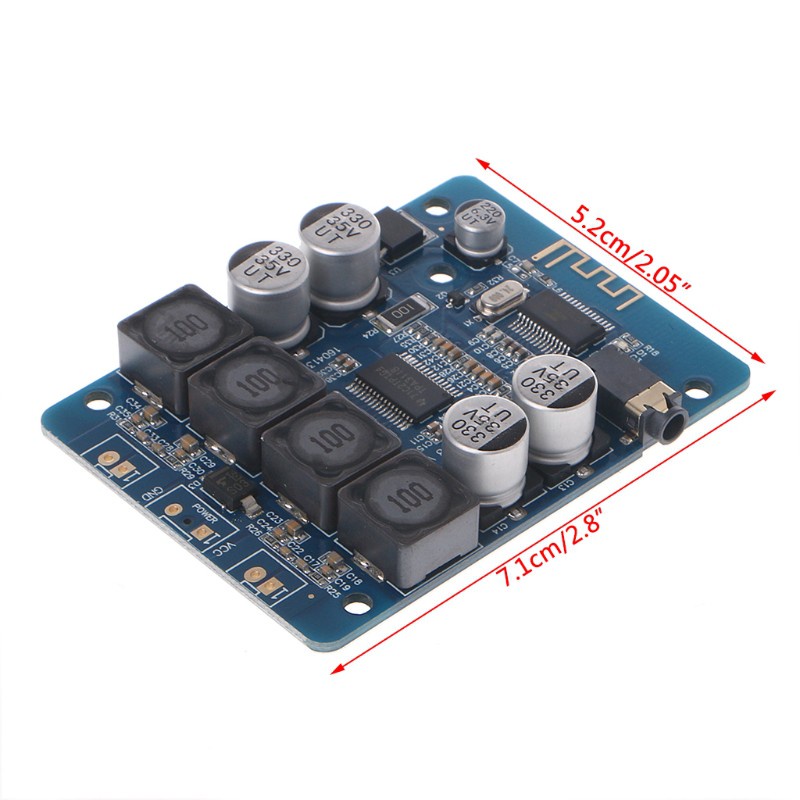

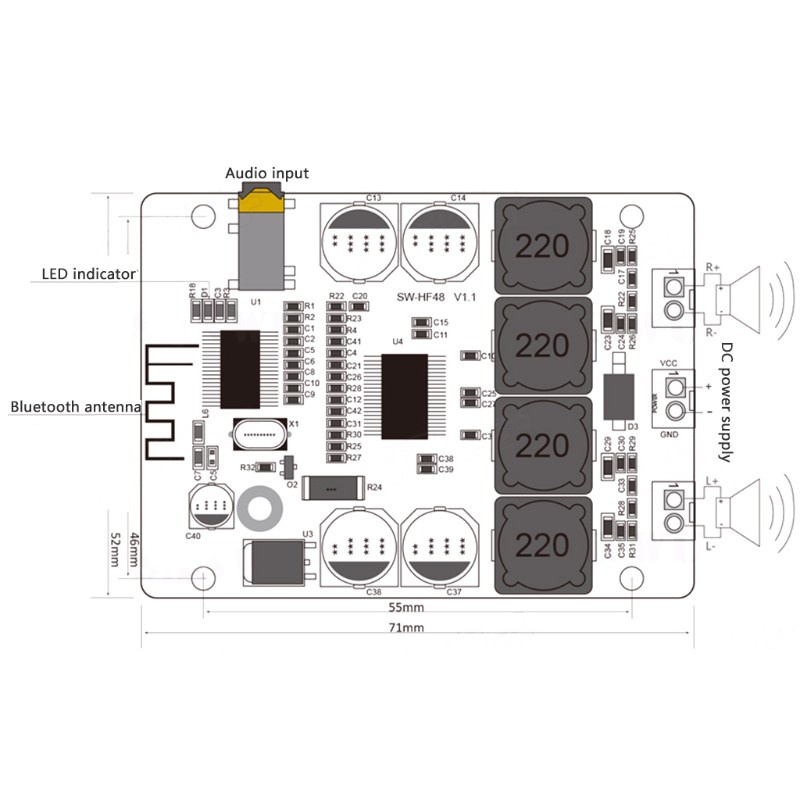

Size: 71x52mm/2.8x2.05"
Quantity: 1 Pc
Note:
Please allow 0-1mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

No Retail Package
Package Contents:
1 x Amplifier Board
