Bảng Mạch Phát Triển Stm32F407Vet6 Stm-M4 32bit Mcu Stm32

Giới thiệu Bảng Mạch Phát Triển Stm32F407Vet6 Stm-M4 32bit Mcu Stm32

100% brand new and high quality
Features:
Made of high quality electronic components, it is solid, durable, good conductivity and high performance, long service life.
It has SD card slot on board.
This development board features NRF2401 interface, which supports wireles communication.
Its data storage is W25Q16.
Supporting FMSC LCD interface.
Multi-user keys.
All the CPU-10 lead.
2.54mm integer multiples spacing pin.
Development board only, other accessories demo in the picture is not included!

Specification:
Material: Circuit Board, Electronic Components

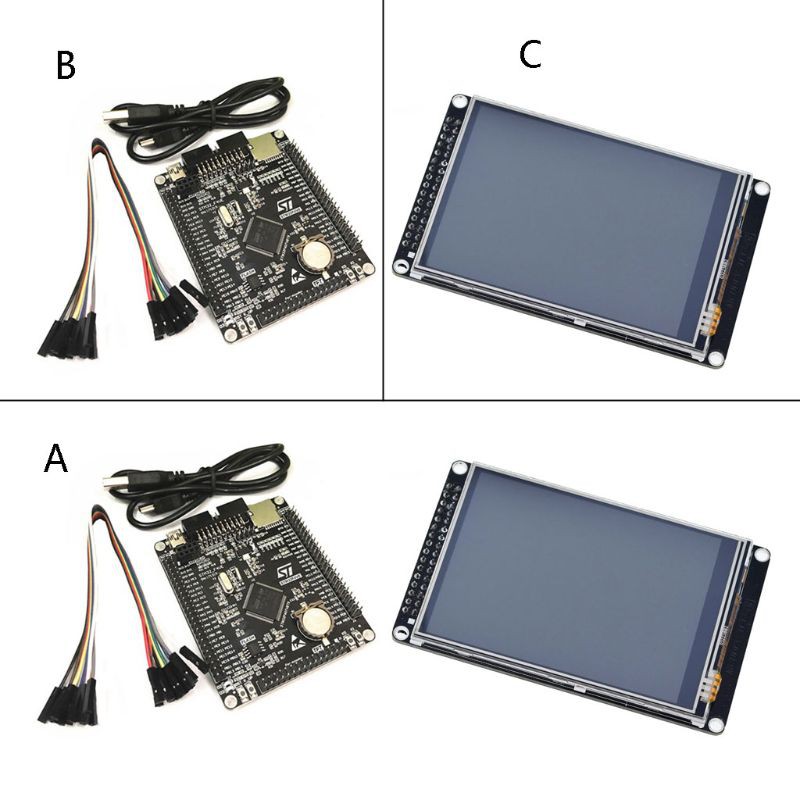

Optional styles: A/B(Only Development Board)/C(Only LCD Screen)

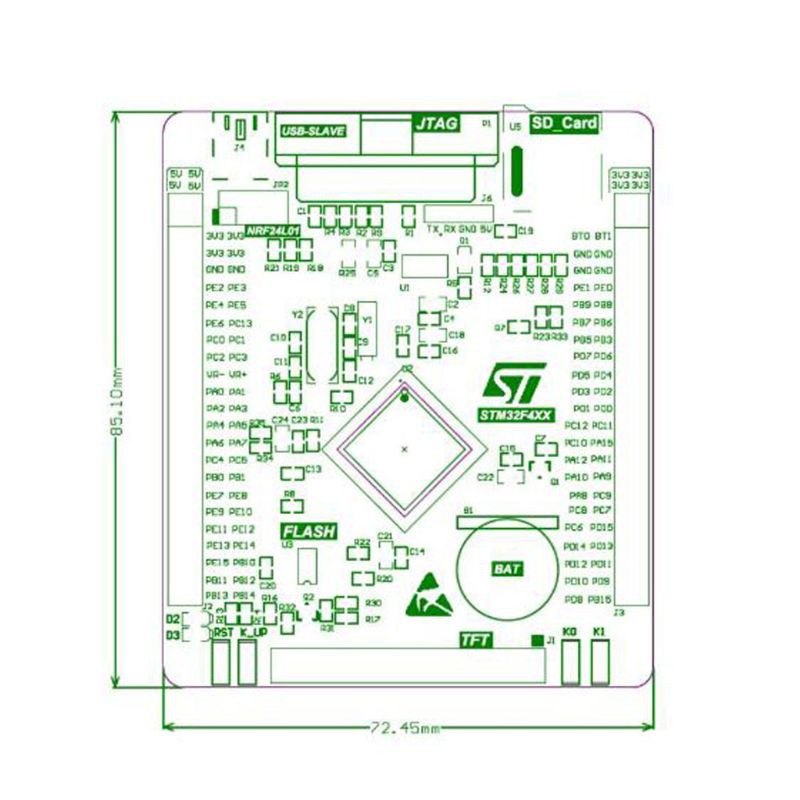

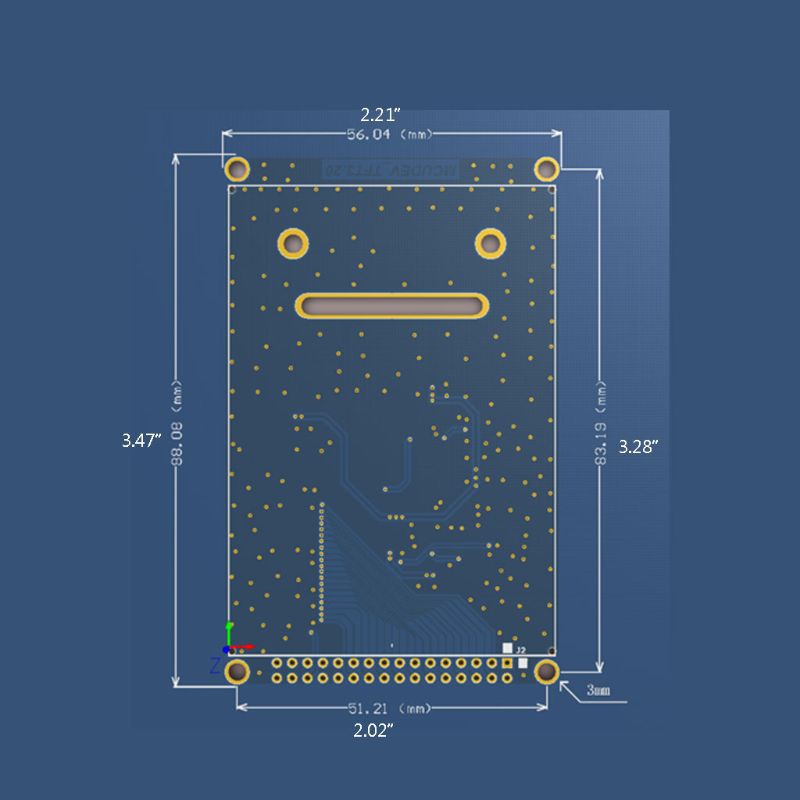

Size: Development Board: app.8.5 x 7.2cm/3.35 x 2.83in; Screen: app.8.8 x 6.5cm/3.46 x 2.56
Color: Black
Quantity: 1 Set

Product Parameters:
Model: STM32F407VET6
Kernel: Cortex-M4 32 bit RISC
Features: Single-cycle DSP instructions
Operating frequency: 168MHZ, 210DMIPS/1.25DMIPS/MHz
Working voltage: 1.8-3.6V
Package: LQFP100
Storage resource: 512KB Flash (VG specification is 1M capacity); 192+4KB SRAM
Resources: 3 x SPI, 3 x USART, 2 x UART
​ 2 x I2S, 3 x 12C
1 x FSMC, 1 x SDIO, 2 x CAN
1 x USB 2.0 FS/HS controller (with dedicated DMA)
1 x USB HS ULPI (for external USB HS PHY)
1 x 10/100 Ethemet MAC
1 x 8 to 12-bit parallel camera interrace
3 x AD (12-bit, 1us, time-sharing 24), 2 x DA (12-bit)

Note:
No retail package.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:

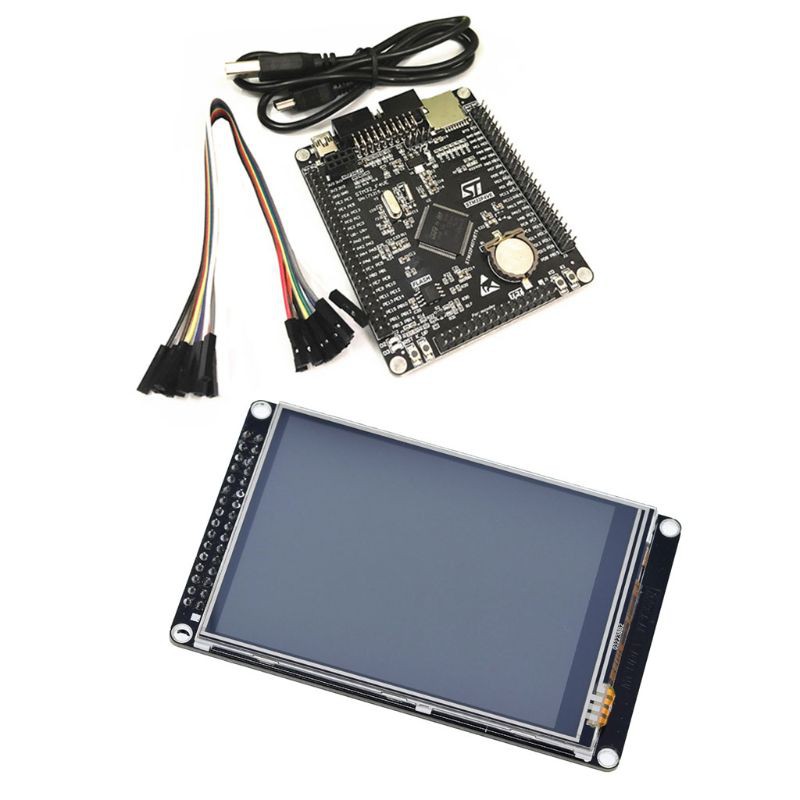

A:
1 x Development Board

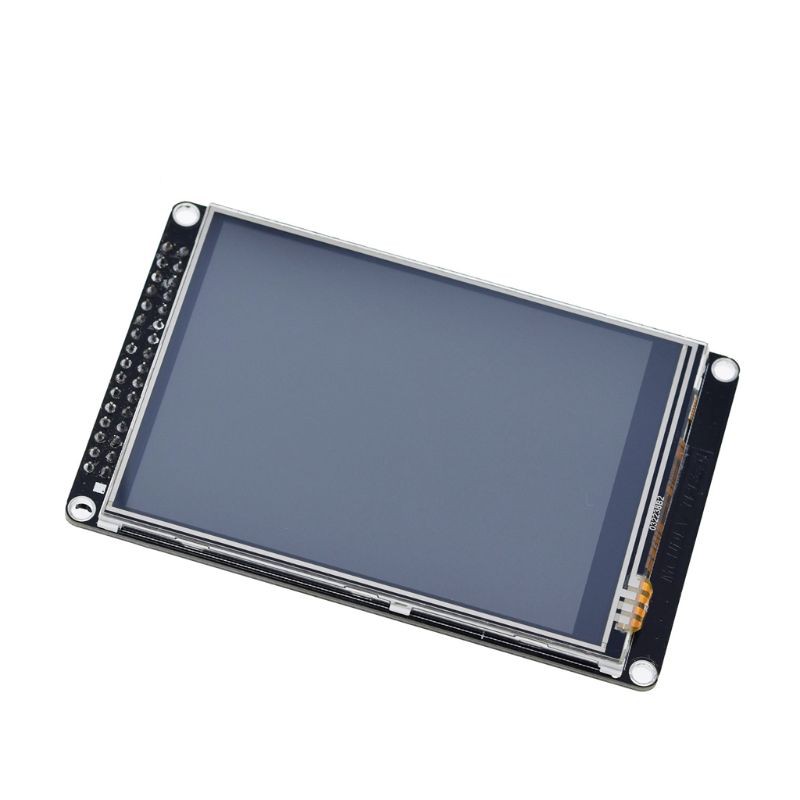

1 x LCD Screen
1 set x Pin Header
1 x Wire

OR
B:

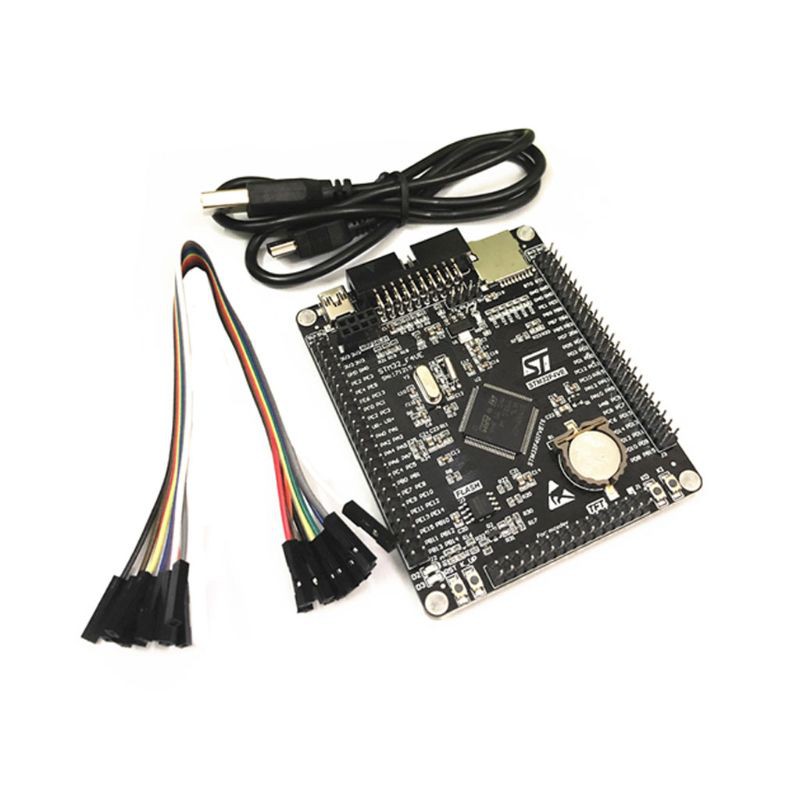

1 x Development Board
1 set x Pin Header
1 x Wire

OR:
1 x LCD Screen

Hình ảnh sản phẩm
