Bảng Phân Phối Nguồn Pdb Với Bec 5v & 12v Cho Drone

Giới thiệu Bảng Phân Phối Nguồn Pdb Với Bec 5v & 12v Cho Drone

Features:
- 2oz copper & 4-layers PCB.
- ESC & Battery solder tabs in pairs
- Solder Bridges of various voltage for Camera & VTX.
- DC/DC synchronous buck regulator, Efficiency is up to 95%.
- TVS(Transient Voltage Suppressor) protection for DC/DC chip.
- 5V & 12V Output LED indicators & Short circuit tolerant
Specification:
General:
- Input voltage range (2S-6S operation): 7.2 - 26VDC
- Regulated 5V and 12V outputs
- LED power indicators ( 5V & 12V outputs )
- 4 ESC outputs
ESC outputs:
- Continuous current: 20A per output
- Peak current (10 seconds/minute): 30A per output
BEC 5V output:
- Designed for RC Receivers, Flight controllers, OSD, and Servos.
- Voltage: 5.0 +/- 0.1VDC
- Continuous current: 3 Amps
- Short-circuit tolerant (10 seconds/minute)
- LED (indicates voltage is in regulation, within 10%)
BEC 12V output:
- The battery should be 4S~6S LiPo
- Standard output designed to power cameras and video transmitters,etc.
- Voltage: 12.0 +/- 0.2VDC
- Continuous current: 2 Amps (Max.3A 10s/minute)
- Short-circuit tolerant (10 seconds/minute)
- LED (indicates voltage is in regulation, within 10%)
CAM & VTX voltage bridge
- 3S operation. choose VCC for 12V camera & 12V VTX, VCC=Battery Voltage.
- 4~6S operation, choose 12 for 12V camera & 12V VTX
- 3~6S operation, choose 5 for 5V camera
- Video pass through from the CAM pad to the VTX pad
Physical:
- Dimensions: 36 x 36mm
- Weight: 6g
- Mounting holes 30.5mm square spacing

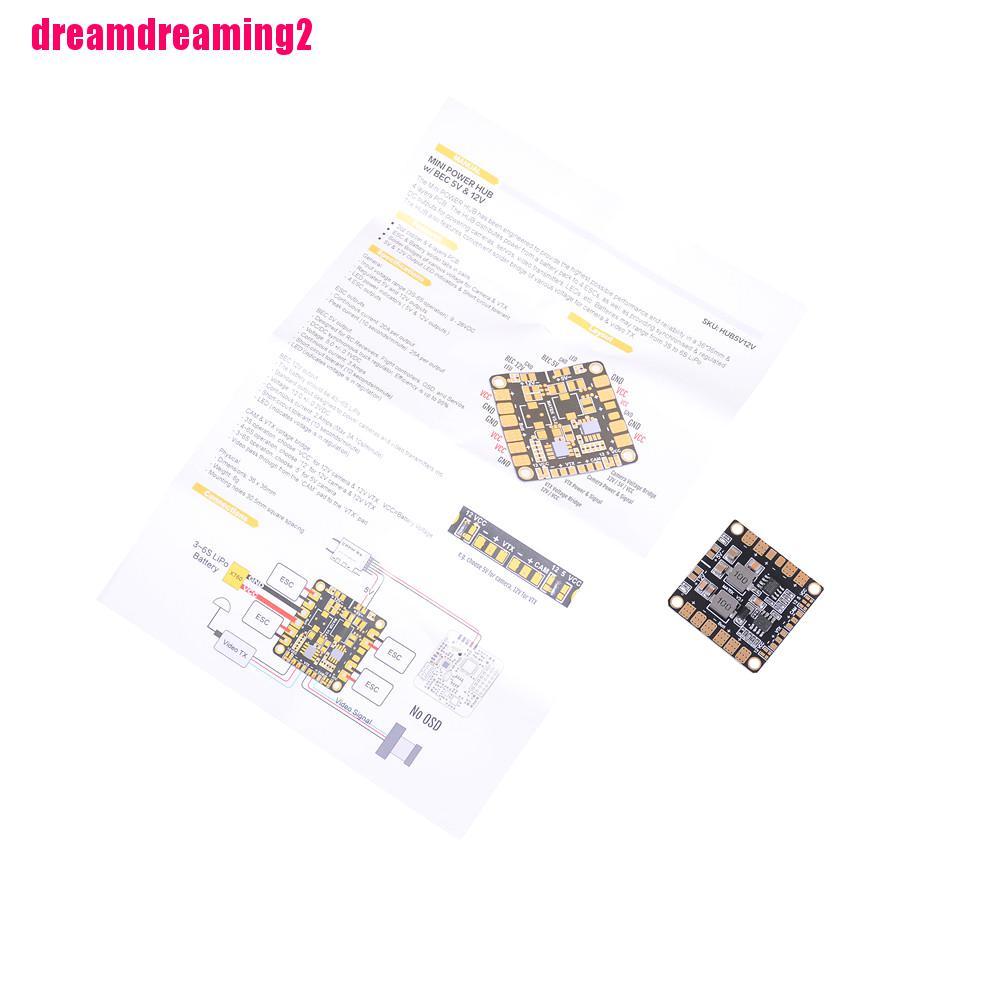

Package including :
1 x Power Distribution Board PDB

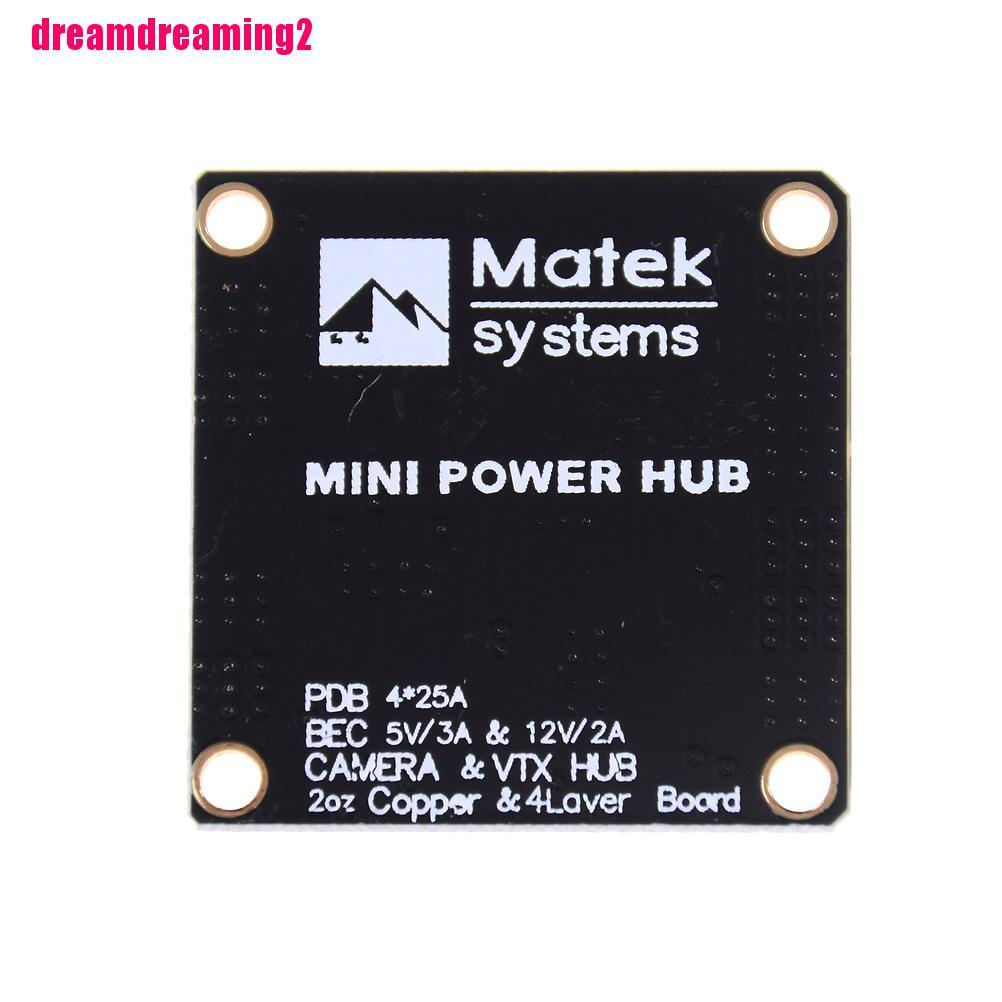

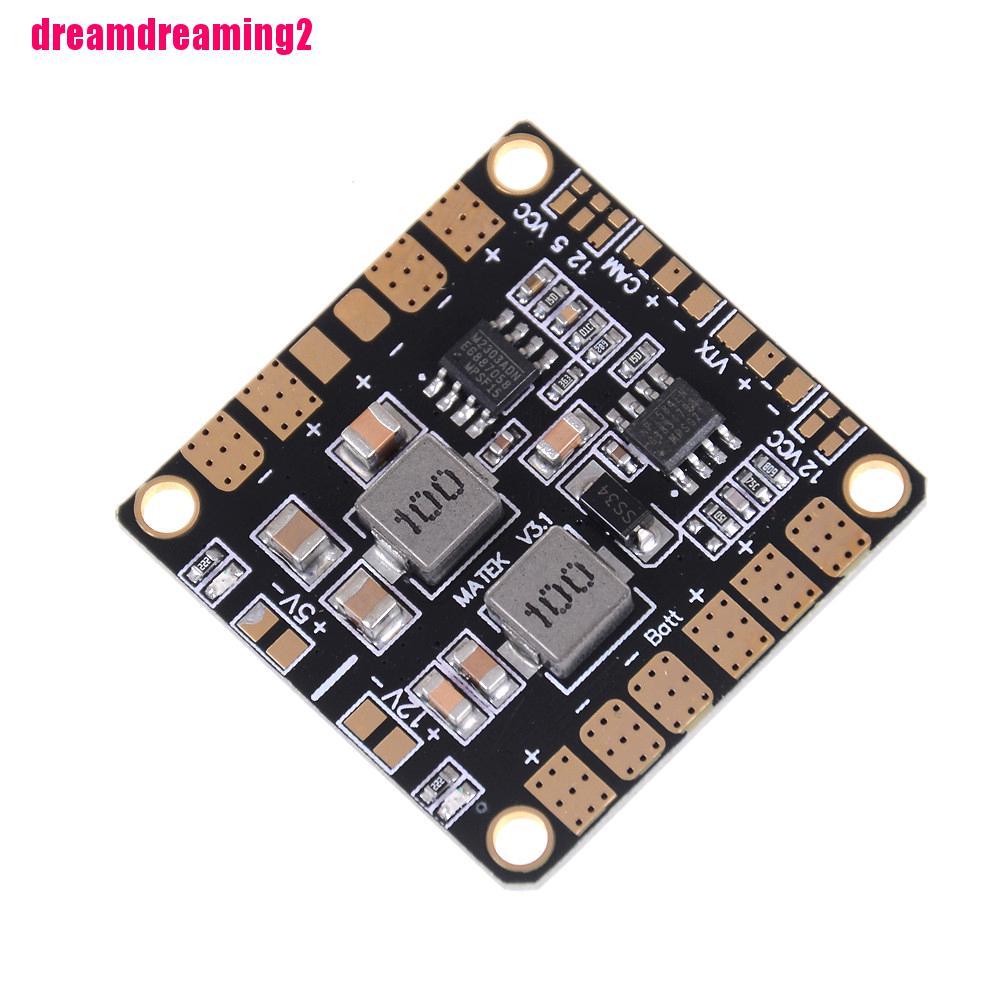

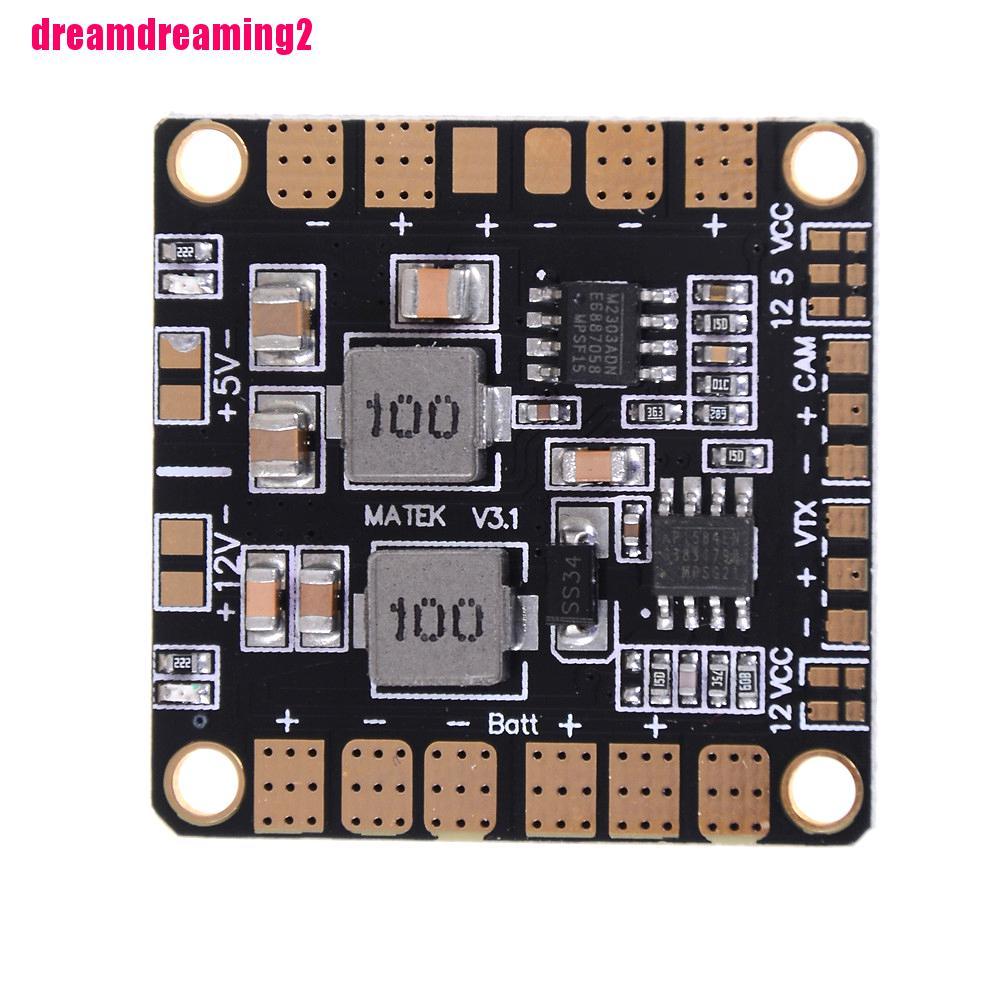

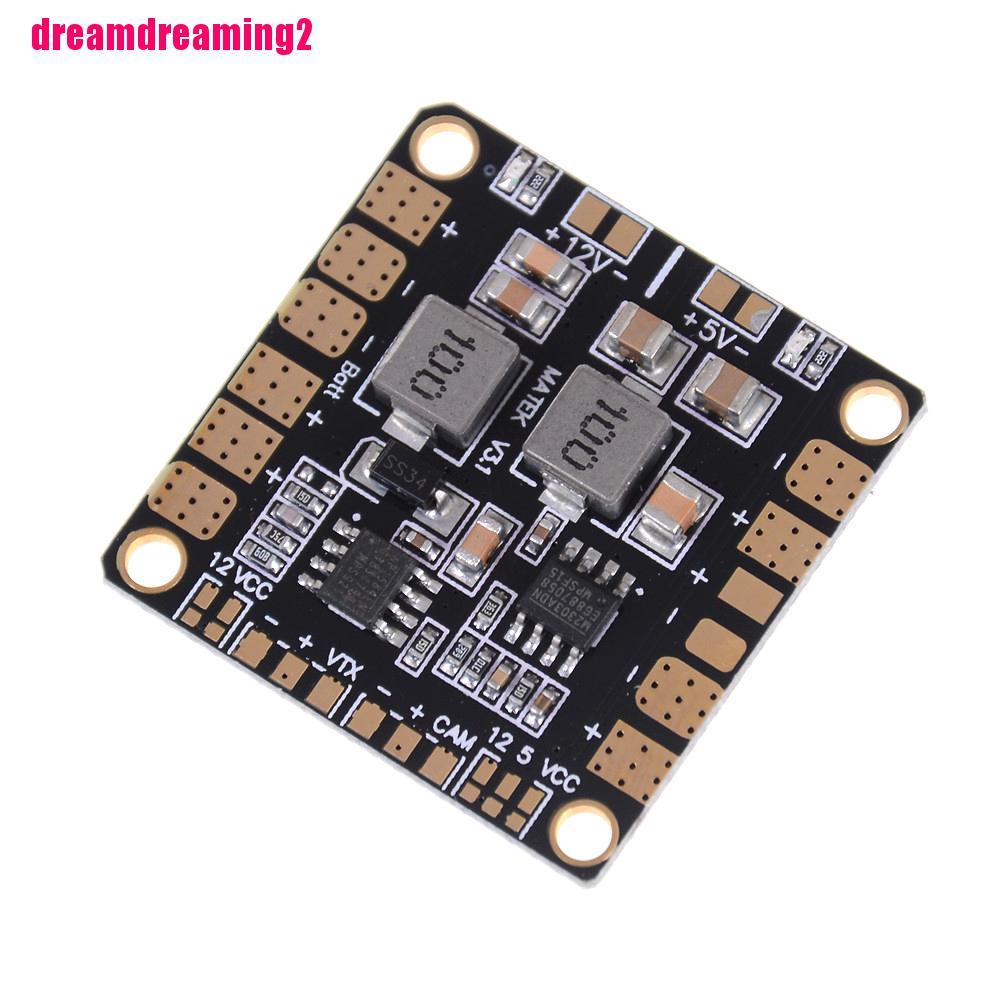

Hình ảnh sản phẩm
