Bo mạch bảo vệ pin Lithium 1S 3.7V 2.5A BMS pcm PCB Li-ion

Giới thiệu Bo mạch bảo vệ pin Lithium 1S 3.7V 2.5A BMS pcm PCB Li-ion

Product Introduction:
1.Charing Voltage:DC 4.2--5V CC/CV
2.Single Battery Consumption Current:<=6uA continuous discharging current 2.7A
3.Overcharging Detection Voltage:4.2 V+/-0.025V
4.Overcharging Detection Delay Time:150-500 ms
5.Overcharging Restore Voltage:4.0V+/-0.025V
6.Overdischarging Detection Voltage:2.75V+/-0.1V
7.Overdischarging Detection Delay Time:50-150ms
8.Overdischarging Restore Voltage:2.5V+/-0.10V
9.Overcurrent Detection Voltage:150+/-30mv
10.Overcurrent Detection Current:4.5+/-0.5A
11.Overcurrent Detection Delay Time:5ms-15ms
12.Overcurrent Restore Type:automatic restore
13.Short Circuit Detection State:external short circuit
14.Short Circuit Detection Delay Time:<=50us
15.Short Circuit Restore State:automatic restore
16.Internal Resistance:MOSPET <= 40m ohm
17.Operating Temperature Range:-40 - +50 Celsius
18.Storage Temperature Range:-40 - +90 Celsius

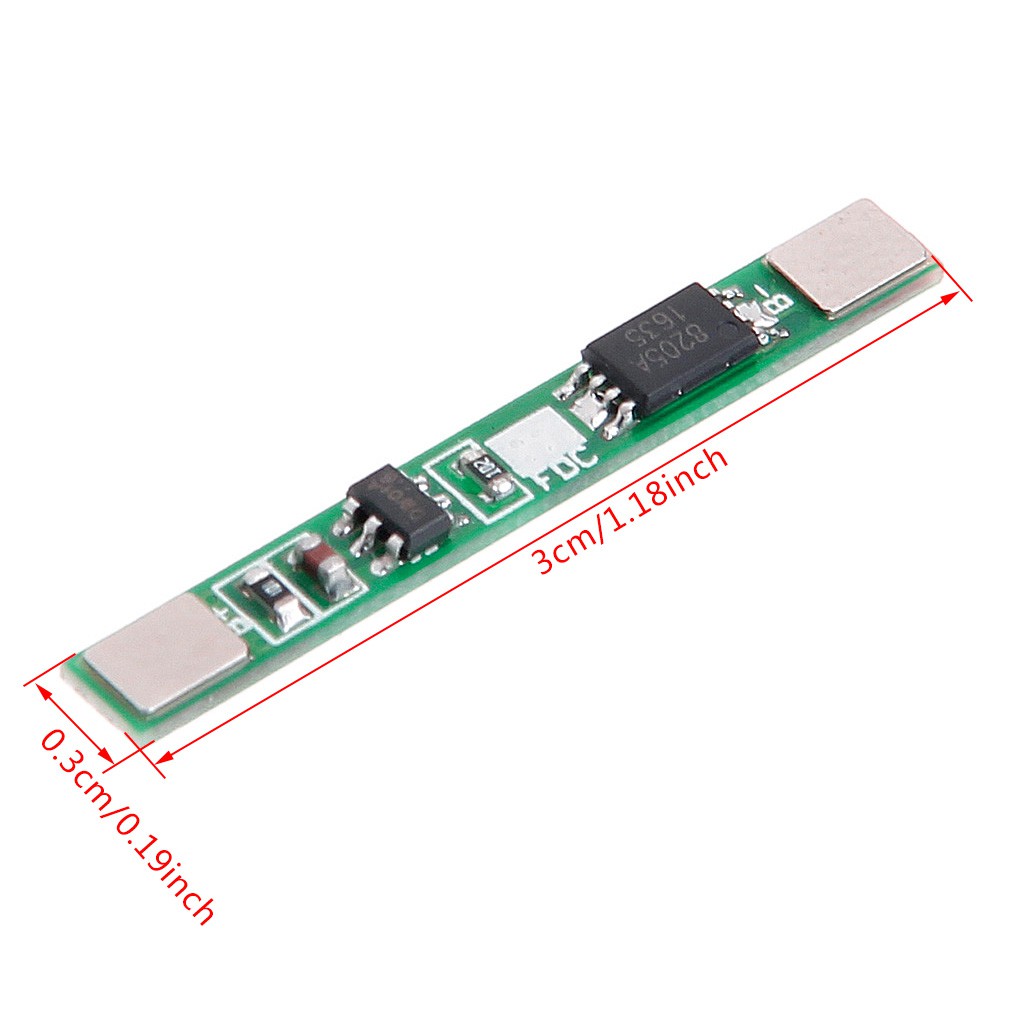

19.Size:3 x 0.3cm/1.18 x 0.19inch

Features:
1.Connecting Charger Teminal adopts withstand high voltage instrument
2.Internal 3 phase overcurrent detectiton circuit (overcurrent 1,overcurrent 2,load short circuit)
3.MOS tube can control battery charging and discharging
4.Wide Operating Temperature Range
5.Low Consumption Current

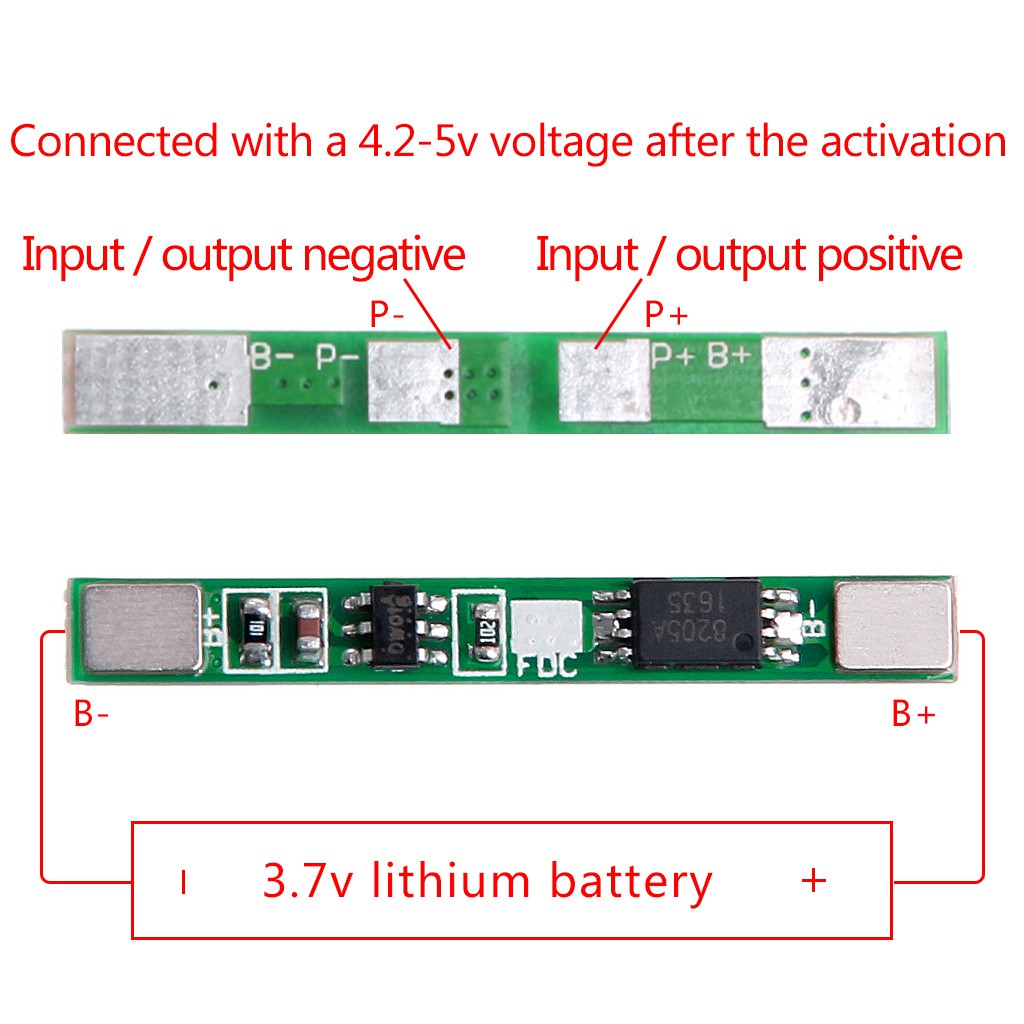

Soldering Point Introduction:
1.B+:connect with power positive
2.B-:connect with power negative
3.P+:connect with charging/discharging port positive(charging port/discharging port common used)
4.P-:connect with charging/discharging port negative(charging port/discharging port common used)
No retail package

Package includes:
1Pcx 1S 3.7V 2.5A Lithium Batterry Protection Board Polymer BMS PCM PCB Li-ion Module
