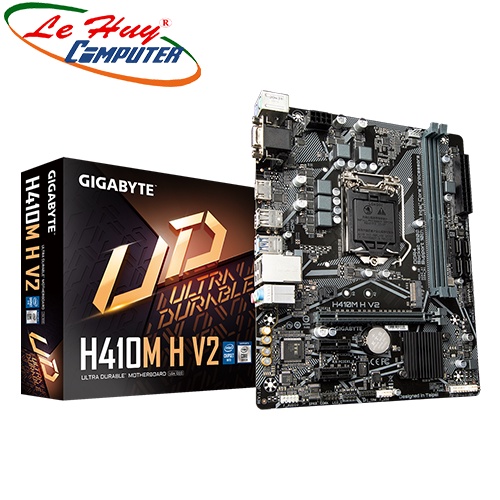

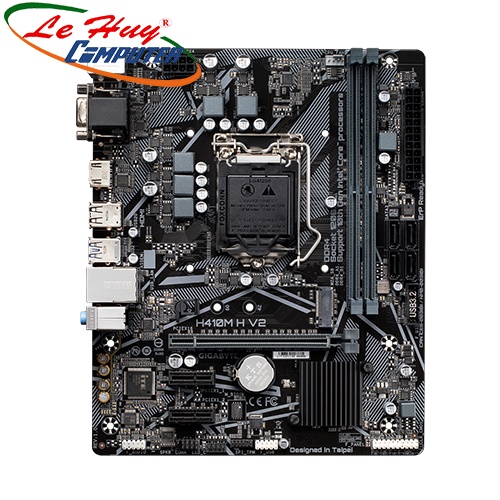

Giới thiệu Bo mạch chủ - Mainboard GIGABYTE H410M H V2
Sản phẩm
Bo mạch chủ
Tên Hãng
Gigabyte
Model
H410M-H V2 ( h470 chipset)
CPU hỗ trợ
Intel
Chipset
H410
RAM hỗ trợ
2 x DDR4 DIMM sockets supporting up to 64 GB
Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules Khe cắm mở rộng
1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots Ổ cứng hỗ trợ
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Cổng kết nối (Internal)
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper Cổng kết nối (Back Panel)

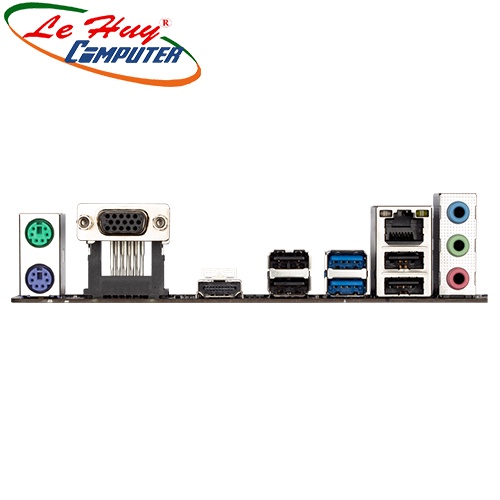

1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks LAN / Wireless
