Bo mạch khuếch đại tín hiệu âm thanh kỹ thuật số 5V 2A 20W 2.1 ch 3D

Giới thiệu Bo mạch khuếch đại tín hiệu âm thanh kỹ thuật số 5V 2A 20W 2.1 ch 3D

Features:
2 Channels audio input solution: 3.5mm audio ja + 3P audio input.
Suitable for notebook, speaker, desktop PC, subwoofer, smart phone, etc.

Specification:
Work Power: DC 5V 2A
L/R Satellite Speaker: 4ohm/5W
Woofer: 4ohm/10-15W
Audio Source: PC, Mp3 Player, Smart Phone
Recommended Hole Size: 50-60mm

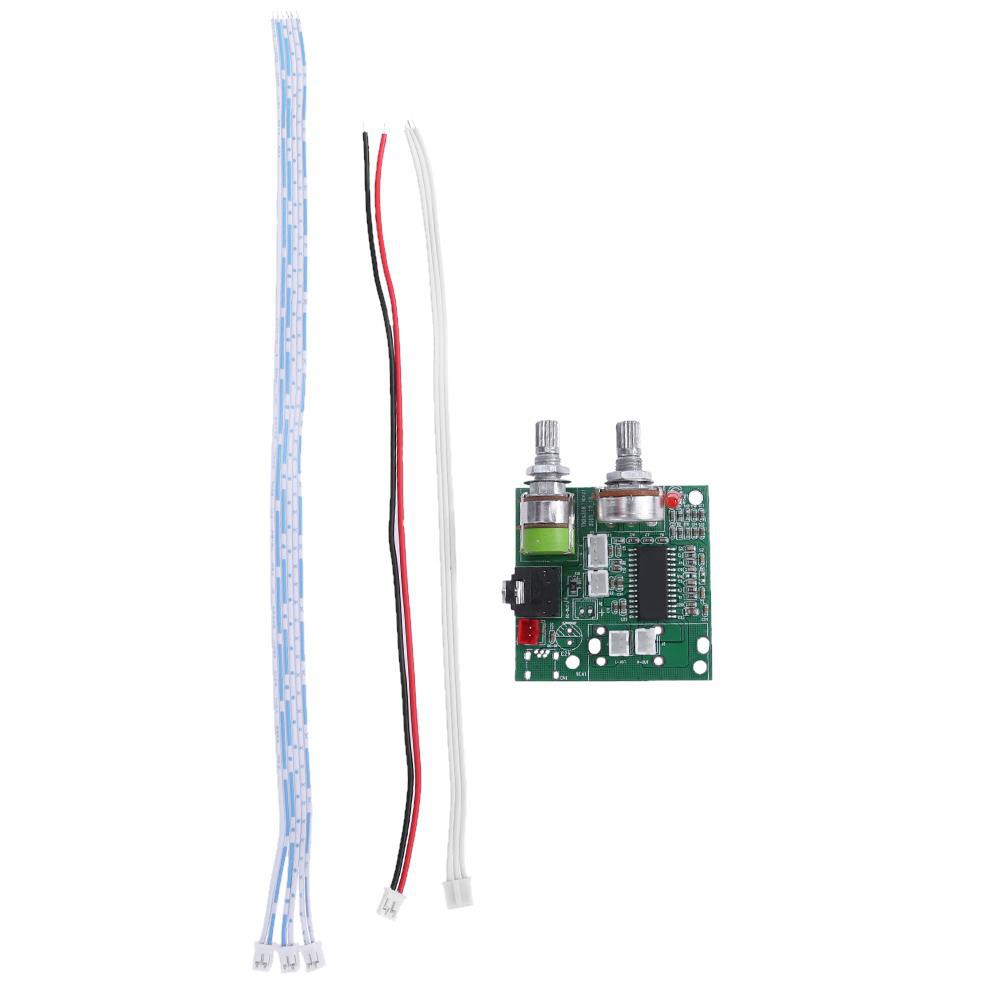

Packing content
1 X Amplifier Board
1 X Wiring Kit

Using Manual
This product is connected to 5V / 20W (W), and the maximum power of peripheral hardware processing can be configured to reach 20W: power supply voltage DC DC voltage 4.9-5V, current 1.6A-2A. It should be reminded that if the power of the power supply and the speaker are not well-matched, and the level of the audio source fails to meet the requirements, the power will naturally not reach. An anti-reverse diode IN4007 is added to the power line. If it is reversed, the board will not be damaged in a short time. After you will connect the wire, remove this diode because the voltage will drop 0.7V after soldering 4007, which will affect the voltage

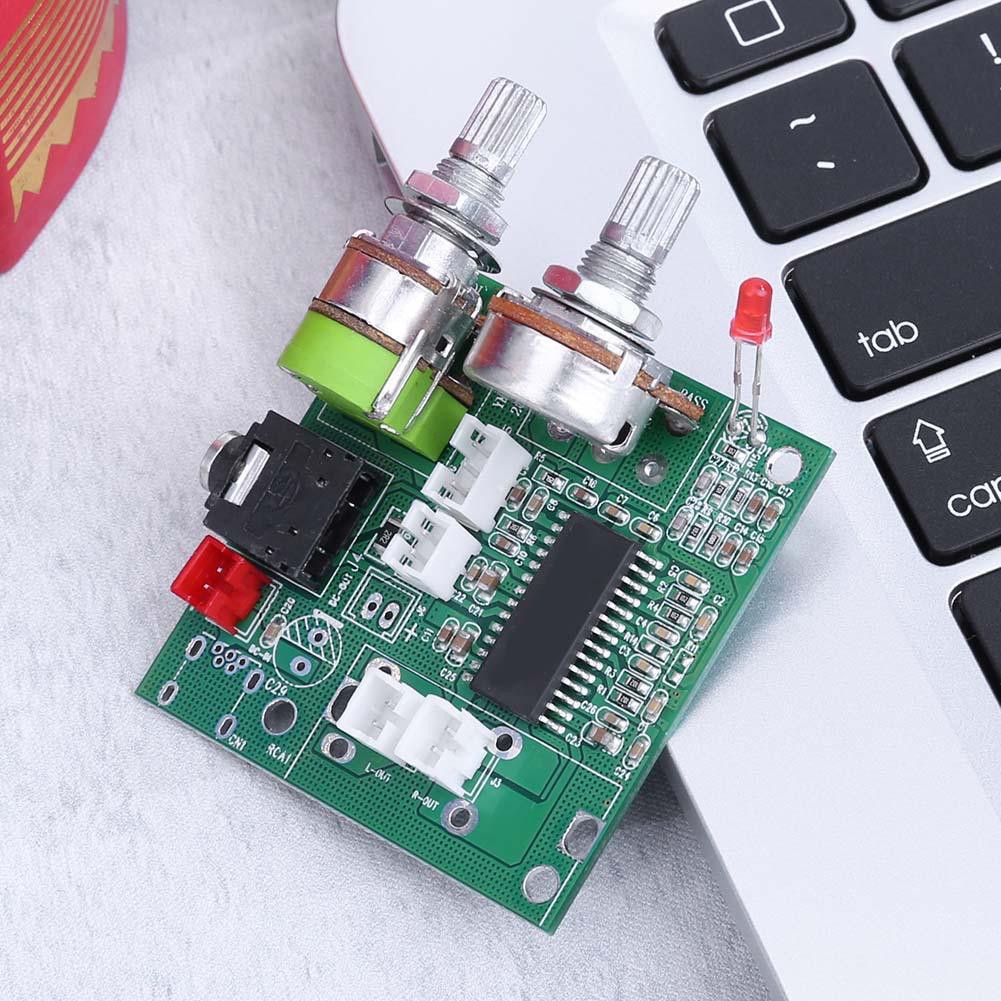

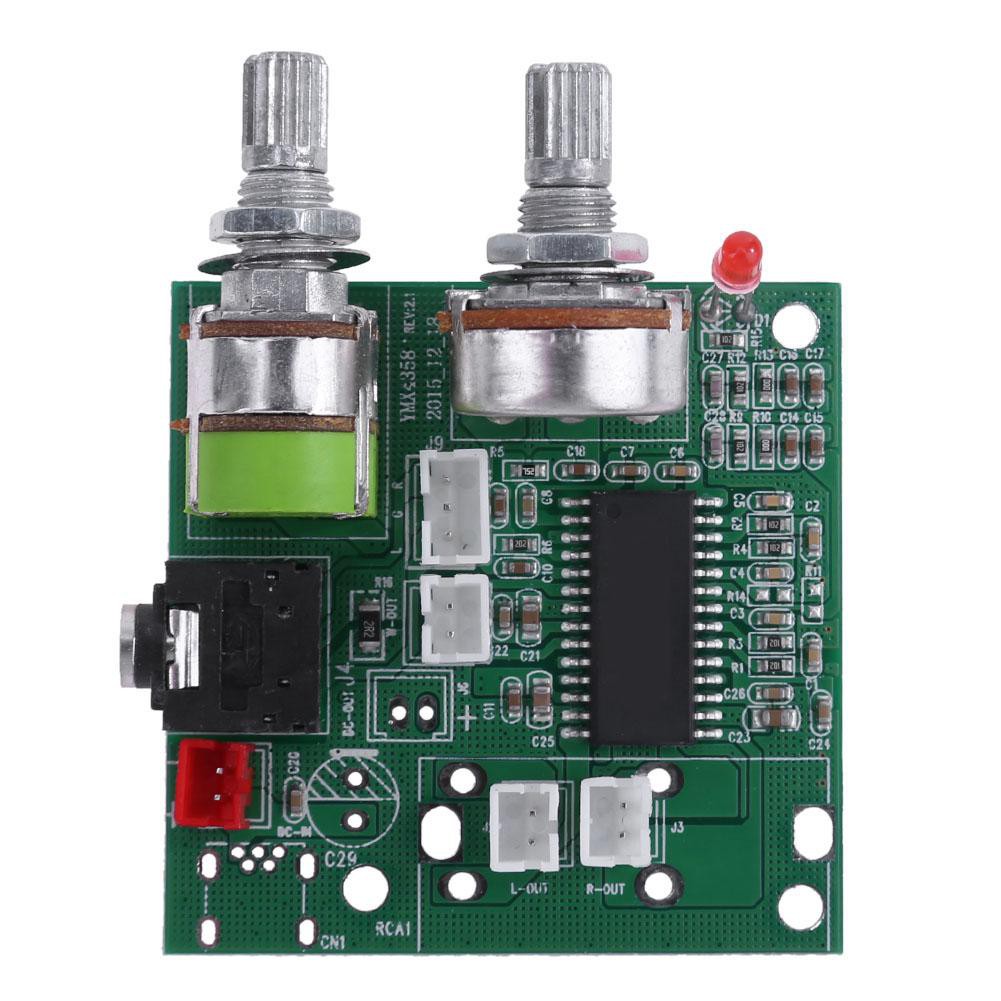

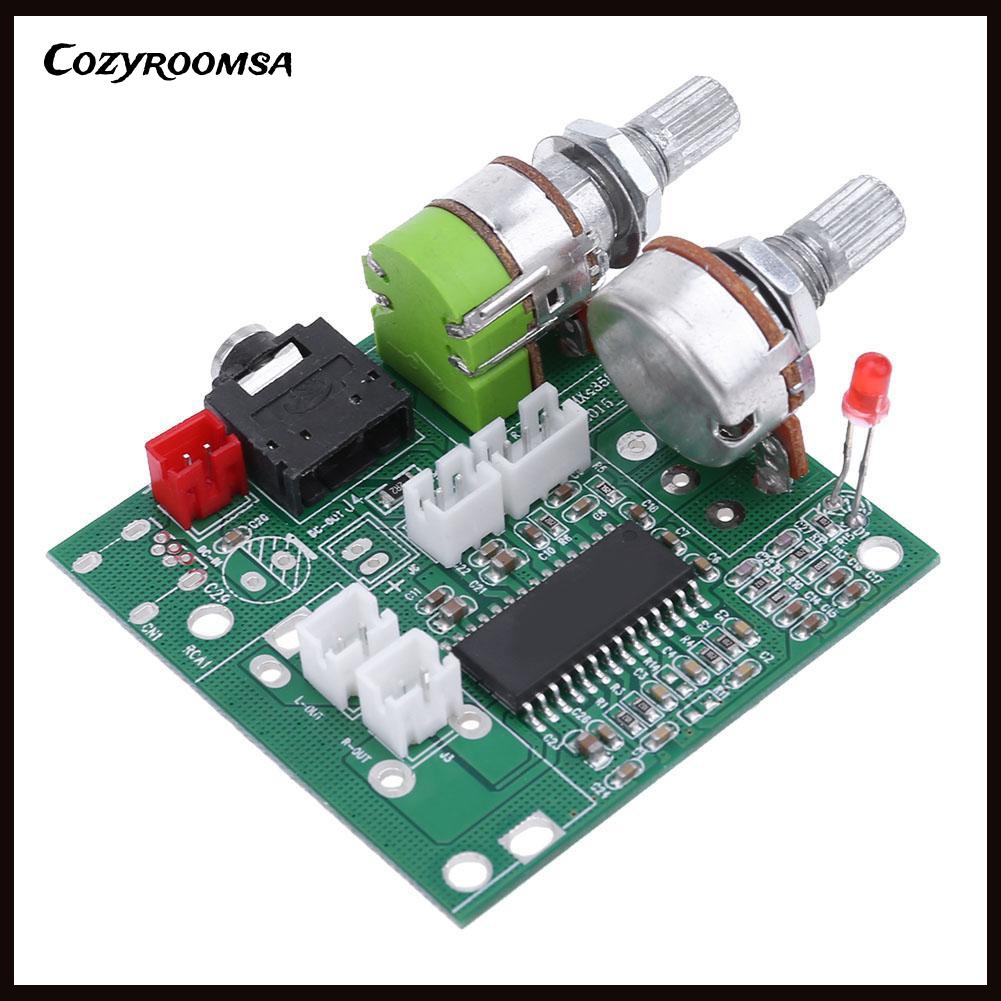

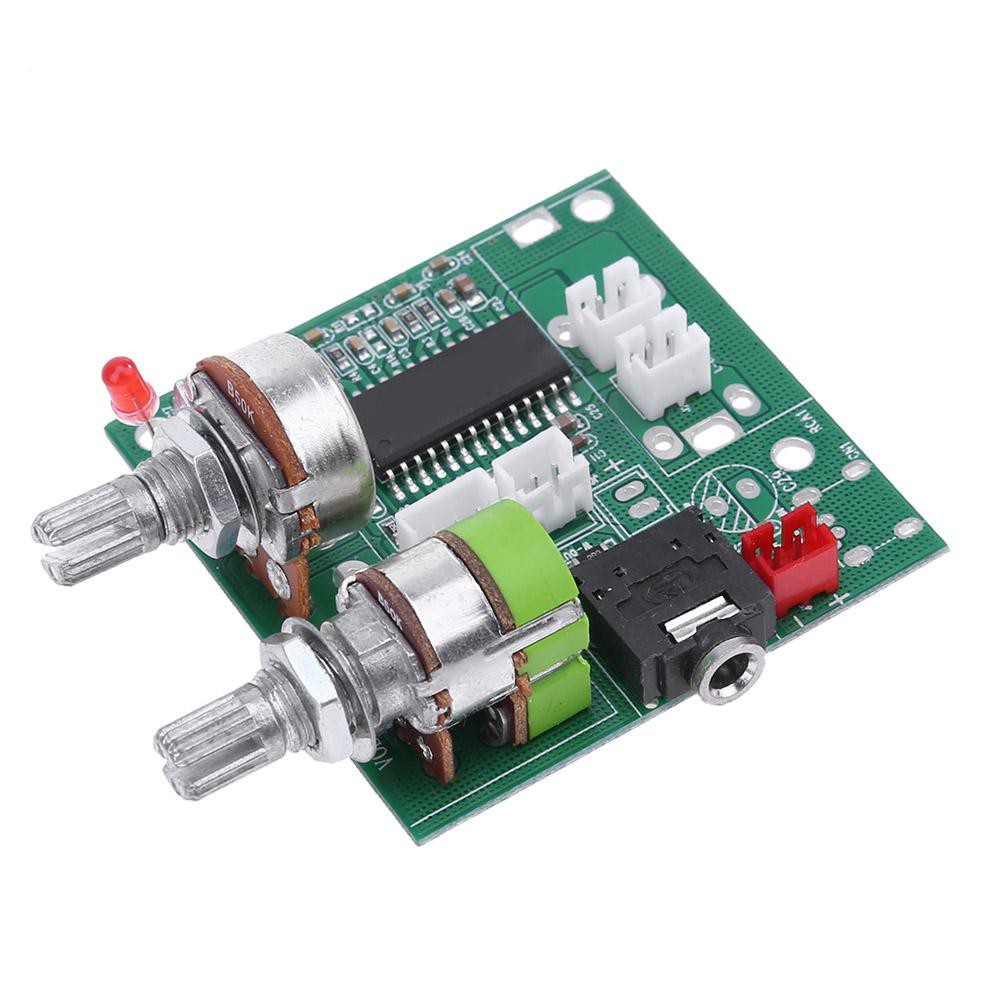

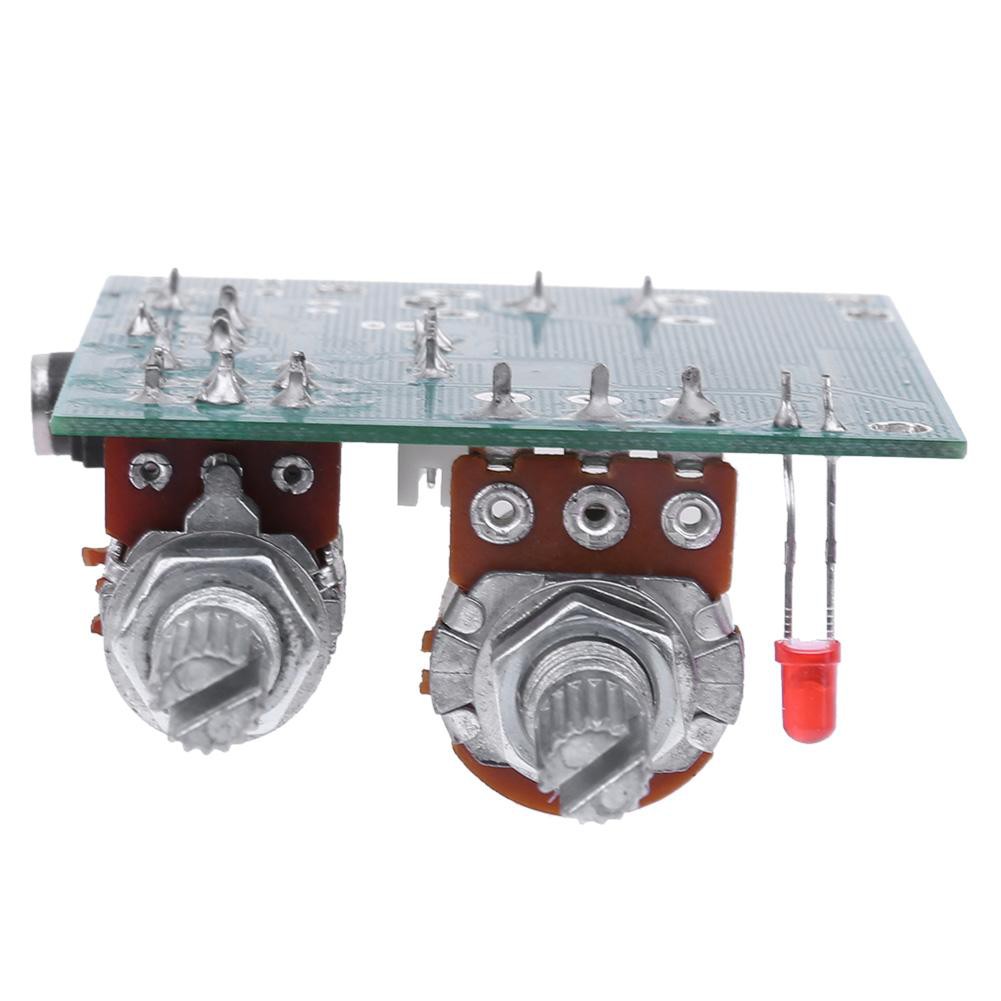

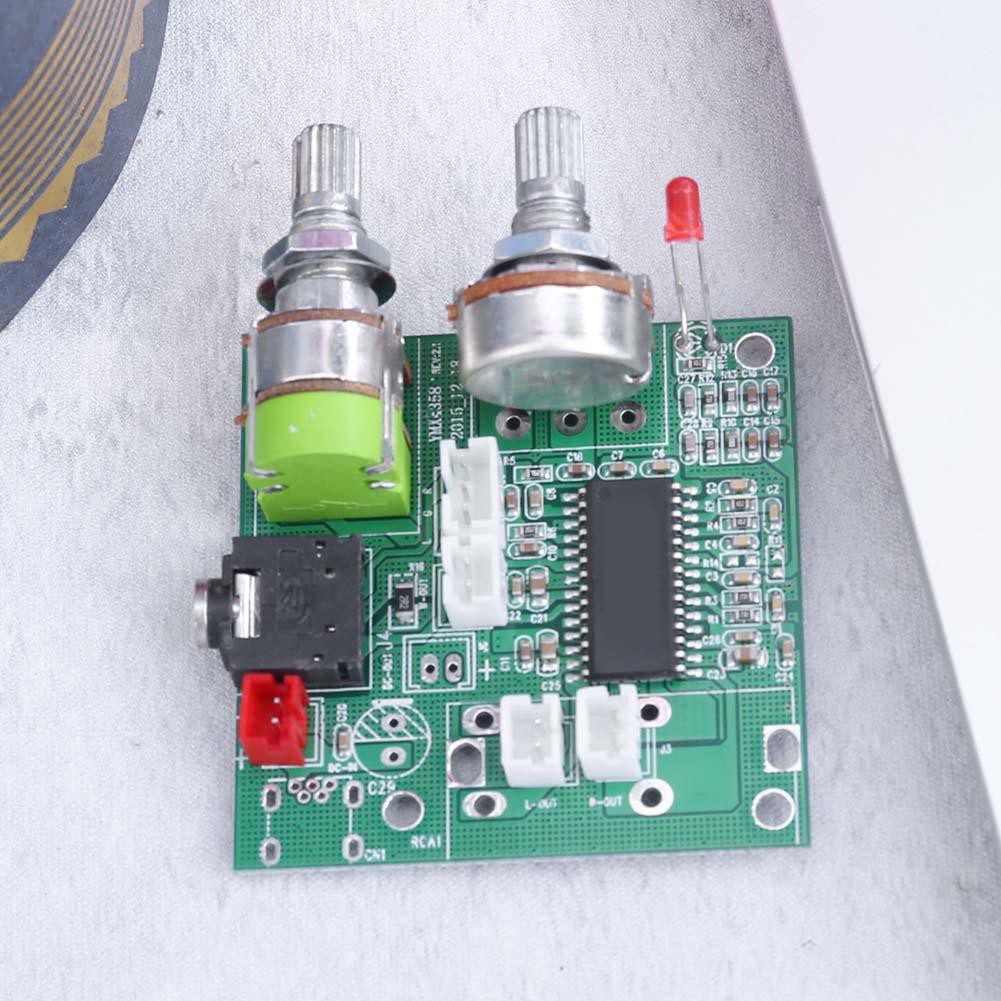

Hình ảnh sản phẩm
