Mới Bộ Sạc Pin Li-ion 18650 3S 20A PCB BMS 12.6V
Mô tả ngắn
Dụng cụ và thiết bị tiện ích > Vật liệu xây dựng > Vật liệu xây dựng > Mới Bộ Sạc Pin Li-ion 18650 3S 20A PCB BMS 12.6V
- Giao hàng toàn quốc
- Được kiểm tra hàng
- Thanh toán khi nhận hàng
- Chất lượng, Uy tín
- 7 ngày đổi trả dễ dàng
- Hỗ trợ xuất hóa đơn đỏ
Giới thiệu Mới Bộ Sạc Pin Li-ion 18650 3S 20A PCB BMS 12.6V

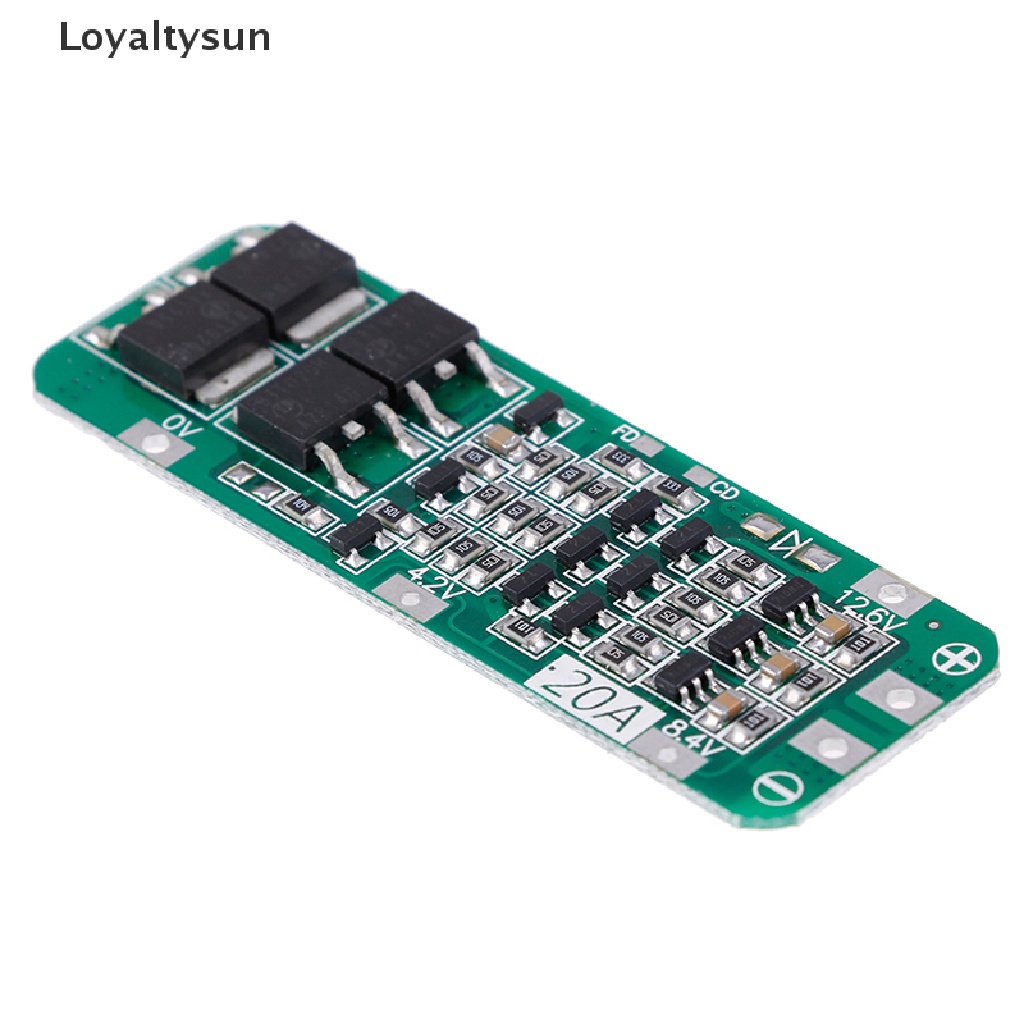

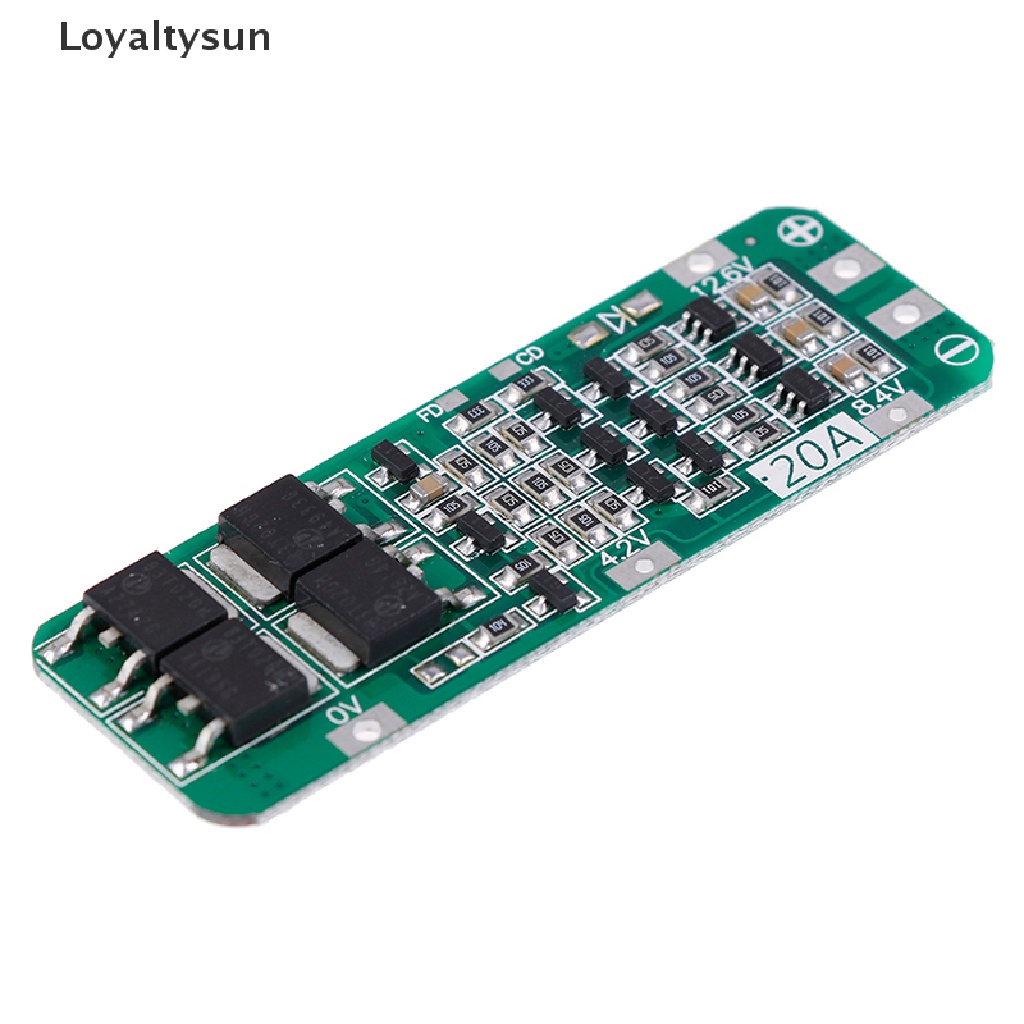

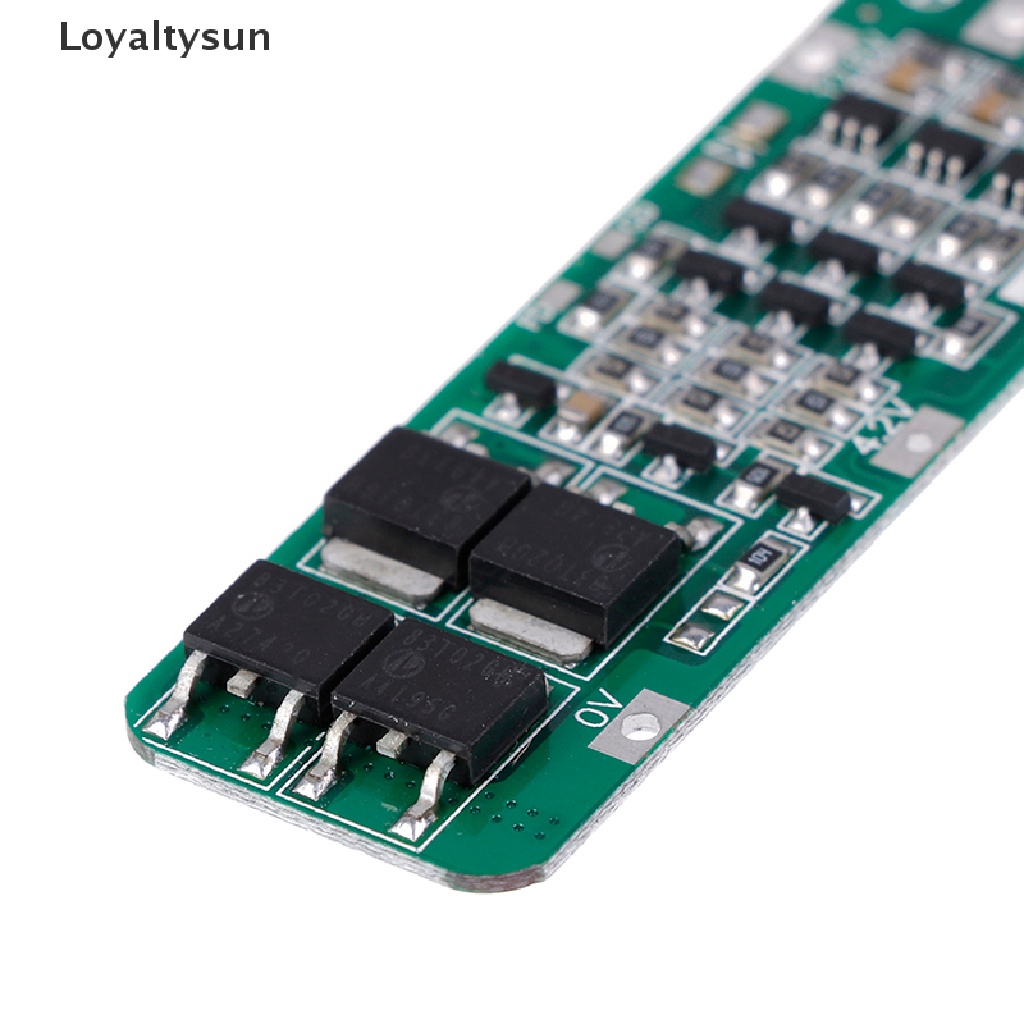

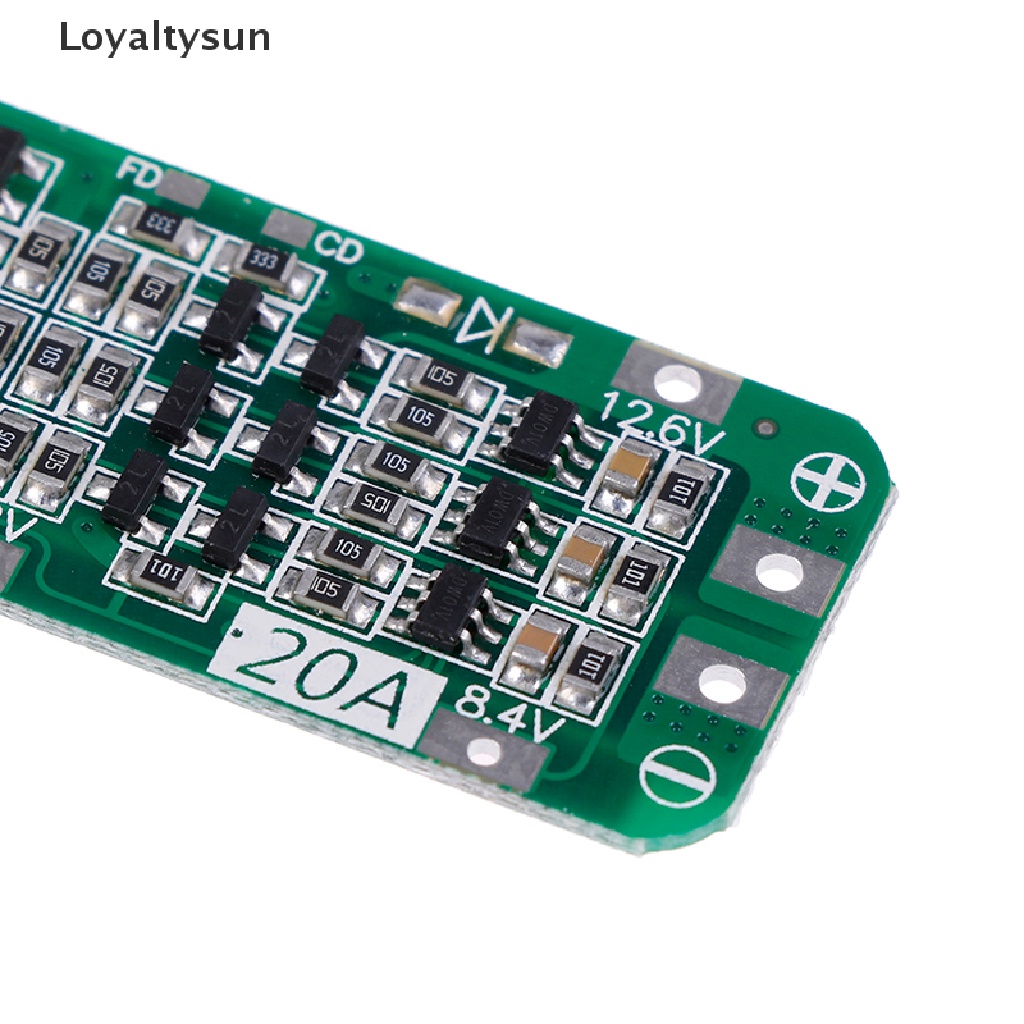

Features:Module name: 3S 12.6V Li-ion Lithium Battery 18650 Charger Protection PCB Board
Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)

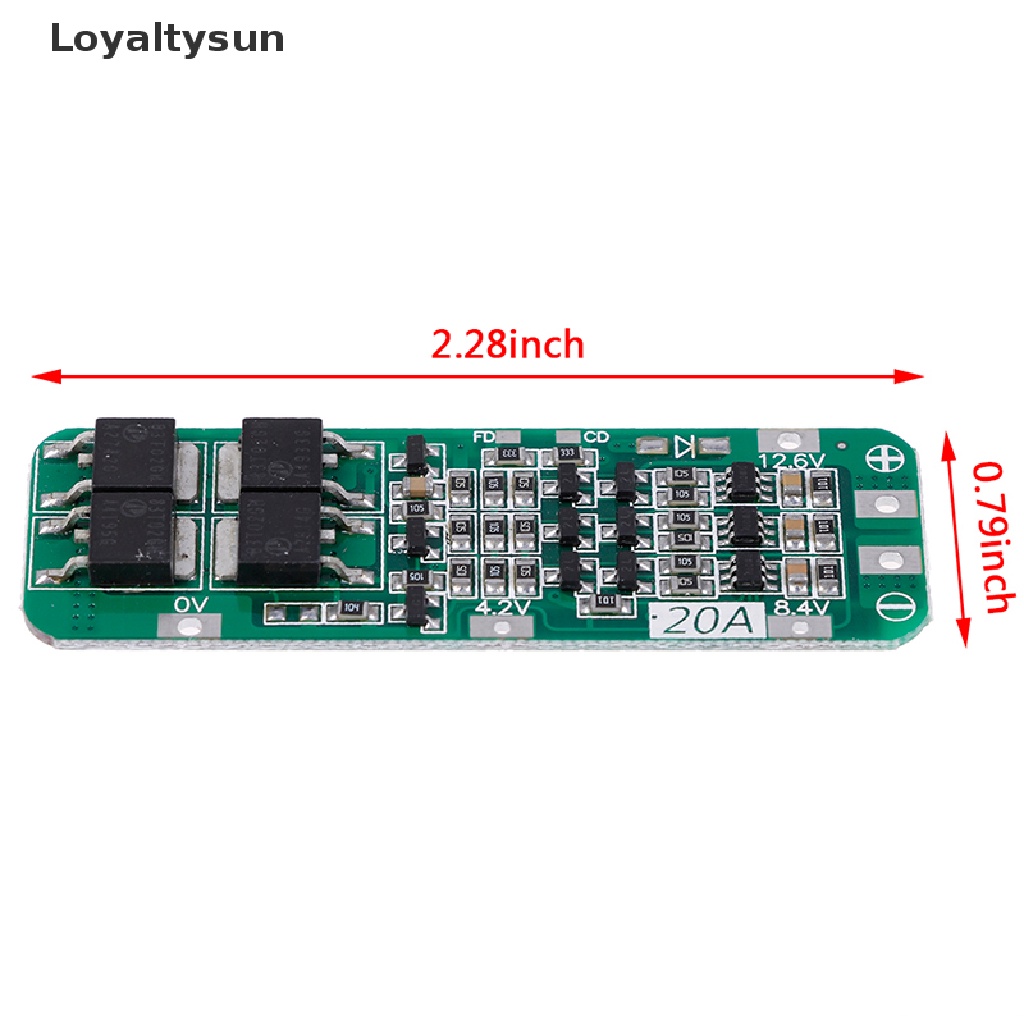

Product Size: 2.28*0.79 inch
Material:Metal
Charging voltage: 12.6V
Maximum output current: 20A
Maximum output power / charging power: 252W
Precautions:
1.Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip.
2.After connection,it need to first charge activation, then will have the output.
Attention:
Do not mix the good battery and poor battery to use.
The internal resistance of 3 battery capacity are closer will be better.
Please buyers know the professional knowledge of this module before buying
Note:
1.Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully.
2.Please allow a little size error due to manual measurement.
3.Please be reminded that due to lighting effects and monitor's brightness/contrast settings etc, the color tone of the website's photo and the actual item could be slightly different.
Package include: 1 * PCB Protection Board
Hình ảnh sản phẩm
