Bút Hàn Kim Loại Ht-1937 Kèm Công Tắc

Giới thiệu Bút Hàn Kim Loại Ht-1937 Kèm Công Tắc

Description:
100% brand new and high quality
Features:
Fine craftsmanship, high quality, long-term use.
The handle adopts a honeycomb heat dissipation structure and the number of environmental tiles is recognized.
Safety with internal terminal block safety wiring and silicone anti-hard power cable.
Equipped with multi-layer anti-oxidation and round tip to prevent corrosion.
Touch the tip of the tool to the location where the two materials will be joined to heat the area.
It is ideal for electronic work.
Gas soldering iron only, other accessories demo in the picture is not included!

Instructions for use:
First, fill the gas
1. Use high-quality gas filling and make sure the switch is closed at OFF and replenish it.
2. Introduce the gas tank into the air hole and press down to inflate.
3, about 10 seconds, can complete the filling of gas, wait a few minutes, so that the gas is stable, and then use.
4. If the gas is filled in, and there is a squeaking sound in the tail, press the pen tip slightly into the air port to eliminate it.
Second, ignition
1. Put on the tip
2. Push the switch to the ON position and hear the sound of squeaking.
3. Use an igniter or a lighter to ignite near the joint.
4, burn after burning for 3 minutes, until the fire is extinguished, the tip will continue to heat.
5, adjust the size of the flame, the direction of the "ten" is large, to the direction of "one" is small.
6. The temperature of this product is up to 1300 degrees (the temperature of the soldering iron is 450 degrees). Pay attention to safety when using it. Turn off the switch to the OFF position after use.
7. When using the gas soldering iron, please pay special attention to wait until the flame is completely eliminated. When the object inside the soldering iron turns red, operate again. The flame size should not be large to extend the life of the soldering iron.
8. The length of the flame is about 1.2-2.2 cm.

Specification:
Type: Gas Soldering Iron
Material: Metal
Features: Gas soldering iron, fine craftsmanship, high quality, long-term use, electronic work accessories

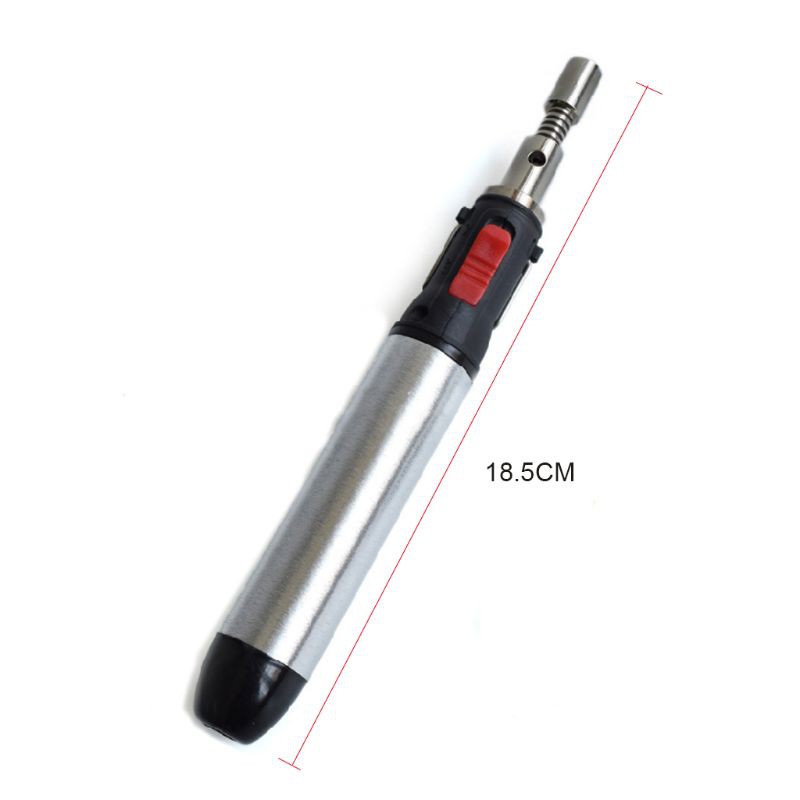

Dimension: app.18.5cm/7.28in
Color: Silver, black
Quantity: 1 Pc

Note:
1.Replace the connector, please replace it after cooling or change it in advance.
2.The tip of the iron in use is hot and hot. Do not touch it with your hands.
3.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
4.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 Pc x Gas Soldering Iron
