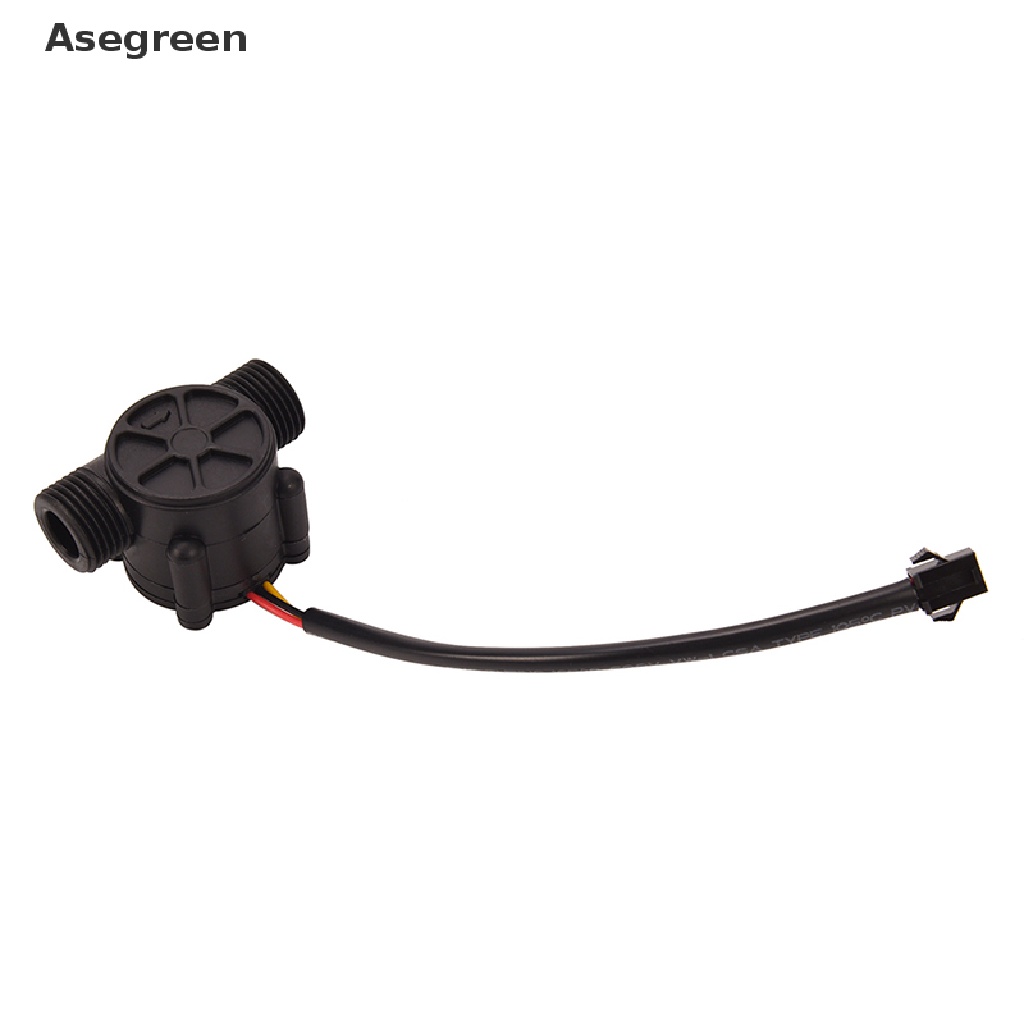

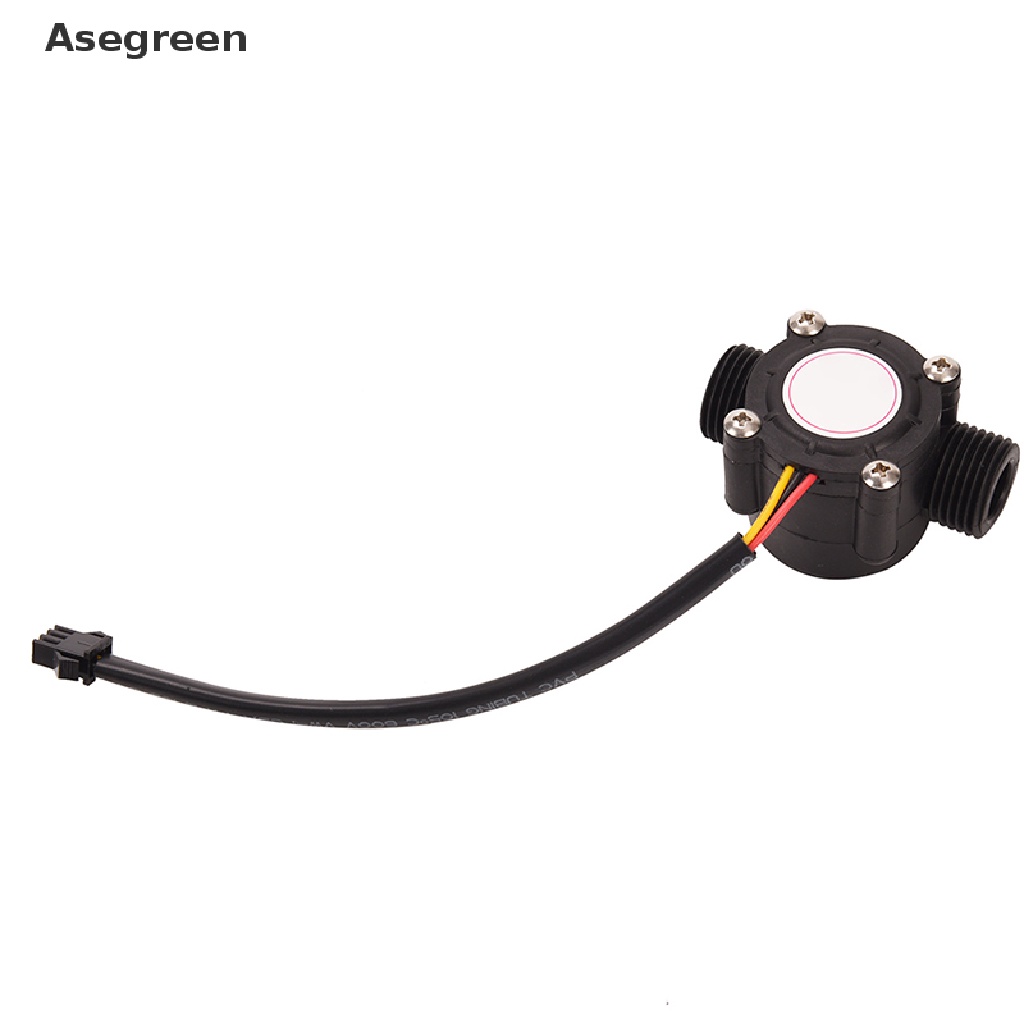

Cảm Biến Đo Lưu Lượng Nước 1 / 2 '' 1-30L / Min Chuyên Dụng

Giới thiệu Cảm Biến Đo Lưu Lượng Nước 1 / 2 '' 1-30L / Min Chuyên Dụng

100% brand new and high quality
The water flow sensor is applied for water heater, and can be used as flow switch.
Straight structure, nylon and glass fiber made, waterproof and explosion-proof, heat and cold resistant
Portable size and light weight, easy to install
With stainless steel ball inside of the impeller, wear-proof
Three wire connection: Red for positive, black for negative, yellow for pulse signal
The lowest rated working voltage: DC4.5 5V-24V
Maximum operating current: 15mA (DC 5V)
Working voltage range: DC 5~18V
Load capacity: ≤ 10mA (DC 5V)
Use temperature: ≤ 80°C
Operating humidity range: 25%~90%RH (no frost)
Maximum water pressure: 1.75MPa
Working range: 1-30L/min
External diameter: 1.9cm
Inner diameter: 1.1cm
Cable length: 10.5cm
Color: Black
Note:
Avoid strong impact and chemical erosion;
Forbid to throw or collision;
Install vertically, angle of inclination should not be exceeded 5 degree
Medium temperature should not be exceeded 120℃

Package Included:
1 x Water Flow Sensor
