Cảm Biến Lưu Lượng Nước Hsv Dn6 G 1 / 4 "0.3-10L / Phút

Giới thiệu Cảm Biến Lưu Lượng Nước Hsv Dn6 G 1 / 4 "0.3-10L / Phút

#DN6 #G #1/4" #PE #Water #Meter #Flow #Sensor #Counter #0.3-10L/min #Indicator #Dispenser

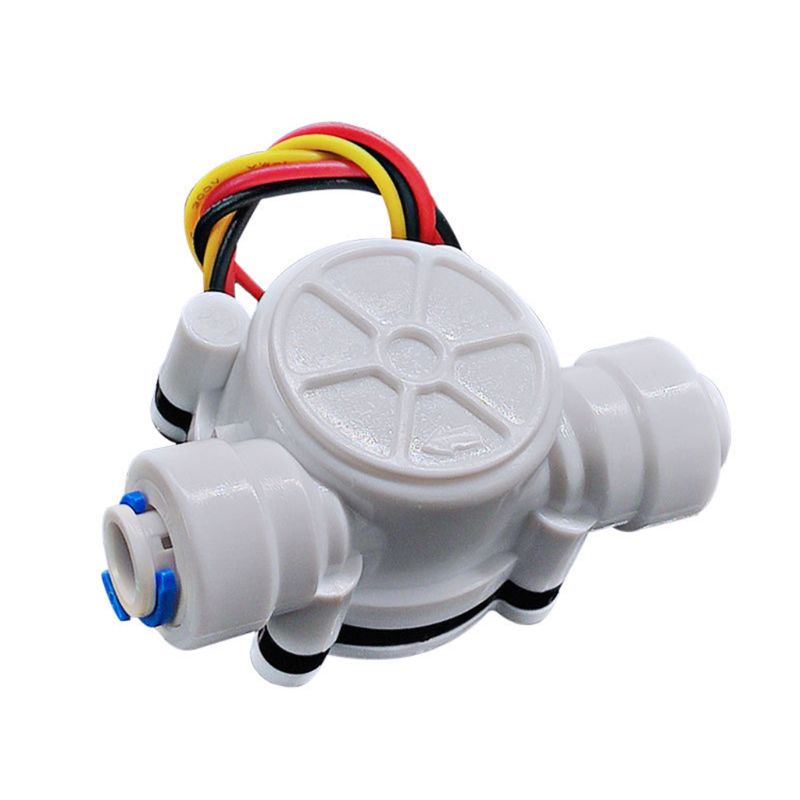

DN6 G 1/4" PE Water Meter Flow Sensor Counter 0.3-10L/min Indicator Dispenser
100% brand new and high quality
Features:
Made of high quality ABS and metal it is solid, durable and good performance, serve you for a long time.
0.3-10L/min, high efficiency, stable performance.
G 1/4" fast connection interface, easy to install.
Suitable for water dispenser, water heater and so on.
Water flow sensor only, other accessories demo in the picture is not included!

Specification:
Material: ABS, Metal
Output voltage: DC 5V
Monitoring range: 0.3-10L/min
Interface: G 1/4"
Length: app.3.5 x 2.8 x 5.4cm/1.38 x 1.10 x 2.13in
Color: White
Quantity: 1 Pc

Product Parameters:
Start water flow: Less than 0.2 L/min
Starting water pressure: Less than 0.1 Mpa
Working flow range: 0.2-8 L/min
Pay attention to clean the air impeller on the residual water when the output signal is not higher than 150HZ, idle time should be 30 seconds.
Max. withstand water pressure: 0.8 Mpa
Operating voltage range: 3.5-12 VDC
Operating current: 0.51.5 MA
Working environment temperature: 1-100
Applicable ambient temperature: –40-100
Output characteristic: (32xQ)Q for traffic L/min, Hz (Hz); Error ±3%
Service life: 106 H
Electrical strength: Over 600 VAC, Duration of 5S leakage current 3mA
Insulation resistance: Over 100mΩ, The insulation resistance between the connector and the shell body or the valve body.

Note:
No retail package.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x Water Meter Flow Sensor
