Giới thiệu Cảm biến nhiệt độ kỹ thuật số DS18B20 G1 / 2 "
DS18B20 Digital Temperature Sensor G1/2" Thread Probe DIA=7mm 1m PVC 3-core Wire SUS304 Stainless Steel Shell L30mm- L150mm

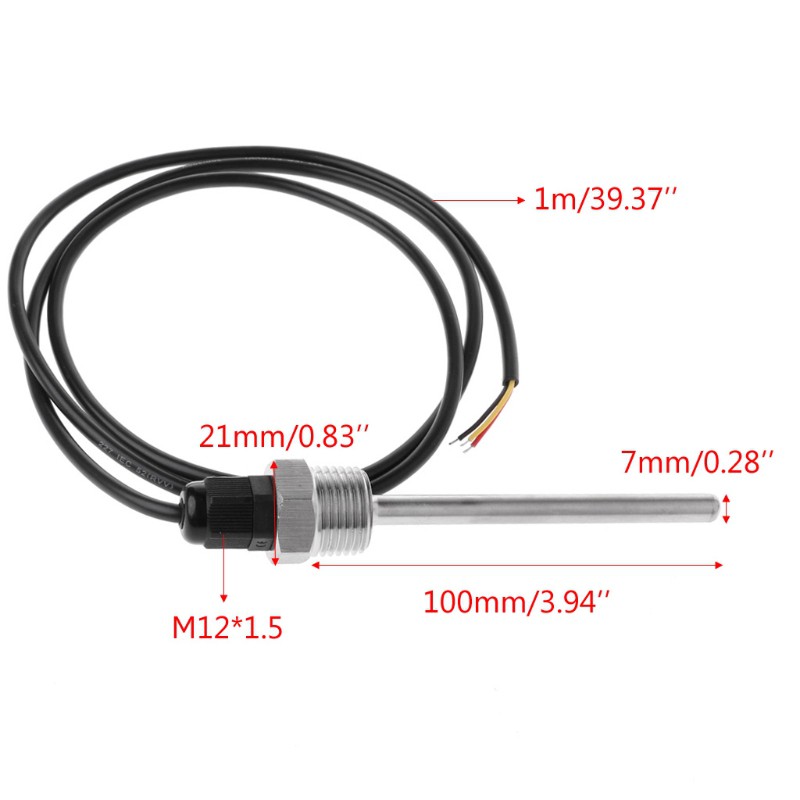

Specifications:

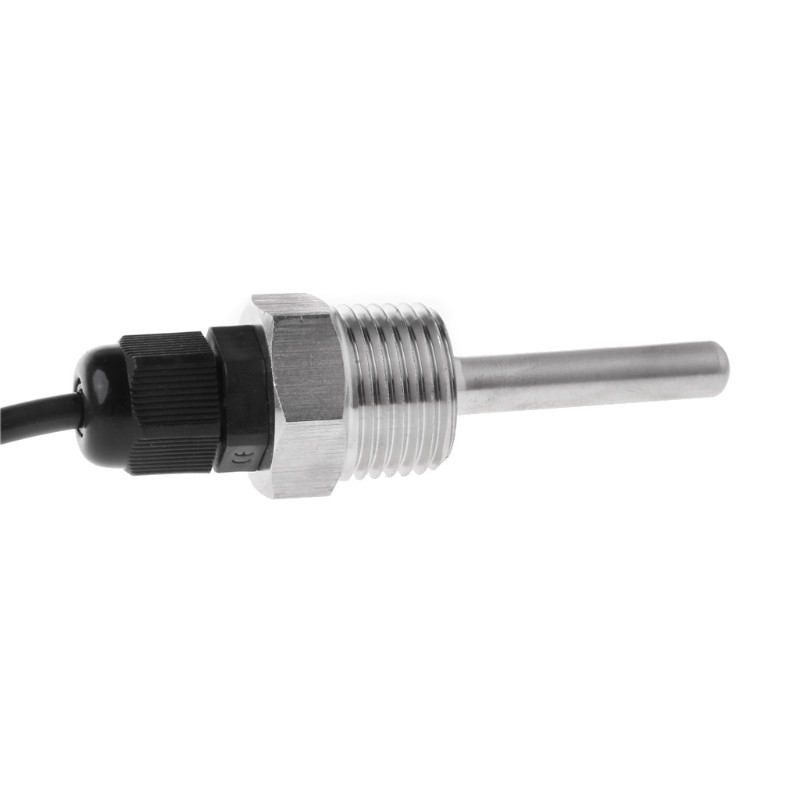

Probe:
Temperature range: -55°C~125°C
Material: SUS304 Stainless steel housing
Diameter: 7mm
Length: 30mm / 50mm / 100mm / 150mm (thread included)

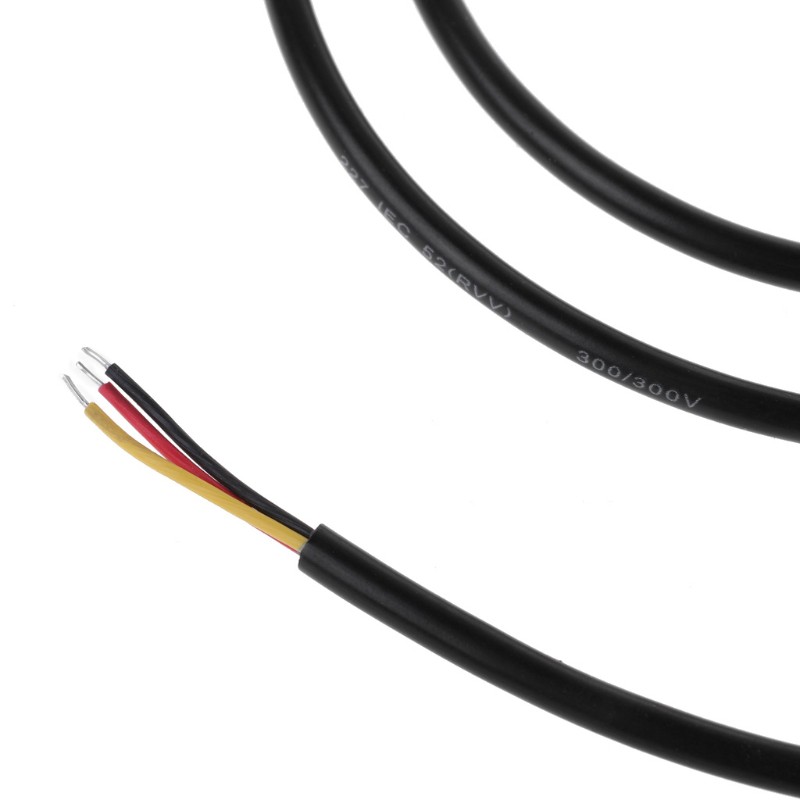

Wire:
Material: 3-core PVC insulated copper wire (black
Thread: G 1/2" (Length of thread approx. 14mm)
Cable Connector: M12*1.5
Power Supply: 3.0V~5.5V
Output: Red (VDD), black (GND),yellow (DQ)
Length: 1m
Electrical Design: three-wire system
Package include:
1 * DS18B20 Digital Temperature Sensor

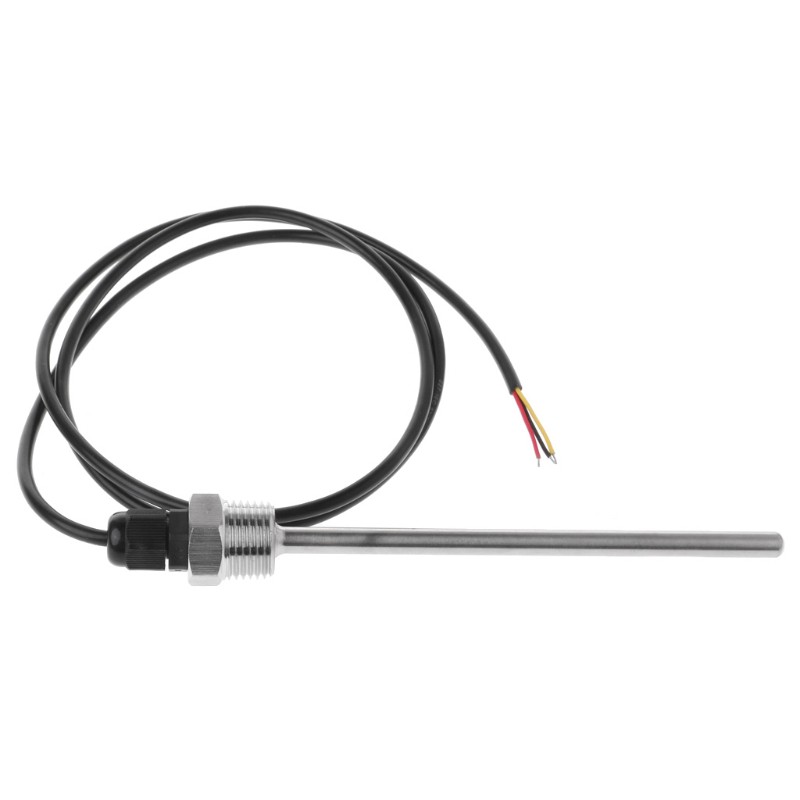

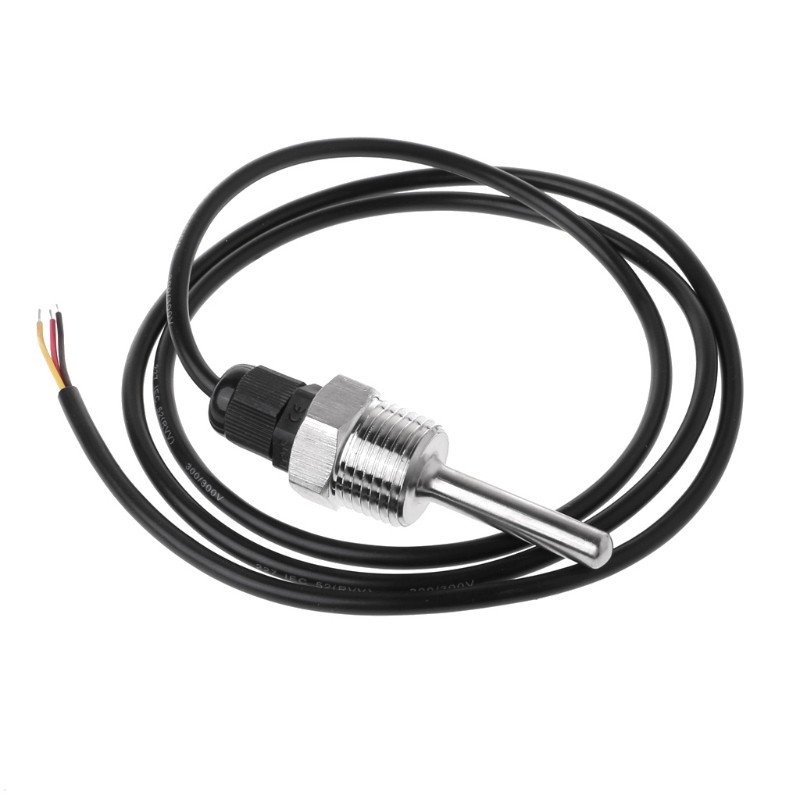

Hình ảnh sản phẩm
