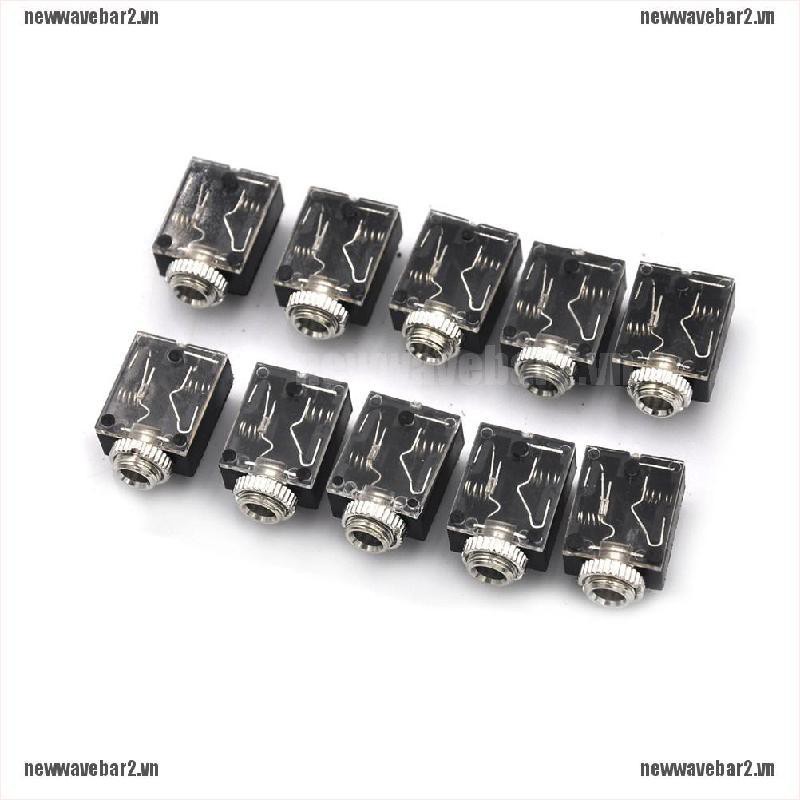

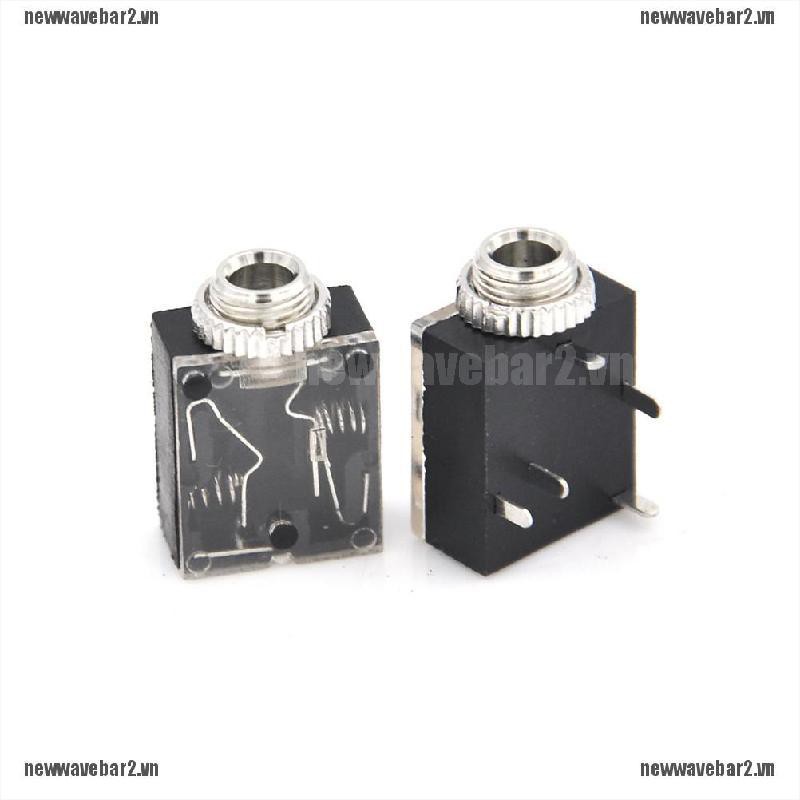

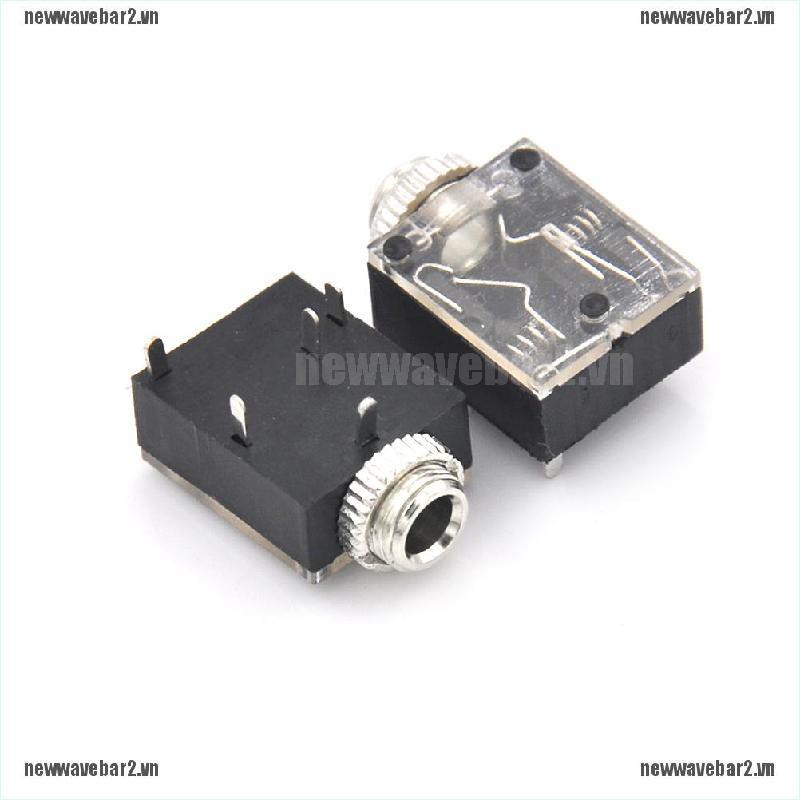

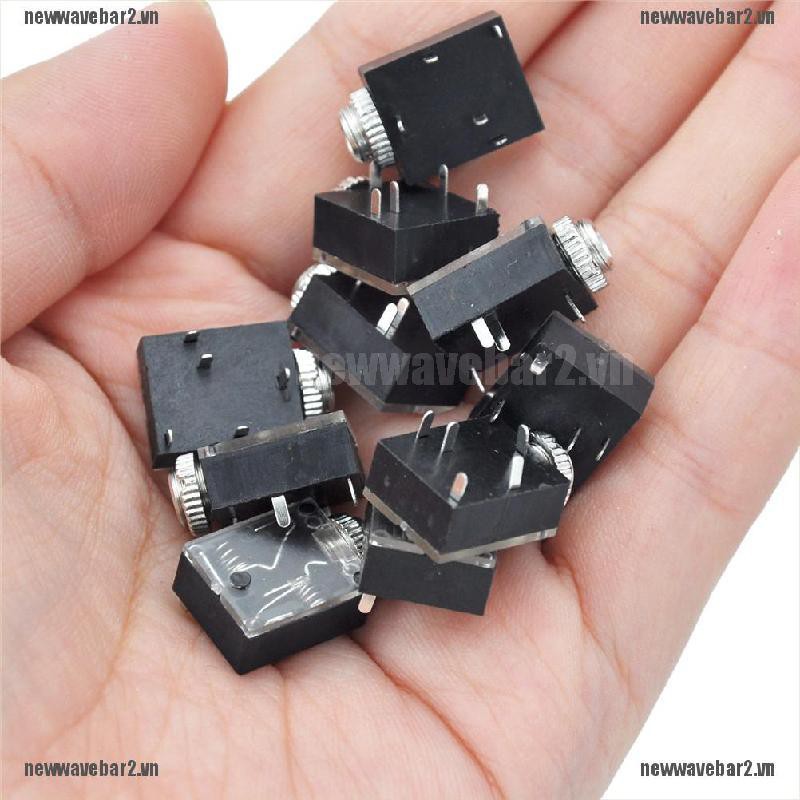

Giới thiệu Bộ Ổ Cắm Tai Nghe 3.5mm 10 Cái Với 5 Pcb
Welcome to newwavebar2.vn Specifications: Size: 14.2 * 11.5 * 6.3mm (excluding nuts and pins section) Solder pin: 2.5mm high Screw: long 3.5mm, 6mm diameter Temperature: -30-70 ° C Withstand Voltage: AC500V (50Hz) / min Rated load: DC 30V 0.5A Actuating Forc: 3-20N Contact Resistance: <0.03Ω Life: 5000 times
Pin Description: 1 needle ---ground electrode 2/5 needle --- left and right channels 3/4 needle --- After insert audio plug, automatic needle disconnect with 2/5
