Giới thiệu Camera Lùi Xe Tầm Nhìn Ban Đêm 170 ° Hd
Welcome to weijiaott.vn ! Features:
Made of high quality and durable material
High-definition and wide viewing angles
Support color CMOS image
Support NTSC TV system

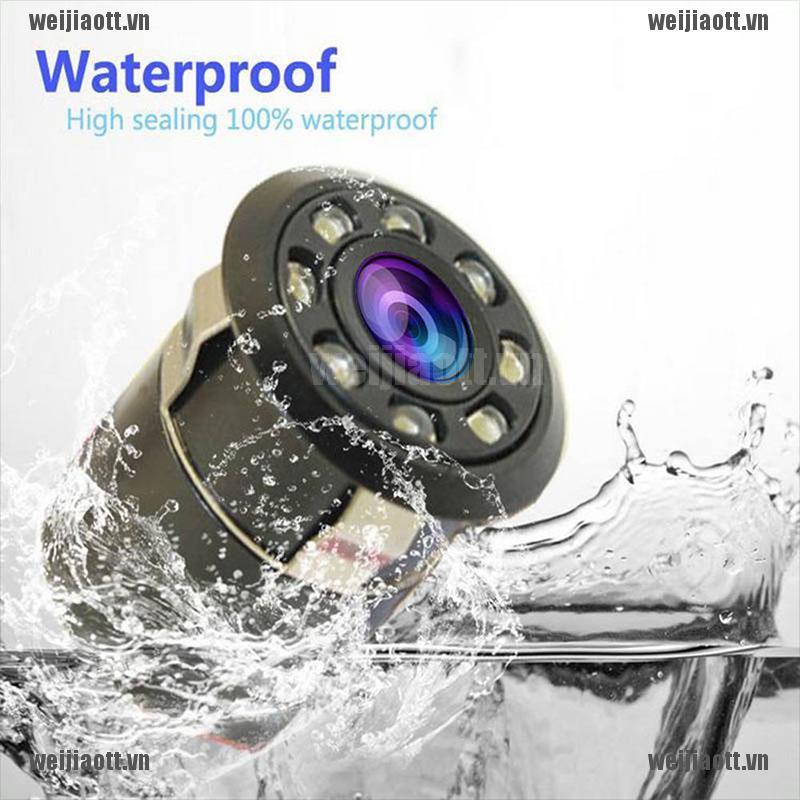

With good waterproof function
With its elegant and contemporary design, this camera is very popular

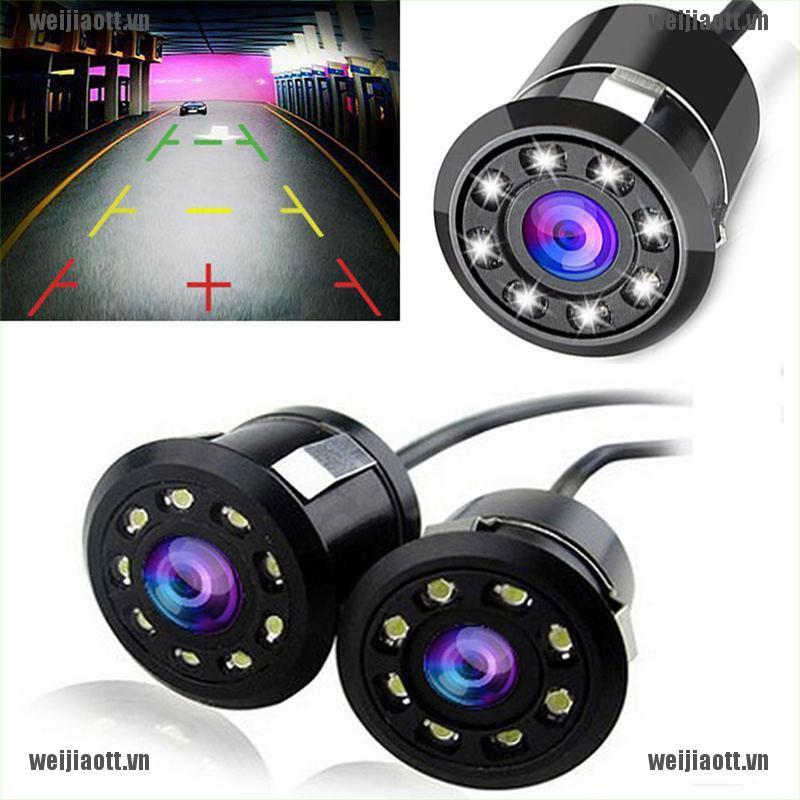

When the car back up ,the Image will show Reverse leading line

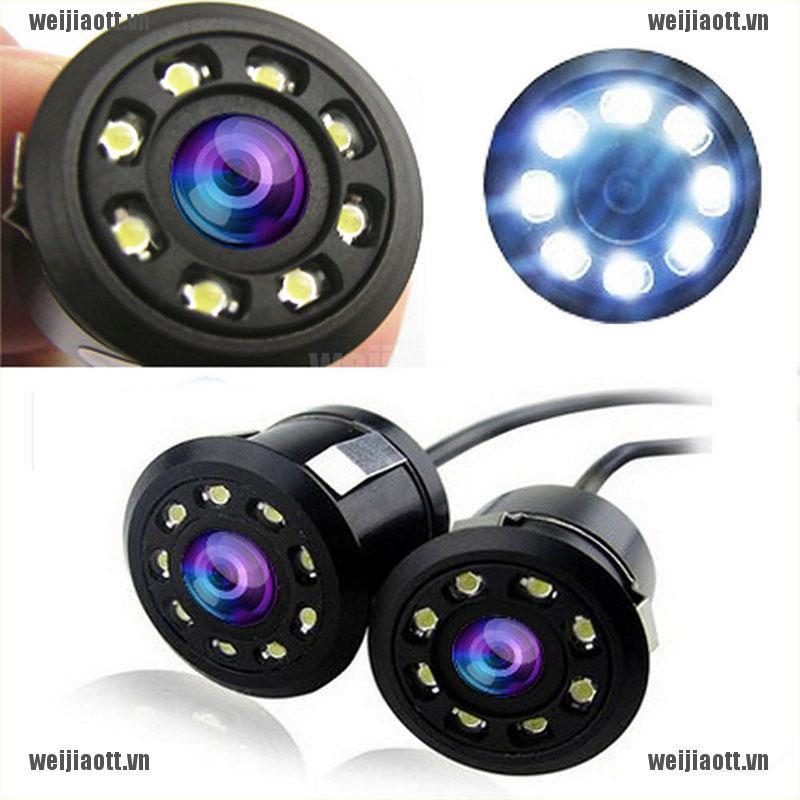

With 8 LED around the camera
Note:The product has the filter which work as the same as the product with IR function.
Specifications:
Sensor: PC1030D
Pixel: 628X582
Resolution: 480TV lines
Minimum illumination: 0.51LUX
Lens: 1.3mm / 0.05 inch
Format: NTSC
Video output: RCA interfaces, 1.0Vp-p, 75ω
Operating temperature: -20 °C to 60 °C
Power Source: DC: 9V-14V
Current: DC12V> = 100mA

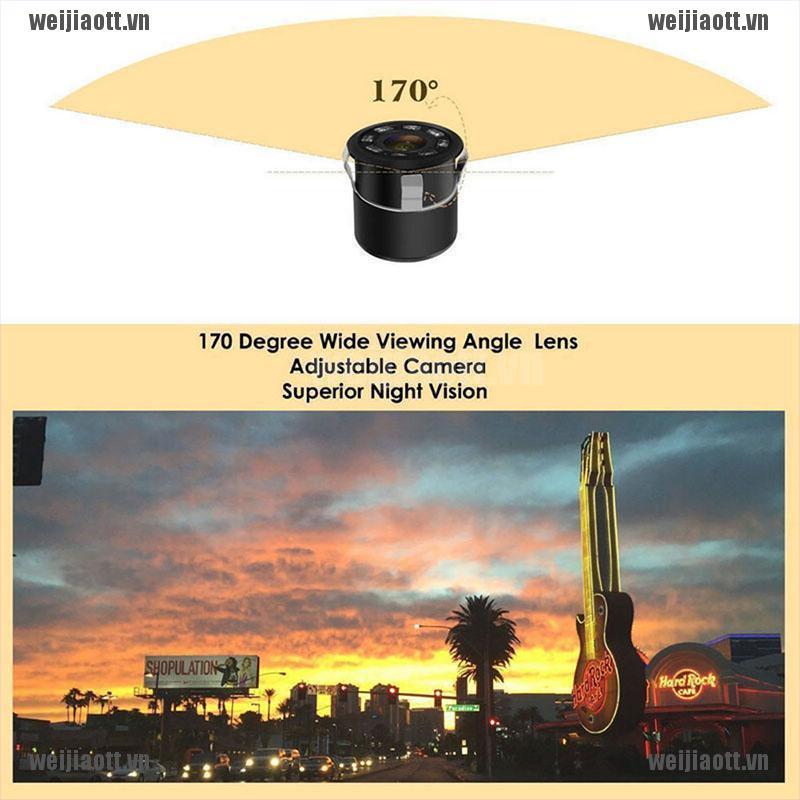

Lens Angle: 170 degrees
Night vision range:1-5m / 39.37 in-196.85 in
Special Features: waterproof mirror \\ Earthquake
Waterproof grade: IP66-68
Video Cable Length:6m / 236.22 inch
Power cord length:1.5m / 59.06 inch
Weight:188g / 6.63oz
Installation:
Mount the camera to your car's license plate area/back window, or any other suitable place.
Adjust the lens of the camera to its best position.
Connect short red and black cable 12V to reversing light power system
Connect long cable 5m reversing camera with monitor
Connect the video output of the camera to the monitor in your vehicle. (yellow cable)
Please take care of the sealing to prevent water leakage when installation.

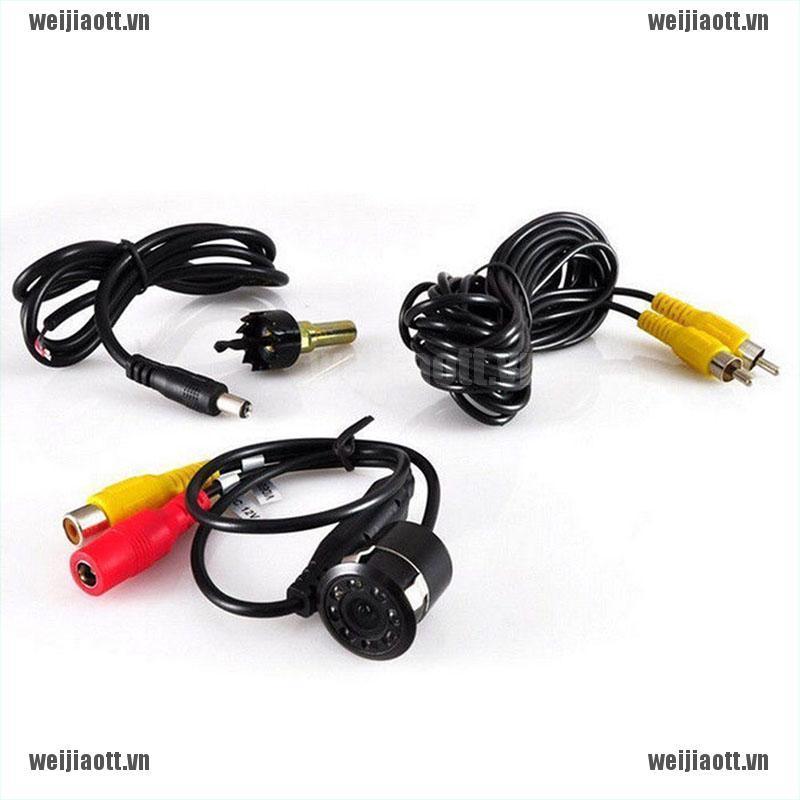

Package Included:
1 x Car Rear View Reverse Camera
1 x RCA Video Cable
1 x Hole cutter
