Giới thiệu Cáp ChuyểN ĐổI HDMI Sang RCA AV / CVBS HD 1080P Mini HDMI2AV
Features:
100% brand new

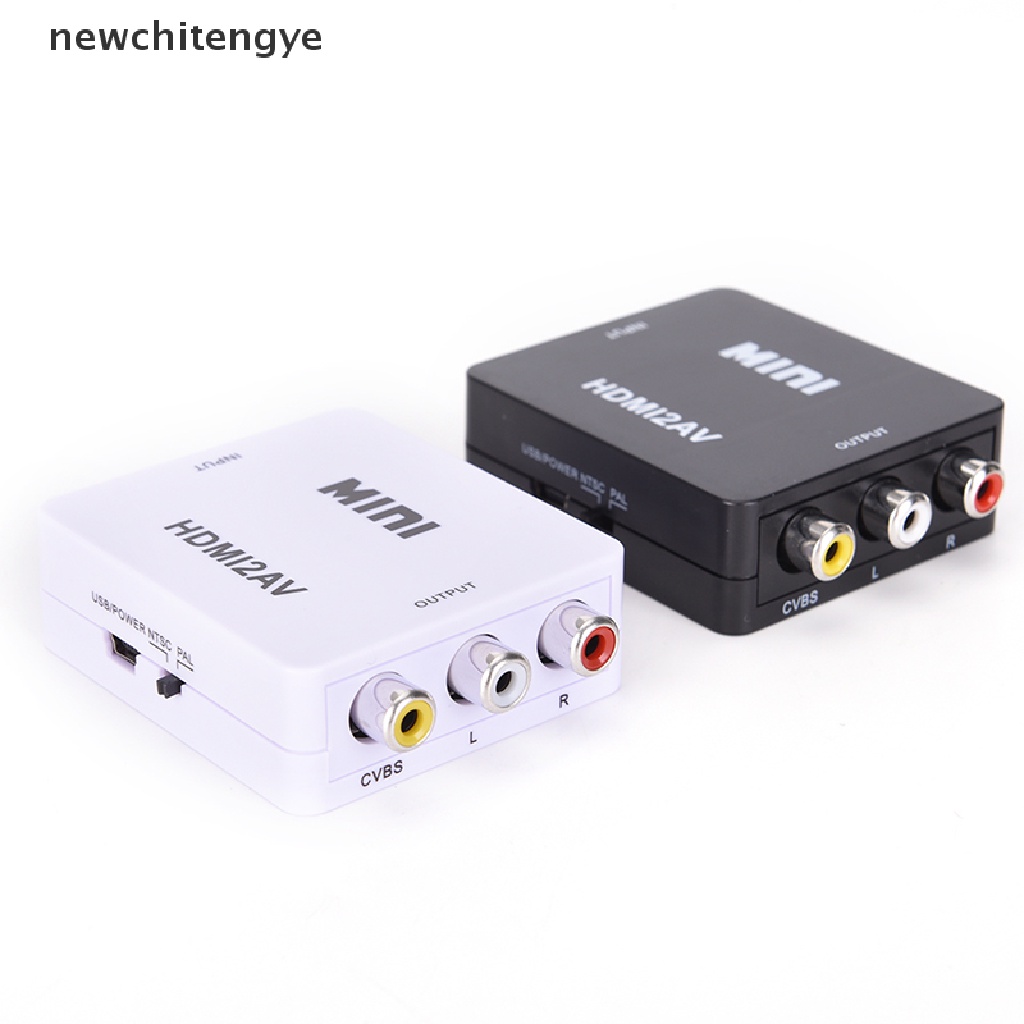

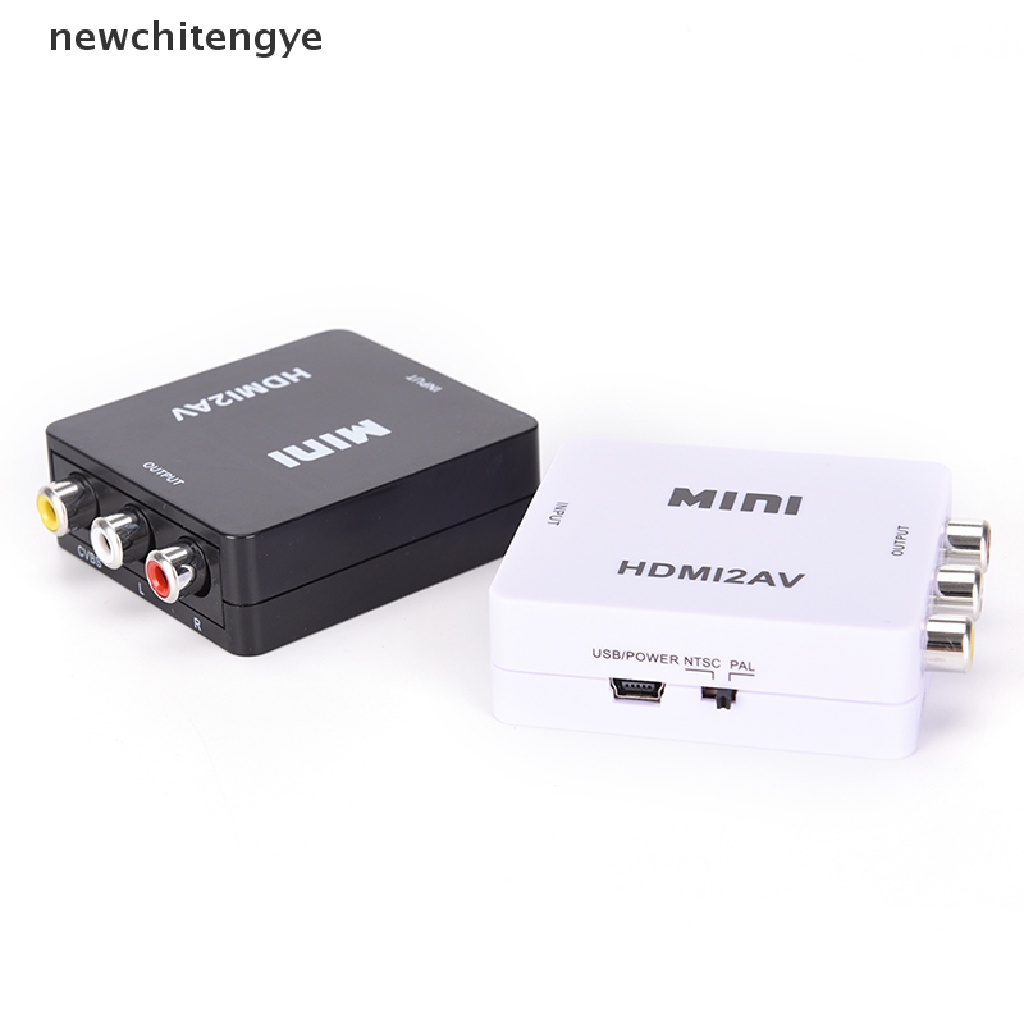

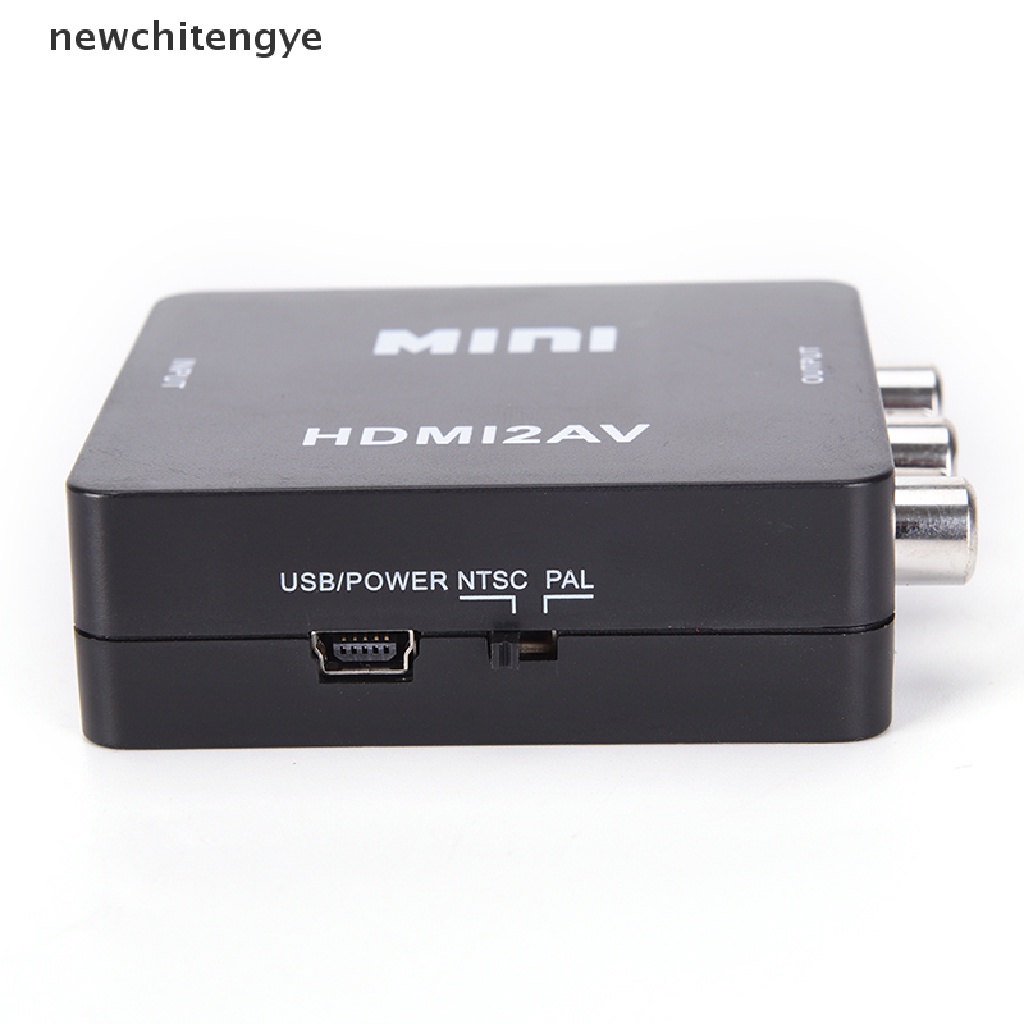

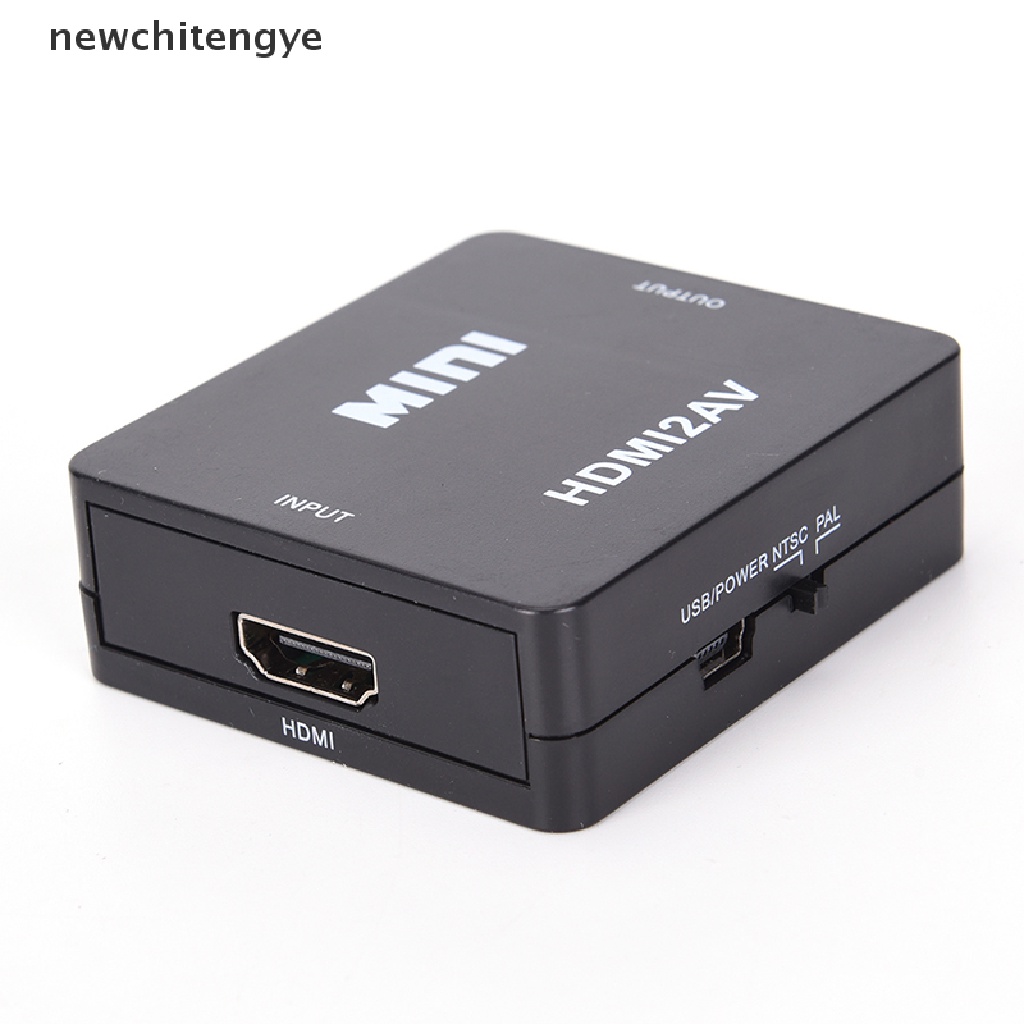

The MINI HDMI to AV signal converter which will convert HDM video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, while support DVI system sideline signals.
To help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i,).it can play on TV, VHS VCR, DVD recorders, etc and support NTSC and PAL two TV format.
Features
1.Integrate the HDMI receiver and the hdcp key
2.With MCU inside
3.Support hdmi input/output resolution:720*576@50HZ,720*480@60HZ
4.9 bit DAC
5.The saze of chip is very small,5.*5mm,packing by QFN
6.Input port:1xHDMI
7.Output ports:1xRCA(Yellow.White,Red)
8.Low power,do not need the power adapter
Notes
1.Support to output 3 same pictures in CVBS signal smultaneously
2.Support stereo audio output
3.Support input resolution in 1080P/1080I and function of scaler
4.For some products,it support power by HDMI port
5.For some products,it need set up the resolution at first,such as PS3(720*480)
Note:
1.Due to the hand measurement, there have size error about 1-3cm
2.Please be reminded that due to lighting effects and monitor's brightness/contrast settings etc, the color tone of the photo and the actual item could be slightly different
Package Includes
1x HDMI2AV Converter(1080P)
1x USB Power Cable
