Specifications: Bootable from CF. Standard IDE interface, true-IDE mode, and support DMA-33 transfer mode. Disk-less network clients. Any other device requiring rugged solid-state storage. On-board LED indicators for power-on and compact flash access. Voltage selection for +3.3V or +5V compact flash. Master or slave mode selection. Power input: +5V, floppy disk drive power connector. Fully compatible with compact flash Type I, Type II, and micro-drive 40-way(2.54mm) standard. This adapter does not support hot insertion of CF cards. Support CF-I and CF-II, also support micro-driver with CF-II interface. System requirement: PC or for Mac with one IDE connector, for Windows, for Mac OS, for Linux operating system. Protect the HDD, connect with portable instrument with X86 or RISC core or data movable tool.

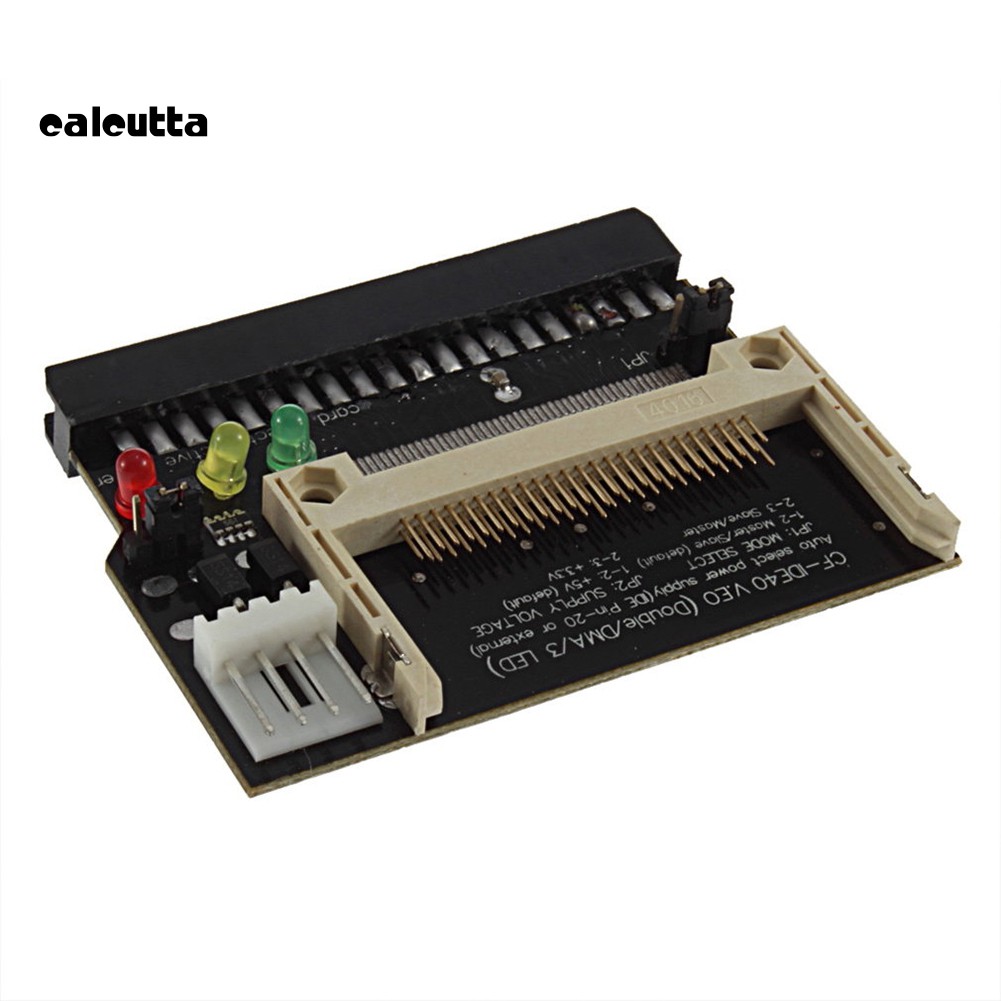

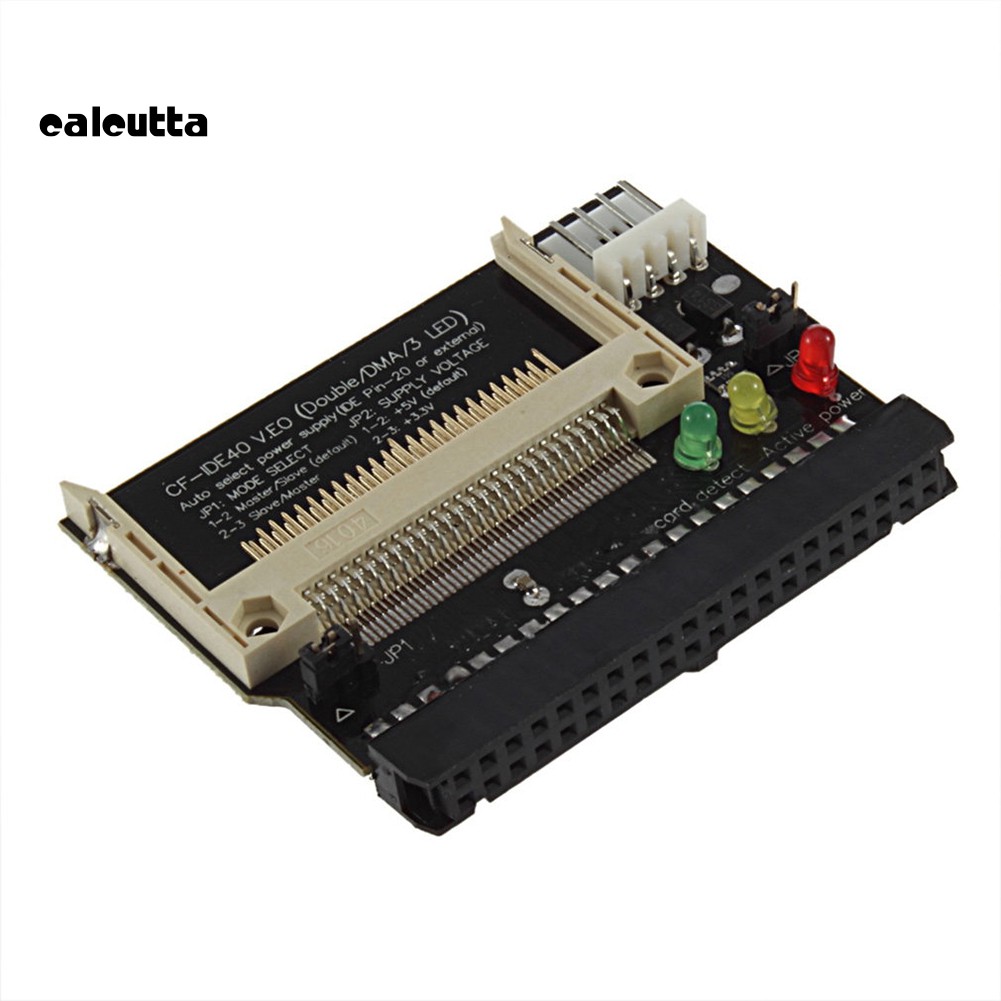

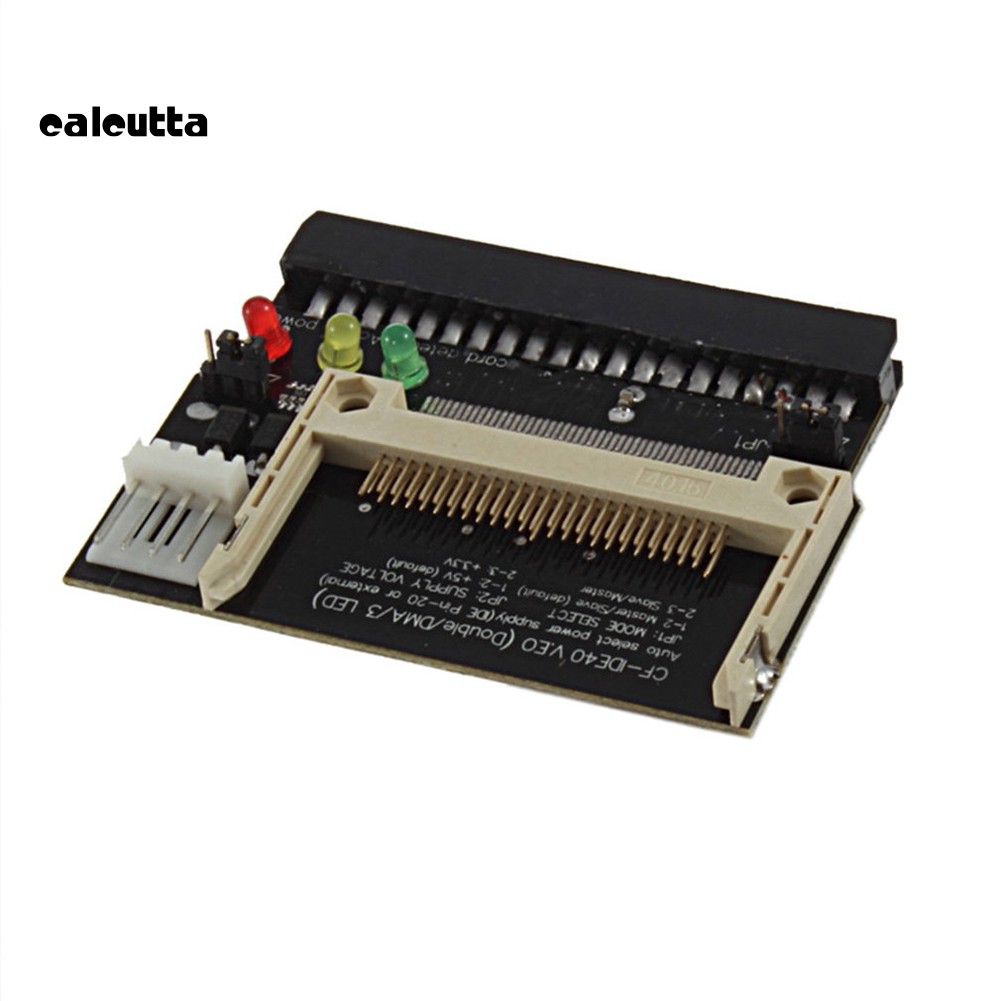

Type: CF to IDE Adapter Card Material: Plastic + Electronic Component CF: Double Side IDE: 40 Pin Female Size: 60mm x 45mm x 6mm/2.36" x 1.77" x 0.24 (Approx.)
Notes: Due to the light and screen setting difference, the items color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement.
