Card SAS RAID 9212-4i Controller 6GB lsi 4 cổng

Giới thiệu Card SAS RAID 9212-4i Controller 6GB lsi 4 cổng

Welcome ！✴️ Malaysia uses EU plug, Singapore use UK Plug。Philippines,Thailand, Taiwan use US Plug
Vietnam use EU Plug.
✴️ WE ship within 1- 24hours! ✴️ Over 370,000 Good Ratings!☆☆☆For Dropship and Wholesale---The more you buy,the more more money you earned！！！

Features:

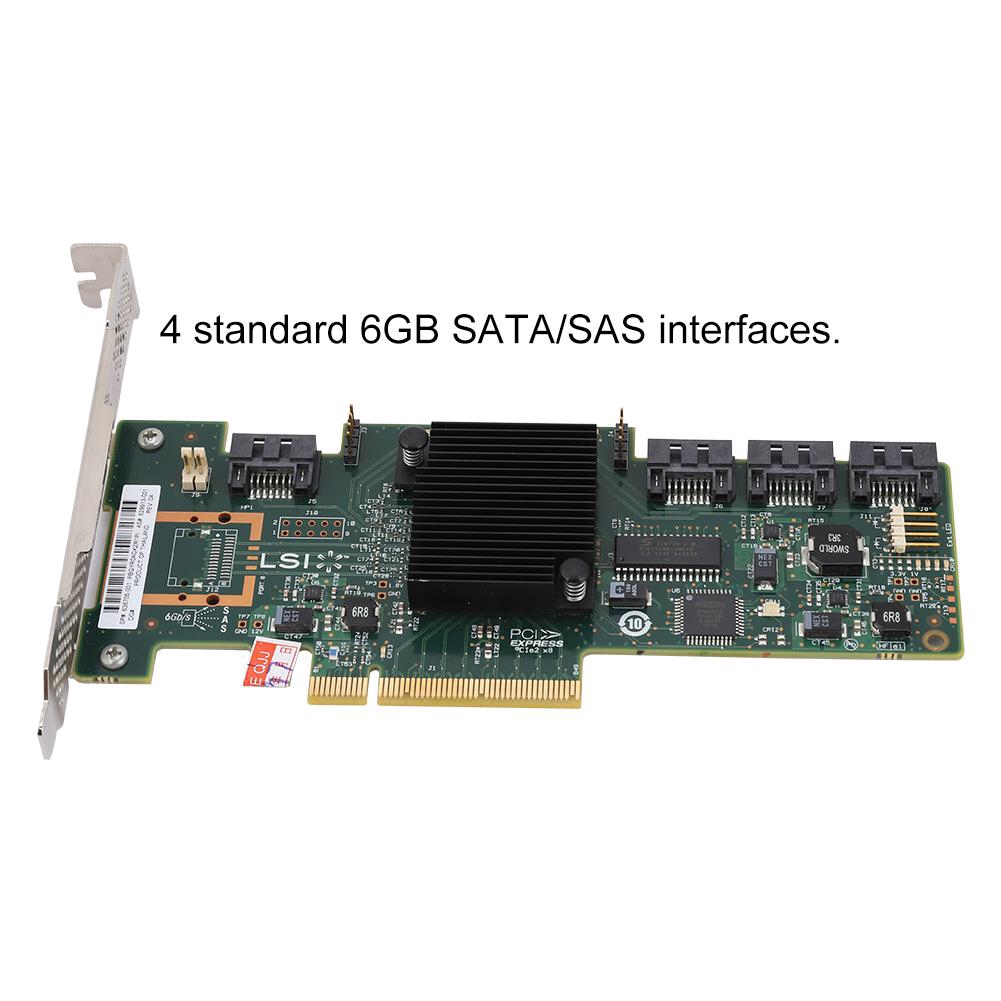

1. 4 standard 6GB SATA/SAS interfaces. Support SAS hard disk, the maximum single disk capacity supports 8TB.
2. 4 SATA or SAS hard drives can be connected, and 4 interfaces can reach 6GB full speed at the same time.

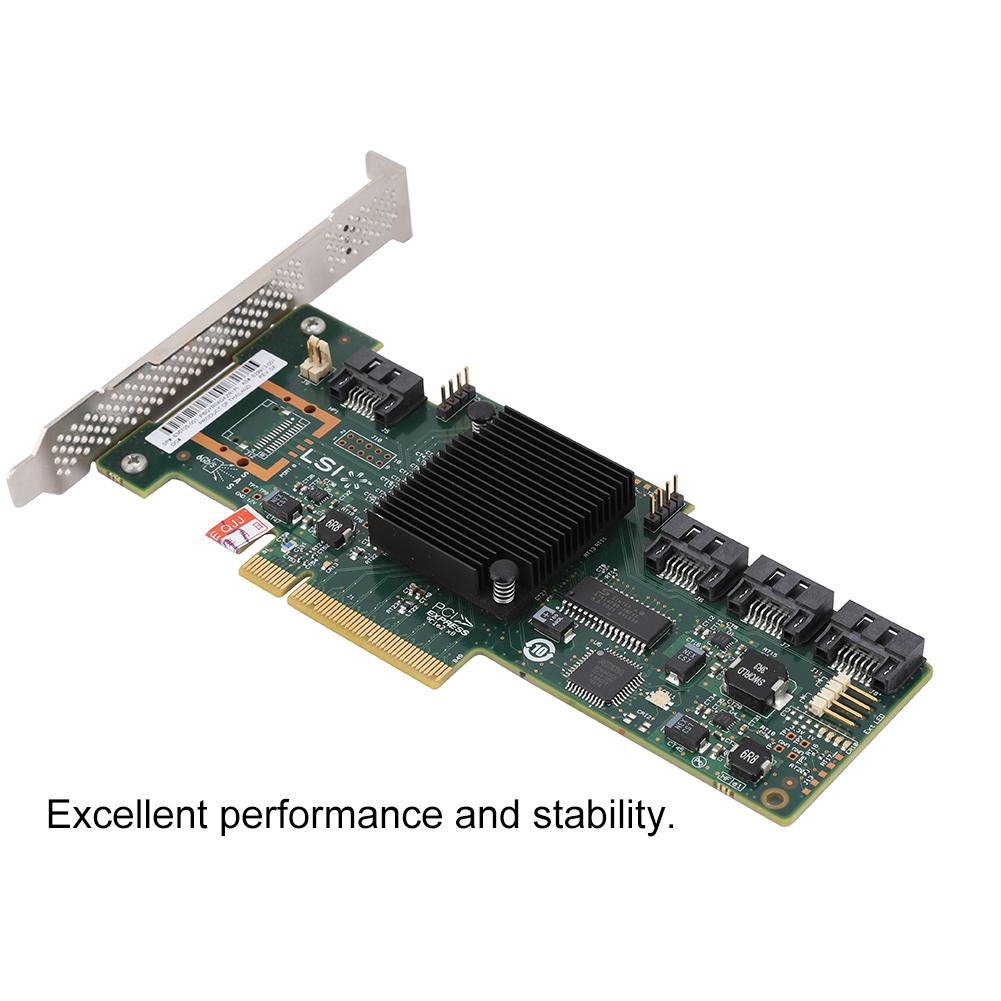

3. Excellent performance and stability.

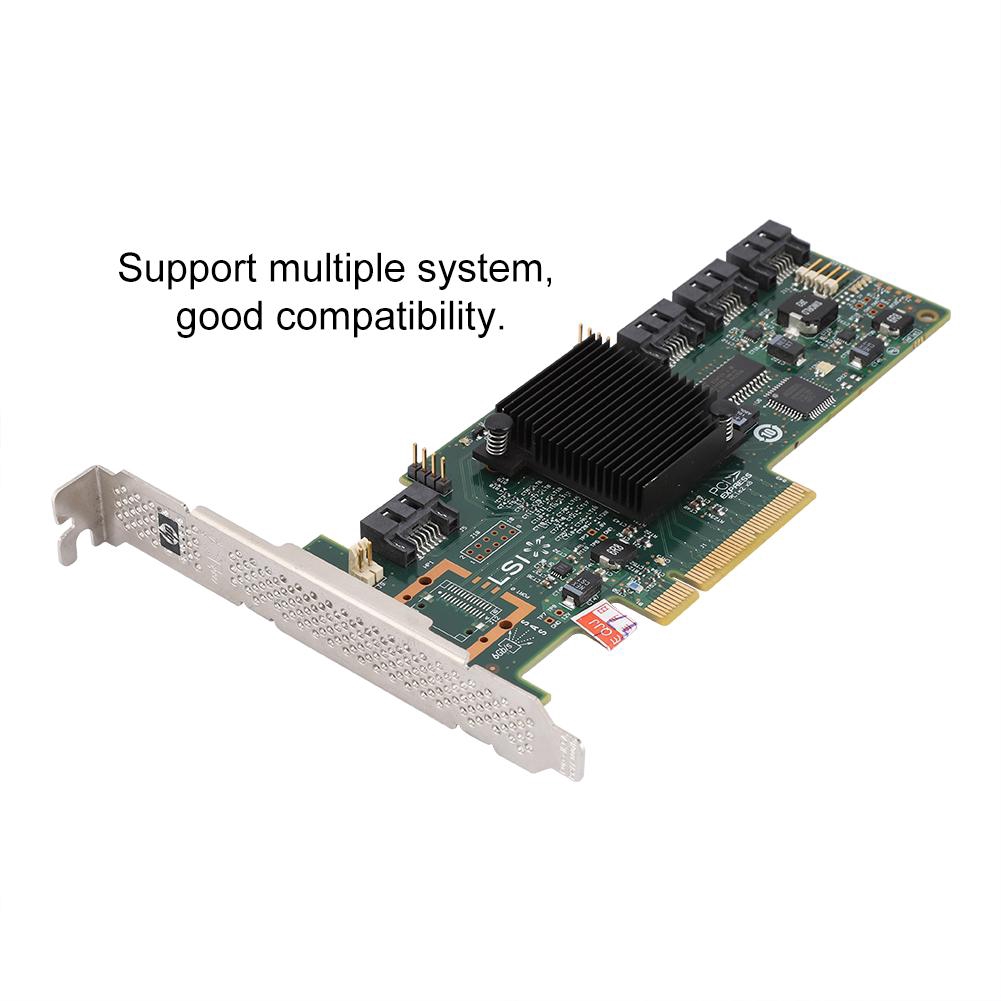

4. Support multiple system, good compatibility.
5. For Windows10/8/7 comes with driver, plug and play.

Specifications:
Model: 9212-4i
Status: open box
Interface: PCI-E x8/ x16
Support hard disk: Support 8TB hard disk, including SATA and SAS. Support 4 hard disks simultaneously
Hard disk interfaces: 4
Chipsatz: LSI SAS 2008
RAID-Level: 0/1/1E/10
Compatible system:
for Windows10/8/7 comes with a plug-and-play driver, for win7 pure system and for XP need to manually install the driver, support for QunHui 5.2/6.0/6.1 (black skirt), no need to install any driver, directly recognize the disk.

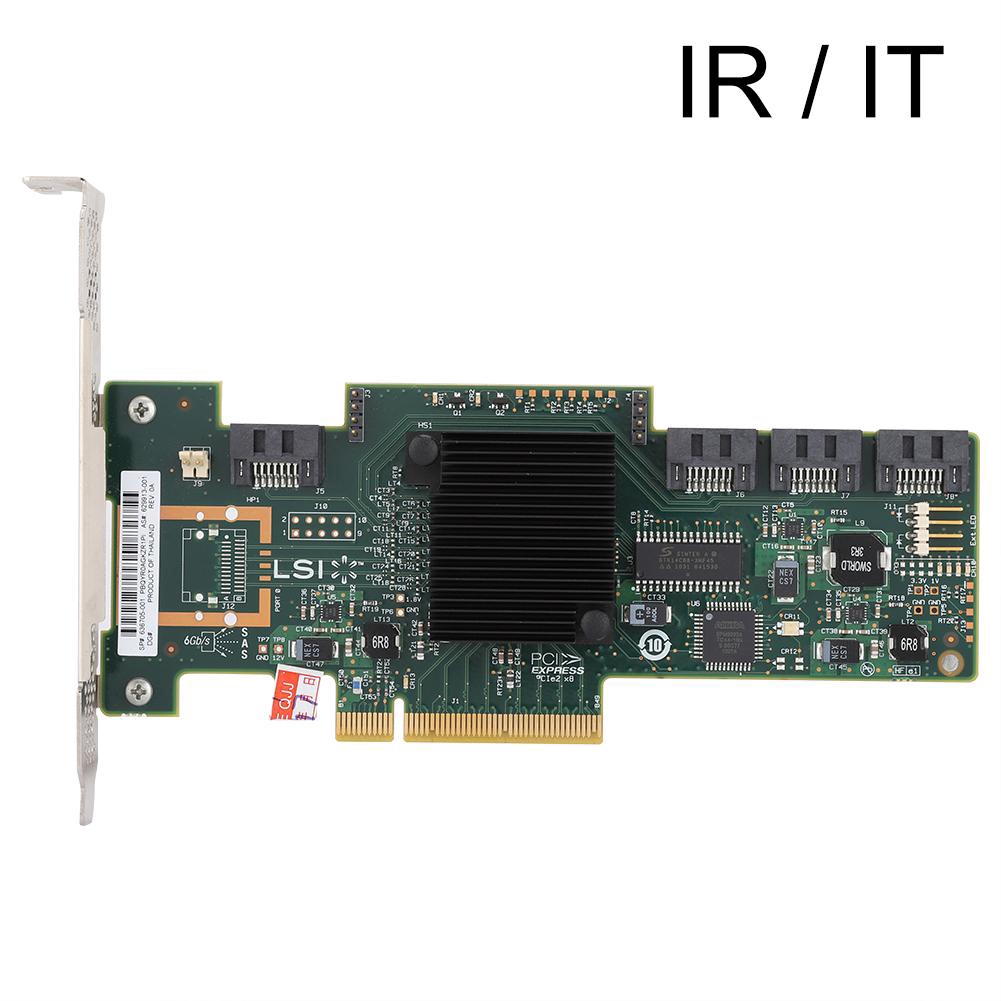

Working mode: Dual mode optional
Working mode 1: IR mode
Working mode 2: IT mode (P20 version latest firmware)
Size: about 170*120*20MM/6.69*4.72*0.79in

Package List:
1 * Array Card
Note:
What is the difference between the IT and IR modes for the firmware of the LSI HBA card?
The two firmware types are Initiator Target (IT) and Integrated RAID (IR).
IR is the typical hardware RAID firmware that the internal cards or boards ship with.
The IT firmware, on the other hand, is the Initiator Target firmware which is designed to allow a SAS HBA to connect to up to 256
The use of SAS Expanders. The IT firmware is typically shipped on external cards. The IT firmware does not have any RAID capabilities and basically acts as an HBA.
