CHANNEL Bảng Mạch Loa Sup Upc1237 Dc 12-24v

Giới thiệu CHANNEL Bảng Mạch Loa Sup Upc1237 Dc 12-24v

#UPC1237 #Dual #Channel #Speaker #Protection #Circuit #Board #DC #12-24V #Boot #Mute #Delay
The speaker protection board using UPC1237 dedicated chip design and manufacturing,has a power-on delay and DC protection,instant shutdown feature,all-round protection of your expensive speaker!
Sheet selection 1.6MM thick high-FR-4 board manufacturing tin foil sprayed,10A relay is loose music quality, the resistance rings are gold film resistor copper feet. And with a red power indicator,power relay approximately 3 seconds,indicating that green light,the work indicator.
The protection board using a single power supply voltage AC 10V-18V,DC 12-24V,you can take a group of electric power to the amplifier board.Try to use conditional independence winding or separate power supply.
Mute delay boot,shutdown speed off.
Amplifier midpoint potential protection,the midpoint of DC from the control point of> 0.7V.
All finished boards are good debugging,and power test.

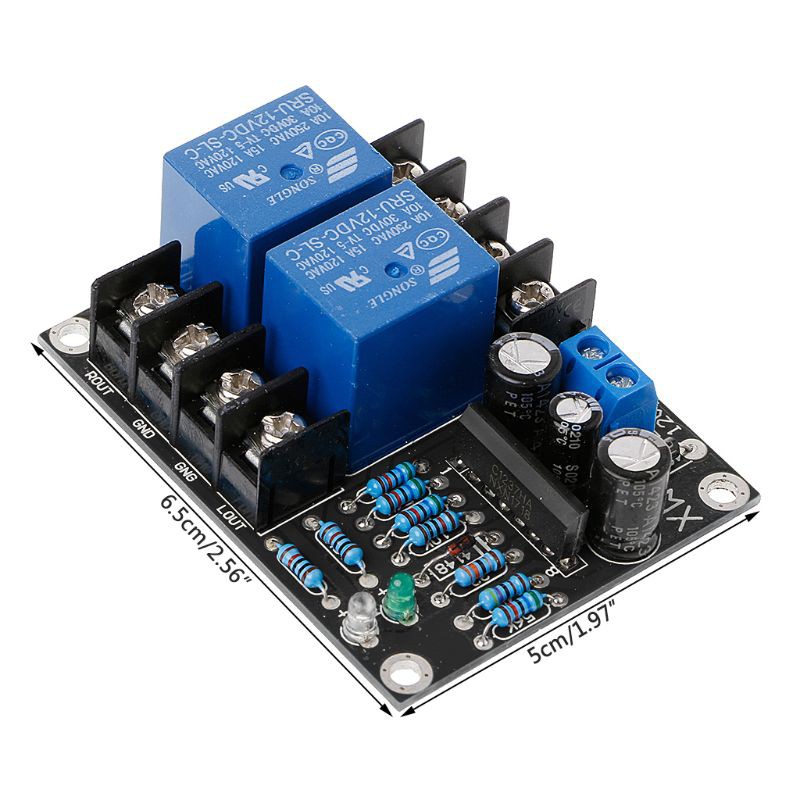

Size:6.5x5cm/2.56x1.97inch
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Included:
1x Protection Circuit Board

Hình ảnh sản phẩm
