Chìa Khóa Điều Khiển Từ Xa Ak-701 4 Nút 315mhz

Giới thiệu Chìa Khóa Điều Khiển Từ Xa Ak-701 4 Nút 315mhz

Specification:
Material: ABS

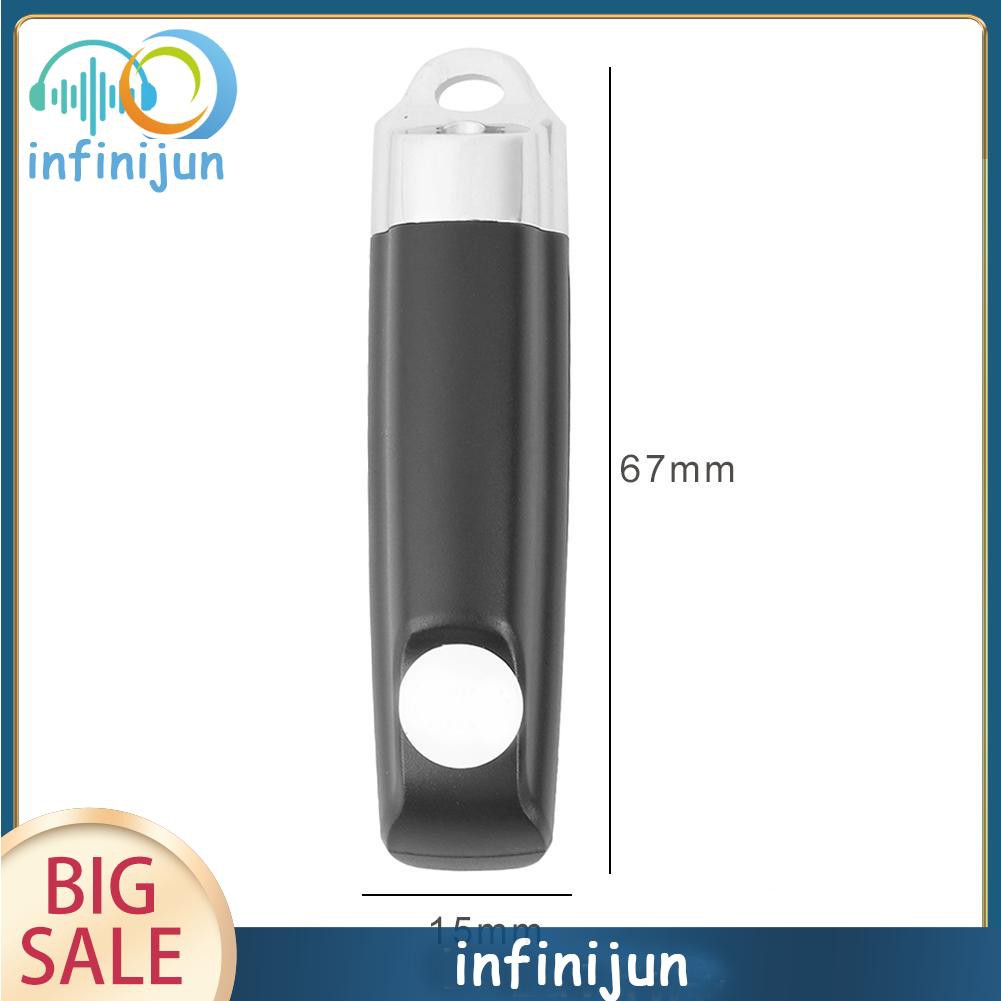

Product size: 67*15*15mm/2.63*0.59*0.59''
Type: ABCD Button, Lock Button
Rated voltage: 12 (V)
Rated current: 10 (mA)
Installation mode: wireless
Corresponding frequency: 315MHZ
Modulation mode: ASK(AM)
Wireless transmission distance: 50-100m (open space)
Application: garage door, alarm, automatic door, rolling door, etc
Type of copied chip: 2260 (e.g. PT2260, SC2260, LX2260,HX2260); 2262, (such as PT2262, SC2262, LX2262,HS2262,HX2262, etc.), PT2264, PT2240 (LX2240), 1527(such as EV1527, HS1527, HX1527), FP527, CS5211, SMC918, SMC926, AX5026, ax5326-3, ax5326-4, HT600, HT680, HT6207, HT6010, HT6012, HT6013, HT6014, HT12D, HT46F49E, PIC16F629, PIC16F630, etc., can also copy other types of chips compatible with the above mentioned chips. Different chip manufacturers will have different prefix chip model, as long as the chip model number Part of the same can be copied
Note: We generally do not recommend copying roll code chip, because there is a lot of uncertainty when copying roll code chip. When copying roll code chip remote control, we cannot determine whether the original remote control chip is an encryption chip or not, and we do not recommend copying roll code remote control with a pair of remote control.

Operation Manual:
1. Clean code: shut at the same time hold the lock with two keys (some of the shell are the two key) upward and downward, the LED indicator lights flashing three times, press release any one of the key, another is not loose, click the release button three times, rapid flashing LED light into the state, at this time of memory data all cleared, after cleaning the data of the remote control, press any key, the LED indicator is on.
2. Copy: One hand-held original remote controller, the other hand-held copy remote controller, two remote controllers as close as possible, (ideally two remote controllers zero distance side by side on the desktop) respectively press the required copy buttons, LED indicator flickers quickly after three flickers, copy success, other key operation method is the same. Some remote controllers have low transmitting power, so they should be equipped with remote controllers and back-to-back operation of copying remote controllers to cope well. If there is interference in some operating environments, interference operation should be avoided. If copying is not good, copying should be done again after code clearance.
3. Recovery: When you inadvertently clear the code of the copying remote controller, you can press the bottom two keys of the copying remote controller at the same time. After three flashes of the LED lamp, it will flicker quickly. After release, you press any key again and the light is long, which indicates that the code of the copying remote controller has been restored. Before using our copy remote control to copy, please make sure to clear the existing code of the copy remote control first.

4. How to control some of the keys after copying, and the rest can not be
