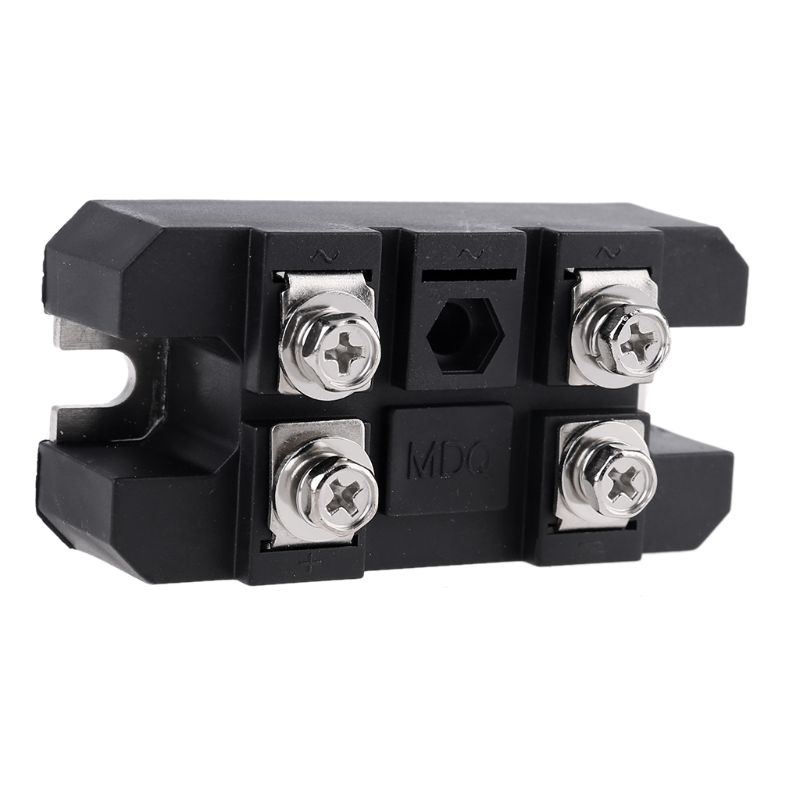

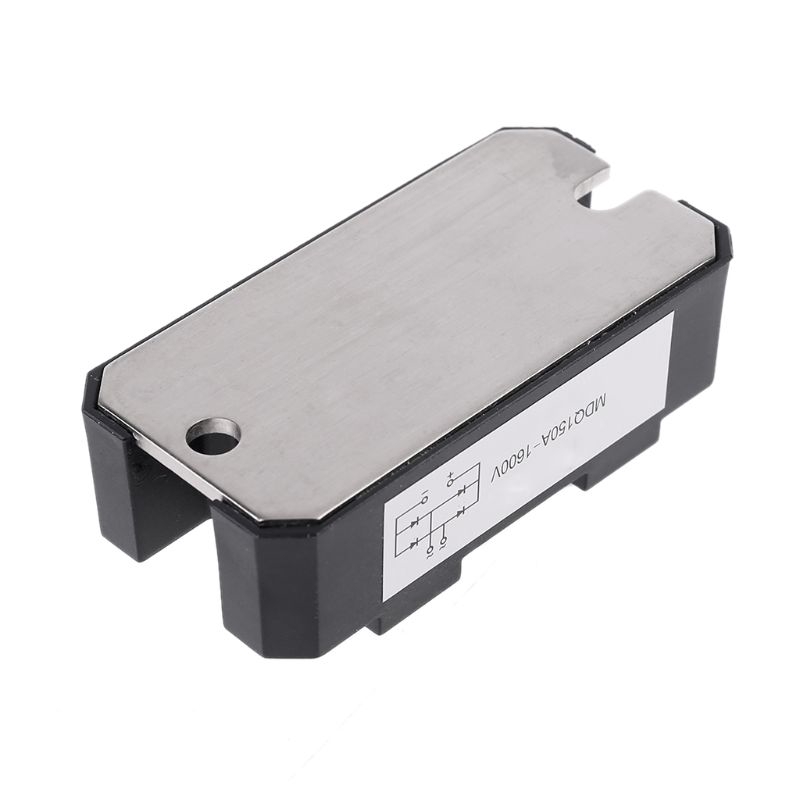

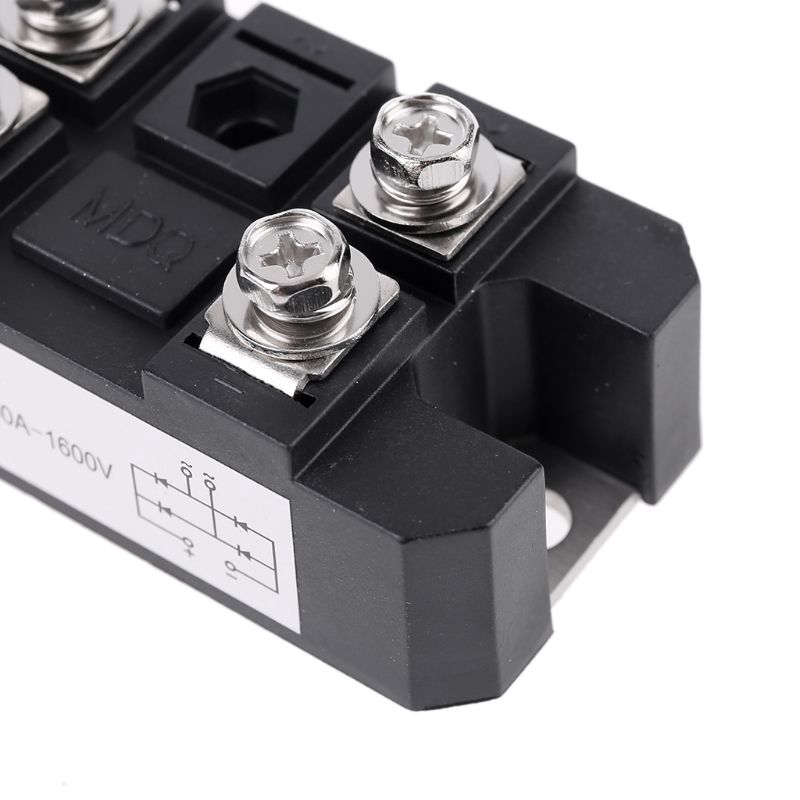

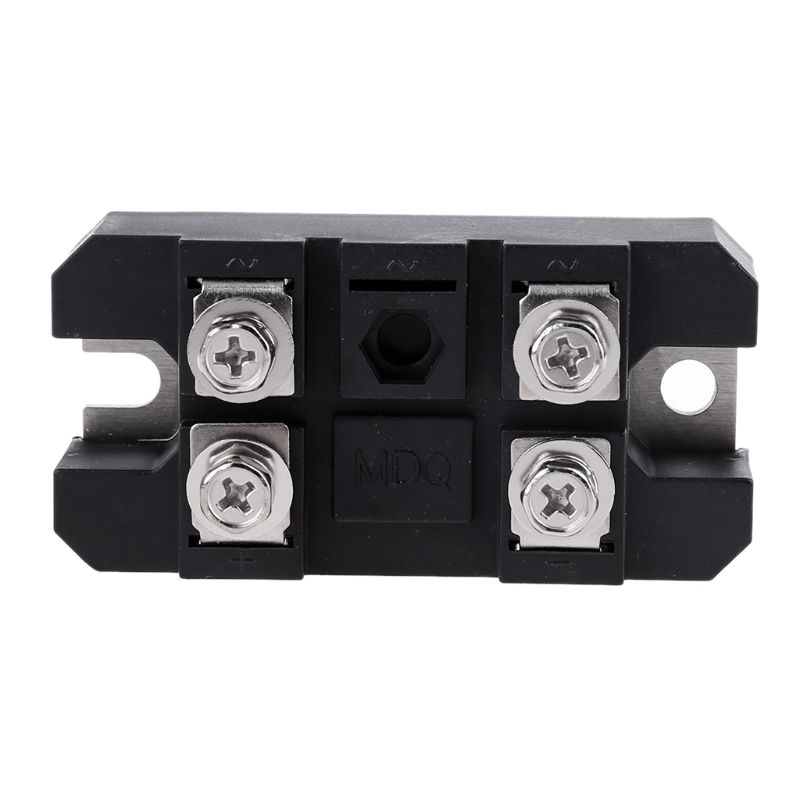

Giới thiệu Bộ Chỉnh Lưu Cầu Chì Chất Lượng Cao 150a 1600v
#MDQ #150A #1600V #Black #Single-Phase #Diode #Bridge #Rectifier #150A #Amp #High #Power Features: - High quality bridge rectifiers used for conversion of an alternating current input into a direct current output. - Well welded structure with good temperature and power cycle ability ensures a more stable performance. - Designed for single phase rectification, output DC current is 150A. - It has a large over-current capacity, good heat dissipation and low voltage drop. - This high power bridge rectifier can be widely used for power supply.

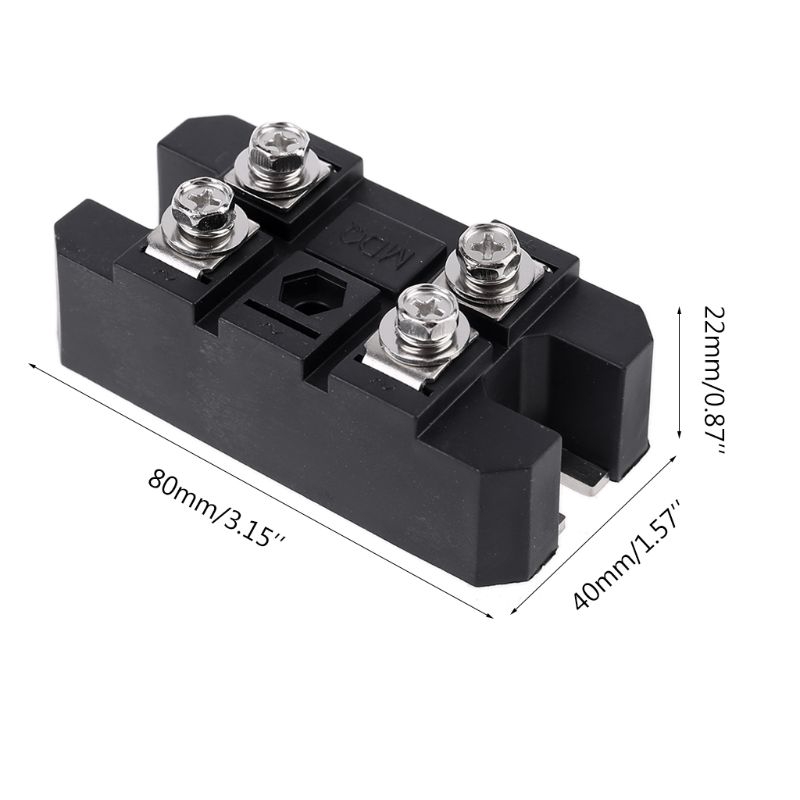

Specifications: Output Current: 150A Colour: Black Material: ABS + electronic components Three Phase Input Positive Average Current: 50A Repetitive Peak Reverse Voltage(VRRM): 1600V Repetitive Peak Inverse Current(IRRM): 10mA Isolation Voltage(Viso): 2500VAC VTM: 1.5V ITM: 150A Phase: Single Phase Terminals: 4 Max. Junction Temperature: 150℃ Size: 78 x 40 x 35mm / 3.07 x 1.57 x 1.37 inch Quantity: 1
Package Included: 1 x Bridge Rectifier
Note: Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same. Please allow 1-3mm slight deviation due to manual measurement. Thank you!
Hình ảnh sản phẩm
