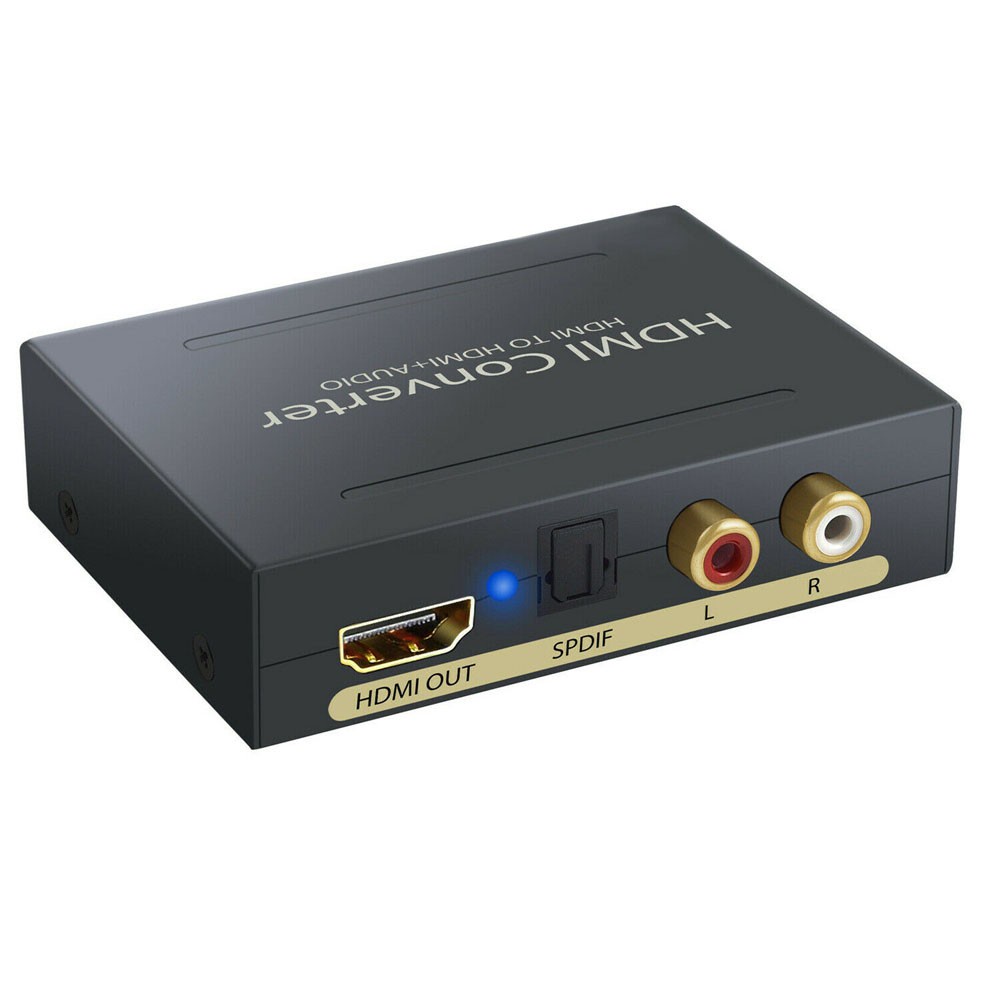

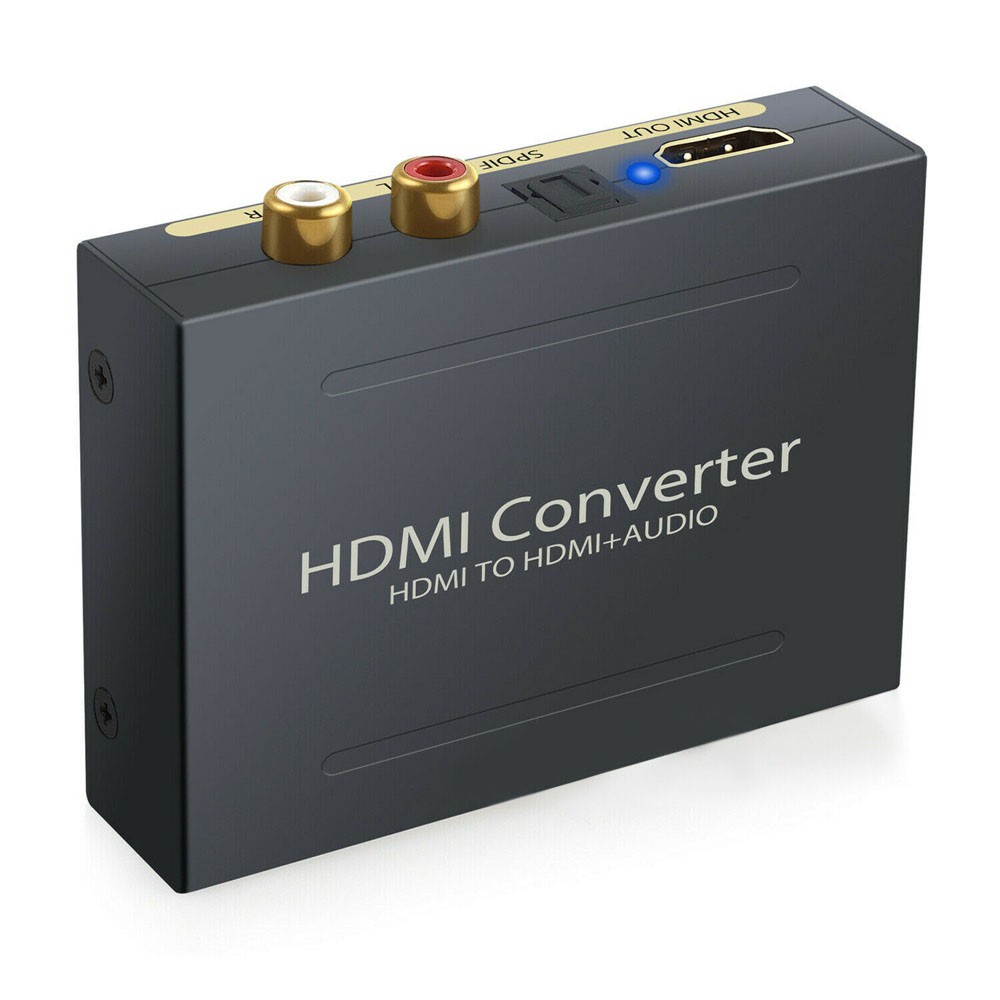

Bộ Chuyển Đổi Âm Thanh Hdmi 4k Hdmi 5.1ch 1080p

Operating Temperature range: (-15 to +55°C)
Power Supply: DC 5V (Need DC5V/ 1A power input, We only offer a Power USB cable)
Support video color format: 24bit deep color 30bit,36bit
Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
Video Output Support: 1080P/1080i/720p/576p/576i/480p/480i
Audio output: L/R+SPDIF
Dimension(LXWXH): 84.5 x 61.8 x 21(mm)
Input cable distance: 15m AWG26 HDMI standard cable
Max baud rate: 6.75Gbps
Output cable distance: 20m AWG26 HDMI standard cable
Max working current: 500mA
Power adapter format: Input: AC(50/60Hz)100V-240V; Output: DC5V/1A
Max bandwidth: 225MHz
Operating Humidity range: 5 to 90%RH(No Condensation)
Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
Highlights:
Just plug and play, no need to install drivers, portable and flexible
Allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF audio out port
Can be connected to the stereo audio output for SPDIF function
Specifications:

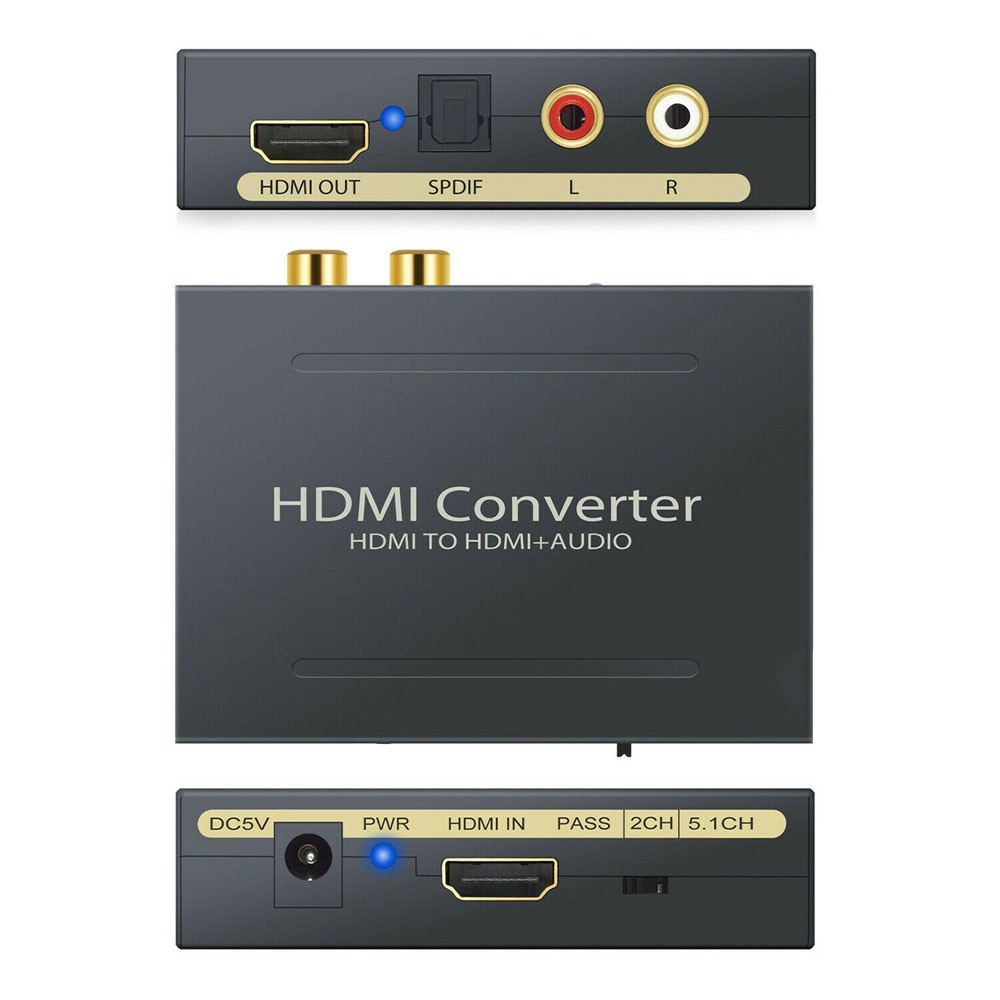

One HDMI input convert to one HDMI + Audio (SPDIF + R/L) output
One audio support: SPDIF + R/L analog Audio Output

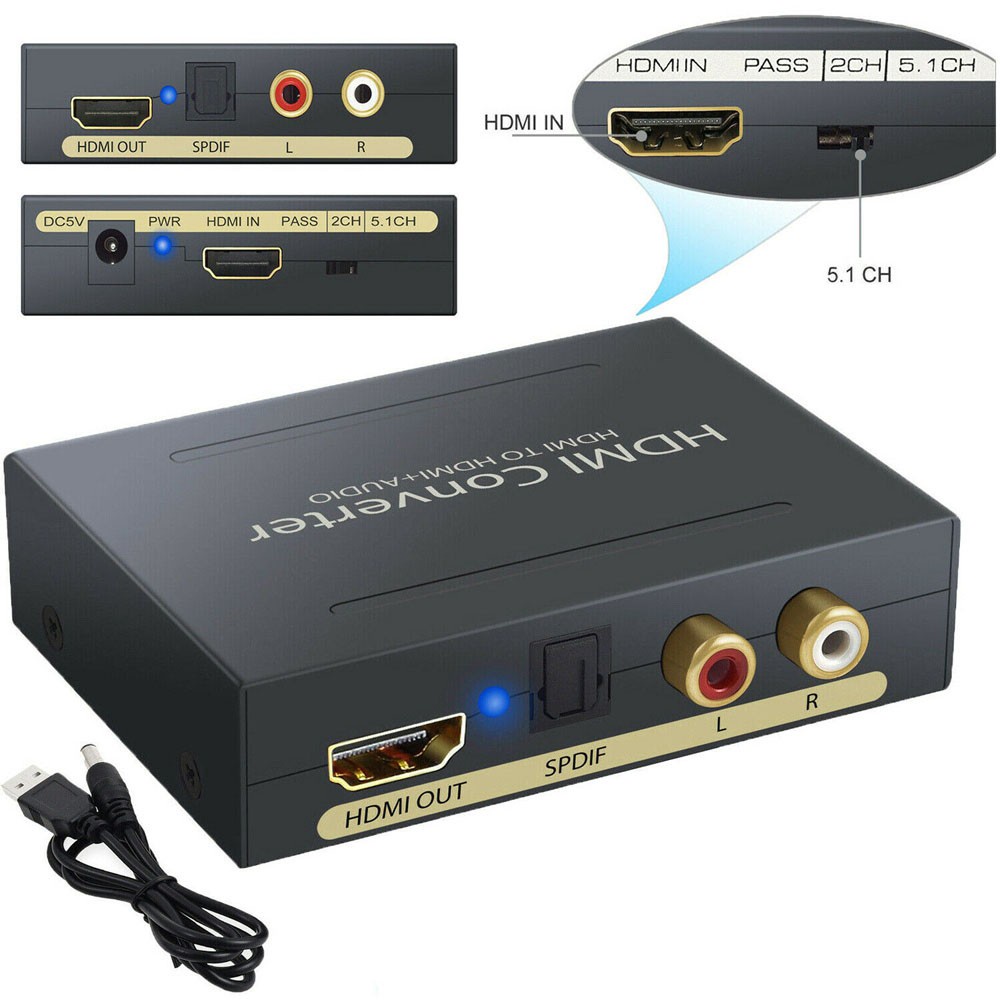

HDMI to achieve the synchronization of audio signal separation. There are PASS / 2.0CH / 5.1CH there kinds of audio mode options
LED indication: When source of sink is working, LED relative to is light
Supports TV and various Blu-ray player
Input Resolution: Up to 2160P

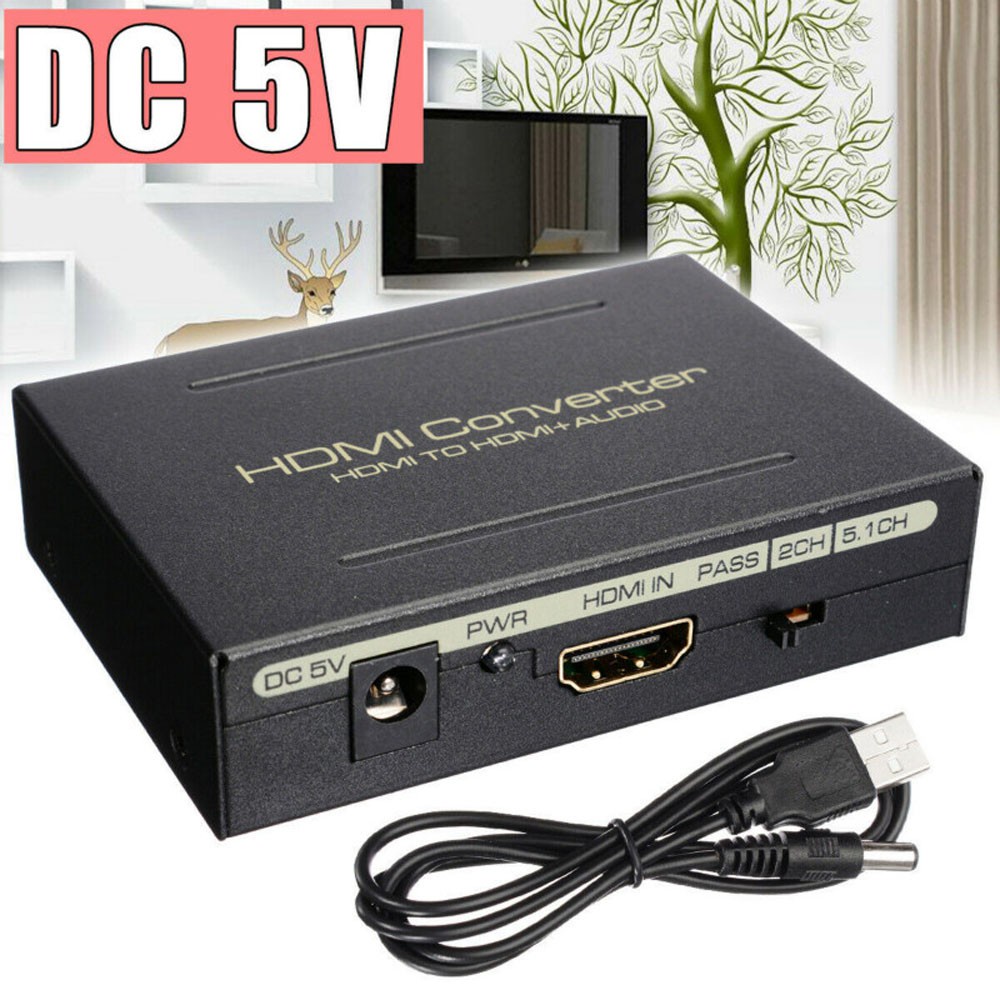

Need DC5V / 1A power input (We only offer a Power USB cable)
What is in the box
1 x HDMI Converter
1 x USB Power Cable
1 x User Manual
Note:
Pls note that we only offer a Power USB cable
The item must need to use the 5V 1A DC adapter (which not included) to connect

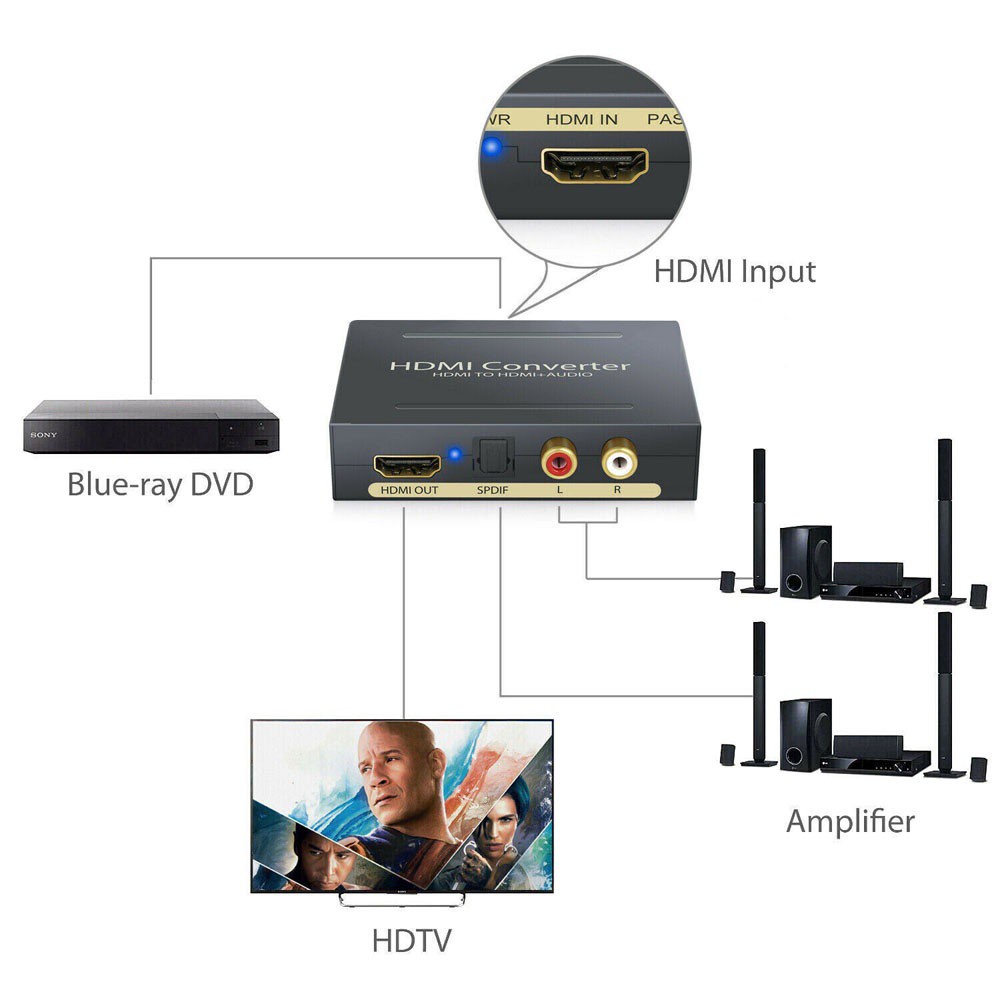

How to use:
Use one HDMI cable to connect the HD Source with the input HDMI port
Connect the converter HDMI output port with the HD Display
Use one audio cable to connect the converter R/L port with the audio equipment
Use the optical cable to connect the SPDIF port with the audio equipment
Connect the converter with 5V DC power adaptor
Q&A
Non power connected
1.Check if the power adaptor head is truly and correctly inserted the power socket
2.Check the power switch if it is in on status
No picture
1.Pls make sure that the TV is on and has been connected with the machine
2. Check if the singal source is on and well connected
3. Check the system connection quality
4. Check if the line is all good quality
5. Check the cable quality
Obscure Picture
1.To try again to connect the cable to be free from the unsuccessful connection
2.Check HDMI Cable Quality
No Sound
Pls confirm the setting position of audio mode switch
