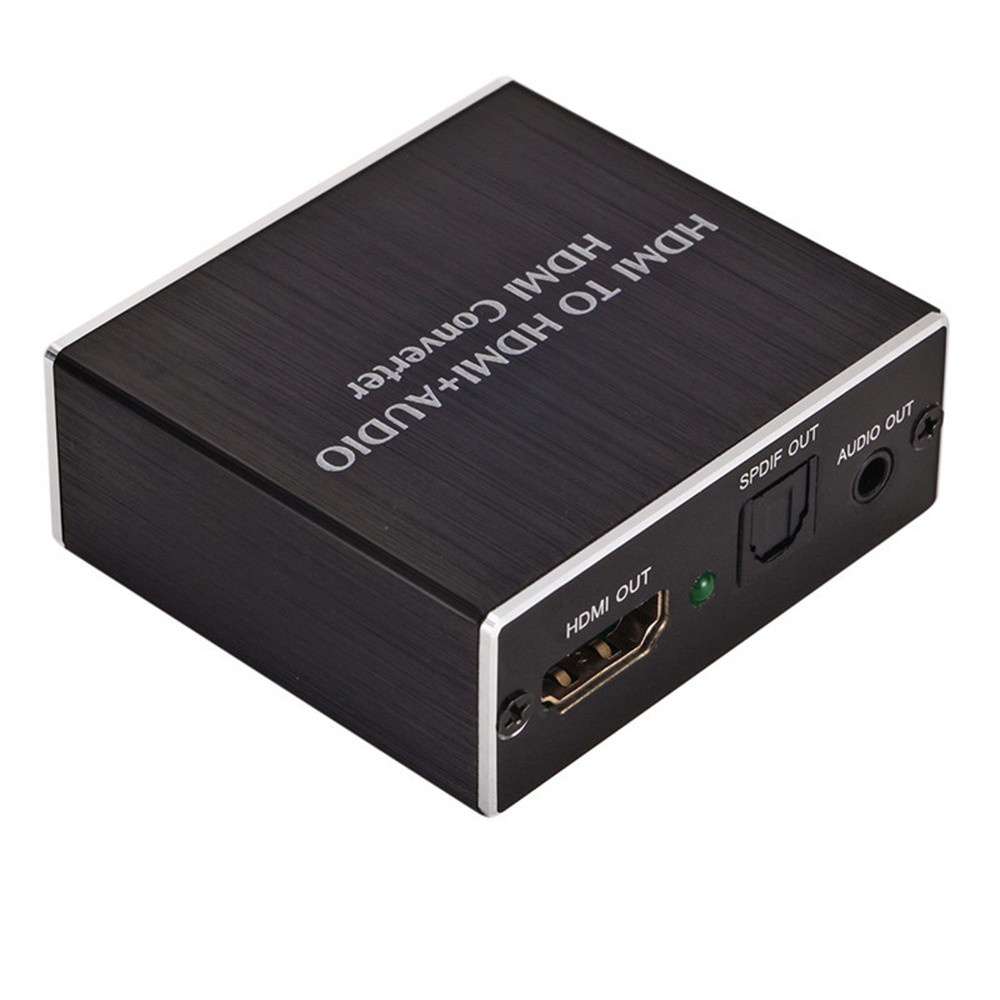

Bộ Chuyển Đổi Âm Thanh Hdmi 4kx2k Hd 3.5mm Hdmi + Audio / Nhiều Màu

Maximum transmission bandwidth:225MHz
Weight: 60G
Input / output TMDS signal:0.5 ~ 1.5Volts p-p
Operating humidity range:5 to 90% RH (no condensation)
Support video color format:24bit / deep color 30bit, 36bit
Input cable length:5m AWG26 HDMI standard cable
ColorBlack
Input / output DDC signal:5Volts p-p (TTL)
Maximum baud rate:6.75Gbps
HDMI resolution:4K * 2K @ 30HZ / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Audio output:3.5 Audio and fiber output
Output cable length:5m AWG26 HDMI standard cable
Operating temperature range:(-15 to + 55 )
Maximum working current:1000mA
Package includes:1pc HDMI to HDMI+Audio Converter
Power adapter specifications Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V / 1A
Description:
Connect the HDMI signal source to a single HDMI display device (such as a TV, projector) and output stereo + SPDIF signals independently to achieve the audio signal synchronous separation of HDMI signals.
Product applications: such as places with limited noise, transmission distance and safety, data center control, information distribution, conference room demonstrations, teaching environments and company training places
Product features: One HDMI signal input, converted into one HDMI + Audio (SPDIF + 3.5 Audio) output
Support audio output: SPDIF + 3.5 Audio
Support: up to 4K * 2K @ 30HZ can realize audio synchronous separation output, there are PASS, 2.0CH, 5.1CH three audio modes can choose LED indicator, when the signal source or signal end is in working state, the corresponding indicator Brighten. Simple installation without signal loss
