Bộ Chuyển Đổi Âm Thanh Từ 1080p Hdmi Sang Hdmi Quang Học + Spdif + Rca L / R Dseqa

Giới thiệu Bộ Chuyển Đổi Âm Thanh Từ 1080p Hdmi Sang Hdmi Quang Học + Spdif + Rca L / R Dseqa

Hi, hope you pay attention to our shop！ #kaqimeiqi.vn
=====================kaqimeiqi=====================

Product Description
The Conventer can extract digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA style L/R analog output.
Product Features
100% brand new and high quality.
Extract the digital hdmi audio signal from the HDMI input and convert it to 2 channel analog stereo R/L output or 5.1 channel S/PDIF Audio output.
ULTRA HD VIDEO SUPPORT: Input Resolution up to 1080P(50/60Hz)/720P/480P; Supports 225MHz/6.75Gbps per channel bandwidth.

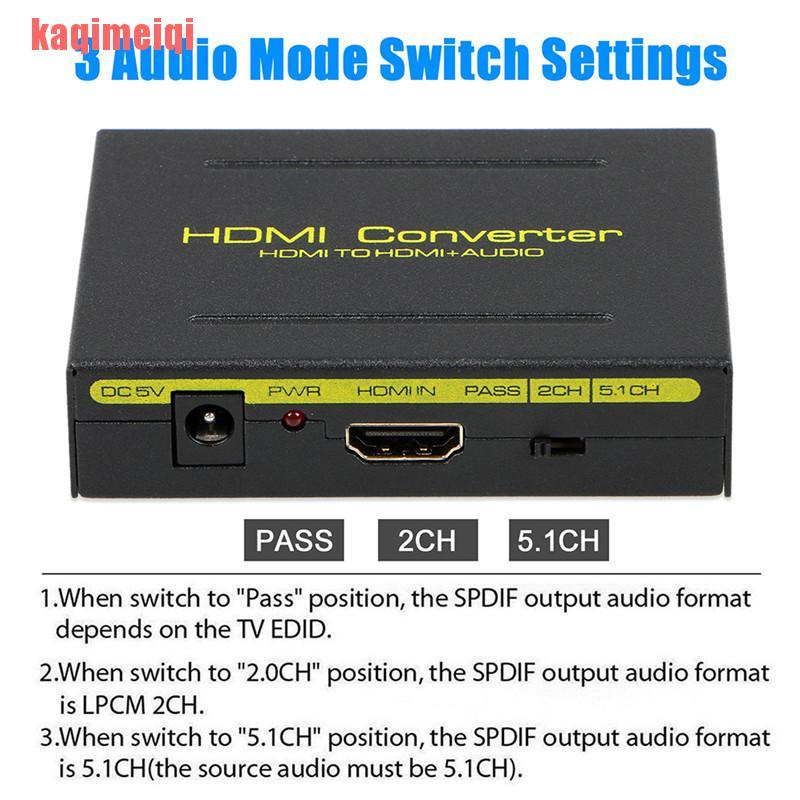

3 AUDIO MODE SWITCH SETTINGS: Pass, 2CH and 5.1CH. Optical SPDIF Output supports incoming Pass 2CH PCM, 5.1CH Dolby Digital, DTS (Dolby Digital Plus not supported); Analog RCA L/R Output supports incoming 2CH PCM stereo audio.

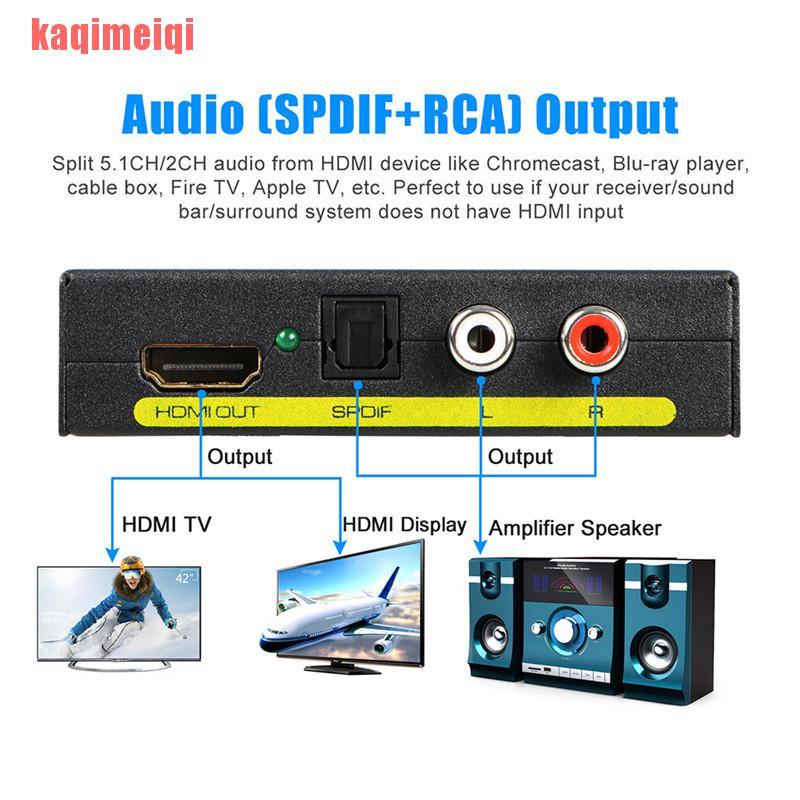

HDMI AUDIO OPTICAL SPLITTER DESIGNED: split 5.1CH/2CH audio from HDMI device like Chromecast, Blu-ray player, cable box, Fire TV, Apple TV, etc. Perfect to use if your receiver/sound bar/surround system does not have HDMI input.
WIDE APPLICATION: Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

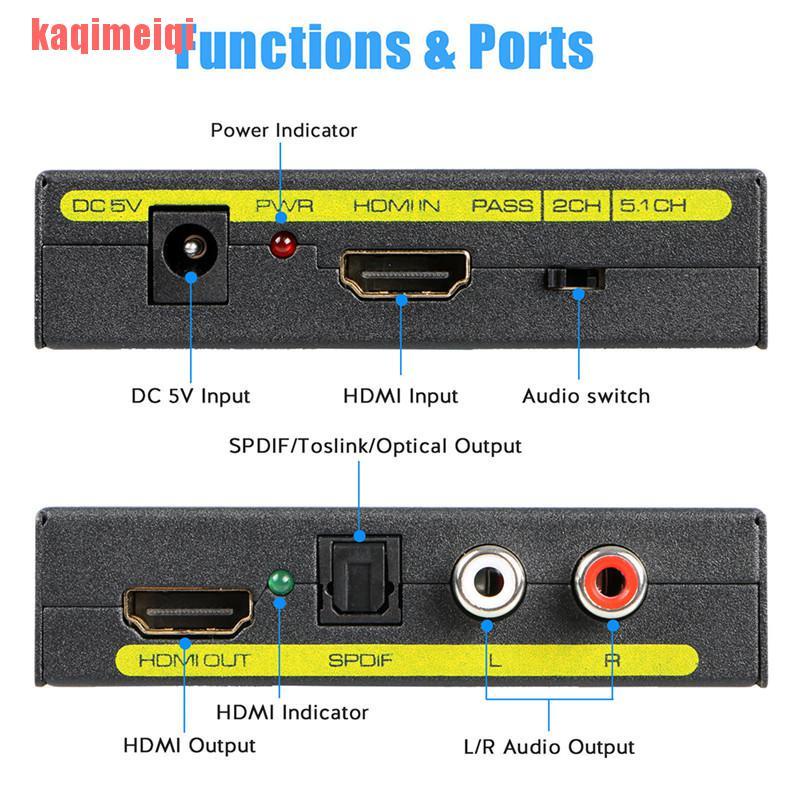

1. To use one HDMI cable to connect the HD Source with the input HDMI port.
2. To connect the converter HDMI output port with the HD Display.
3. To use one audio cable to connect the converter R/L port with the audio equipment.
4. To use the optical cable to connect the SPDIF port with the audio equipment.
5. To connect the converter with 5V DC power adaptor.

Specification

Device Type: HDMI to HDMI Optical + SPDIF + RCA L/R Converter
HDMI resolution: 1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Audio output: L/R+SPDIF
Max bandwidth: 225MHz
Max baud rate: 6.75Gbps
Input/Output TMDS signal: 0.5-1.5Volts p-p(TTL)
Input/Output DDC signal: 5Volts p-p (TTL)
Input cable distance: 15m AWG26 HDMI standard cable
Output cable distance: 20m AWG26 HDMI standard cable
Max working current: 500mA
Power adapter format Input: AC (50HZ, 60HZ) 100V-240V; Output : DC5V/1A
Operating Humidity range: 5 to 90%RH (No Condensation)
Power Supply: DC 5V/1A
Adapter Cable Length: 1.14m/3.74FT
Power supply: DC 5V/1A
Operating Temperature: -15 to +55
Power Adapter: Input: AC (50HZ,60HZ) 100V-240V;Output:DC5V 1A

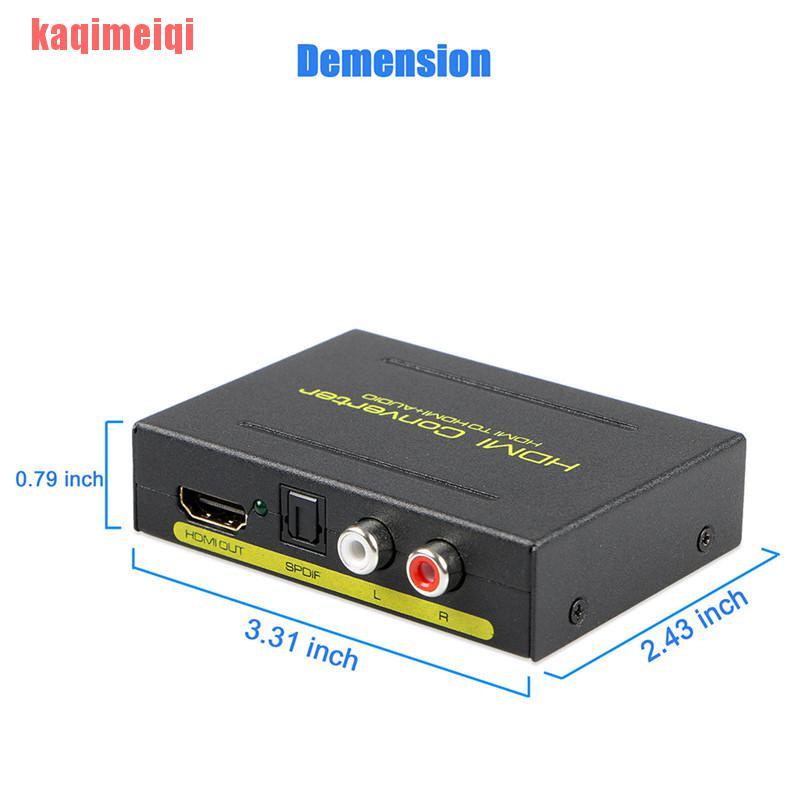

Dimension: 3.31x2.43x0.79inch/84X61.8X20mm (L x W x H)
Color: Black

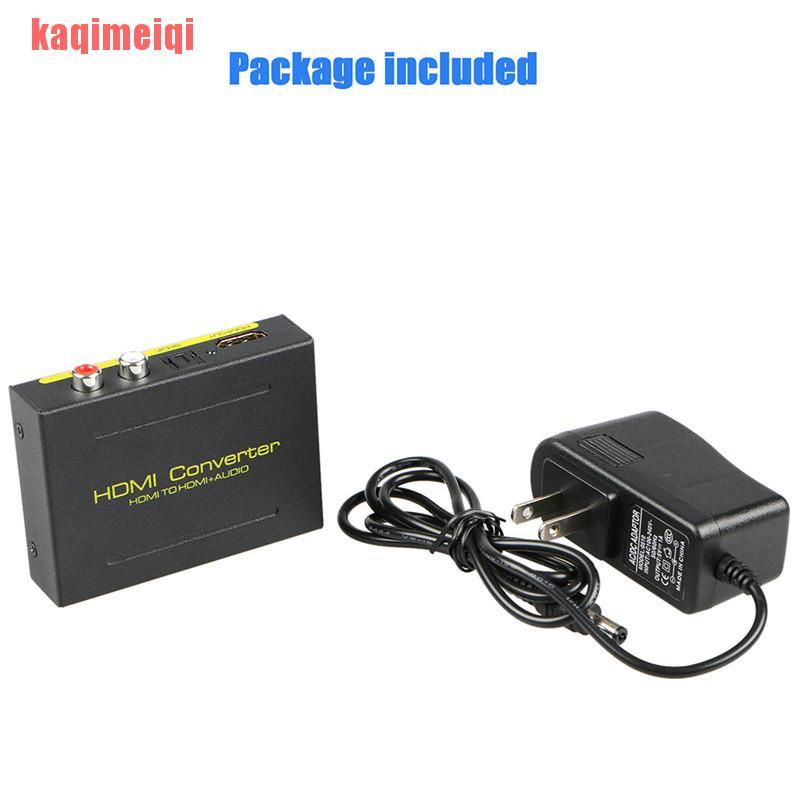

Package Included
1 x HDMI to HDMI Optical + SPDIF + RCA L/R Converter.
1 x Power Adapter.
1 x User Manual.

Hình ảnh sản phẩm

Giá DOKE
