Bộ chuyển đổi IDE sang Sata 3.5 HDD

Giới thiệu Bộ chuyển đổi IDE sang Sata 3.5 HDD

#IDE #to #Sata #3.5 #HDD #Adapter #Parallel #to #Serial #Port #Hard #Drive #Sata #Converter
IDE to Sata 3.5 HDD Adapter Parallel to Serial Port Hard Drive Sata Converter
Features: 100% brand new and high quality
Compatible and support various brands of desktop computers:The video recorder's IDE hard disk is converted to Sata , for Sata port use.
3.5-inch IDE hard disk to Sata.
Convert IDE optical drive to Sata.
Convert IDE burner to Sata.
The desktop 3.5-inch IDE hard disk can be transferred to the Sata video recorder (please format the hard disk on the computer first).
The transferred hard disk can be used as master and slave (requires system reinstallation, refresh in BIOSS, etc.).
The converted optical drive can be used as a system.
The adapter card supports a parallel port hard disk with a maximum capacity of 1000G.
For IDE devices using adapter cards, the jumper cap must be inserted in the MASTER position.
Compatible with Sata 1st generation, Sata 2nd generation, Sata 3rd generation.
Plug and play, no driver is required.

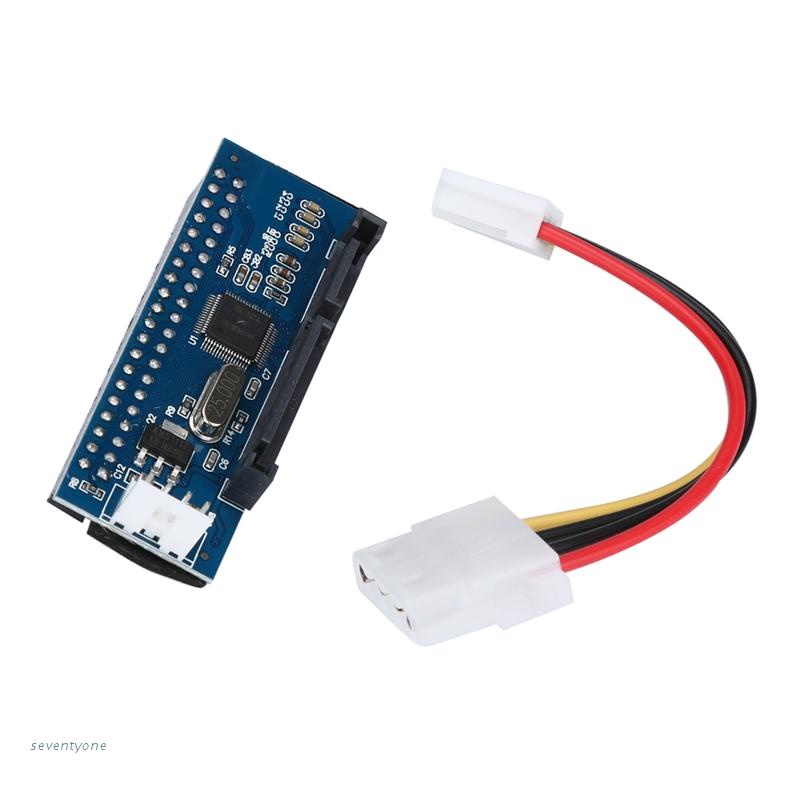

Specification: Name: IDE to Sata adapter card
Interface: serial port
Size: approx. 6x2.2cm/2.36x0.87in
Material: PCB double layer circuit board
Scope of application: suitable for IDE optical drives, recorders, 3.5-inch hard drives, video recorder hard drives
Compatible system: compatible with windowsXp\win7\win8 32-bit\64-bit system

Package Includes: 1 x IDE to Sata HDD Adapter Card

note: Common faults when the product cannot be used:
1. Check if there is a problem with the Sata data cable and see if there is any looseness. Or change to a normal Sata cable.
2. Check whether the jumper is connected to the main disk, and the value is in the MASTSER position.
3. Whether the settings in the boot BIOS are correct. Some motherboards require BIOS settings (set the Sata mode to IDE MODE)
4. If it still can't be used, it may be a compatibility problem. Some devices of this type of conversion card have compatibility problems.
5. This model does not support motherboard IDE interface to Sata hard disk, etc. Please pay attention to purchase.
