Bộ chuyển đổi tăng áp cao áp DC-DC 8 ~ 32V đến 45 ~ 390V
Bộ chuyển đổi tăng áp cao áp DC-DC 8 ~ 32V đến 45 ~ 390V
Mô tả ngắn
Dụng cụ và thiết bị tiện ích > Dụng cụ điện và thiết bị lớn > Máy đo điện & đồng hồ vạn năng > Bộ chuyển đổi tăng áp cao áp DC-DC 8 ~ 32V đến 45 ~ 390V
Giới thiệu Bộ chuyển đổi tăng áp cao áp DC-DC 8 ~ 32V đến 45 ~ 390V
Applications:
1. Pressure test power.
2. Hunting, eradication of mice.
3. Capacitor charging, electromagnetic guns power supply.
4. The power supply for your electronic device, according to your system can set the output voltage value.
Specifications:

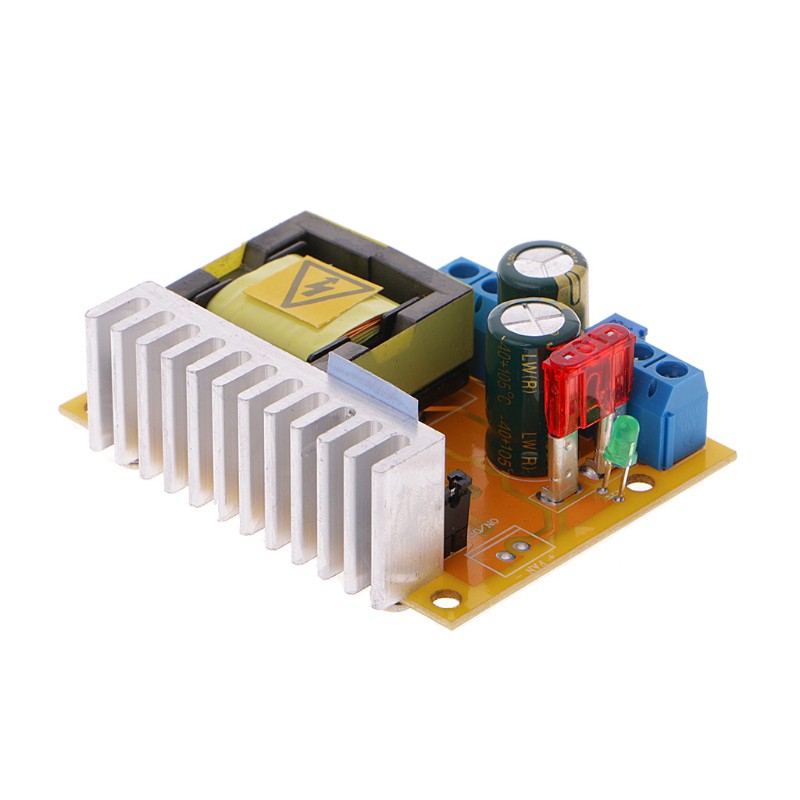

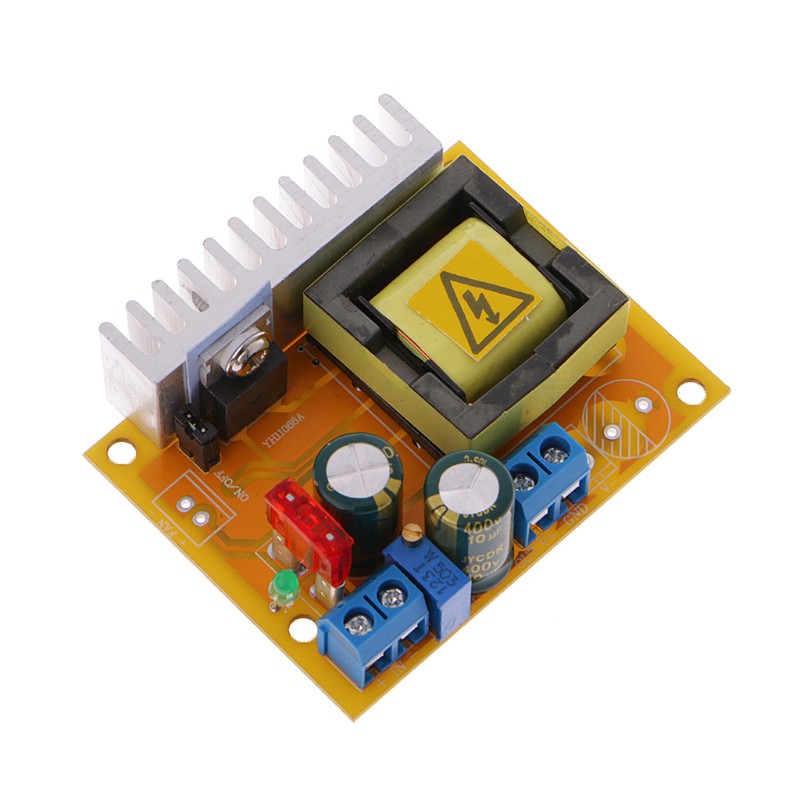

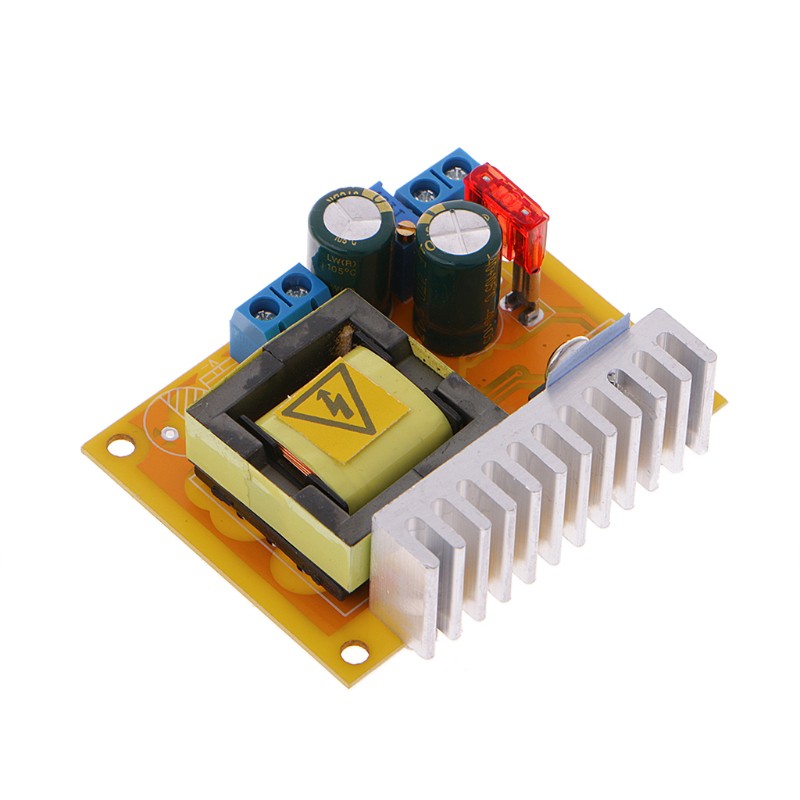

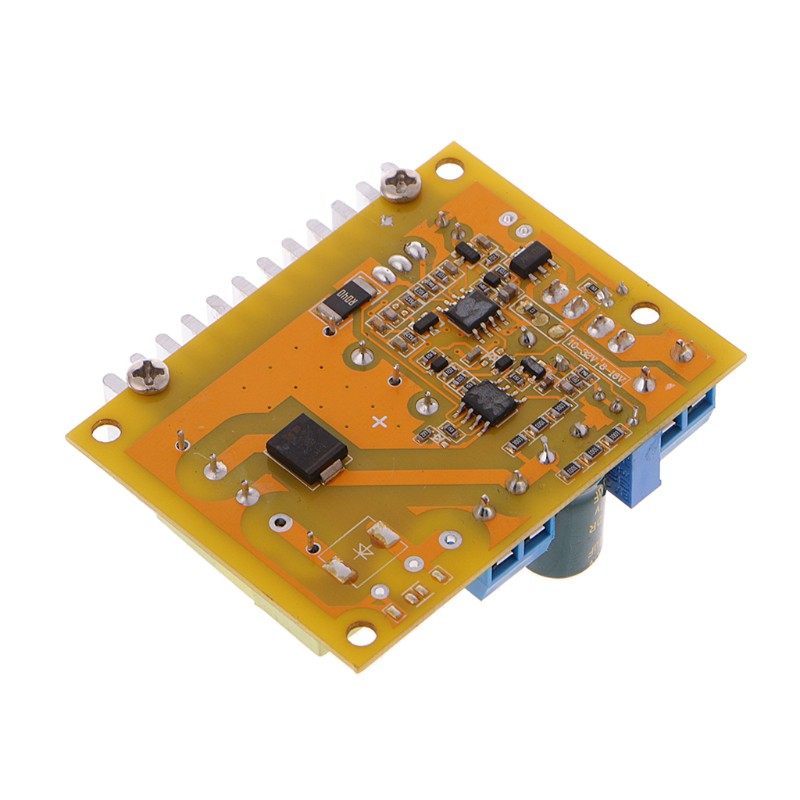

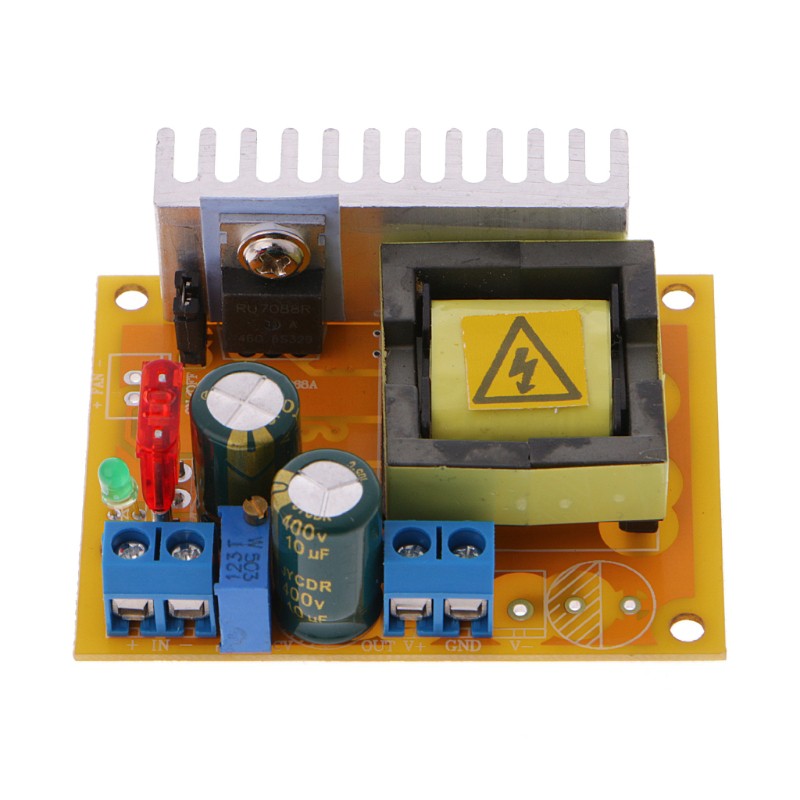

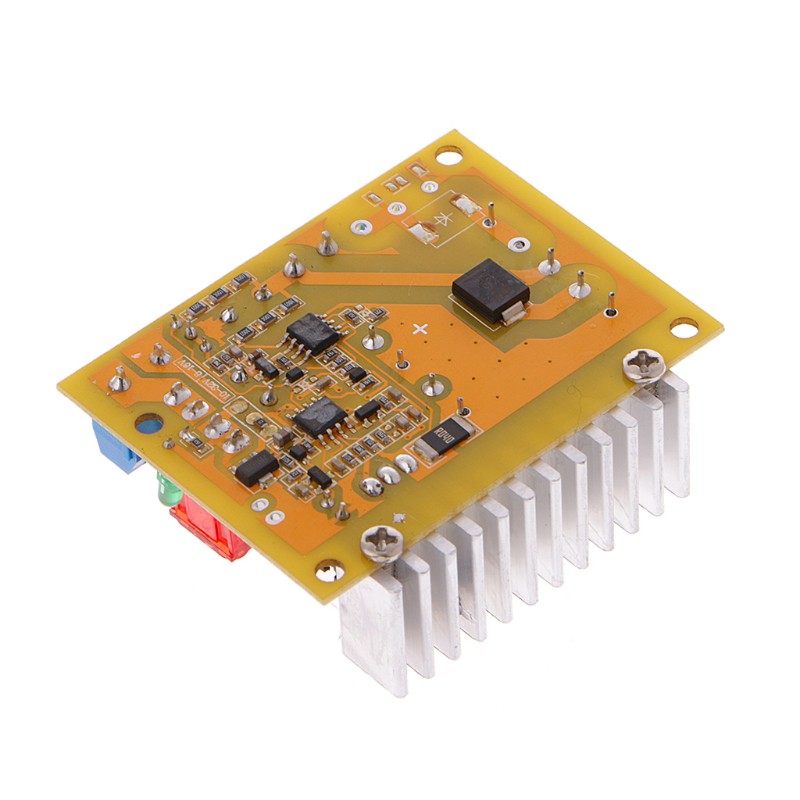

High Voltage Boost Module
Module Properties: Non-isolated step-up module
Input Voltage:10-32V
Input Current: 5A (Max)
Quiescent current: 15mA (12V liter 50V, the output voltage, the higher the current will increase too quiet)
Output Voltage: +45~390V continuously adjustable (default output ±50V)
Output Current: 0.2A Max(with input, output pressure related,the higher the output voltage, output current is smaller)
Output Power: 40W (Peak 70W)
Working Temperature: -40 ~ + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 75 KHz
Conversion efficiency: up to 88% (efficiency and input and output voltage, current, pressure-related)
Short circuit protection: Yes.
Over current protection: Yes. (Input current exceeds 4.5A, reducing the output voltage)
Over voltage protection: Yes. (Output voltage exceeds 410V, lowering the output voltage)
Input reverse polarity protection: Yes (non-self-healing, reverse burning fuse, try not reversed.)
Installation: Four 3 mm screws
Wiring: free welding output terminals

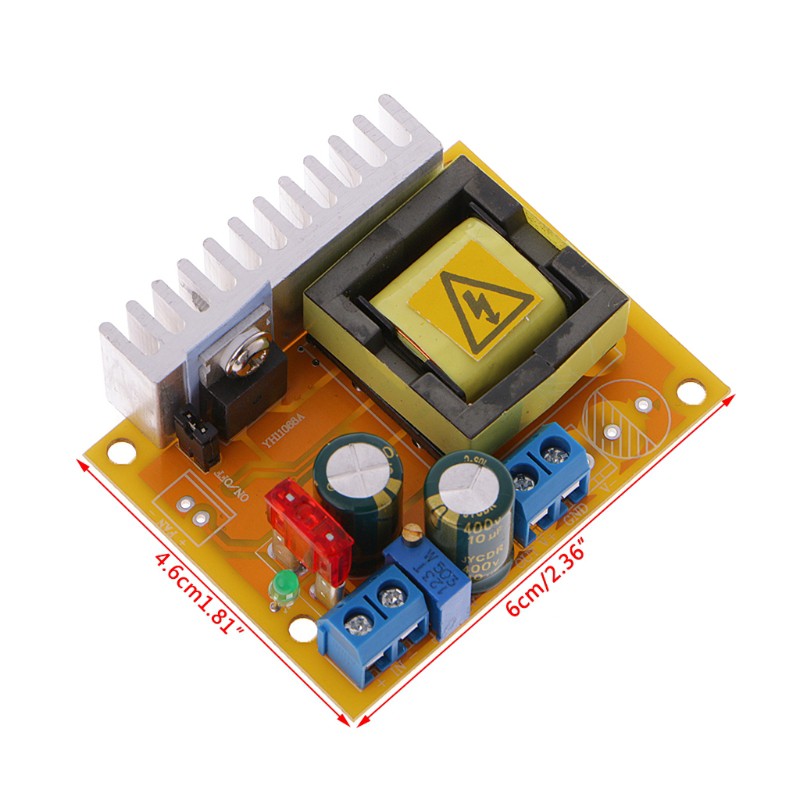

Size:60x46mm/2.36x1.81"
Quantity: 1 Pc
Note:
Please allow 1-3mm error due to manual measurement.pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
No Retail Package
Package Includes:
1 x Booster Module
