Công tắc bấm nút ds-11a AC 250V 3A dùng để tự khóa các thiết bị gia dụng điện tử

Giới thiệu Công tắc bấm nút ds-11a AC 250V 3A dùng để tự khóa các thiết bị gia dụng điện tử

There are more better items maybe you likes#LIKE-Pop
Description:

Features:
100% brand new and high quality.
AC 250V 3A SPST On/Off self-locking push button switch.
This push button switch with 2 pins, panel mounting design.
Normally stays at "OFF" position, push it " ON", push it again "OFF", self-locking type.
The mini latching type push button switch is widely applied in home appliances, electronic equipment, automation equipment, communication equipment, etc.
Please pay attention to the voltage before ordering to make sure the push button switch can working successfully in your area.

Specifications:
Product Name: Latching SPST Push Button Switch
Model Type: DS-11A
Material: Plastic & Metal
Color: Red/Green (Optional)
Body Shape: Cylindrical
Pin Number: 2
Action Type: Self-locking
Contact configuration: SPST
Rating Voltage: AC 250V 3A
Terminals Quanlity: 2
Mount Type: Panel Mounting
Mounting Hole Diameter: 12mm / 0.47"
Button Diameter: 12mm / 0.47"
Overall Size: (D*H) 18×38mm/0.71"×1.50" (Approx.)
Quantity: 1 Set(5Pcs) (other accessories in the picture is not included)

Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
4.No retail package.

Package includes:

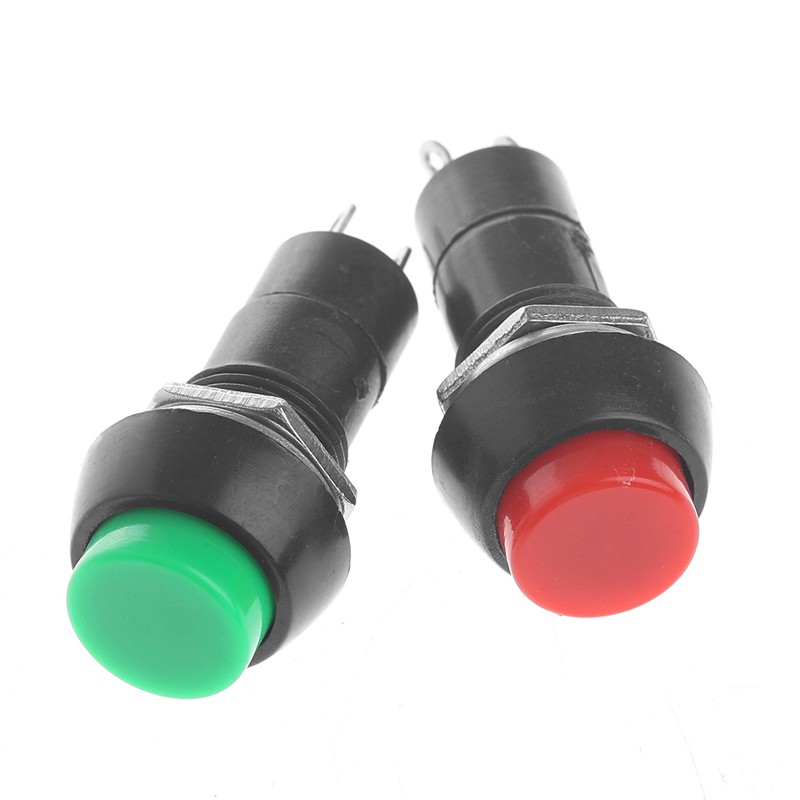

5 X DS-11A Latching SPST Push Button Switch

Hình ảnh sản phẩm
