Công Tắc Cảm Biến Chuyển Động Hồng Ngoại Thông Minh Ac 220v

Working voltage: AC85-265V
Detection distance: 6-8M (25°)

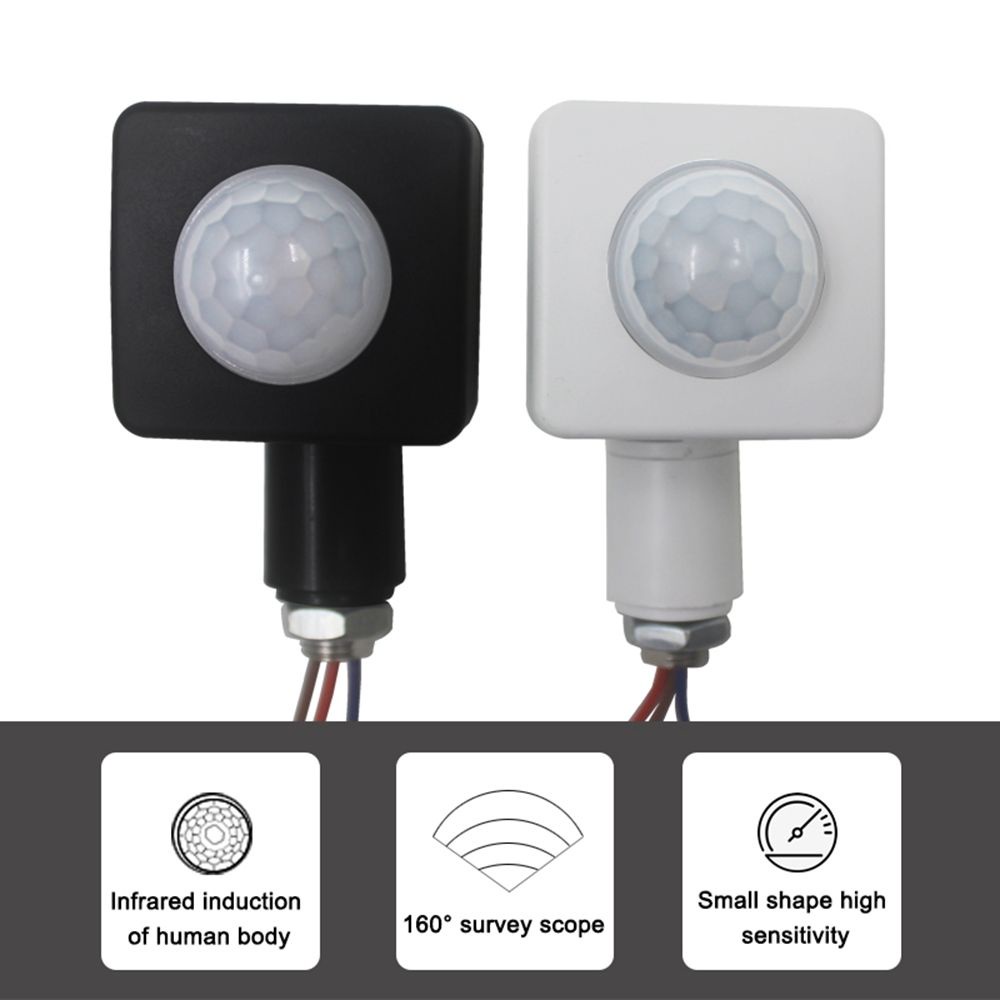

Color: black, white
Dimensions after opening: 10mm
Working temperature: -10 ° C -40 ° C
Product Name: PIR human body infrared sensor (adjustable)
Material: ABS
Delay time: 8 seconds - 6 minutes (adjustable)

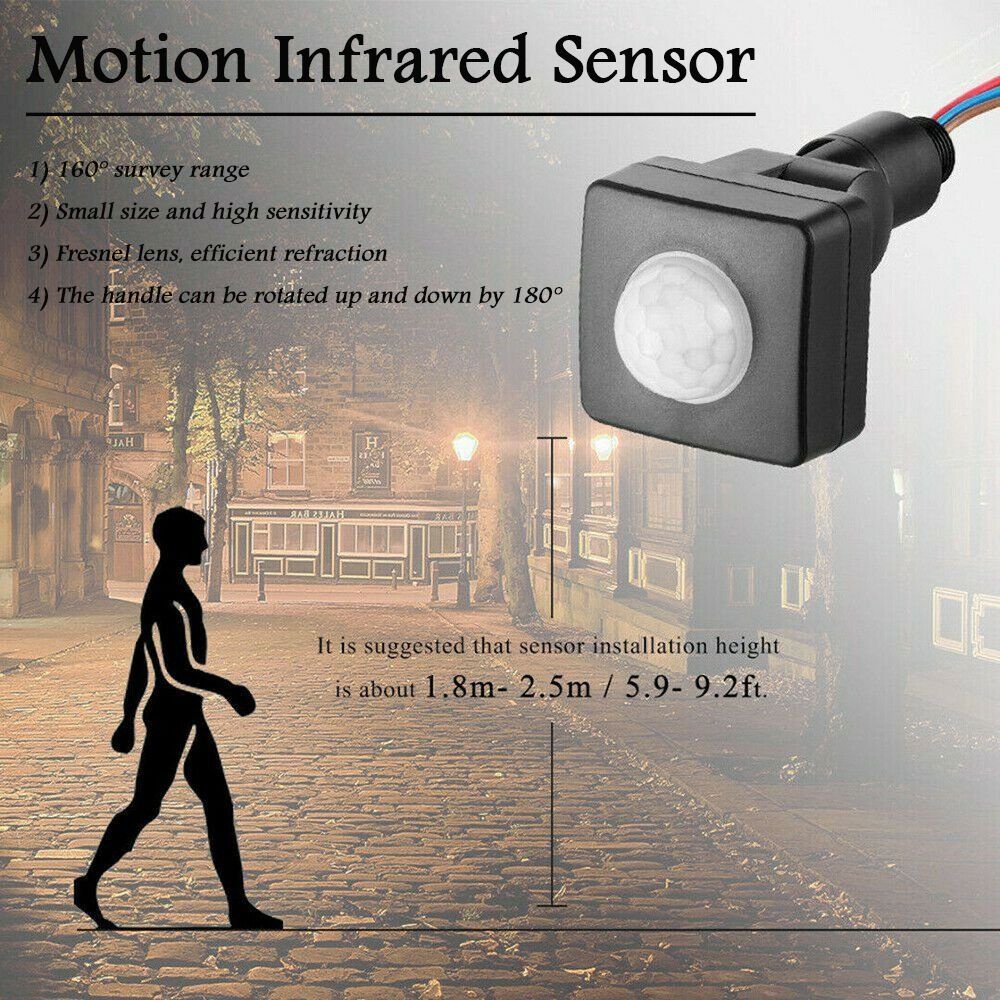

Installation height: 1.8M-2.5M
Installation method: open type (opening 10mm 12mm)
Ambient lighting: 2-2000 LUX (adjustable)
Detection range: 160°
Package Included: 1pc motion sensor
Dimensions: 41*39*20mm
Features:

1) Small size and high sensitivity.

2) 160° survey range.

3) The handle can be rotated up and down by 180°.

4) Fresnel lens, efficient refraction.

5) Perspective flame retardant casing and impact resistance.

6) Small opening for easy installation.

7) Human body induction uses pyroelectric infrared technology, built-in human body infrared sensor module, light effect sensor module, delay switch module. It adopts industrial zone-level chips and has a large load capacity.

8) When the person enters the sensing range, it can be automatically turned on. After the person leaves, the automatic delay can be turned off to prevent the conventional lighting from being opened. The unmanned one thinks that the waste is used to extend the service life of the lamp, and integrates energy saving, convenience and environmental protection.

9) The day and night can be automatically recognized, and the ambient illumination of the starting work can be freely selected.

10) The detection distance is adjustable and can be adjusted according to the place of use.

11) The light-on time is adjustable and can be adjusted by the user according to local conditions.

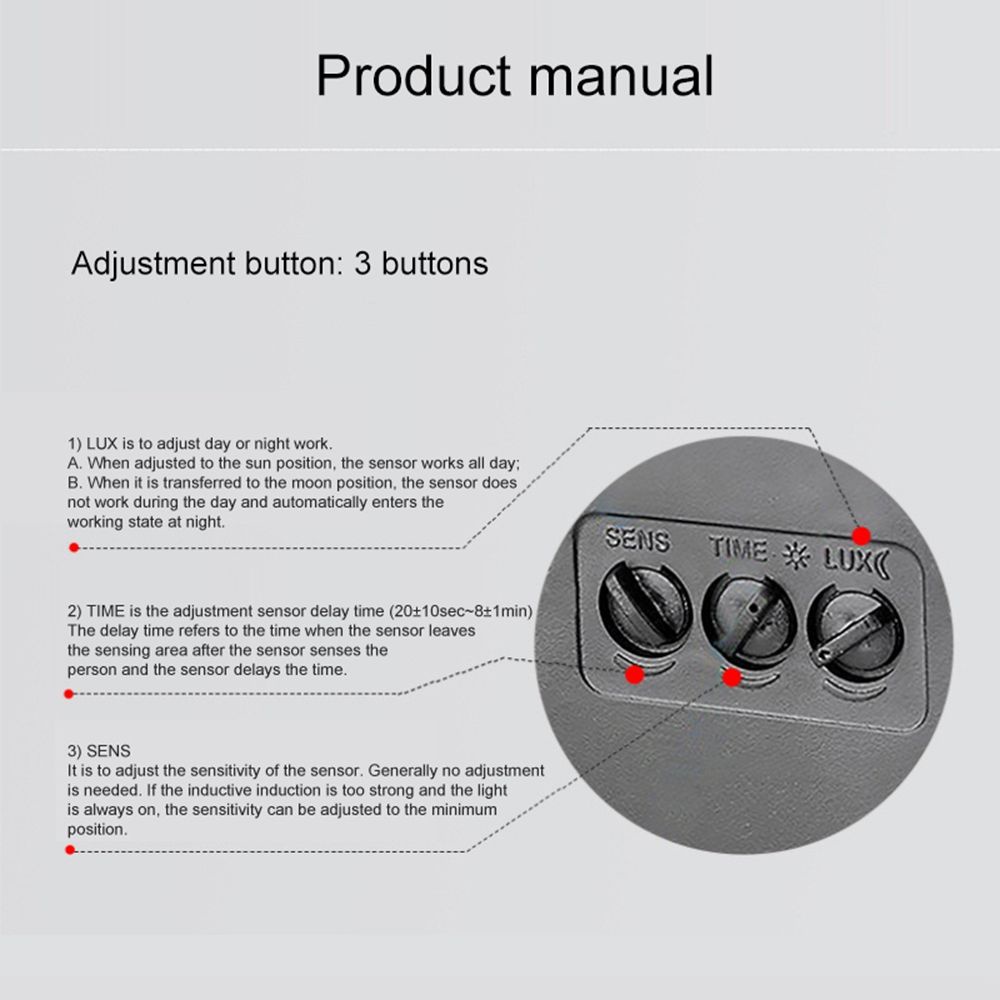

Adjustment Button:

1) LUX, adjust day or night work

2) TIME, is to adjust the sensor time (20 ± 10sec ~ 8 ± 1min)

The delay time is the time when the sensor leaves the sensing area after the sensor reaches the person and the sensor delays the time.

3) SENS is the sensitivity of the adjustment sensor. Generally, no adjustment is needed. If the induction is too strong, the brightness is always bright to adjust the sensitivity to the minimum position.
