Công Tắc Cảm Biến Hồng Ngoại Thông Minh E18-D80Nk 3-80cm Cho Xe Hơi
Mô tả ngắn
Dụng cụ và thiết bị tiện ích > Thiết bị mạch điện > Thiết bị mạch điện khác > Công Tắc Cảm Biến Hồng Ngoại Thông Minh E18-D80Nk 3-80cm Cho Xe Hơi
- Giao hàng toàn quốc
- Được kiểm tra hàng
- Thanh toán khi nhận hàng
- Chất lượng, Uy tín
- 7 ngày đổi trả dễ dàng
- Hỗ trợ xuất hóa đơn đỏ
Sản phẩm tương tự
Giới thiệu Công Tắc Cảm Biến Hồng Ngoại Thông Minh E18-D80Nk 3-80cm Cho Xe Hơi

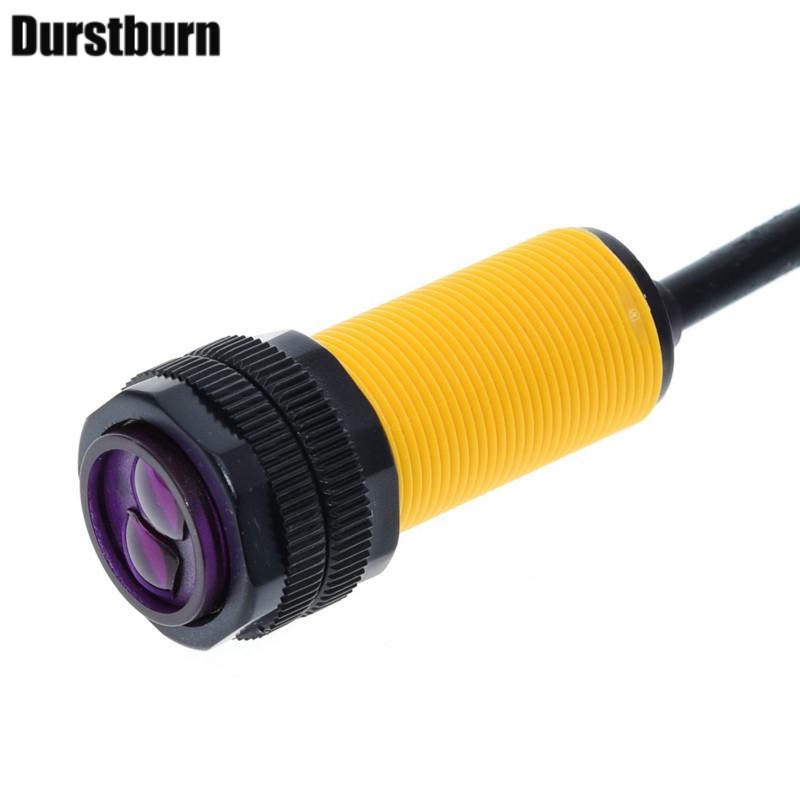

Smart Car Robot E18-D80NK Infrared Obstacle Avoidance Photoelectric Sensor Proximity Switch 3-80cm Detection Range AdjustableDescription:
This is a set of transmitter and receiver in one of the photoelectric sensor. The detection distance can be adjusted upon request. The sensor has a detection distance and the visible light interference, cheap, easy to assemble, easy to use features of robot obstacle avoidance, and assembly line piece can be widely used in many occasions.
Electrical Characteristics:
U: 5VDC
I: The 100mA
Sn :3-80CM
Size:
Diameter: 17MM
Sensor length: 45MM
Lead Length: 45CM
Applications:
1, production line goods automatic counting device
2, multi-functional reminder
3, the maze robot

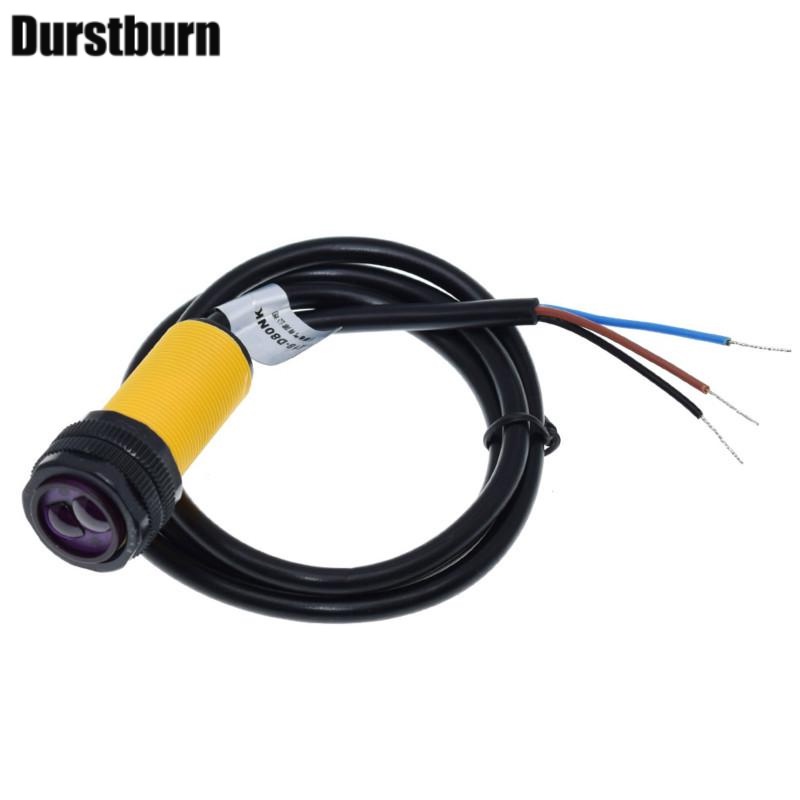

Red: connected 4.5-5V power supply high
Yellow: connected microcontroller output TTL level to the microcontroller
Green: GND 0V power low
Photoelectric sensor (photoelectric switch) NPN normally open
Model: E18-D80NK the.
The technical parameters of the photoelectric switch E18:
1, the output current, output, DC / SCR / Relay Control: 100mA/5V supply
2 Current consumption DC <25mA
3, response time <2ms
4, point angle: more than15 °, the effective distance is adjustable from 3-80CM
5,To detect objects: a transparent or opaque body
6, the working environment temperature: -25 °C ~ 55 °C
7, the standard detection object: sunlight 10000LX is the following incandescent 3000LX below
8, Case Material: Plastic
Before purchase:
1. All the goods are in stock and we will dispatch immediately if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.Use the vouchers for more saving.
Shipment：
1.1-2 days to ship(except for the pro-order item)
After purchase:
1.If you are satisfied，please give us 5 stars praise.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems.
if you receive a defect item,please contact us at once with item picture or video
#Smart #Car #Robot #E18-D80NK #Infrared #Obstacle #Avoidance #Photoelectric #Sensor #Proximity #Switch #3-80cm #Detection #Range #Adjustable
