Công Tắc Cảm Ứng AC Biến Áp AC Chuyên Dụng

Giới thiệu Công Tắc Cảm Ứng AC Biến Áp AC Chuyên Dụng

Operating Principle

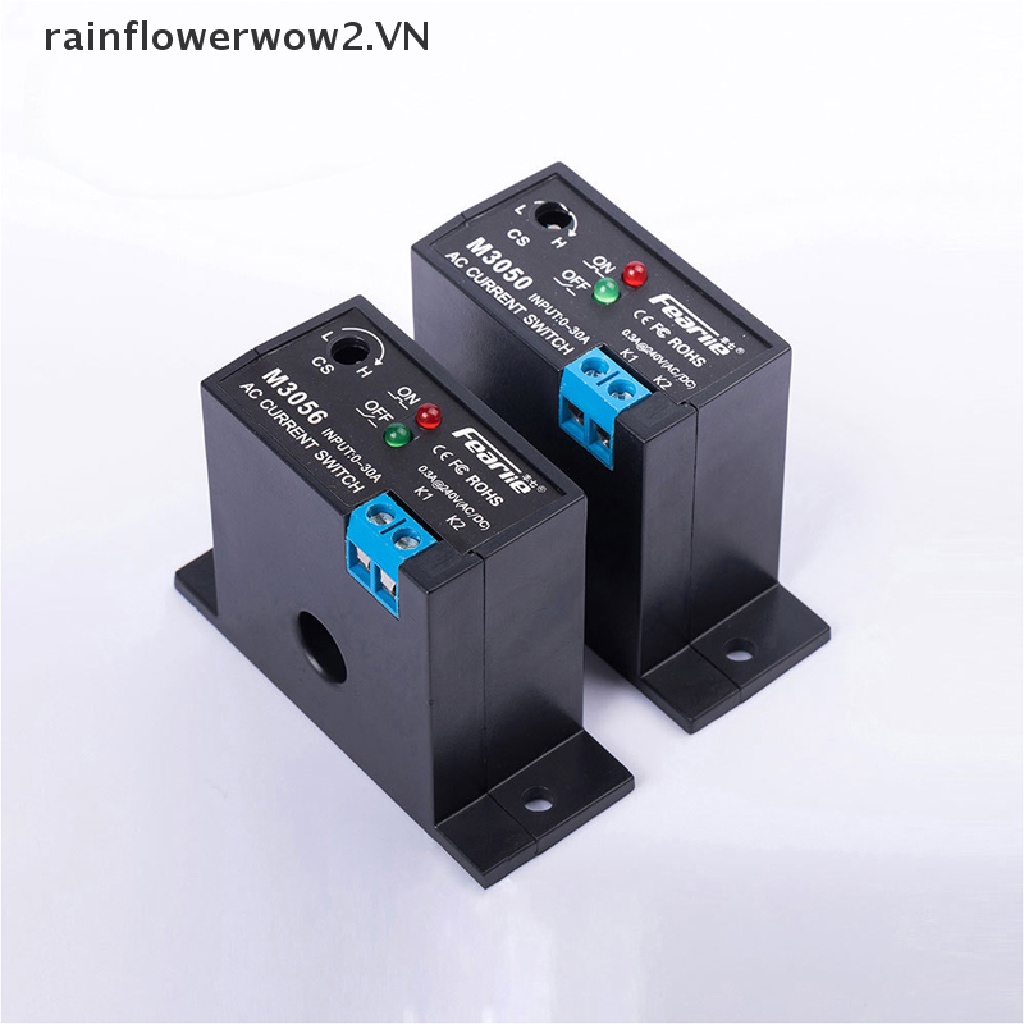

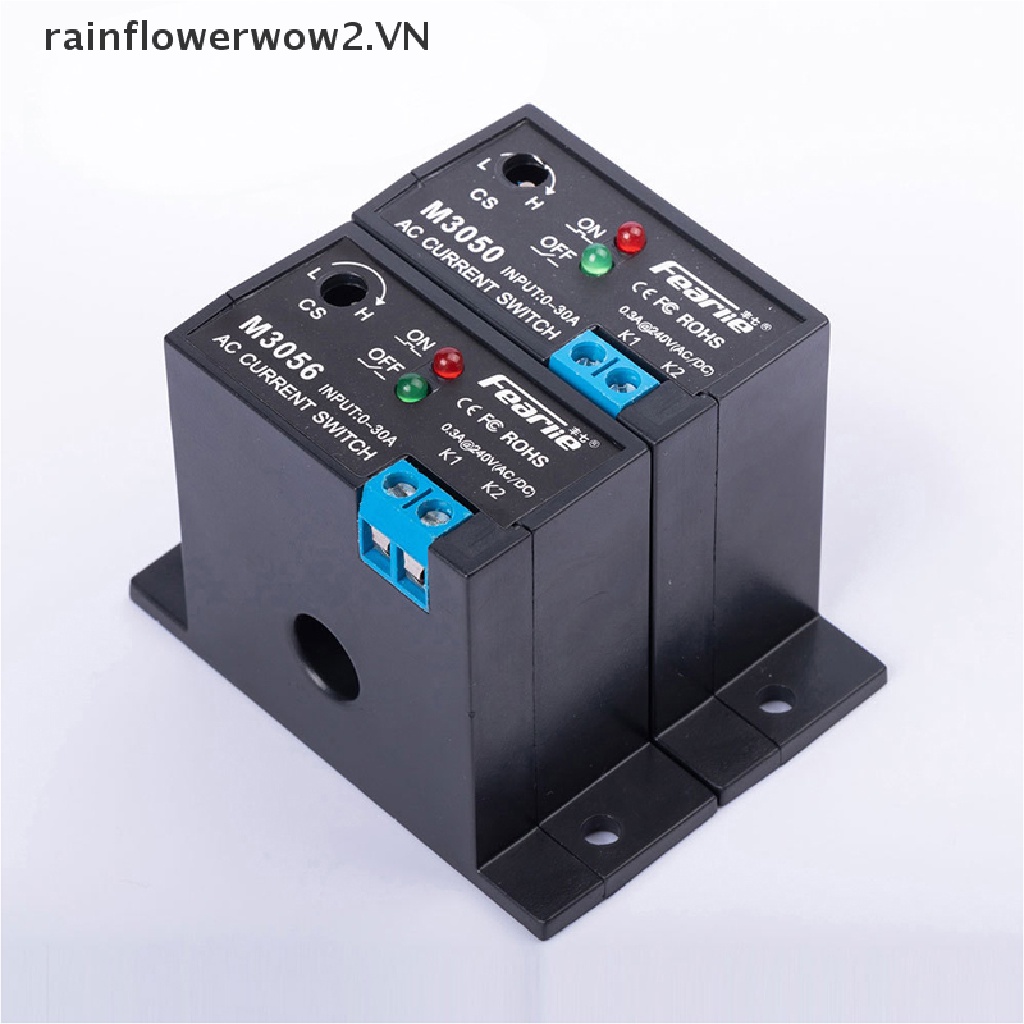

Normally Open: M3050

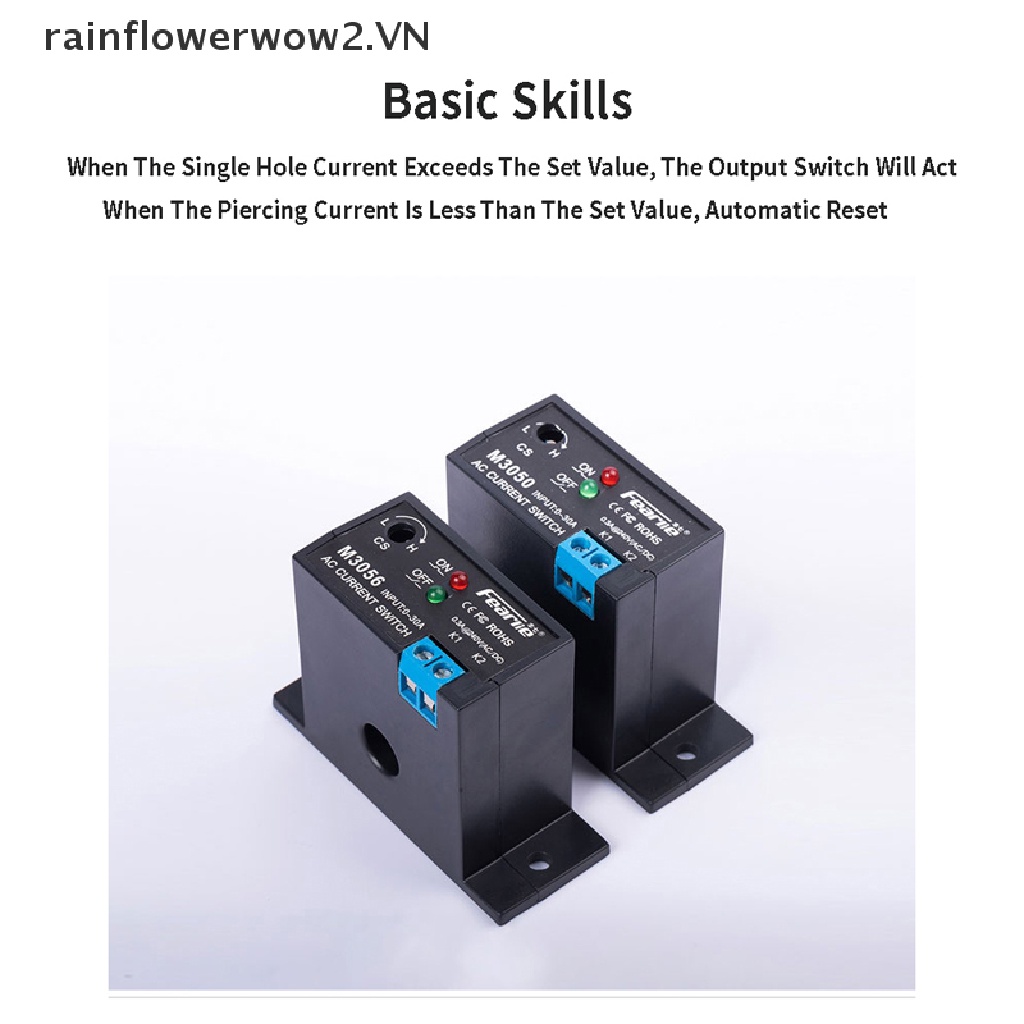

When The Current Of The Perforation Line Exceeds The Set Value, The Red Light Turn On And The Output Signal Close; When The Current Is Below The Set Value, The Green Light Turn On And The Switch Open.

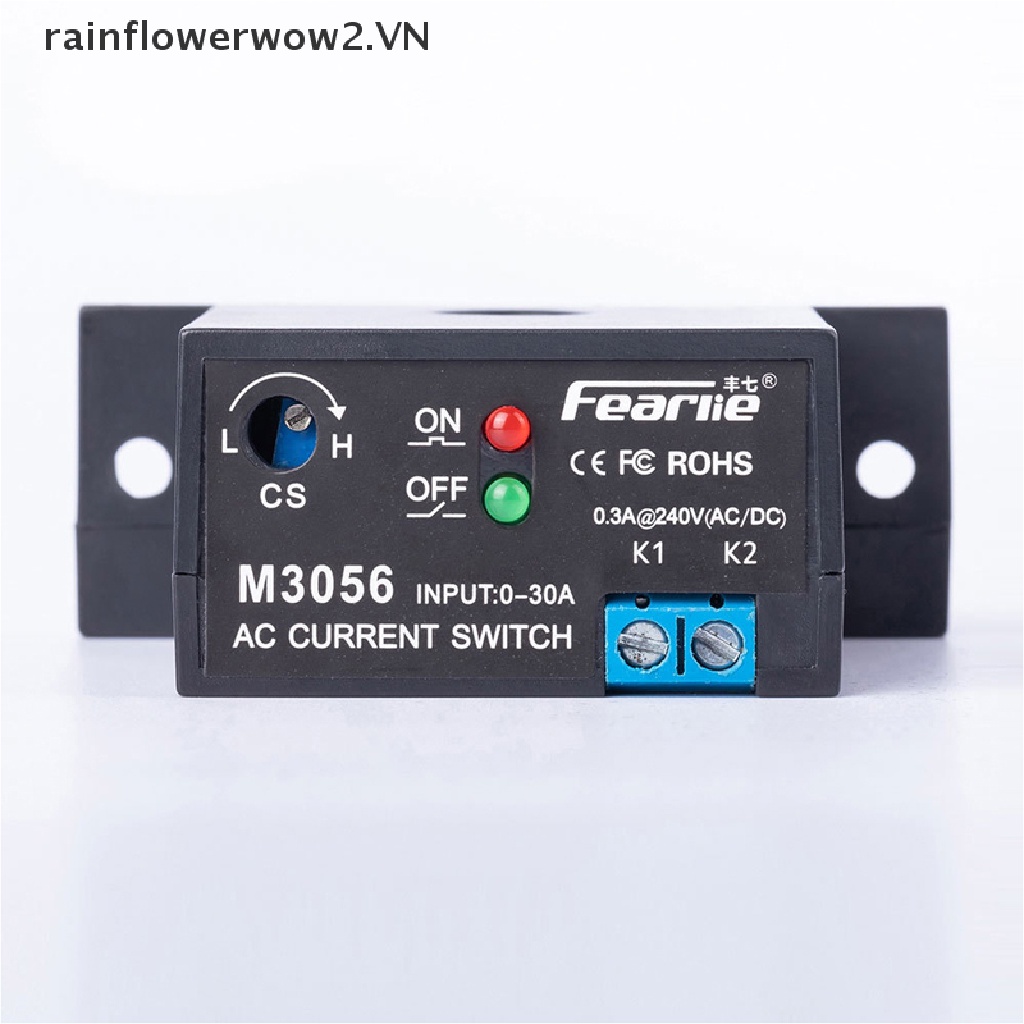

Normally Closed: M3056
When The Current Of The Perforation Line Exceeds The Set Value, The Green Light Turn On And The Output Signal Open ; When The Current Is Below The Set Value, The Red Light Turn On And The Switchs Close.



Description:
1.Monitoring Current: 0.2-30A AC
2.Contact Capacity: 0.3a@240v AC/DC
3.The Diameter Of The Perforation Line: 10mm
4.Dimensions: 65*25*47mm
5.Maximum Leakage Value: 0.1MA
6.Maximum Overload Capacity: 100%
7.Operating Temperature: -20－55℃
8.Hysteresis: Less Than 1%
9.The Shell Color: Black/Blue



Specification:
1.Mutual Inductance Current Monitoring, Security
2.Isolation Of Input And Output, Self Power
3.The Range Of The Monitored Current Is Up To 30A;
4.The Monitoring Threshold Is Adjustable Within
5.0.2-30A.
6.Hysteresis Is Less Than 1%. It Can Be Used In
7.Strong Magnetic Environment.
8.Non-Contact Electronic Switch With Fast Reaction
9.And Unlimited Number Of On-And-Off Operations.

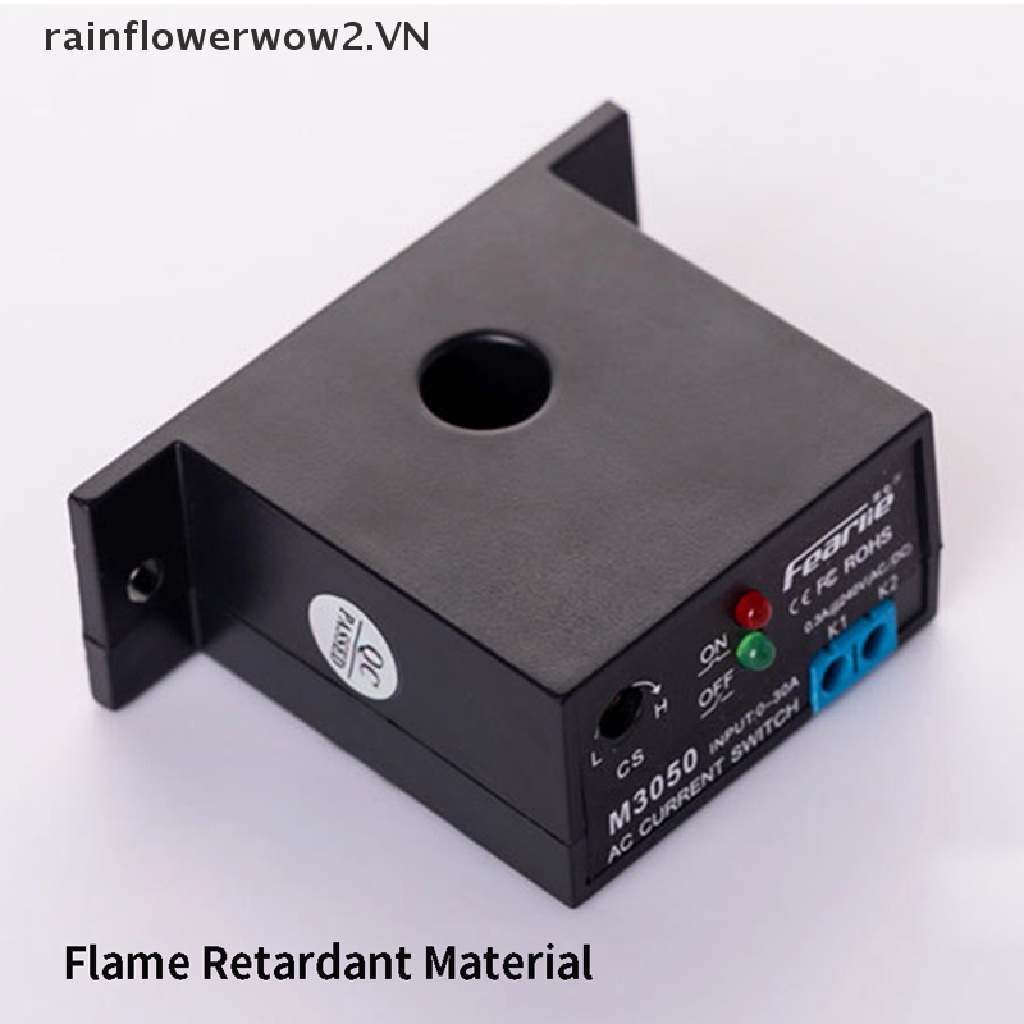

10.The Shell Is Made Of Environmentally-Friendly
11.Flame-Retardant PC Material.

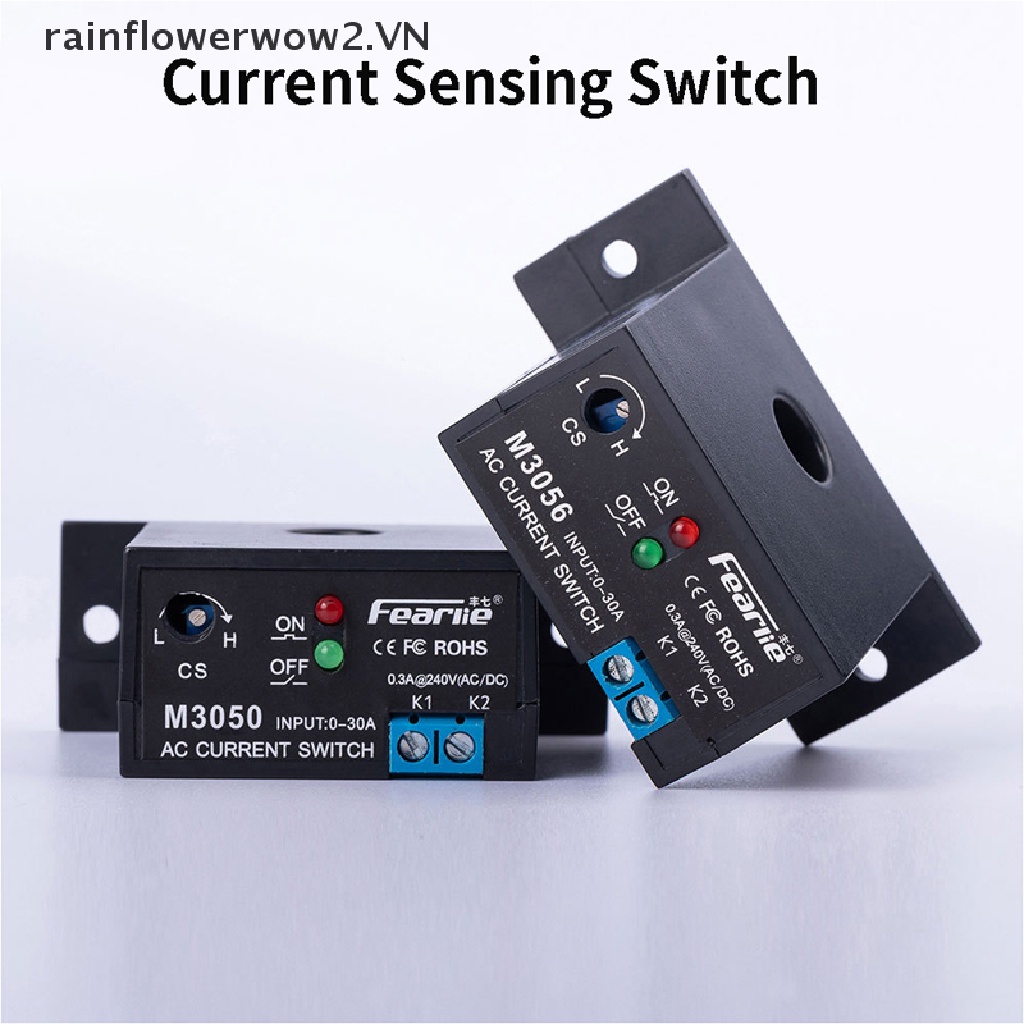

Package Include: 1 X Current Sensing Switch



Notes:
1.Transition:1cm=10mm=0.39inch
2.Please Allow 1-3mm Error Due To Manual Measurement. Pls Make Sure You Do Not Mind Before You Bid.
3.Due To The Difference Between Different Monitors, The Picture May Not Reflect The Actual Color Of The Item. Thank You!

Hình ảnh sản phẩm
