Universal Car Fog Light Wiring Harness Kit Loom For LED Work Driving Light Bar With Fuse And Relay Switch 12V 40A
Fitment:
Off-road driving light,fog light,work light etc
Main Feature:

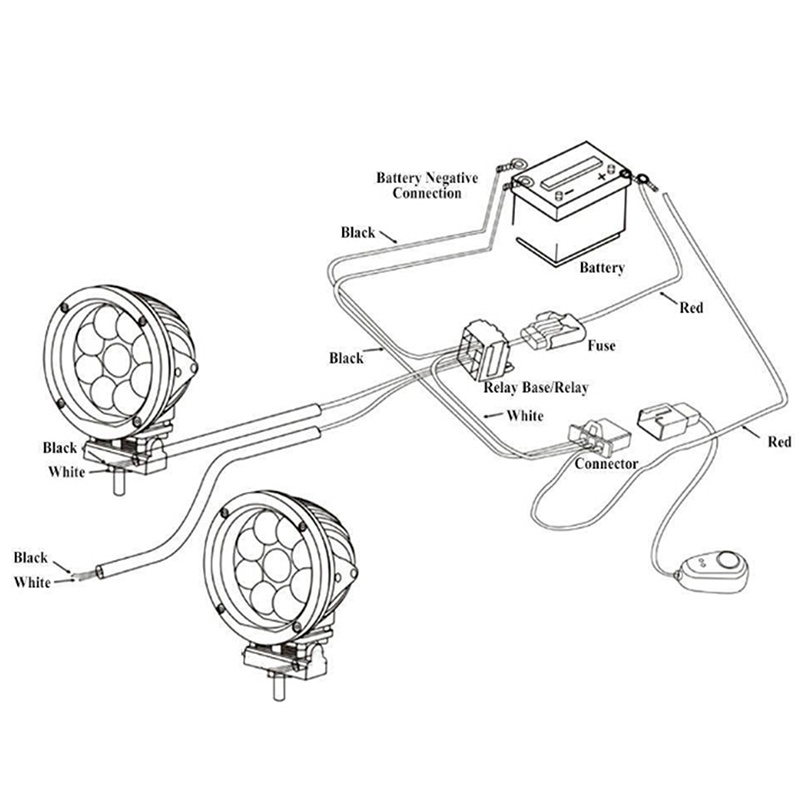

Can wire two lights meanwhile.
Universal wire harness, compatible with most automotive LED work lights.
Can be connected to 2 LED lamps instead of 1.

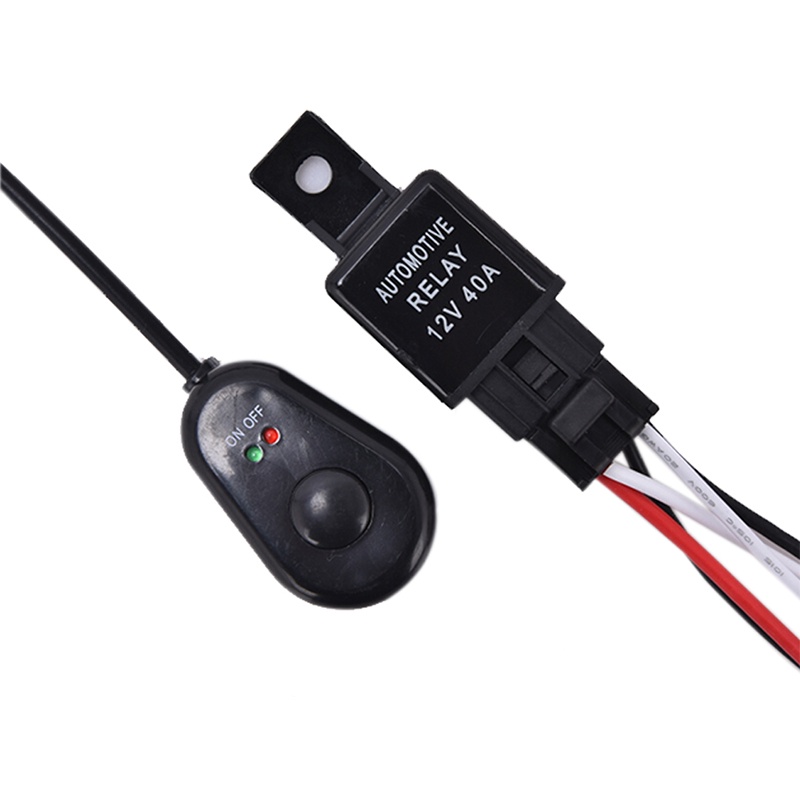

ON / OFF indicator light switch controls two LED lamps at the same time.

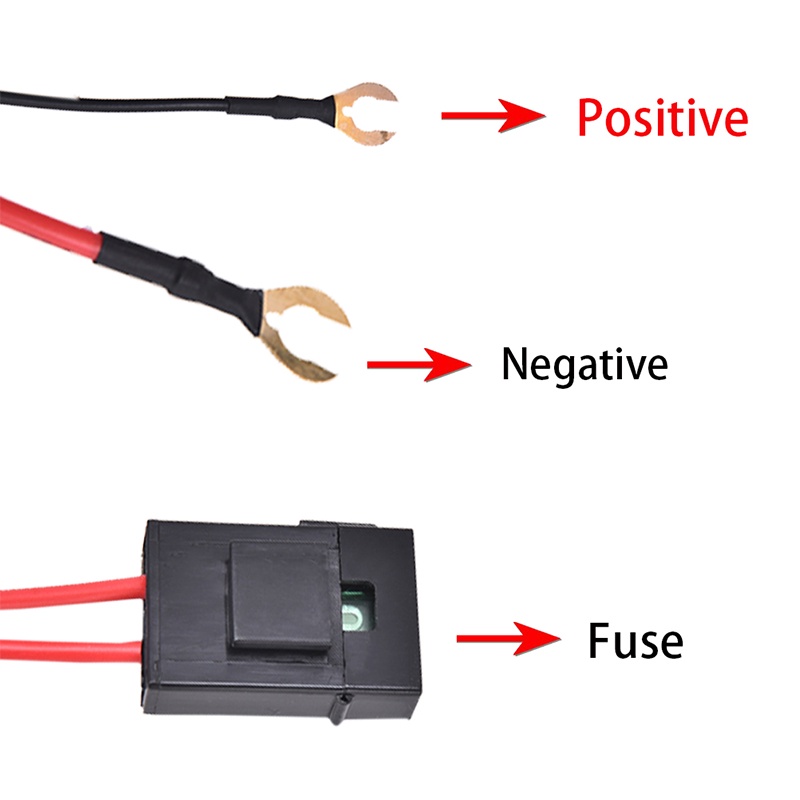

Safety blade fuse included.
Specification:
Certification:UL approved
Main Material: Wire rod, relay, switch, fuse
Body color: As shown in the picture.
Dimension (Approx): 6.56ft / 2m
Main Wire Core: 16AWG
Subordinate Wire Core: 18AWG
Voltage: 12V
Current: 40A
Fuse Ampere Rating: 30A
Maximum Power Handling Capacity: 200Wattage (when two lamps connected in parallel)
Package included:

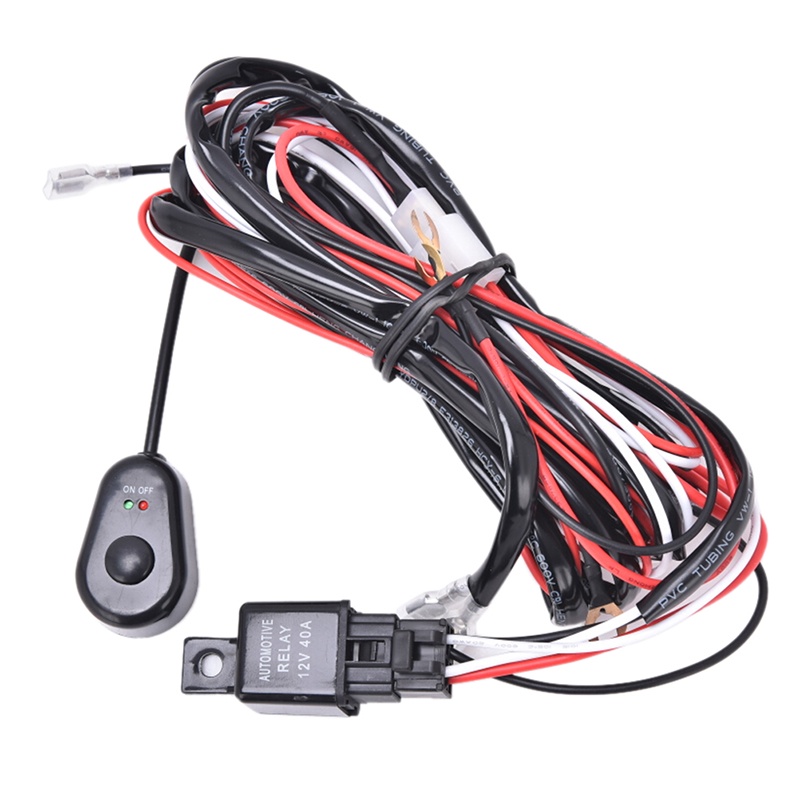

1 × Relay Switch Control Wiring Harness
Note:
1.Please allow a little size error due to manual measurement.
2.Please be reminded that due to lighting effects and monitor's brightness/contrast settings etc, the color tone of the website's photo and the actual item could be slightly different.
