Công tắc điều khiển từ xa WIN 433 MHz RF DC 12V 10A 1 kênh cho gara/Door/Lamp

Giới thiệu Công tắc điều khiển từ xa WIN 433 MHz RF DC 12V 10A 1 kênh cho gara/Door/Lamp

433 MHz RF Remote Control Switch DC 12V 10A 1-Channel Relay Receiver for Garage/Door/Lamp

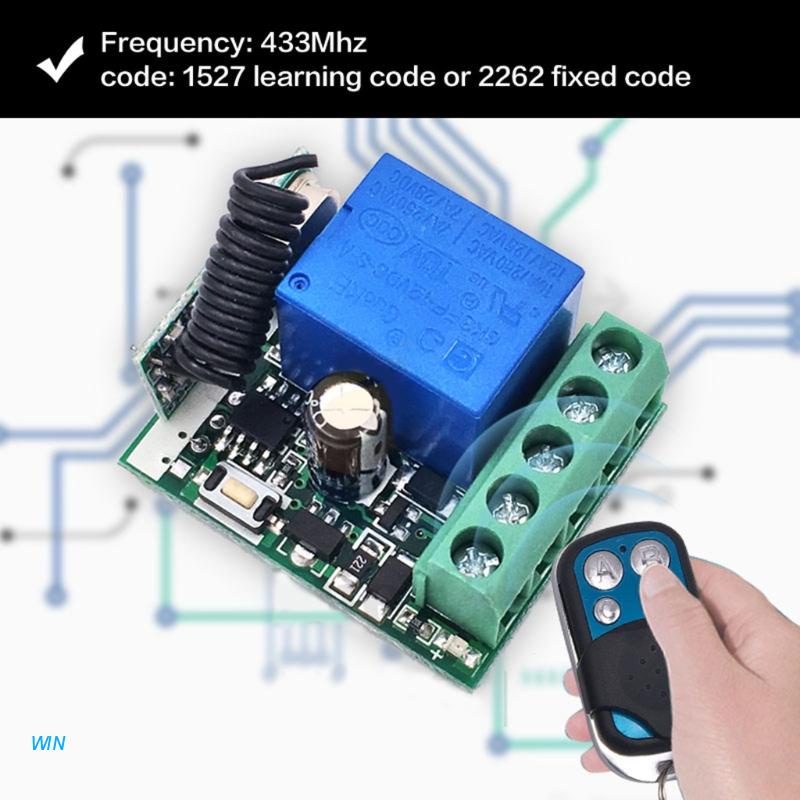

Features: Wireless Remote Control DC 12V 1-channel relay switch, with high stability, security and performance, 433mHz supports 1527 learning code & 2262 fixed code.
Remote relay with 3 modes of operation, you can switch to toggle, momentary, latching modes as you need.
Clear wiring diagram connection way for easy and convenient use.
Compact in size and lightweigt, measures only 1.38x1.18x0.67 inches, occupying less space.
A great remote switch for those who have home automatic DIY projects or commercial industrial appliances, widely used for water pump, electric curtains & kettles, light, electric curtain, fanner, garage doors, telescopic door and so on.

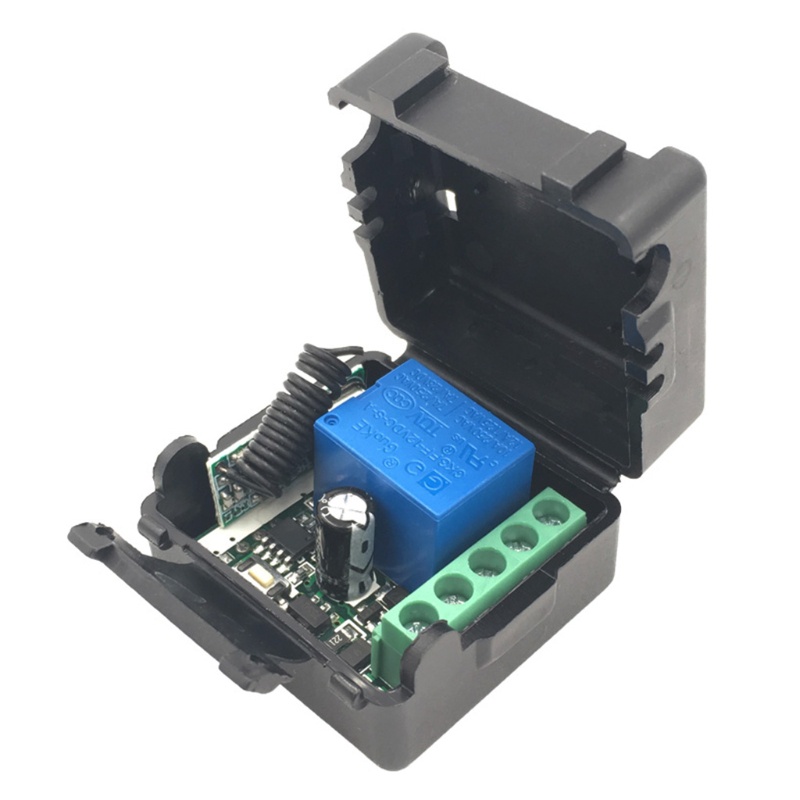

Specification: Material: ABS
Size: Approx. 35x30x17 mm/1.38x1.18x0.67 in
Working Voltage: DC 12V
Stand-by Current: 8mA
RF Frequency: 433MHz
Remote Operating Modes: Momentary/Toggle/Latched Modes
Support Encoding: 1527 Learning Code/2262 Fixed Code
Receiving Sensitivity : -105dbm
Output: 1-Channel
Load Recommendation: 10A Relay
Working Temperature: 10℃
Remote Control Distance: Greater than 100m in Open Area

Package Includes: 1 Piece Relay Switch

note: 1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you order.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
