Giới thiệu Công Tắc Giới Hạn Lxw5-11N1 Chuyên Dụng Chất Lượng Cao

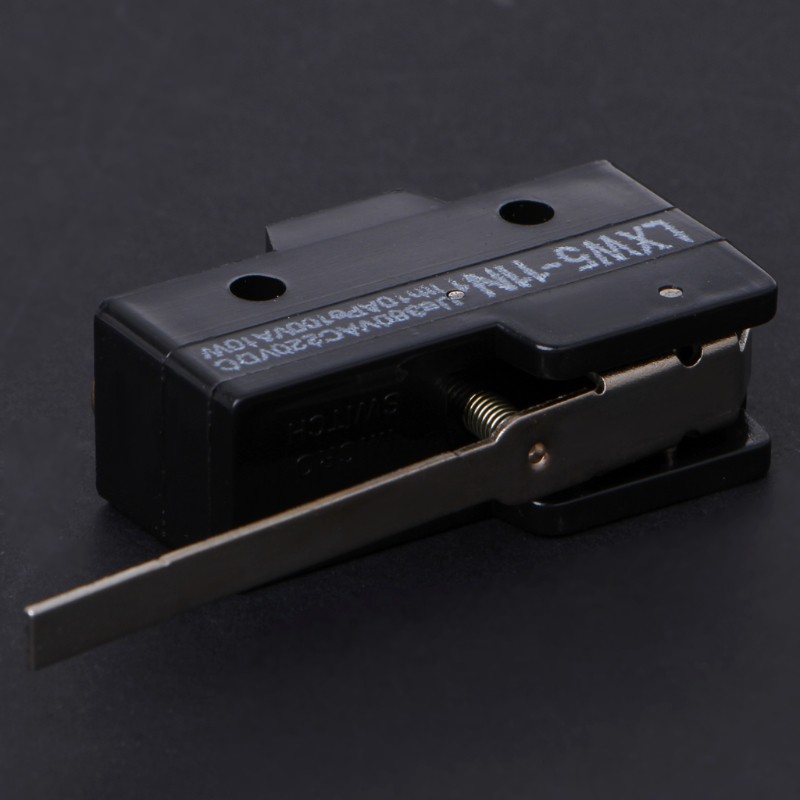

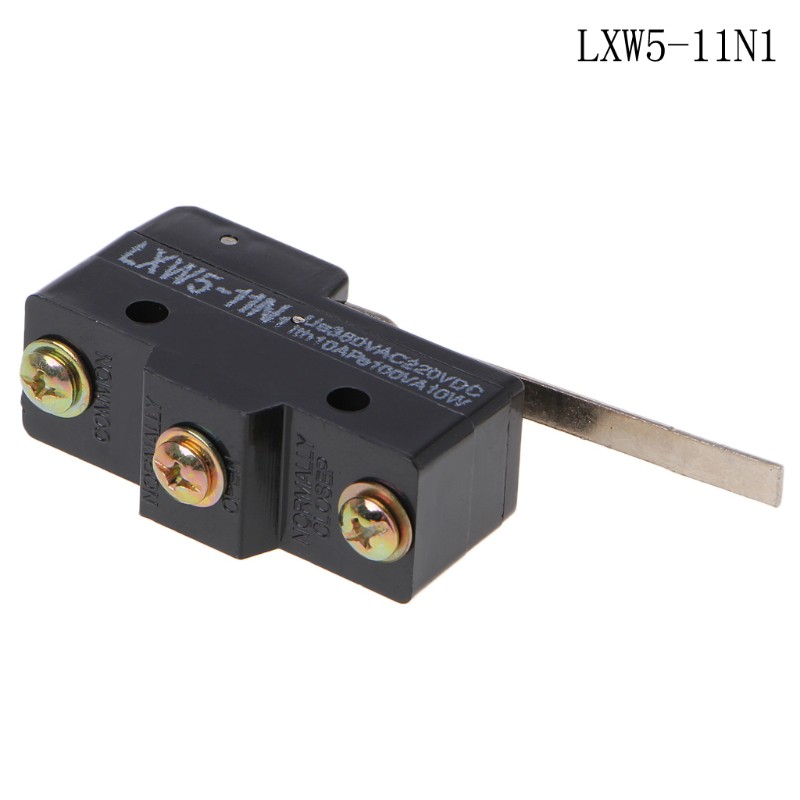

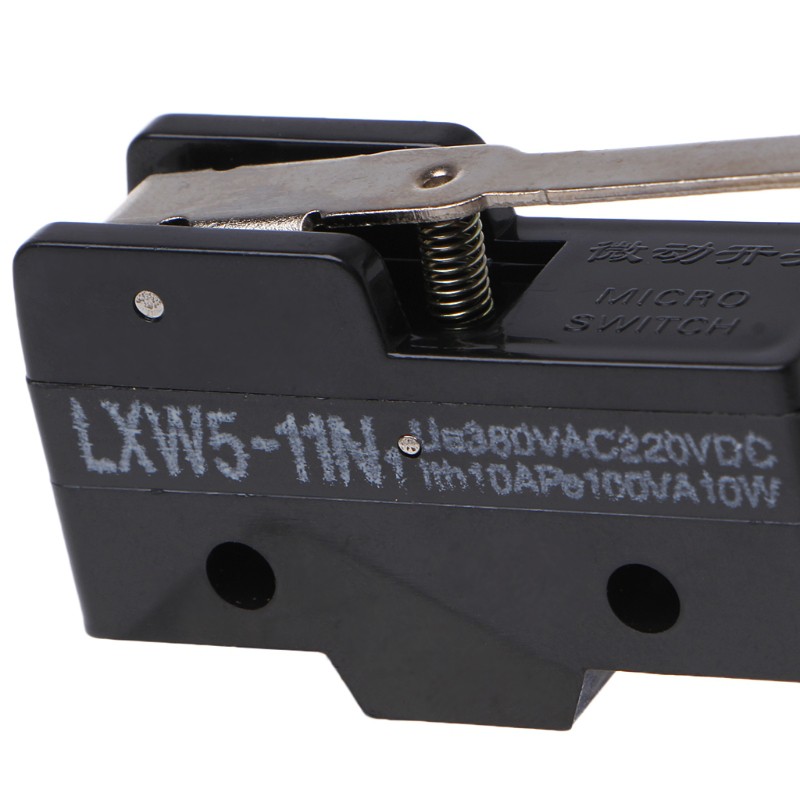

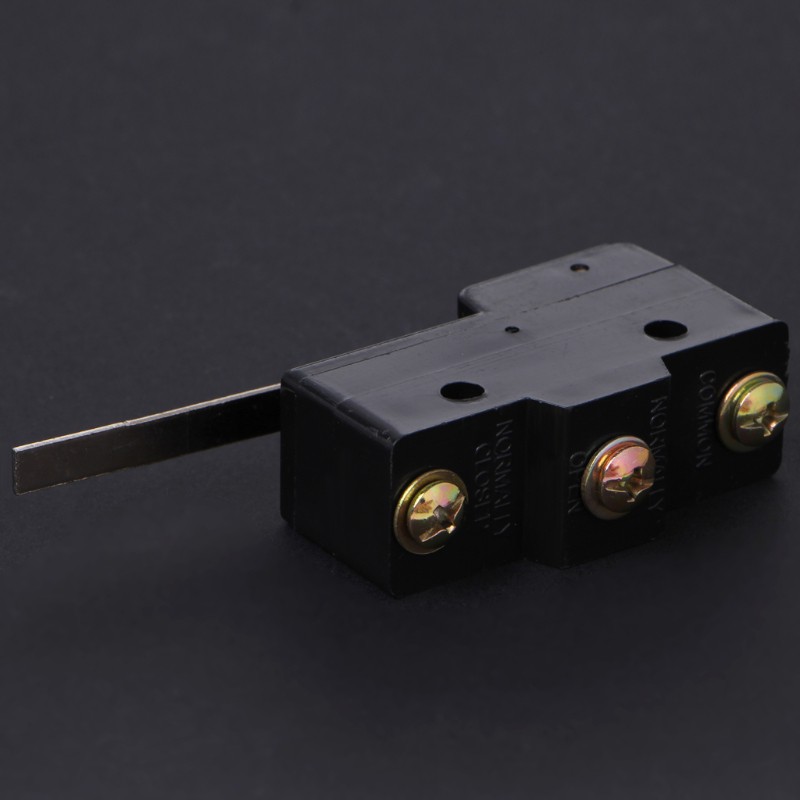

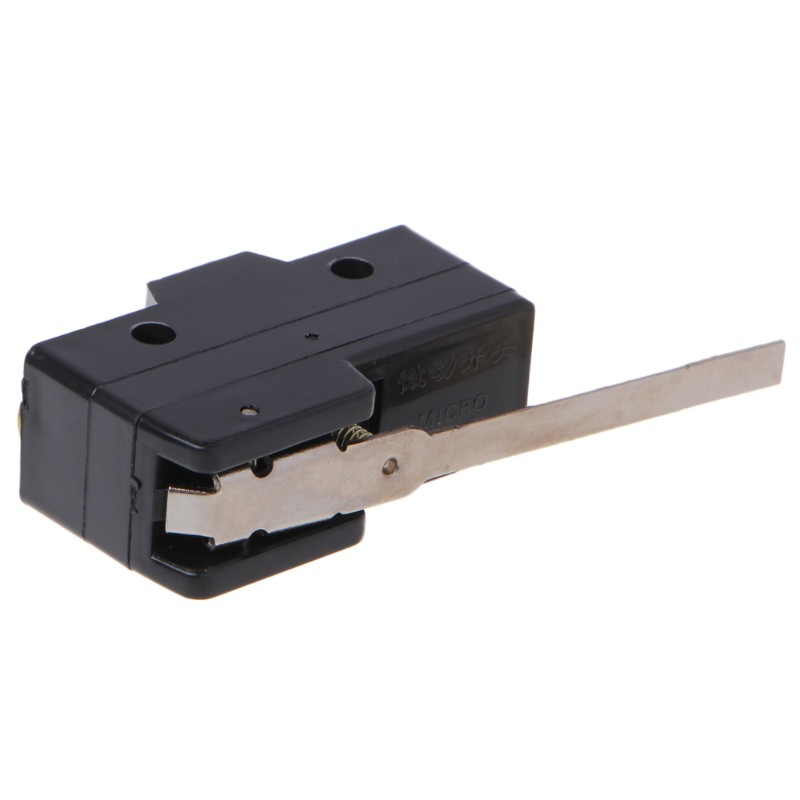

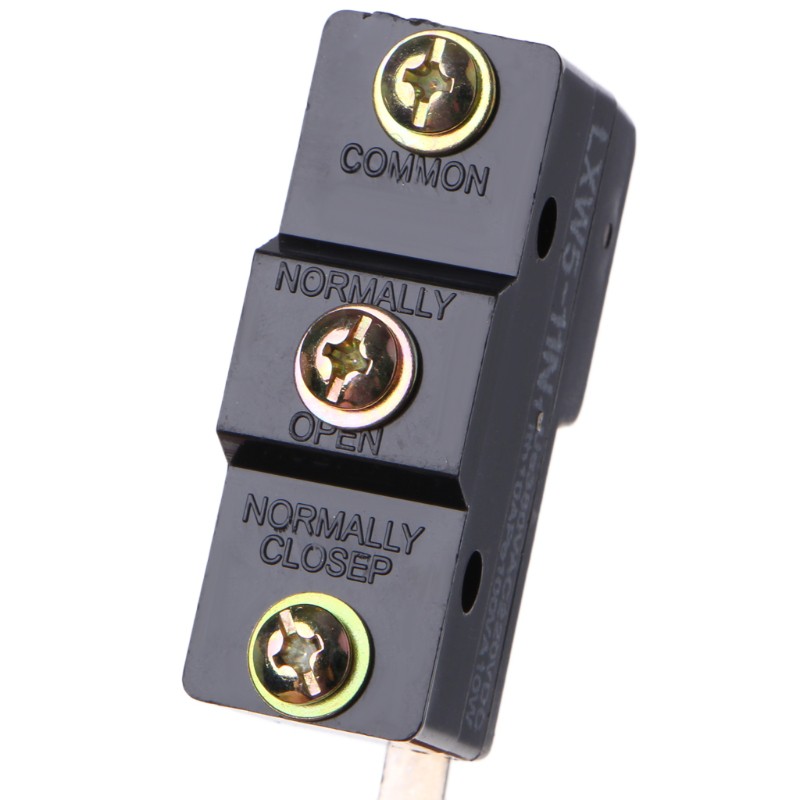

#LXW5-11N1 #Micro #Limit #Switch #Long #Lever #Arm #SPDT #Snap #Action #Travel #Switch LXW5-11N1 Micro Limit Switch Long Lever Arm SPDT Snap Action Travel Switch Features:
1, Used in the fields of electronic products, household appliances and more
2, This light touch switch is waterproof, prevent oil, anti-pollution, anti-static interference
3, High precision mechanism design offers acute operation and long service life
4, Compact and light weight, easy to carry and dismantling
5, Good electrical Conductivity
Specifications:
Rated voltage: 3A 380VAC
Color: See Pictures
Material: metal + ABS
Contact Resistance:≤1mΩ
Insulation Resistance:≥100MΩ
Dielectric intensity:≥1000VAC/1min
Life:≥500,000 Cycles

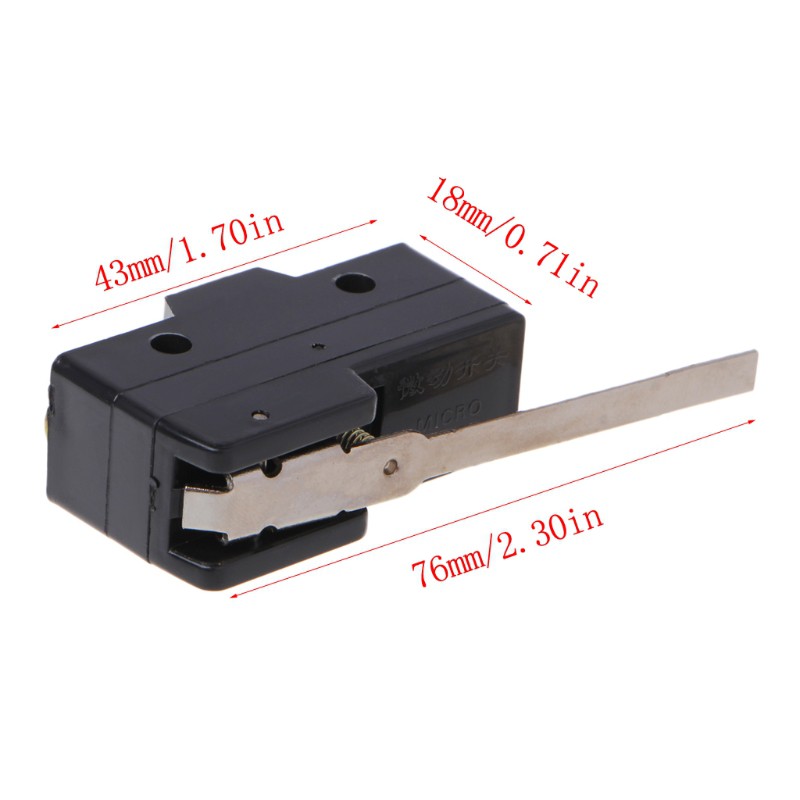

Size: 7.6cm(3in) ,Wide: 1.8cm(0.71in),High:4.3cm(1.69in)
Quantity: 1 Pc
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Contents: (No retail package)
1 Pc x Micro Switch
