Công Tắc Kim Loại Tự Điều Chỉnh Độ Sáng Của Đèn Led 16mm

Giới thiệu Công Tắc Kim Loại Tự Điều Chỉnh Độ Sáng Của Đèn Led 16mm

Specifications:
The light source is soft, bright, non-glaring and long lasting.
With waterproof sealing ring, the waterproof grade reaches IP66, so the waterproof performance is excellent.
The equipped PC flame retardant base is very safe and reliable to use.
It can be used in battery cars, automobiles, machinery and other equipment.
This is a self-reset switch, when you press the button, the switch is on, while when you release the button, the switch is off.

Item Name: Self-Reset Switch
Material: Metal, Silicone
Style: A Type: Ring, B Type: Power Supply
Switch Voltage: 1.5V-250V AC/DC
Waterproof Rating: IP66
LED Voltage: 3VDC-220VAC
Protection Level: IK10
Lamp Life: 40000 Hours
Work Form: Self-Resetting
Working Environment: -30 Degree Celsius to 80 Degree Celsius
Mechanical Life: Self-Reset/500,000 Times
Nut Torque: 5-14N.m
Contact Resistance Value: Less than and Equal to 50mΩ
Button Pressure: about 2.5-3N
Insulation Resistance: More than and Equal to 1000mΩ
Compressive Strength: 1900VACmin
Connection Method: Soldering Feet
Product Certification: CD ROHS
Features: Waterproof, High Brightness, Long Service Life, Durable, Self-Reset
Size: 3.5cm x 1.9cm x 1.9cm/1.38" x 0.75" x 0.75" (Approx.)

Notes:
Due to the light and screen setting difference, the items color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.

Package Includes:
1 x Self-Reset Switch
1 x Rubber Ring

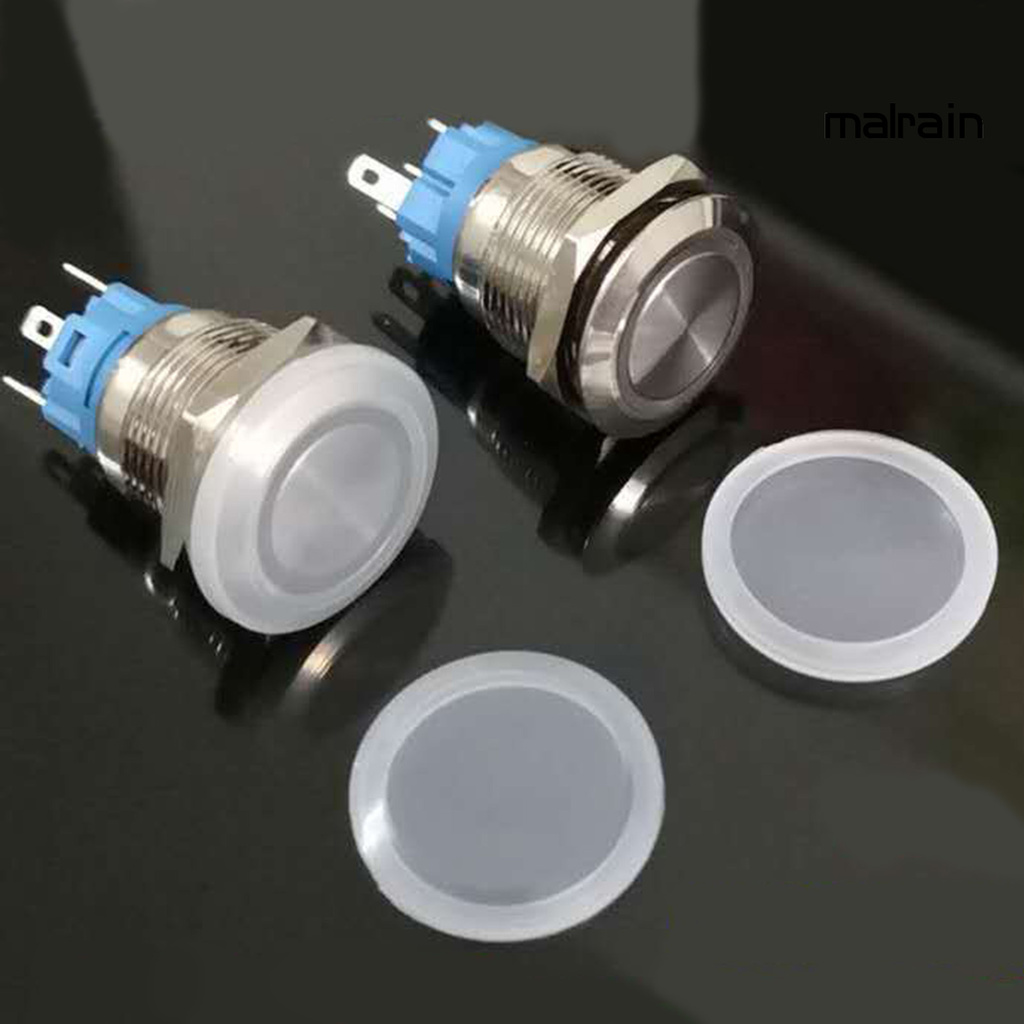

Hình ảnh sản phẩm
