Công Tắc Nguồn Điện Dr-45 5v 12v 15v 24v Din

Giới thiệu Công Tắc Nguồn Điện Dr-45 5v 12v 15v 24v Din

#DR-45 #Single #Output #5V #12V #15V #24V #Din #Rail #Type #Switch #Switching #Power #Supply

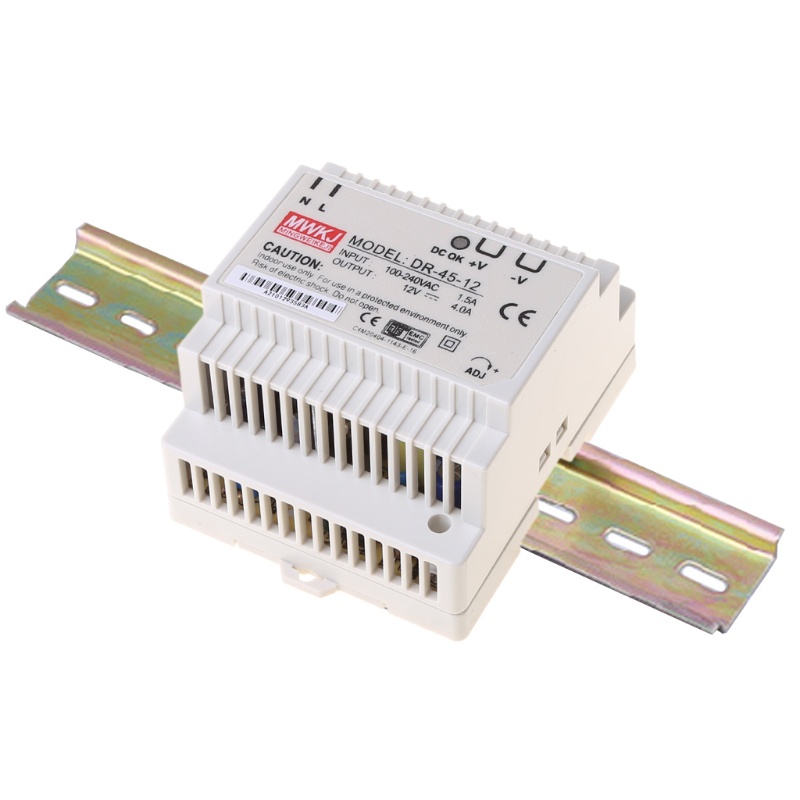

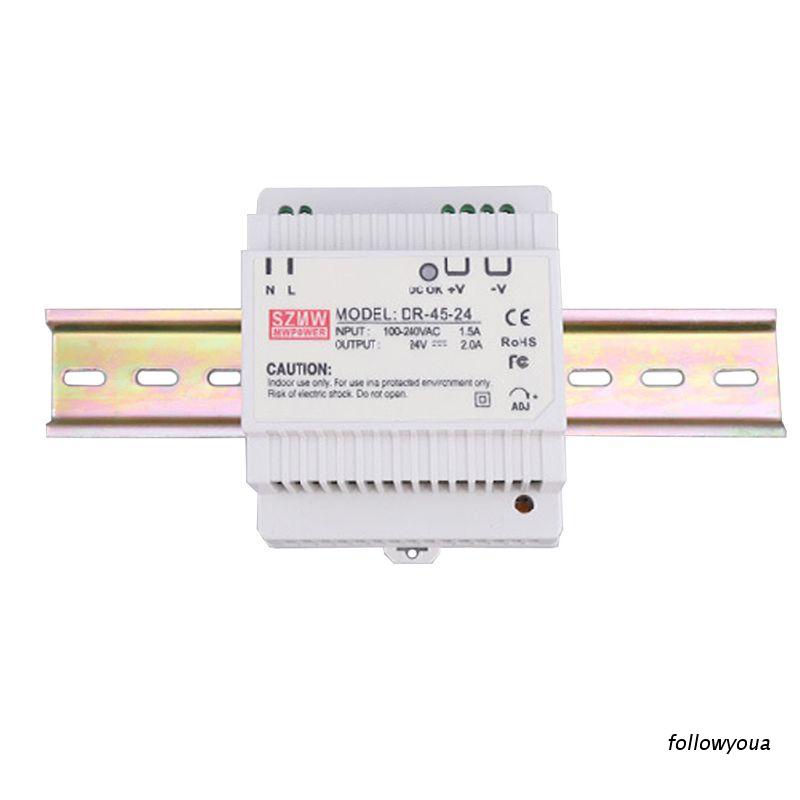

DR-45 Single Output 5V 12V 15V 24V Din Rail Type Switch Switching Power Supply
Description:
100% brand new and high quality
Feature:
Made of high-quality material, durable, firm and stable to use.
LED power indicator, wide input voltage range.
It can provide over-load, over-voltage, short circuit and high-temperature protection.
Small ripple, high efficiency and strong reliability.
Compact size and light weight, easy to carry.
Four optional patterns to meet your needs. Easy to install and assemble.
It can be widely used in many electronic devices and facilities.

Specifications:
Item Type: Switching Power Supply
Voltage: 5V/12V/15V/24V
Rated Current: 5A/3.5A/2.8A/2A
Current Rage: 0-5A, 0-3.5A, 0-2.8A, 0-2A
Rated Power: 25W, 42W, 42W, 48W
Ripple and noise: 100mVp-p, 200mVp-p, 240mVp-p, 480mVp-p
Voltage Adjustment: 4.75-5.5V, 10.8-13.2V, 13.5-16.5V, 21.6-26.4V
Voltage Accuracy: minus or plus 2.0%/1.0%/1.0%/1.0%
Linear Adjustment: minus or plus 1.0%
Load Adjustment: minus or plus 1.0%
Start/Rise Time: 800ms, 60ms/230VAC(full load)
Maintain Time: 60ms/230VAC(full load)
Input Voltage Range: 85-264VAC/120-370VDC
Frequency Range: 47-63Hz
Efficiency: 72%, 77%
Input Current: 1.5A/115VAC 0.75A/230VAC
Inrush current: cold start: 28A/115VAC 56A/230VAC
Leakage current: less than 1mA/240VAC
Material: ABS

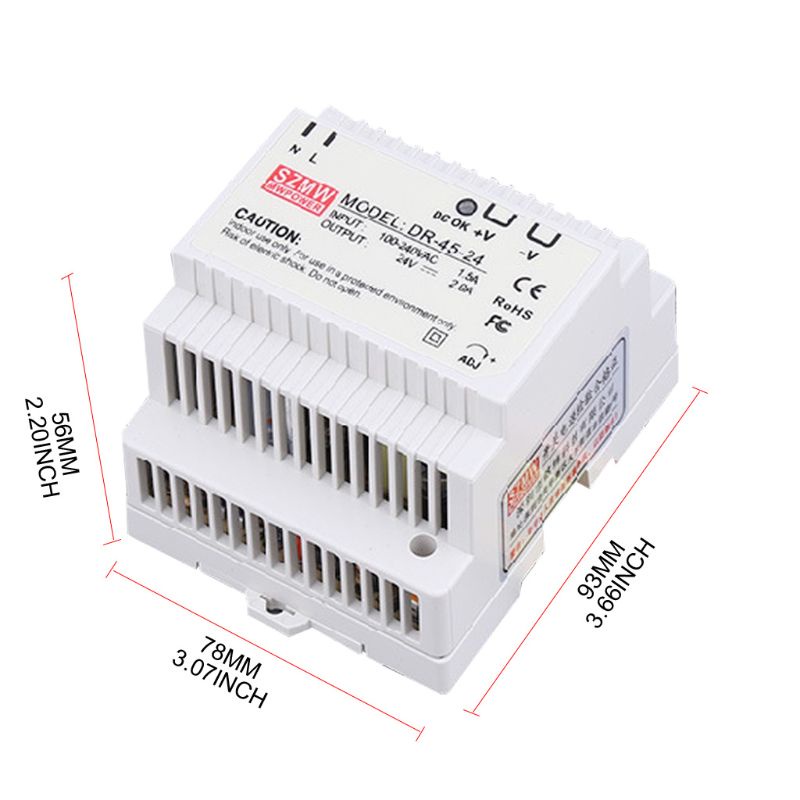

Size: 78x93x56mm/3.07x3.66x2.2in
Color: White

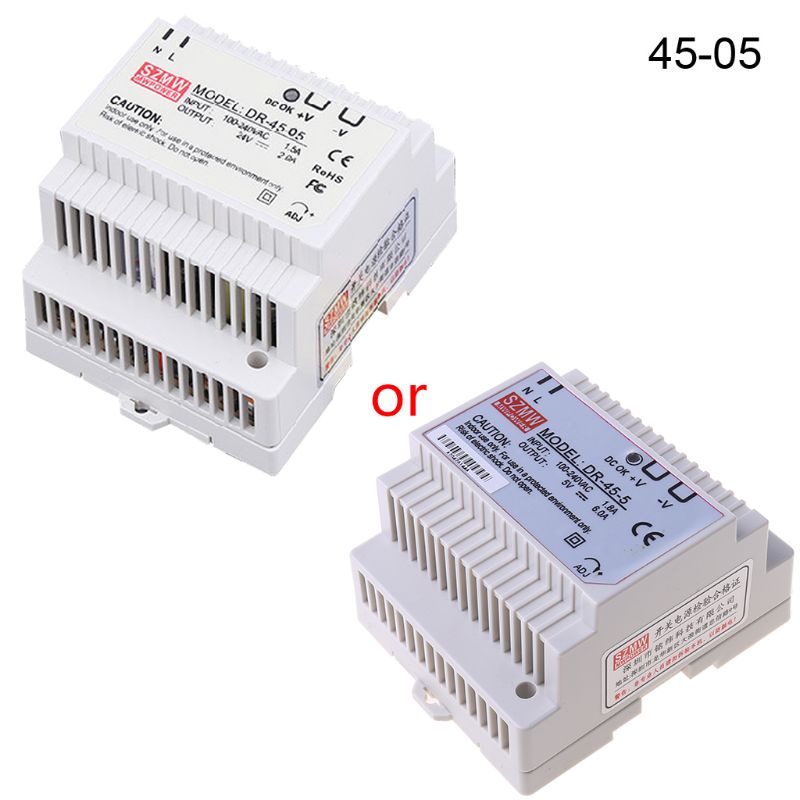

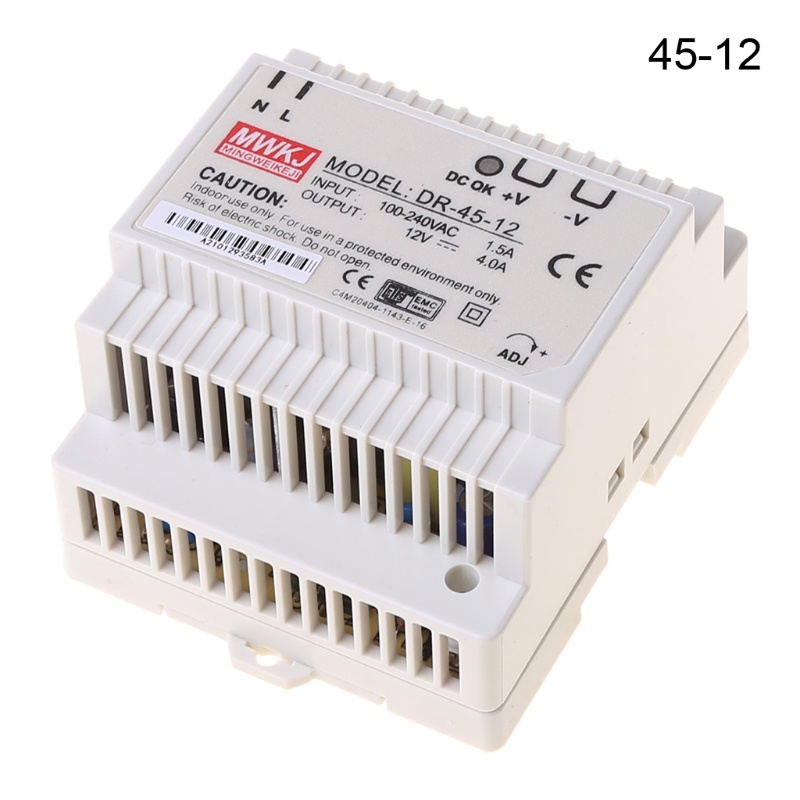

Optional Type: DR-4505, DR-4512, DR-4515, DR-4524
Quantity: 1 Pc

Note:
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Includes:
1 x Switching Power Supply
