Công Tắc Nút Nhấn Bằng Kim Loại Có Đèn Led 12mm 3a / 220v Dc Cho Tàu Thuyền

Giới thiệu Công Tắc Nút Nhấn Bằng Kim Loại Có Đèn Led 12mm 3a / 220v Dc Cho Tàu Thuyền

Specifications:
Great for ignition starter, relay, horn button switch, critical lights, chassis lamp, fog lamps, door switch, PC power switch or any circuit controls on over 500,000 cycles.
Ring LED can be on all the time or only when switch is on which depends on how you wire it.
High quality metal material & IP67 waterproof protection can be used in wet or dusty environment

Type: Push Switch
Switch Combination: 1NO1NC
Operation Type: Momentary/ Resettable [Push & Hold ON, Release OFF]
Head Shape: Flat
Enclosure Material: Nickel Plated Brass/ Stainless Steel
Lamp Type: Ring Illuminated

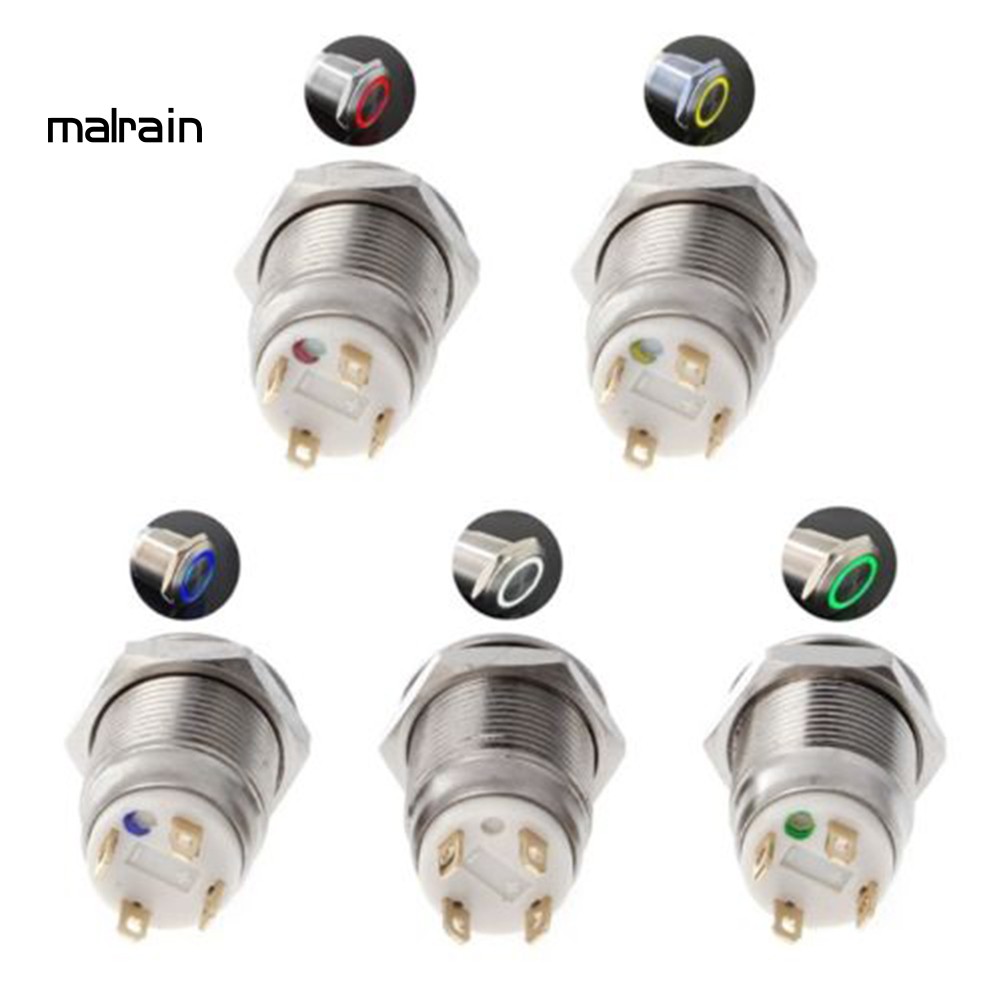

LED Color: White/Blue/Green/Red/Yellow
Switch Rating: 3A/220V DC
LED Voltage: 3V
Protection Level: IP67
Switch Rating: 2A/36VDC
Pins: 4
Operation Pressure: about 4N
Mechanical Life: 500,000 cycles
LED Life: 40,000 hours
Mounting Hole Size: Φ12mm

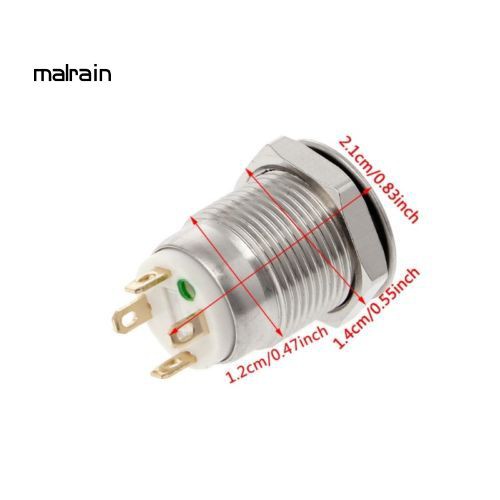

Overall Size: 2.1cm x 1.4cm/0.83" x 0.55" (Approx.)

Notes:
No built-in resistor
Please allow 0-3mm error due to manual measurement. Please make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x Push Switch
