Dải đèn LED nền 220mm 10.4 inch CCFL màn hình LCD

Giới thiệu Dải đèn LED nền 220mm 10.4 inch CCFL màn hình LCD

Material: Fiberglass panels
Size: 220mm(8.66 inch)x2.1mm(0.08 inch)
Driver board size: 84mm(3.3 inch)x11.1mm(0.43 inch)
Input Voltage: 12V; Output Voltage: 9V
Power: 4W
The product of the display-specific lights, high brightness, can not look directly
LED particles close, high-density arrangement bright LED SMD imports
Long life, is a display design, the life of 100,000 hours
Easy to install, use double-sided tape can be attached to the original LCD display tank, or posted elsewhere
Energy saving, power only 4W. Original four LCD power is generally 24W.
The following are the installation instructions for reference (for reference only):
Easy ification steps:
1, open the metal frame:
2, cut the inner plastic protective frame angle:
3, out of the liquid crystal lamp:
4, insert the LED light bar
Note, this ification method is simple, easy to light leakage. But it will destroy the border.

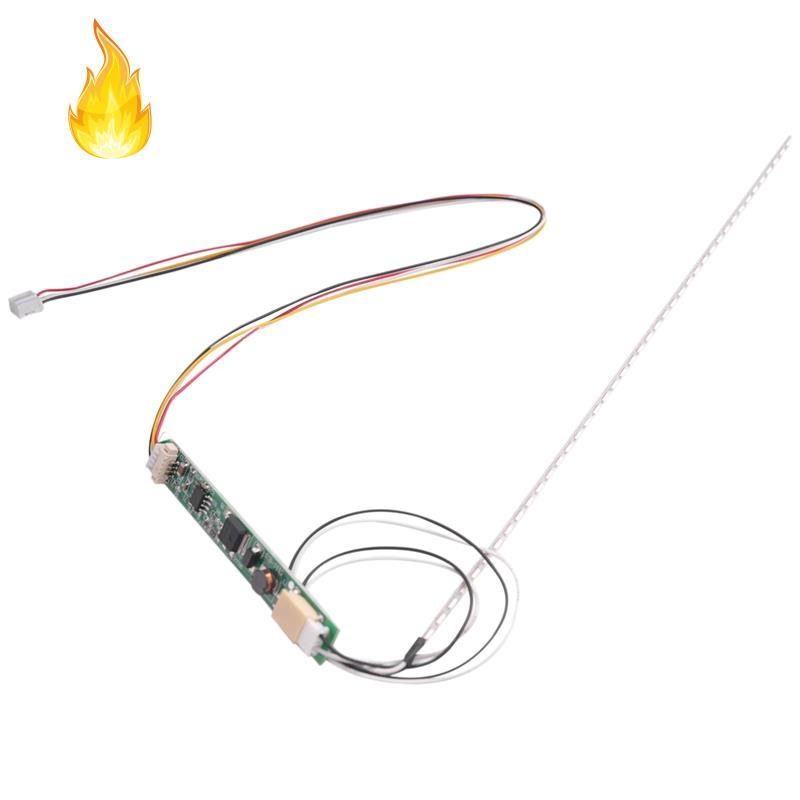

Package included:
1 x LED strip
1 x Driver board
1 x cable
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
