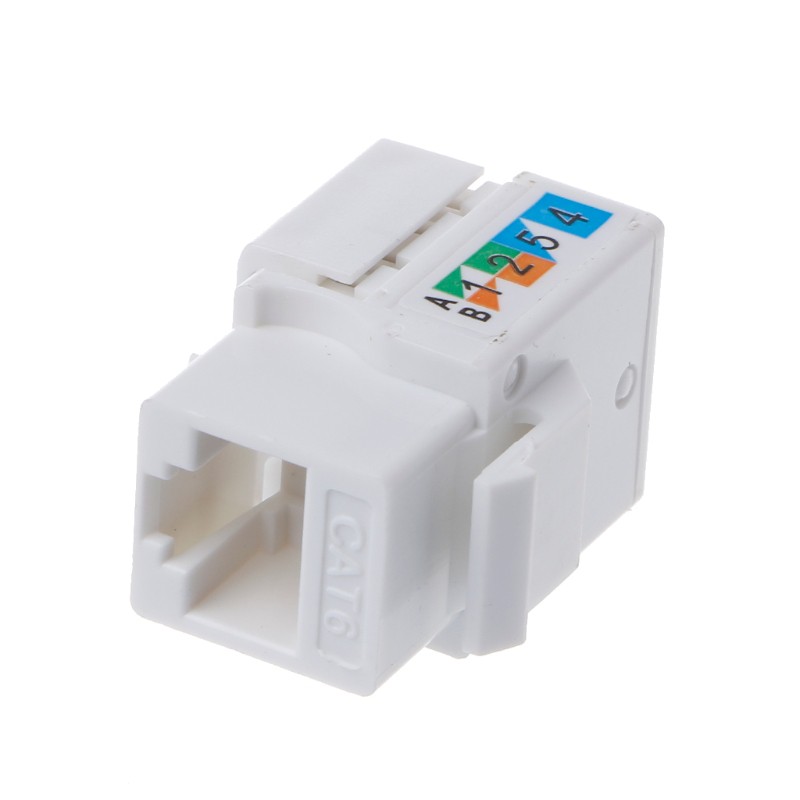

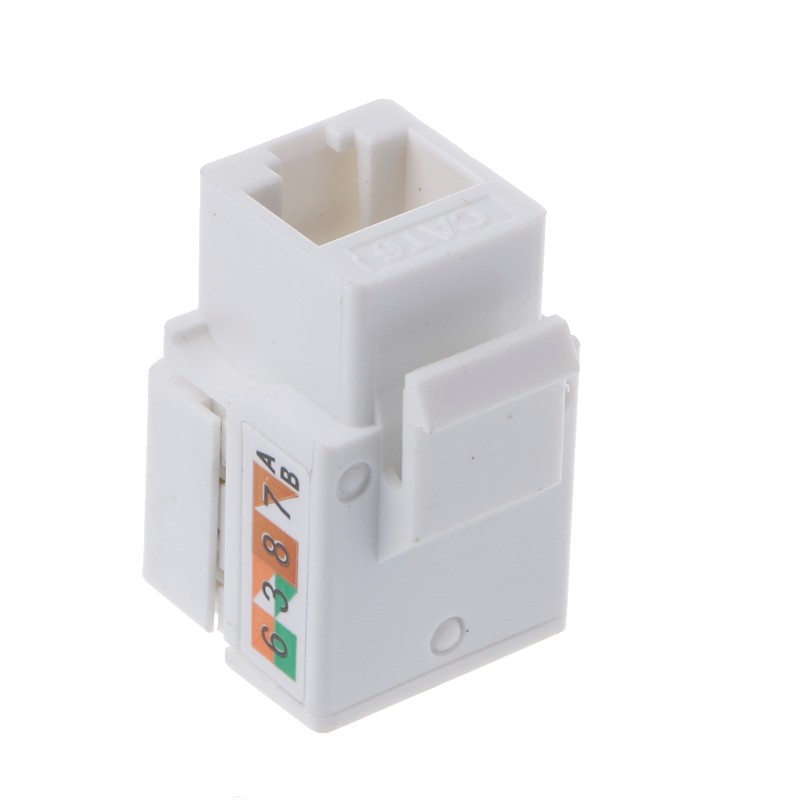

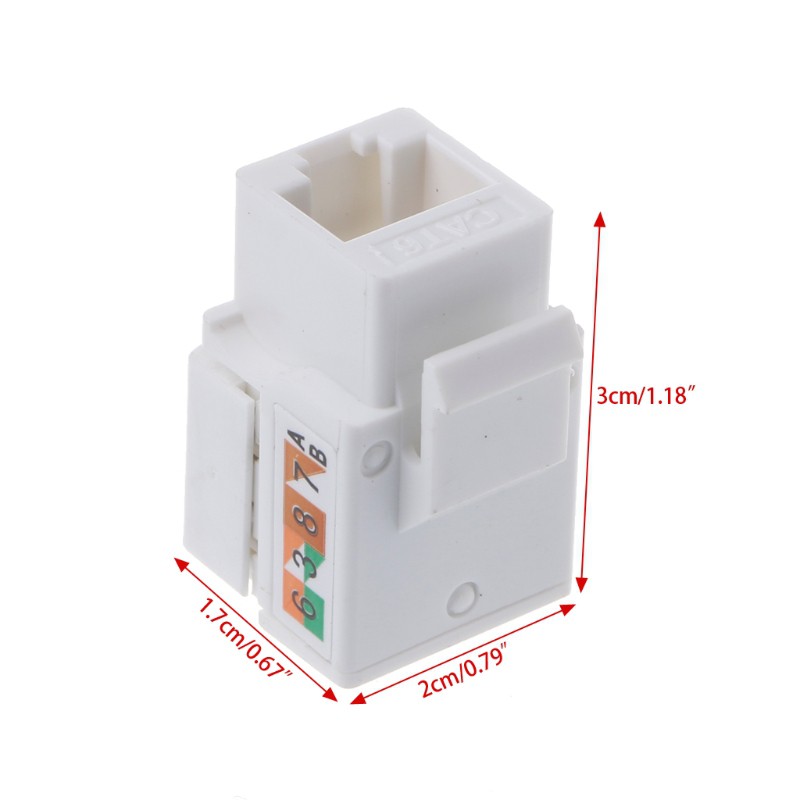

Specifications: CAT6 90 degrees wire Material: Flame-retardant PC phosphor bronze contact with PCB Technology: Assembly Scope: network cabling weak building home improvement project

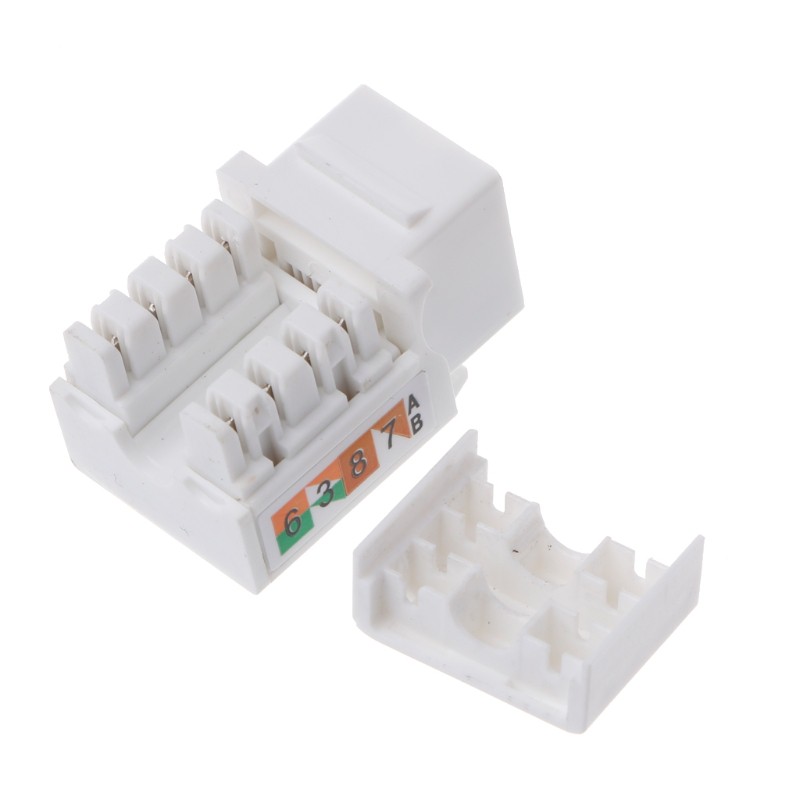

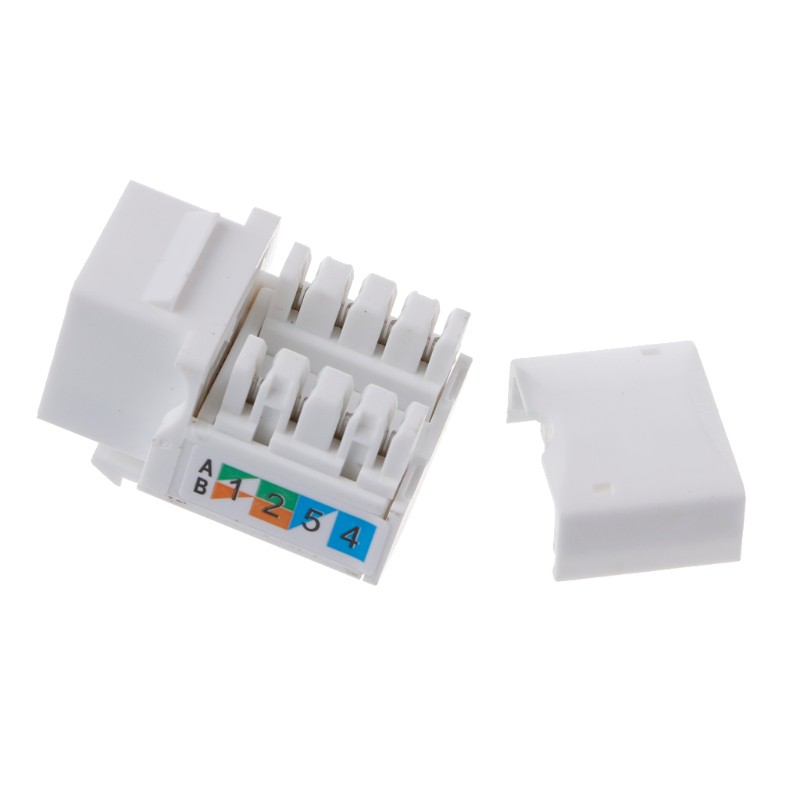

Product Features 1. The device is suitable for connection and communication between the work area outlet to achieve signal transmission 2. compact, making products look simple, elegant 3.IDC end color press note some wire for fast and accurate wire The module is equipped with a dust cover for protection, shelter dust and dirt 5. Repeat the plug and socket mating cycles ≥750 times 6.IDC: cable can be connected via the 22 ~ 26AWG, card access number can be repeated ≥200 times 7. Contact resistance: under normal atmospheric conditions the contact resistance ≤2.5MΩ 8. Insulation resistance: under normal atmospheric conditions Insulation resistance ≥1000MΩ 9. high pressure: AV 750V1 minutes without breakdown and arcing phenomena 10. The plastic body material: PC PBT fire rating of UL 94-V0 11. erminal Material: Phosphor Bronze 12.RJ45 interface terminal: gold 3μ ''
Package includes: (Without retail package) 1 x CAT6 Network Module
