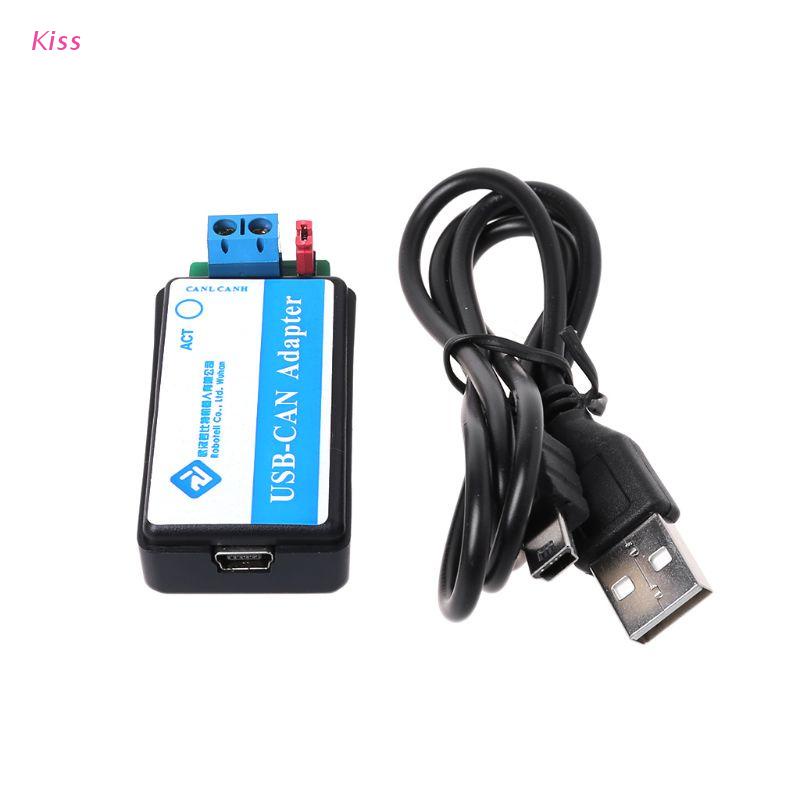

Giới thiệu Đầu chuyển đổi USB sang CAN Debugger USB-CAN USB2CAN
#USB #To #CAN #Debugger #USB-CAN #USB2CAN #Converter #Adapter #CAN #Bus #Analyzer USB To CAN Debugger USB-CAN USB2CAN Converter Adapter CAN Bus Analyzer 100% brand new and high quality
Features:
The USB-CAN debugger is a CAN bus debugger with a USB 2.0 interface and a CAN interface. Through the USB-CAN debugger, the computer can be connected to the standard CAN network through the USB interface, which can transfer, collect, and process data conveniently, quickly, and accurately.
The USB-CAN debugger supports any baud rate between 5Kbps and 1Mbps, and is widely used in fieldbus test labs, industrial control, intelligent buildings, automotive electronics and other fields.
Application areas:
CAN network teaching, development, testing;
Fast CAN network data acquisition, data analysis;
CAN network replaces RS485 network;
Large flow, high speed CAN communication network;
Industrial site CAN network data monitoring.
Product main performance indicators:
USB interface supports USB2.0, compatible with USB1.1
Protocol conversion between USB and CAN bus;
Support CAN protocol 2.0A and 2.0B active mode;
Support two-way transmission, CAN transceiver;
Support CAN identifier standard format (11 digits) and extended format (29 digits);
Support data frame, remote frame format;
CAN controller baud rate up to 1Mbps, software configuration;
Support automatic retransmission mode, which can be configured by software;
Support automatic offline management mode, which can be configured through software;
Support 14 filters, which can be configured by software;
Support WINXP/7/10 32/64 bit.
Specification:
Type: USB To CAN
Dimensions: 5.7x2.3cm/2.24x0.91inch
Color: As shown
Quantity: 1 Set
Note: 1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
