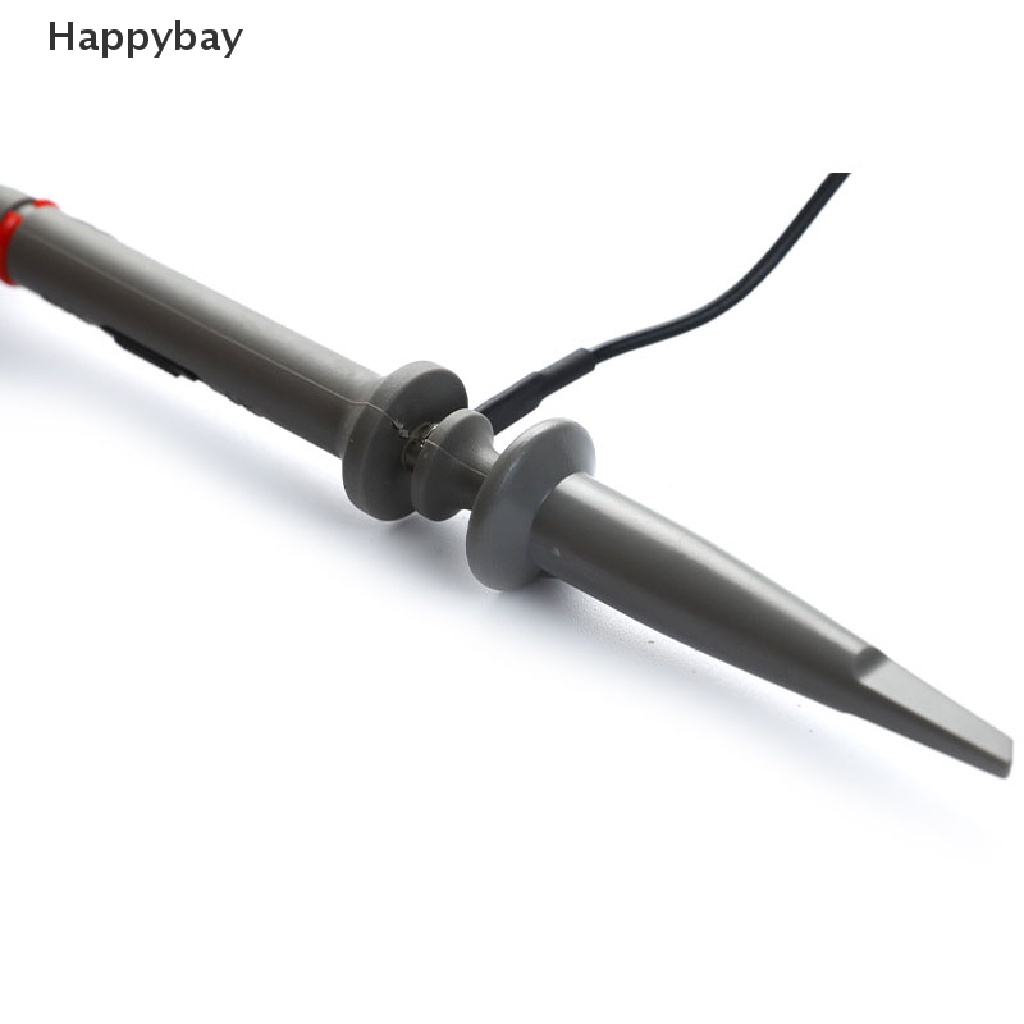

Đầu Dò Thử Điện Happybay Cho P6100 100Mhz HP Tektronix Hope You Can Save

Giới thiệu Đầu Dò Thử Điện Happybay Cho P6100 100Mhz HP Tektronix Hope You Can Save

Features:
Compact size, several functions combined in one, this probe is convenient to use.
Detachable hook tip, the hook is well protected by the plastic case.
Locating sleeves ensure the stability and reliability of the tip exposed to the test point.
Marker rings in different colors help to identify different channels.
Great choice for oscilloscope probe.



Description:
100% brand new and high quality
Model: P6100
Bandwidth: DC-6MHz DC-100MHz (actually 80 MHz)
Attenuation Ration: 1: 10
Input Resistance: 1 M: 10 M
Input Capacity: 1X: 85pF-120pF 10X: 18.5pF-22.5pF
Compensation range: 10pF-30pF
Rise Time: Less than 3.5ns
Operating voltage: 1X: Less than 200vDC + AC Peak 10X: Less than 600vDC + AC Peak
Cable length: 120 cm
Temperature opertation: -10 Celsius ~ + 50 Celsius
Nonopertating: -20 Celsius ~ + 75 Celsius
Humidity:5% (relative humidity)
Cable length: 120 cm
Net weight: 80g
Color: Grey


Package include:
1 x P6100 Oscilloscope Probe


Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual mearement.
