Giới thiệu Đầu nối dây điện bằng kim loại 12mm 2/3/4/5/6 Pin GX12

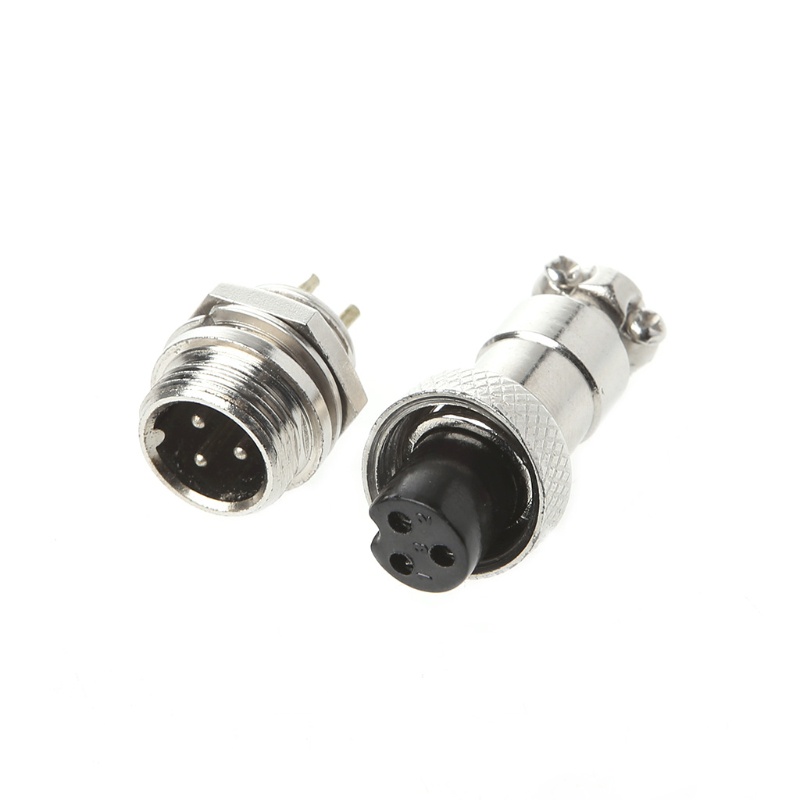

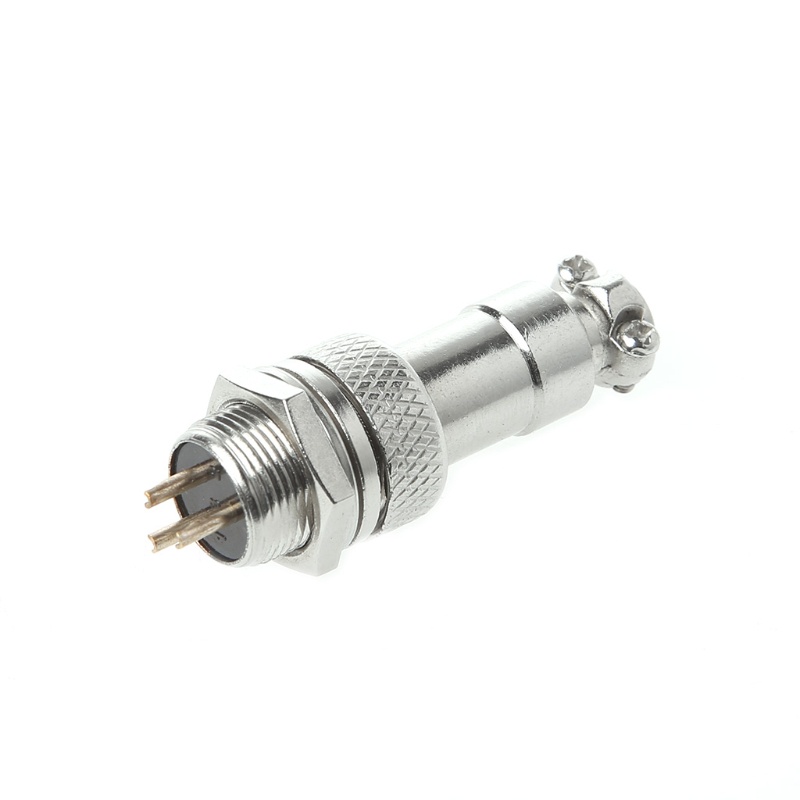

Aviation Plug Male & Female Wire Panel Metal Connector 12mm 2/3/4/5/6 Pin GX12 Features:
Straight and unshielded type, P series circular connector
Used widely in aviation, data acquisition systems, inclinometer, computer automation measurement and control systems, audio/video, test and measurement, communications, etc.
Specifications:
Model: GX 12
Material: Zinc alloy+Bakelite
Pin quantity: 2 Pin/3 Pin/4 Pin/5 Pin/6 Pin
Plug diameter: 12 mm
Max voltage: 400V
Max current: 5A
Withstand voltage: 1200V AC
Insulator resistance: >500M Ohm
Contact resistance: <10m Ohm
Male Connector Length: 20mm/0.79"
Female Connector Length: 35mm/1.38"
Quantity: 1 Set/2 Pcs
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Contents:
1 Pc x Male Connector
1 Pc x Female Connector
