Giới thiệu Dây Cáp Mạ Bạc 16 Jack Mmcx / 2pin / Qdc C12 Zsx V90 Tfz Nx7 Pro / Db3
specification
1. Product Name: NICEHCK 16 Core Silver Cable
2. Brand: NICEHCK
3. Models: C16-4
4, Material: 16 c Minerals s Silver p Lated
5 purity: 99.997%
6. Conductor Core: 23AWG
7. Number of cores: 14 * 16
8. Outer diameter of single inner core: 0.05mm
9. Single skin outer diameter: 1mm
10. Internal core structure: SPC silver plated copper
11. outer skin material: PVC
12. Color: copper, silver and gold m Ixed color
13. Plug Type: 3.5 / 2.5 / 4.4mm Male Straight
14: MMCX / 0.78mm 2Pin / NX7 / QDC connector
15. Divider material: pure copper plating
16. Use for:

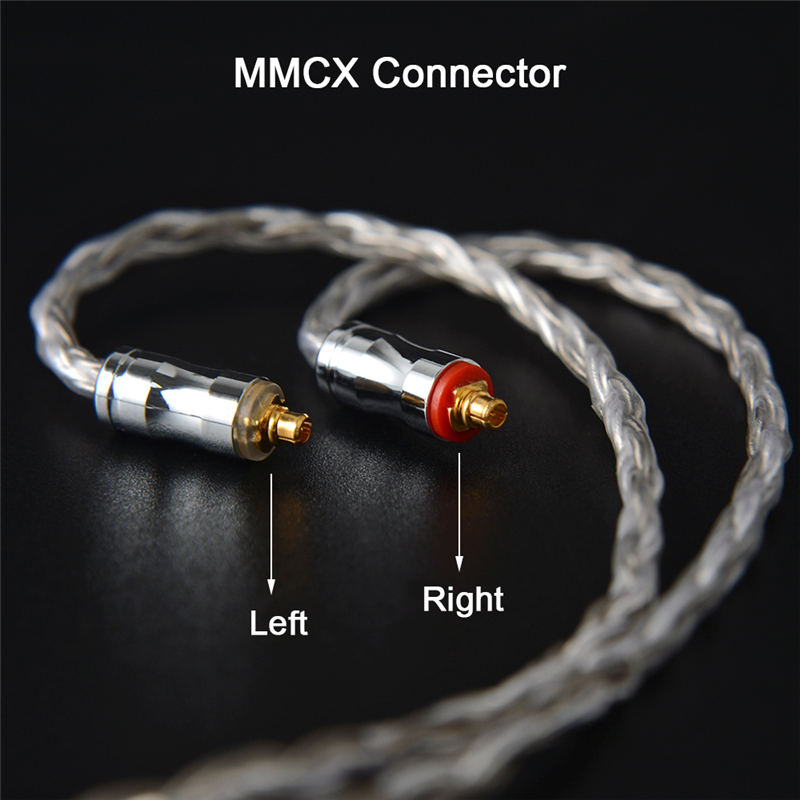

①MMCX Connector:
SE535 / SE846 / LZ A6 / A5 / A4 / A3S / A3 / SENFER DT6 / NICEHCK M6 / N3 / P3 / EBX / HC5 / HK6 / HK8 And so on MMCX universal earphone.

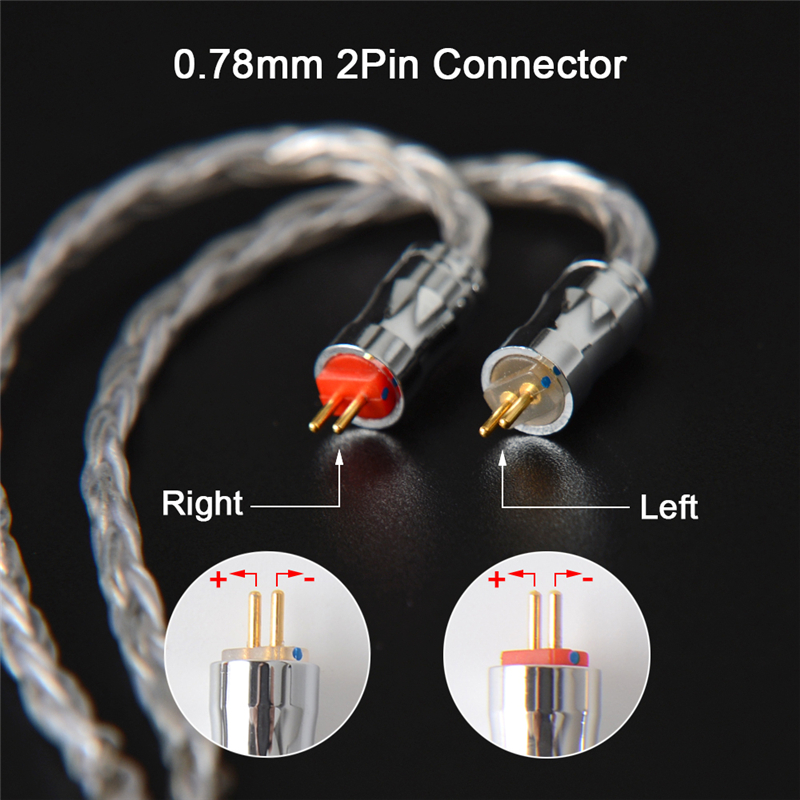

②2Pin Connector:
NICEHCK NX7 / NX7 PRO / DB3 / F3 / NK10 / FR12 / SP12 /
KZBA10 / AS10 / ZS10 / ZSR / ZST / ED12 / ES3 / ES4 /
KZ ED16 / ZS7 / ZS6 / ZS5 / ZS4 / ZS3 / ZSA / ZS3E /
CCAC04 / C10 / C16 /
TRNBA5 / V90 / V10 / V20 / V30 / V60 / V80 / IM1 / IM2 / X6
TFZ / AUGLAMOUR / BQEYZ headphones, etc. 2Pin connector
Universal earphone

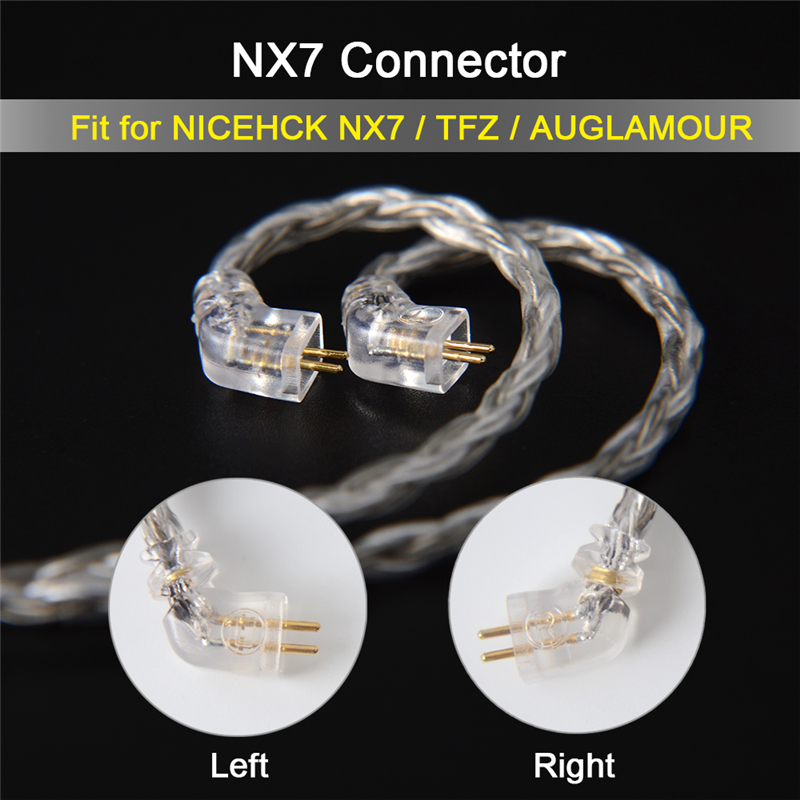

③NX7 Connector:
NICEHCK NX7 / NX7 PRO / DB3 / TFZ / AUGLAMOUR Dedicated Headphones
(NX7 connector can be used for BL-03, but it will leave a little plastic showing)
④QDC Connector:
KZZSX / ZSN / ZSN PRO / ZS10 PRO / AS12 / AS16 /
QDC Headphone / CCACA4 / A10 / C12 / TRN BA5 Dedicated Headphone
17. Item contains: NICEHCK cable * 1pcs (not include headphones)
