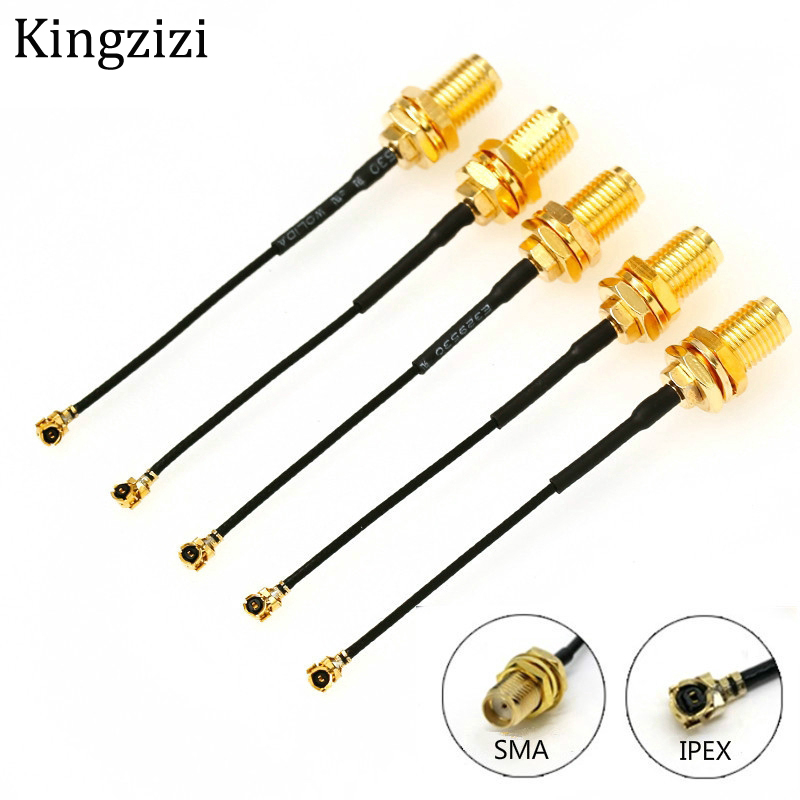

Dây cáp nối đồng trục 2 đầu cổng SMA và IPX/U.FL chống thấm nước chất lượng cao

Giới thiệu Dây cáp nối đồng trục 2 đầu cổng SMA và IPX/U.FL chống thấm nước chất lượng cao

Welcome to our shop 👑Kingzizi👑, all the products in this shop are at a favorable price💕, and have quality assurance💕, you can rest assured to buy💕, we will give you the best and highest quality shopping experience! 🌹🌹🌹


Specification :

Impendence :50 ohm

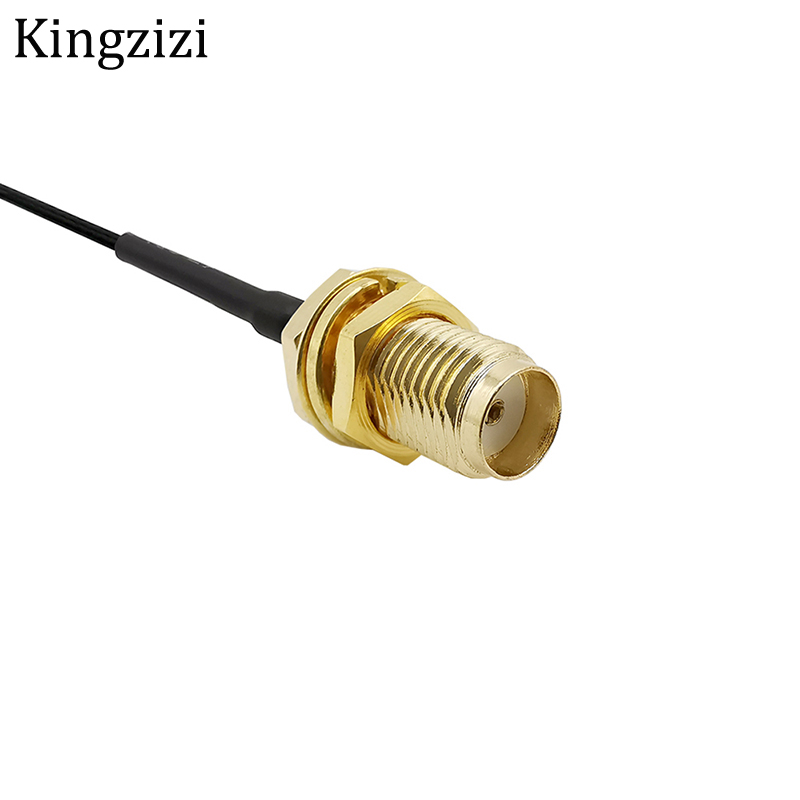

Connector 1:SMA Female straight

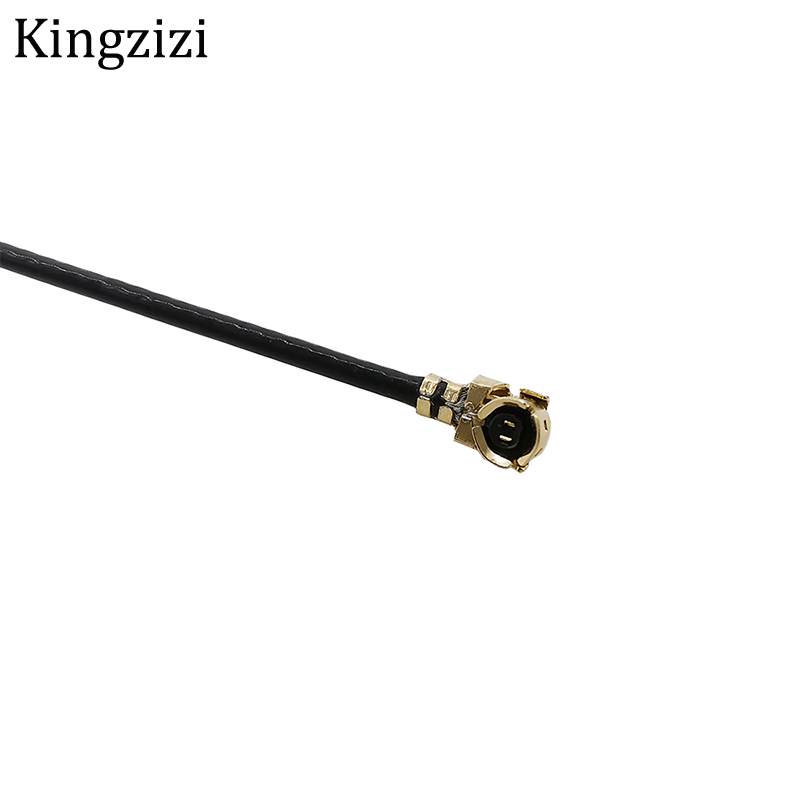

Connector 2:IPX/U.FL Connector
Cable type:1.13
Frequency range：DC/3GHz
Voltage withstand：1000V maximum
Jacket spark voltage：3000Vrms
Operating Temperature：45 °C-85 °C
Durability ：≥500 cycles
Waterproof Rate:Waterproof Rate
Part Number: IPEX -SMA female 1.13 cable
Length: 15cm

1. This kit allows you to add high gain external antennas to many wireless routers that do not normally support removable antennas

2. In most cases just open up the router, locate the connectors, connect the leads, and drill out holes in the router's enclosure for the external connector and mount

3. Fits all Mini PCIe cards with a Hirose Ufl or Ipex connector, such as IPX Bulkhead PCI Apple Airport Extreme Netgear WN2500RP WNR834B v1 v2 WNDR4300 N600 N750 N900 Linksys EA2700 EA6500 EA6700 EA4500 EA6400 E2000 WRT610N WRT320N E3000 E3200 EA3500 WNDR3400 WNDR4000 WNDR4500 R6300 and so on

4. This RF adapter cable is super handy for anyone doing RF work. Often times, small electronics save space by having a pick-and-placeable u.FL connector (also called uFL, IPEX, IPAX, IPX, MHF, and AM). But most antennas have SMA or RP-SMA connectors on them. This little cable will bridge the two

#uFL#u.FL#IPX#IPEX#RF#SMA
