Dây đai POWDER-GT2 20 răng & 60 răng 200mm

Giới thiệu Dây đai POWDER-GT2 20 răng & 60 răng 200mm

Product description:

100% brand new and high quality
Made of high-quality materials, durable
2GT timing pulley; suitable for Reprap, Prusa, MendelMax, 3D printers
The arc tooth profile is small in pitch, suitable for linear drive;
GT2 pulley with 20 teeth or grooves is one of the best choices for 3d printer structure
Compared with T2.5 or MXL synchronous pulleys, the tooth profile of GT2 pulleys has anti-backlash function.

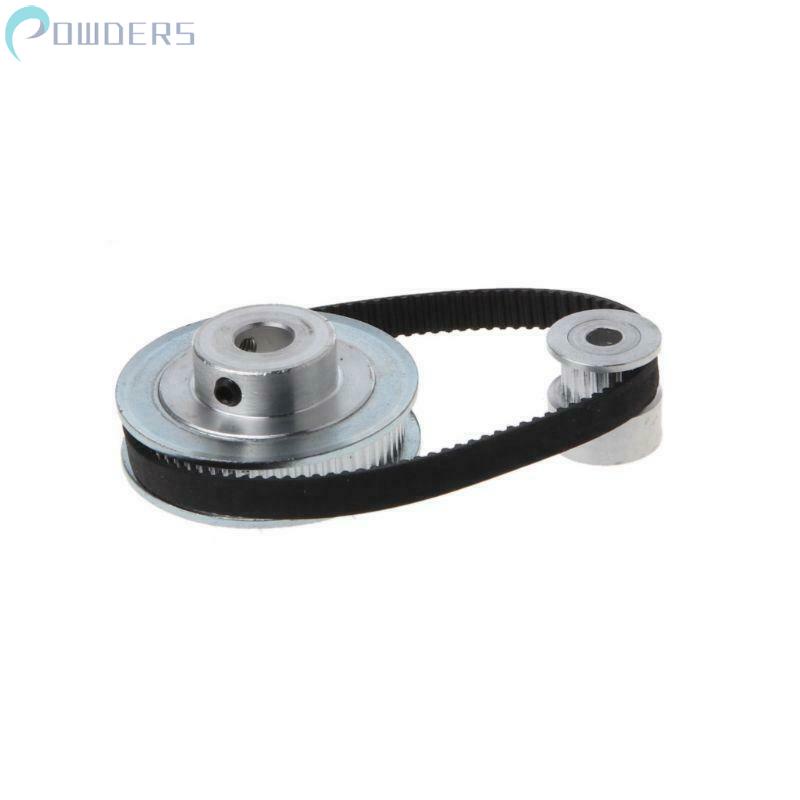

Timing belt 2GT60T20T-200 specifications:
Model: 2GT60T20T-200

200-2GT-6 timing belt:
2GT pitch: 2mm
Belt height: 1.52mm
Tooth height: 0.76mm
Material: Rubber
Pitch: 200mm
Width: 6mm
Shape: closed loop 2GT timing belt

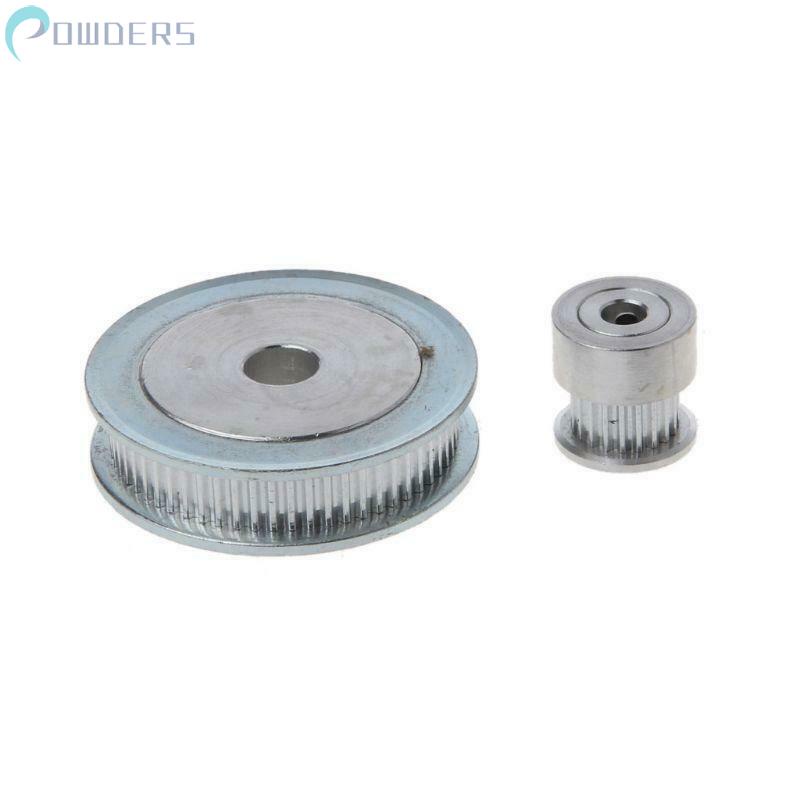

2GT pulley big:
Number of teeth: 60
Tooth pitch: 2mm
Hole diameter: 8mm
Flange: Double
Tooth width: 7mm
Material: Aluminum
Suitable timing width: 6mm

2GT small pulley:
Number of teeth: 20
Tooth pitch: 2mm
Hole diameter: 5mm
Flange: Double
Tooth width: 7mm
Material: Aluminum
Suitable timing width: 5mm

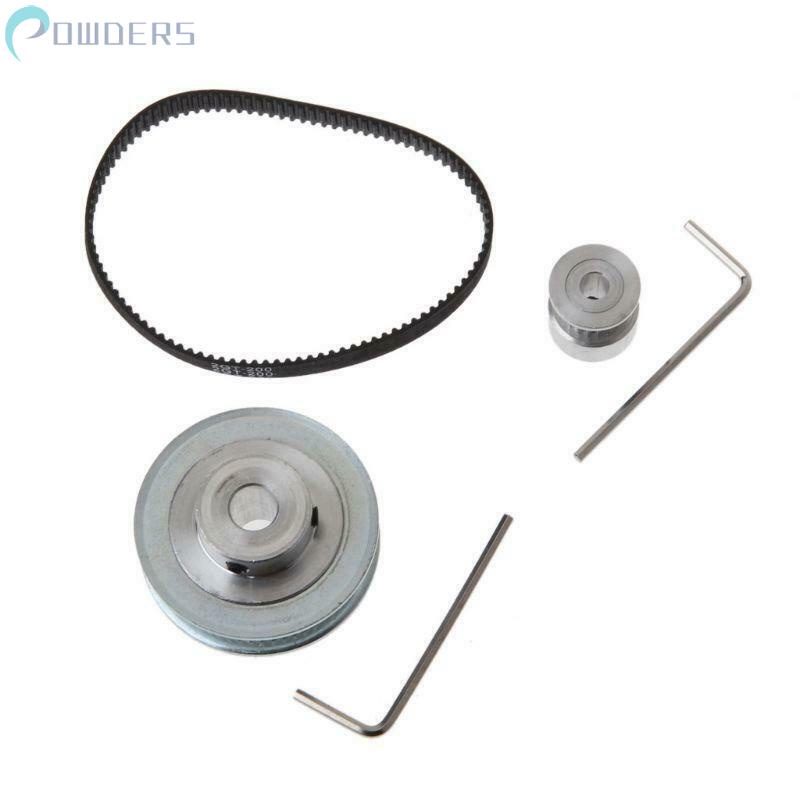

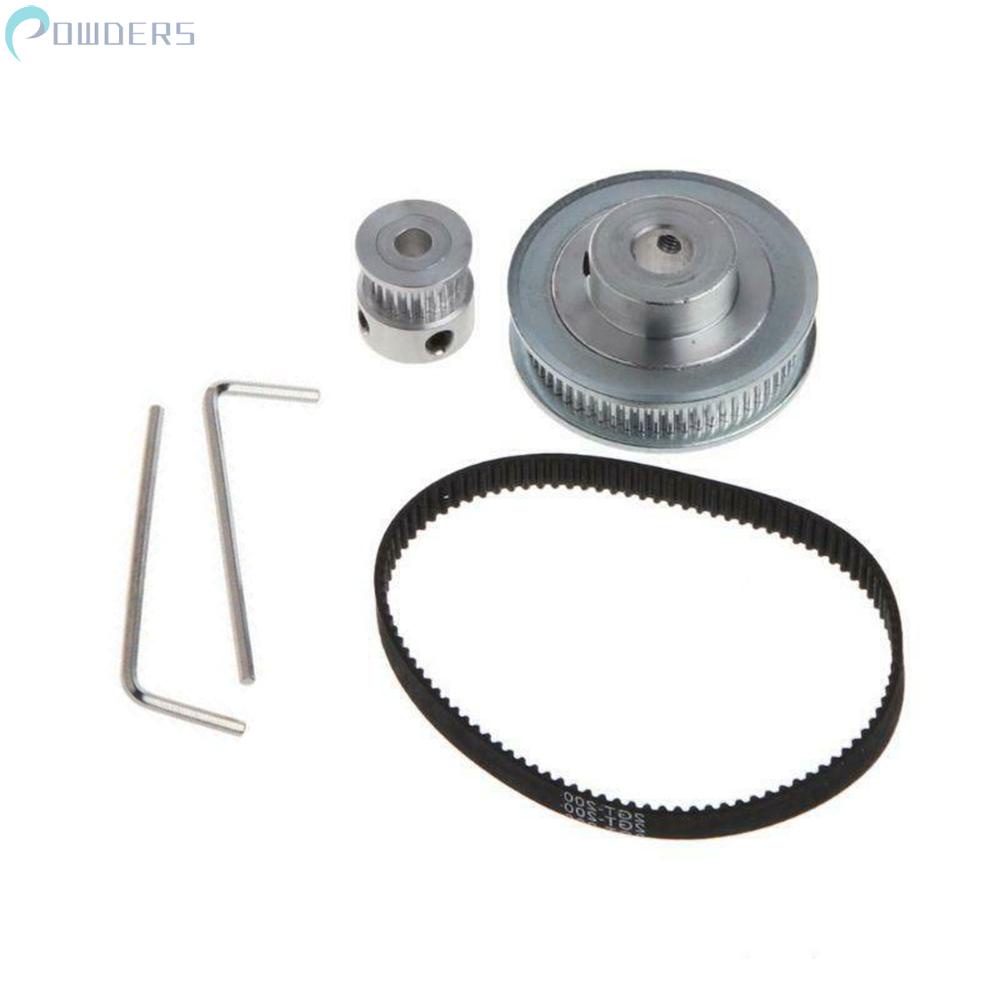

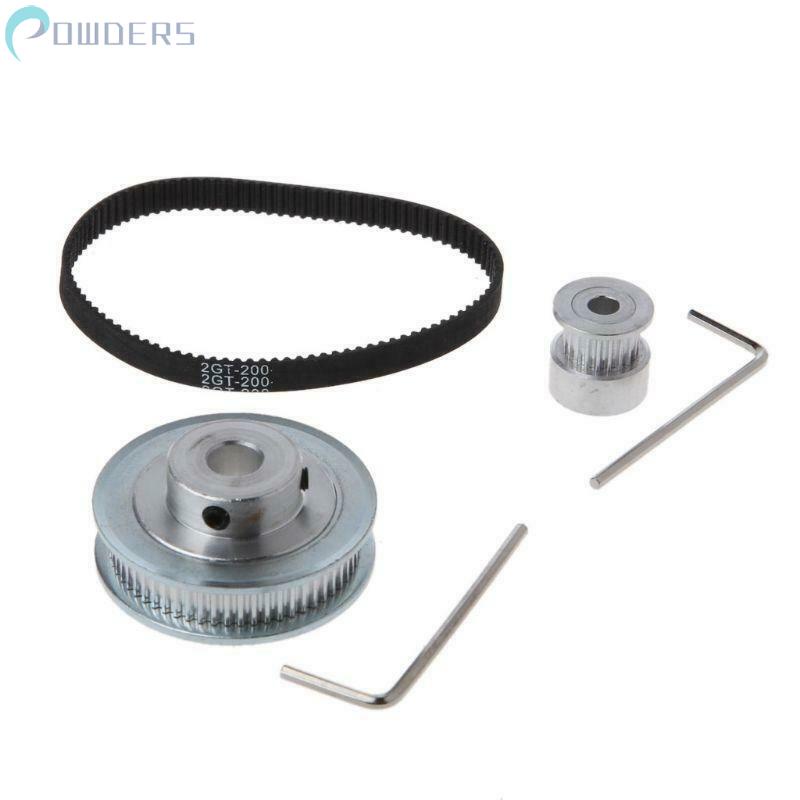

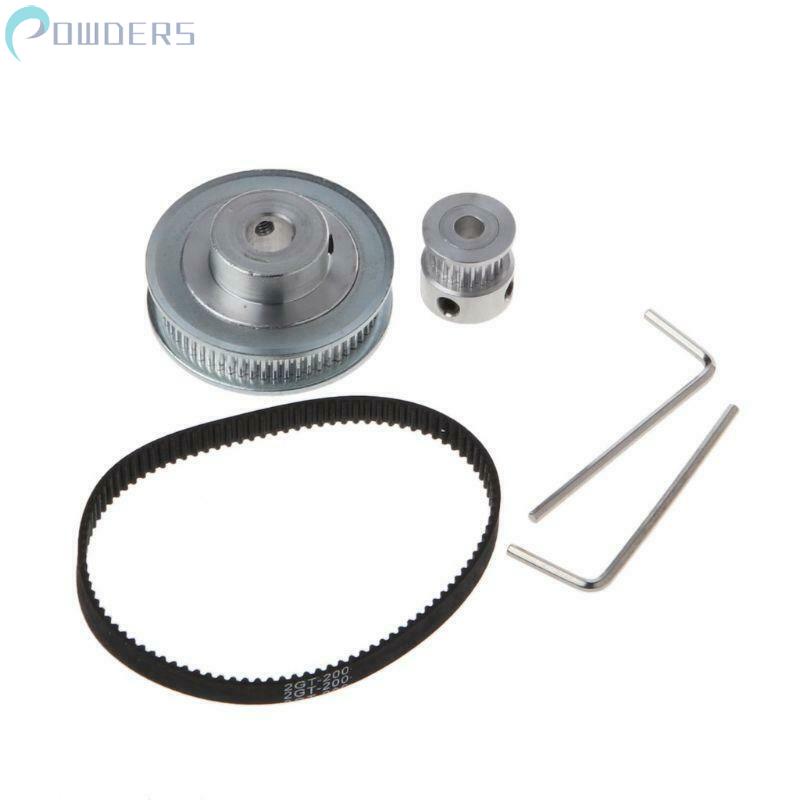

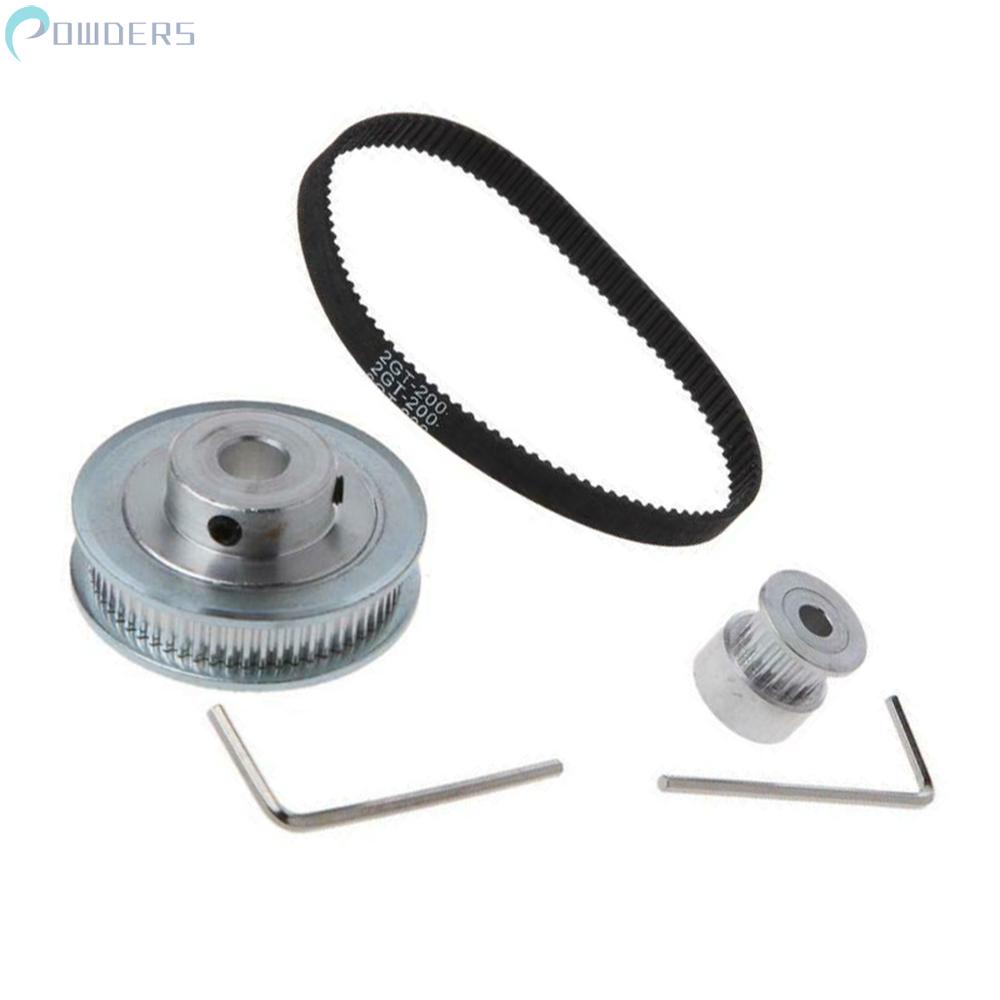

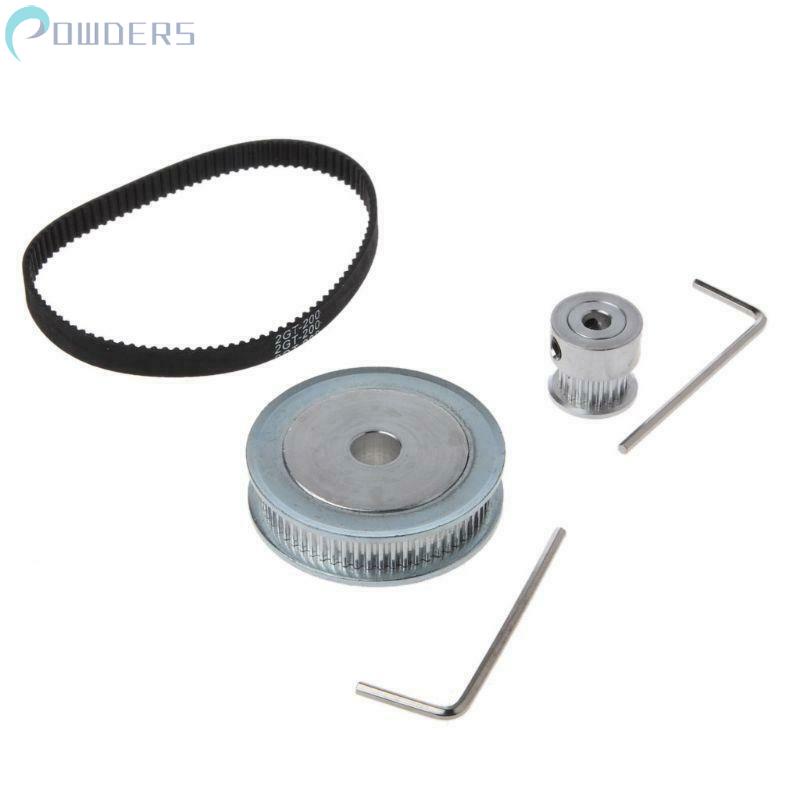

Package list:

1 *20 teeth
1 * 60 teeth
1 *200mm timing belt
2 * Wrench


Note:


1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
