DC Bộ Chuyển Đổi Nguồn Điện Từ 48v-96v Sang 12v-10a 120w Cho Xe Hơi, Ô Tô

Giới thiệu DC Bộ Chuyển Đổi Nguồn Điện Từ 48v-96v Sang 12v-10a 120w Cho Xe Hơi, Ô Tô

Welcome to our store Extremewellgen.Wish you have a good shopping.
Descriptions:
The biggest advantage of this product is that the components adopt SMT patch technology, built-in insurance ,anti-reverse connection, is a multi-purpose converter. The MOS tube and the rectifier tube adopt the new original installation to ensure the safety and stability of the converter. The shell uses new aviation aluminum to heat the heat quickly. Decreasing PCB board area, circuit board wiring is more reasonable, system work steadily.

Features:
This converter adapter features high inverter frequency, fast response, small size, light weight, low energy consumption.
High efficiency, energy saving energy,with a strong adaptability, such as low temperature, high temperature, humidity, corrosion, dust, vibration, etc. environment .
Work steadily and with wide voltage.
With reverse connection, overflows and short circuit protection, safe and reliable.
The range of anti-voltage fluctuation is wide, the ability is strong, the control precision is high.
The modular design of circuit structure are convenient for fast installation.

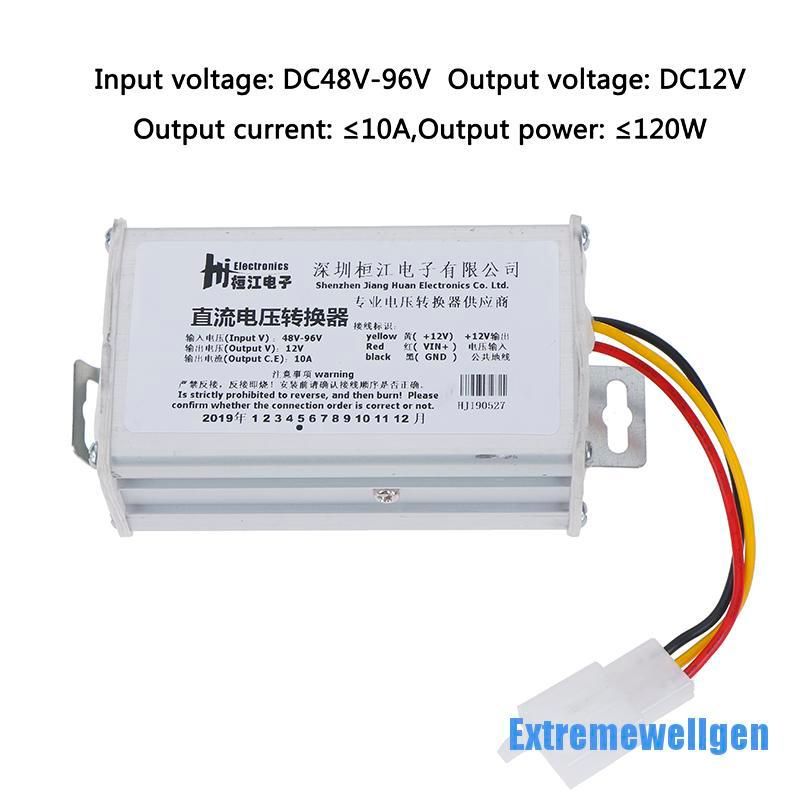

Specifications:
Input voltage: DC48V-96V
Output voltage: DC12V
Output current: ≤10A
Output power: ≤120W, continuous output power 85 (W)
Output voltage waveform: square wave
Inverter efficiency: 90 (%)
Voltage adjustment rate: 0.5 (%)
Load adjustment rate: 1 (%)
Product size: as the picture
Application: Electric Scooter, horn, LED, hernia lamp, instrument panel, etc

Note:
1.Please allow a little size error due to manual measurement.
2.Please be reminded that due to lighting effects and monitor's brightness/contrast settings etc, the color tone of the website's photo and the actual item could be slightly different.

Package include: 1 Pcs Electric Scooter Converter Adapter
